Small atc cnc router 0609 with 6 tools changer system

Dekcel small atc cnc router 0609 process soft-metal and wood with a very good performance (cutting surface will be very smooth, which can reduce the polishing process), It is also ok for engraving and cutting on other materials, like acrylic, pcb, pvc, mdf, etc

Quantity:
  • DEK-0609C
  • DEKCEL
  • 061
Small atc cnc router 0609 main features
1.It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on.
2.Configured with imported tool magazine of 6 tools the machine can change tools speedy and freely.
3.Tool sensor enables the machine compensate the tolerance of the tool length.
4.NK300 control system, separated keyboard control, color LCD display add No.25 Hiwin linear guide rail and rack from Taiwan.

Small atc cnc router 0609 technical parameters
Model DEK-6090C
X Y working area 600 x 900 mm
Feeding height 200 mm
Structure Aluminum casting structure.  Iron casting body
Movement parts high precision ball screw from taiwan
Taiwan HIWIN rails
Motor  Leadshine easy servo motor
Driver Leadshine M860 driver
Spindle power 2.2kw water cooling
Working Speed 0-4000mm/min
Control system NK300 control system,option MACH 3
Command code HPGL, G code
Working precision 0.05mm/300mm
Repeatability 0.01 mm
Power AC220V±10% / 50~60Hz
Compatible Software Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc
You can upgrade to 3.0kw,DSP,Servo motor,add water tank,add 4 axis

The detail parts of small atc cnc router 0609

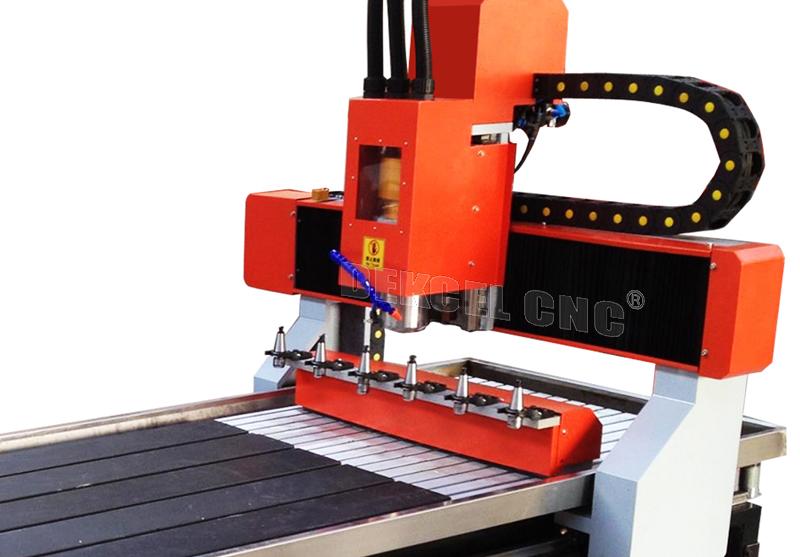

small atc cnc router with 6 tools changer system

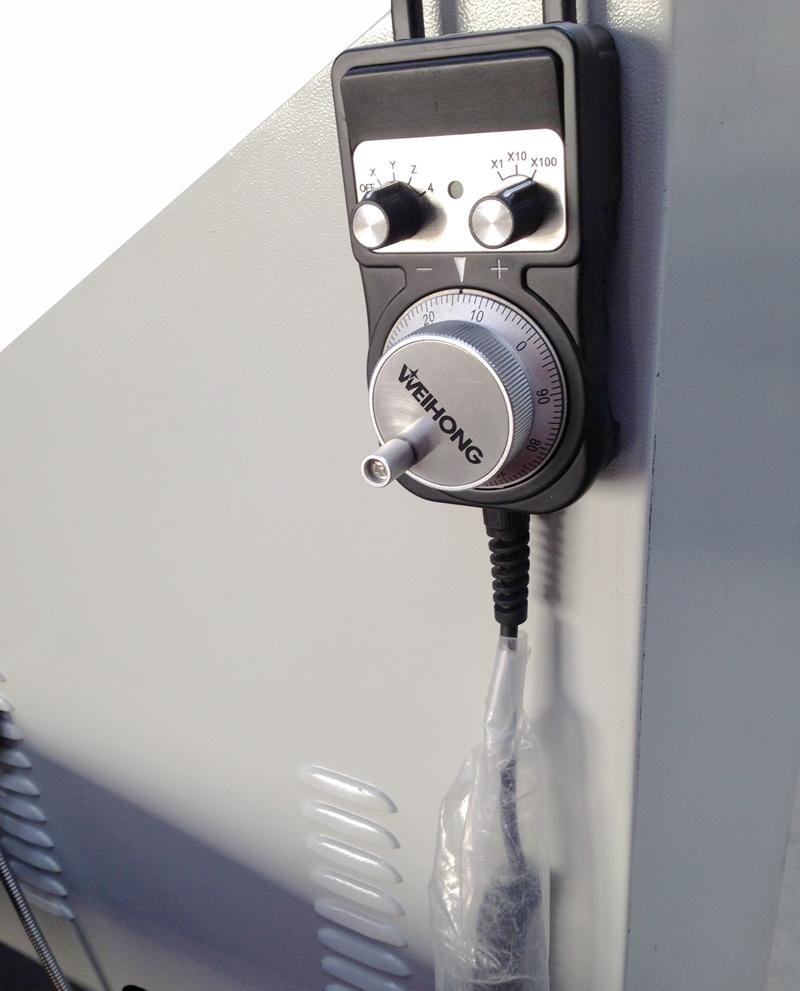

Small atc cnc router nk300 control system

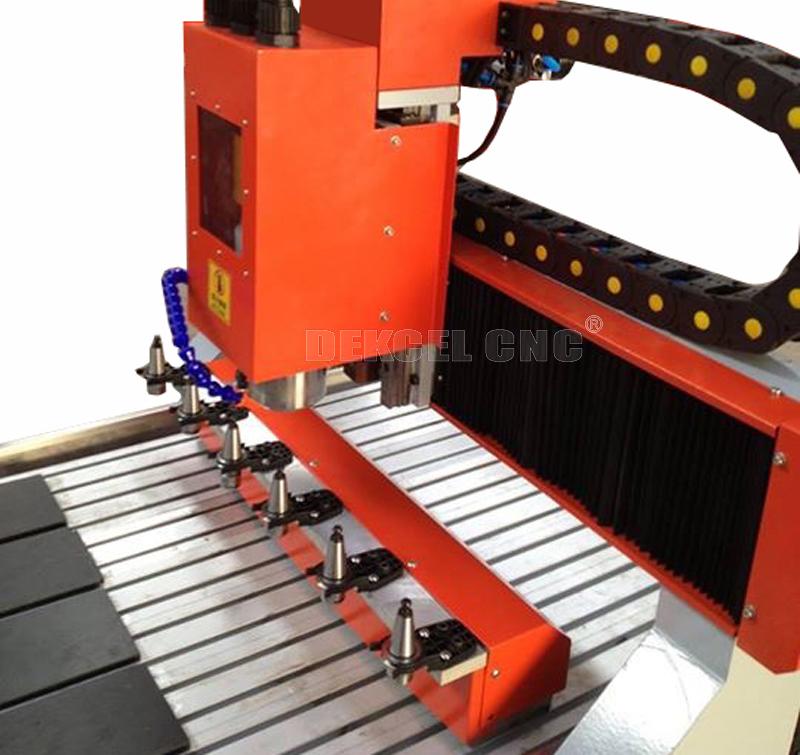

2.2KW water cooling spindle atc cnc router

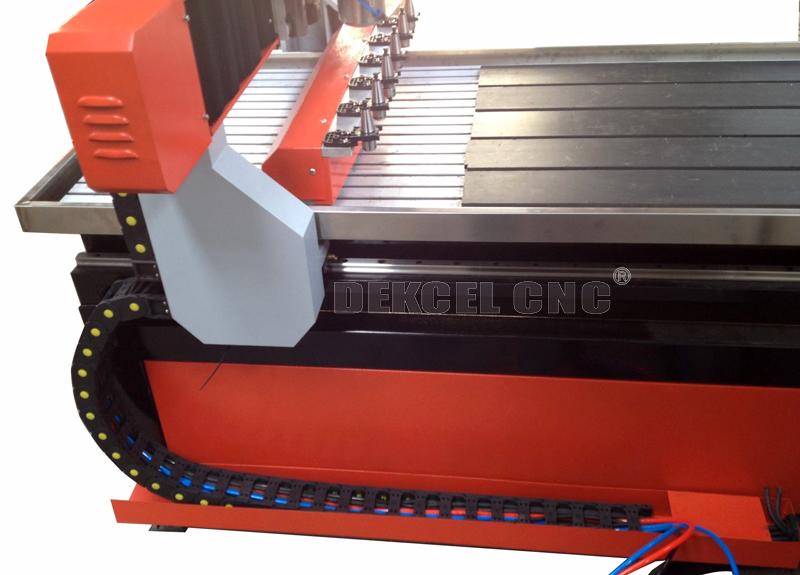

hiwin rails of small atc cnc router

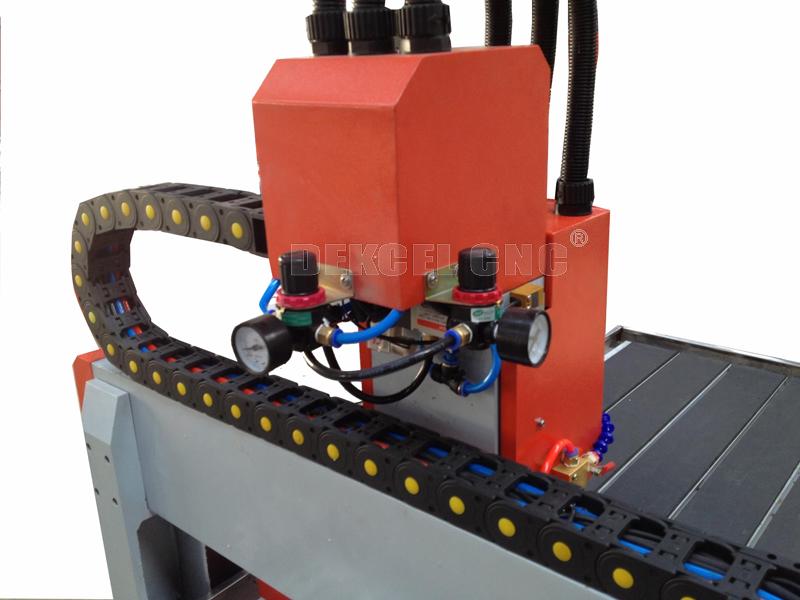

small atc cnc router
Small atc cnc router 6090 applications
Dekcel ATC cnc router machine 0609 process soft-metal and wood with a very good performance (cutting surface will be very smooth, which can reduce the polishing process), It is also ok for engraving and cutting on other materials, like acrylic, pcb, pvc, mdf, etc
small atc cnc router engraving on stone

small atc cnc router engraving on wood

small atc wood cnc router

small atc cnc router engraving on soft metal
