Richauto DSP 0609 ATC Metal Copper Mold Milling Carving Laser Cutting Router Machine

DEKCEL ATC mold milling cnc router machine suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.

Quantity:
  • DEK-0609M
  • DEKCEL CNC
  • 128

Richauto DSP 0609 ATC Metal Copper Mold Milling Carving CNC Router Machine

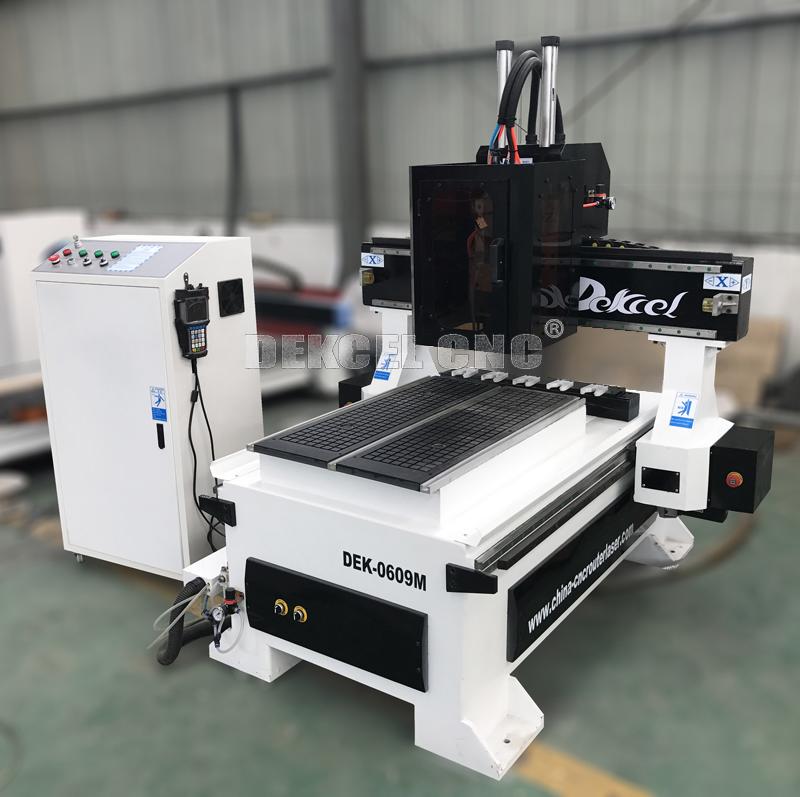

0609 atc metal mold engraving cnc router machine.jpg

Metal Mold Milling Machine Features

1. Dekcel-0609M ATC milling router adopt high-speed 4.5 ATC water cooling spindle with invariably power, big torque,strong cutting, high-frequency and long-life.

2. This mini desktop machine is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.

3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.

3. The machine with vacuum and T-slot table, holding the materials with clamps, High precision, can work on wood, plastics, acrylic and metal.

4. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size

5. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/

proe/ug.rtc

6. DEK-0609 mold milling router is the best choice for small piece materials working, can use it in the office or at home.

Parameter of ATC auto tools change mold milling machine with 5 bits

Traveling size

X Working Area

600mm

Y Working Area

900mm

Z Working Area

200mm

Accuracy

Working Accuracy

±0.01mm

Repositioning Resolution

±0.01 mm

Table

Surface

vacuum and T-slot table

Transmission

X/Y Axis

Taiwan HIWIN square guide

Z Axis

Ball screw

Structure

Lathe Structure

Integral cast iron

Speed

Rapid Travel Rate

15000mm/min

Working Speed

8000mm/min

Spindle



Spindle Power

2.2KW/3kw

Spindle Speed

0-24000rpm

Inverter

3.7KW

Working



Drive motor

 Stepper motor /JAPAN YASKAWA Servo motor

Command Language

G code(optional:HPGL)

Others

Working Voltage

AC3800/50HZ

Operating System

Richauto DSP B57



Compatible Software

Type3(optional:Artcam,Ucan)

Weight

Gross weight

1000kg

Net weight

800kg

package

1. Protective film package and fumigation-free wooden case.
2. OEM and package can according to customer requirements.

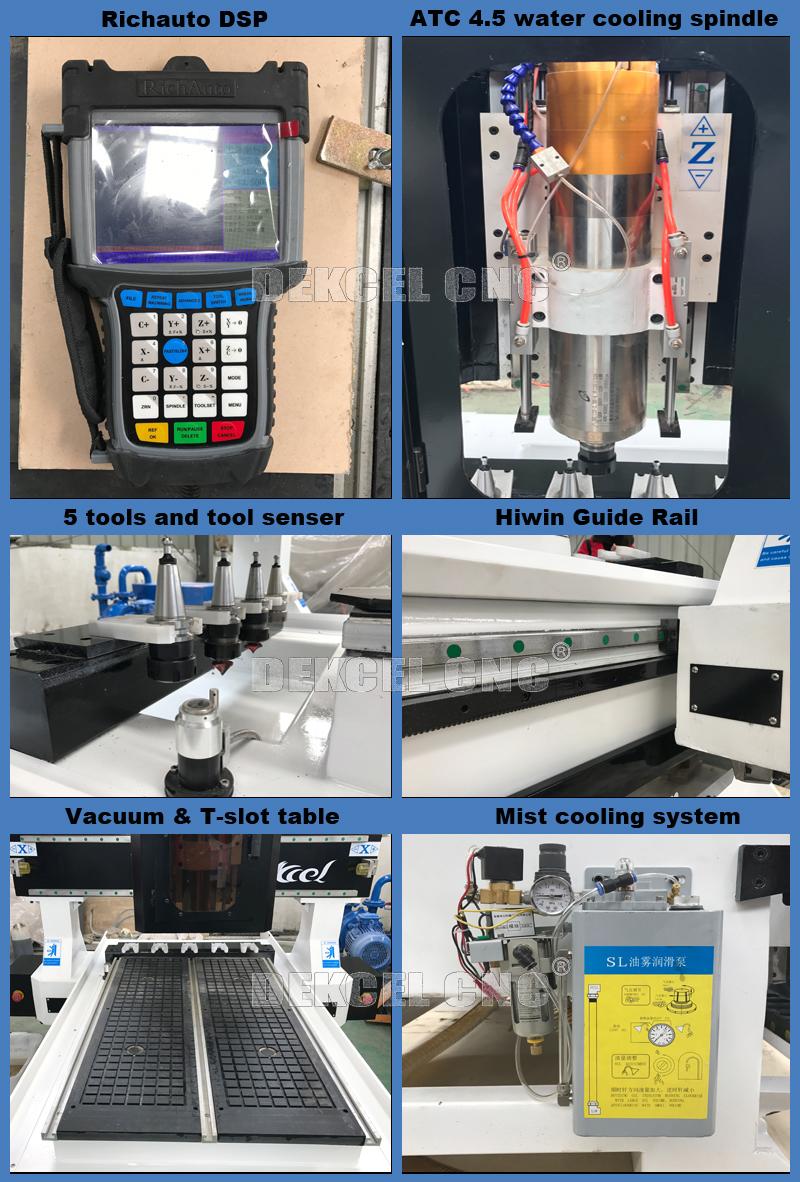

Details of ATC Mold Engraving CNC Router
  0609 atc engraving router machine details.jpg
0609 ATC Milling and Engraving Router Application:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cutting and aluminium molding, copper mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting.

copper mold milling cnc router.jpg

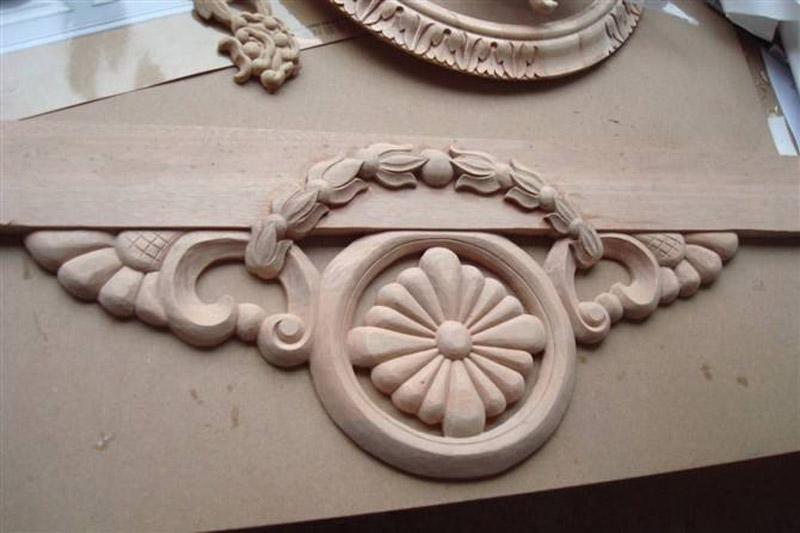

3d wood engraving ATC CNC router.jpg

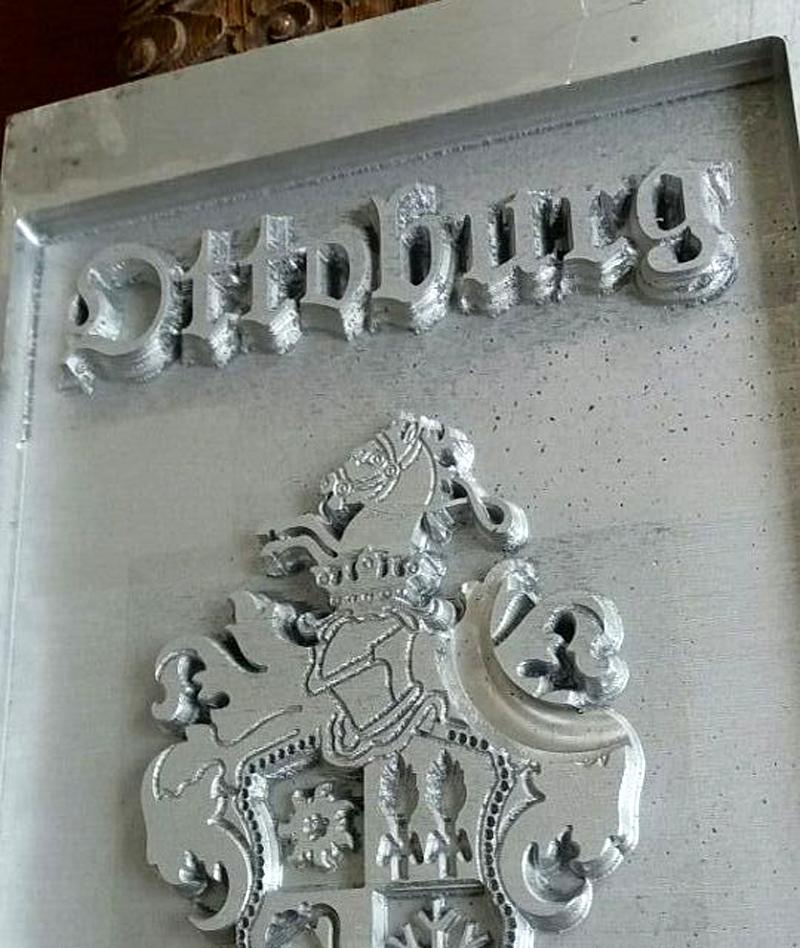

aliminium mold milling router machine.jpg

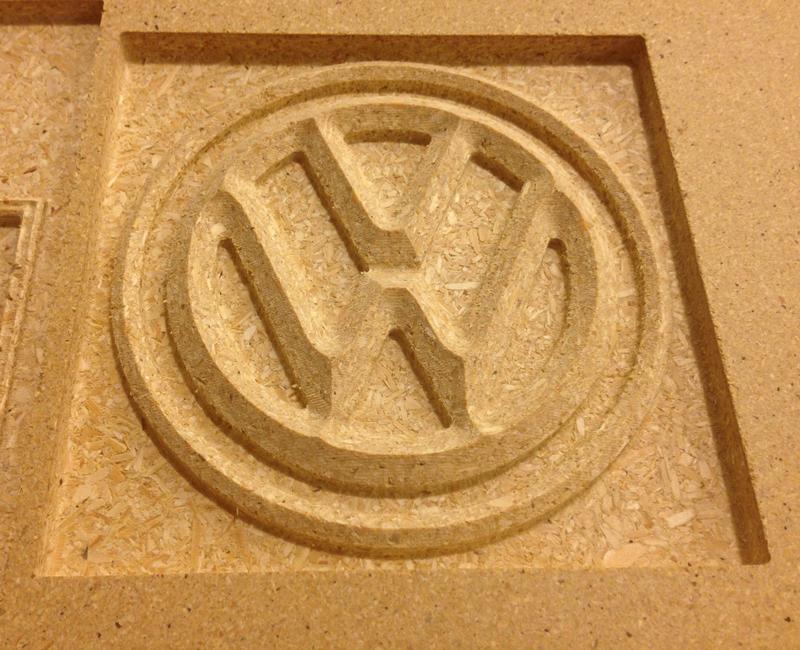

MDF wood engraving atc cnc router.jpg
