 Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325C
DEKCEL
008
Machine feature of atc woodworking machine for wood cutting
1.When delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with T-shape thick steel
3. Our cnc router bits for wood cutting equipped with 9kw Italy HSD air cooling spindle, , more powerful, enough to cut more thickness materials
4. The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Taiwan SYNTEC control system with industrial control panel.
7. Taiwan HIWIN square guide rail with 30mm diameter, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table, more stable when engraving wood doors.
9. Japanese YASKAWA servo motor and drivers.
10. Function of re-carving after break point and power off, reducing the materials wasting.
11. Good software compatibility, all kinds of CAD/CAM, such as Typ3, ArtCam, Castmate, UcanCam, Artcut engraving software, Coredraw, etc.
ATC woodworking cnc router machine main Configuration
1) Working area: 1300mm*2500mm*300mm
2) Vacuum adsorption table with 5.5KW vacuum pump
3) Cast steel structure thicken to 8mm
4) SYNTEC controller system
5) YASKAWA Servo motors and drivers
6) 9.0 kw HSD ATC spindle
7) Auto tool change with 10 tools
8) Automatic oiling system
9) Taiwan HIWIN square guide
Technician parameter
| X,Y,Z Working Area | 1300*2500*200mm |
| Drive and Motor | Japan Yaskawa driver and motor |
| Spindle | HSD 9.0kw air-cooling ATC spindle (18,000 rpm) imported from Italy |
| Frequency Inverter | 11kw Taiwan Delta VFD-B frequency inverter |
| Machine Table | Aluminium Profile T-slot and Vacuum table |
| X, Y, Z Travelling Potioning Accuracy | ±0.05/300mm |
| X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Frame | Big thickened Steel Square Tubes, thickness up to 8mm |
| Transmission System | X, Y structure: Helical Rack and pinion |
| Z structure: Taiwan TBI ballscrew | |
| Guide | Taiwan HIWIN square orbit 30mm |
| Max Rapid Travel Rate | 40,000 mm/min |
| Max Working Speed | 32,000 mm/min |
| Voltage | 220V-380V/50HZ |
| Command Languages | G code |
| Control System | Syntec control system with handle wheel |
| Software | Type3 English version Artcam English version |
| Limit stop | Extra-travel limit stop and hard limit stop |
| Emergency Stop and Switch | Japan Omron emergency stop and SCHNEIDER switch |
| Package & Package size | 3200*2100*1900mm(12.8CBM) |
| Weight | N.W. 1600 KGS |
| G.W. 1750 KGS |

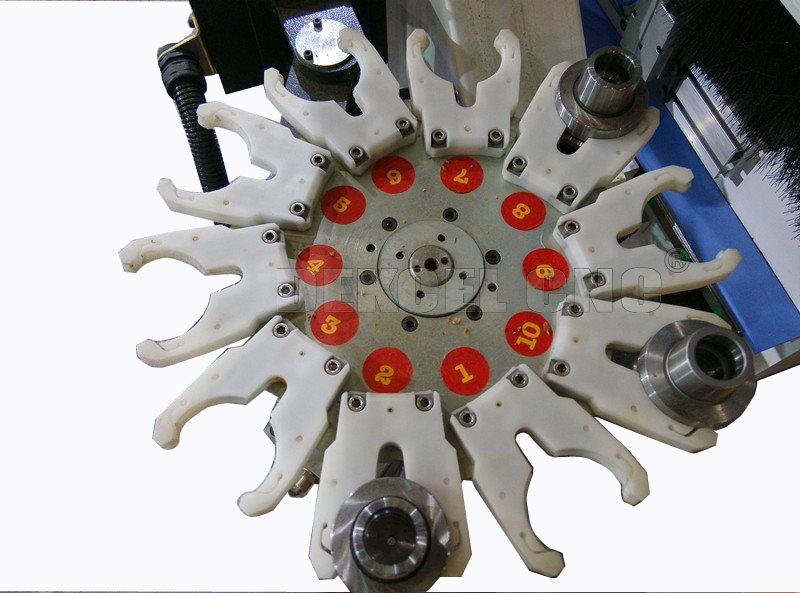

10 tools changer magazine of cnc router for wood cutting

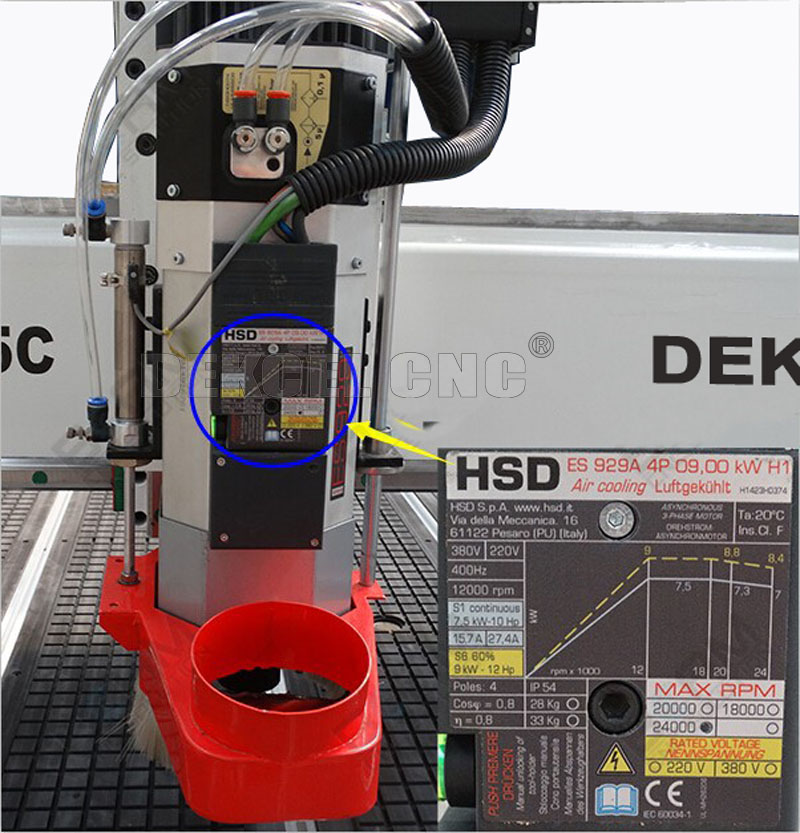

9.0KW HSD spindle air cooling spindle of wood cutting router machine

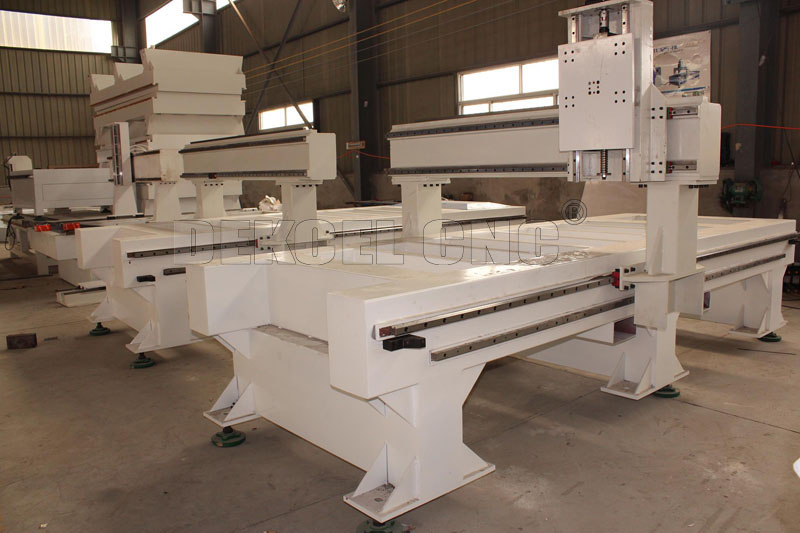

our wood cutting cnc router machine with 10mm thickness heavy stronger body

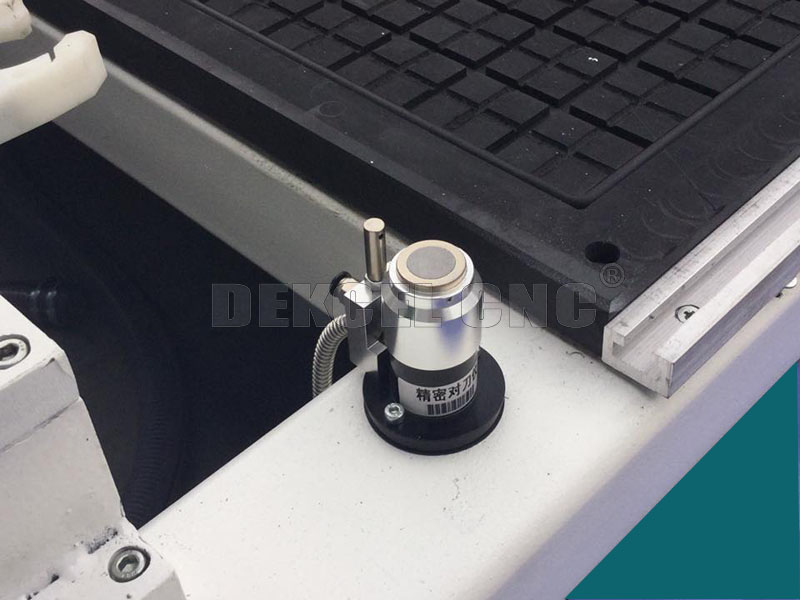

Precision tool sensor

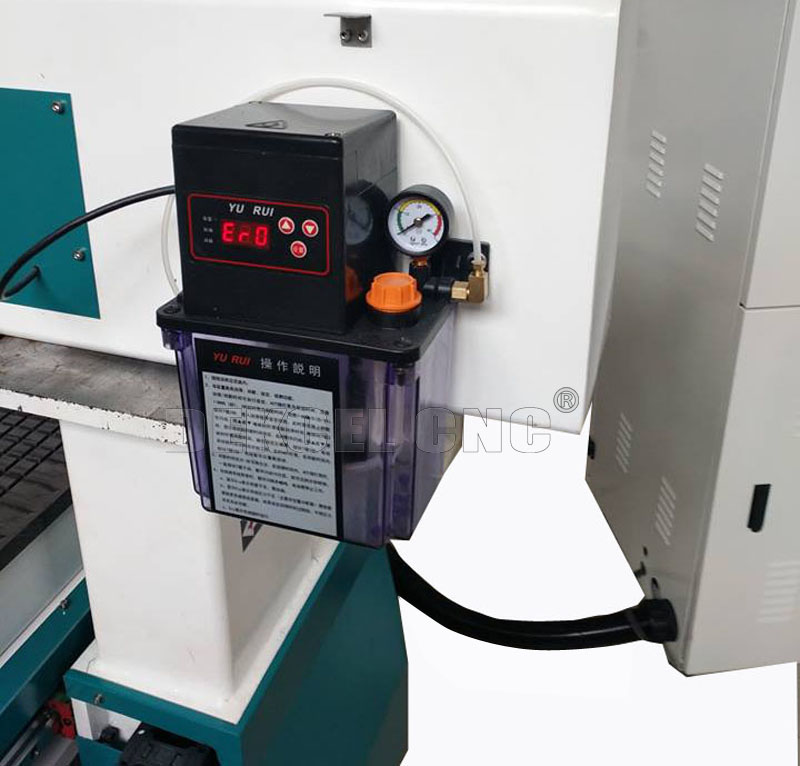

Automatic oil injection system

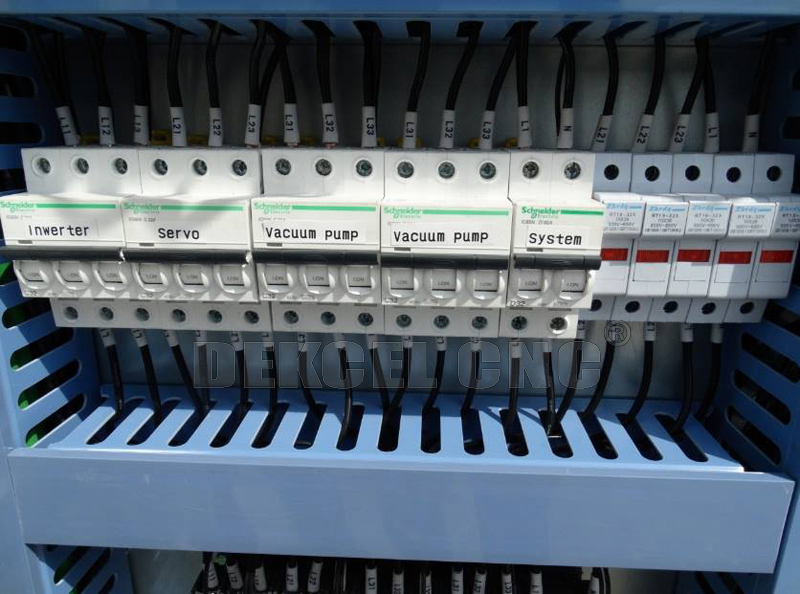

schneider electric device
The inner quality control
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every cnc router machine for wood cutting must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary.
