 Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325C
DEKCEL
006

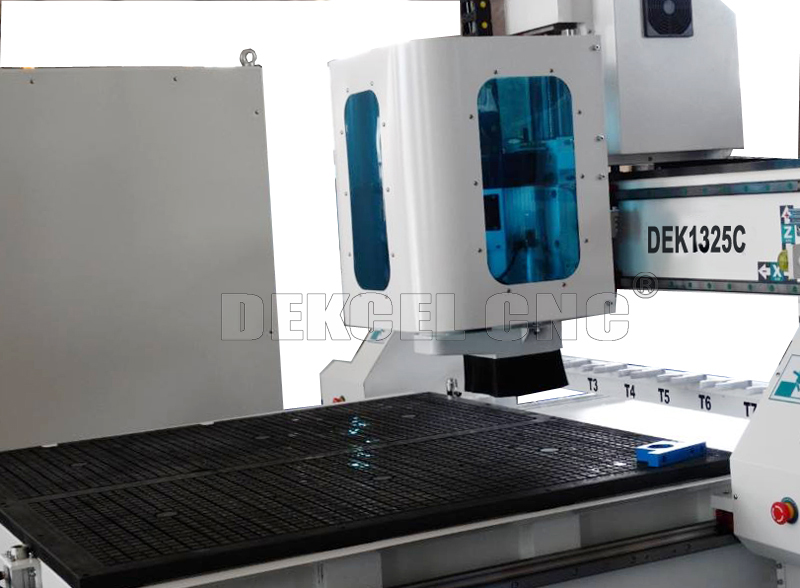

Standard configuration of atc cnc router
1)9.0kw Italian HSD spindle with ATC, ER32.
2)Yaskawa servo system ensures machine to run with fast speed and low noise.
3)Syntec windows control system.
4)8 pieces tool holders.
5)Unique Auto Tool Changer system can change tools alternatively, special tool sensor to compensate the tolerance of tool length.
6)Tool magazine capacity of 8 tools, changing tools only takes 8 seconds.
Technician parameter
| Working Area: | 1300*2500*250mm |
| Spindle Type: | Air cooling spindle ,with automatic tool changer function |
| Spindle Power | 9.0KW HSD ATC |
| Spindle Rotating Speed | 0-18000rpm |
| Power (except spindle power) | 5.8KW (include powers of: motors, drivers, inverter and so on) |
| Power Supply: | AC380±10, 50 HZ |
| Worktable: | Vacuum Table and T-slot |
| Driving Syestm: | Japanses Yaskawa servo motors and drivers |
| Transmission: | X,Y :Gear rack, HIWIN square guide rail, Z: ball screw TBI and hiwin square guide rail |
| Locating precision: | <0.01mm |
| Min Shaping Character: | Character:2x2mm,letter:1x1mm |
| Operating Temperature: | 5°C-40°C |
| Working Humidity | 30%-75%(without condensed water) |
| Working Precision | ±0.03mm |
| System Resolution | ±0.001mm |
| Control Configuration: | Syntec control system |
| Data Transfer Interface: | USB |
| System Environment: | Windows 7 |
| Spindle Cooling Way: | Air cooling by fan |
| Inverter: | Delta |
| Limited Switch: | High sensitivity limited switches |
| Graphic Format Supported: | G code: *.u00, * mmg, * plt, *.nc |
| Compatible Software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
| Cutting Thickness: | 0-40mm also (depends on different material) |
| Z Tool Censor: | yes |
| Packing | Plywood case (veneer wood case for export) |

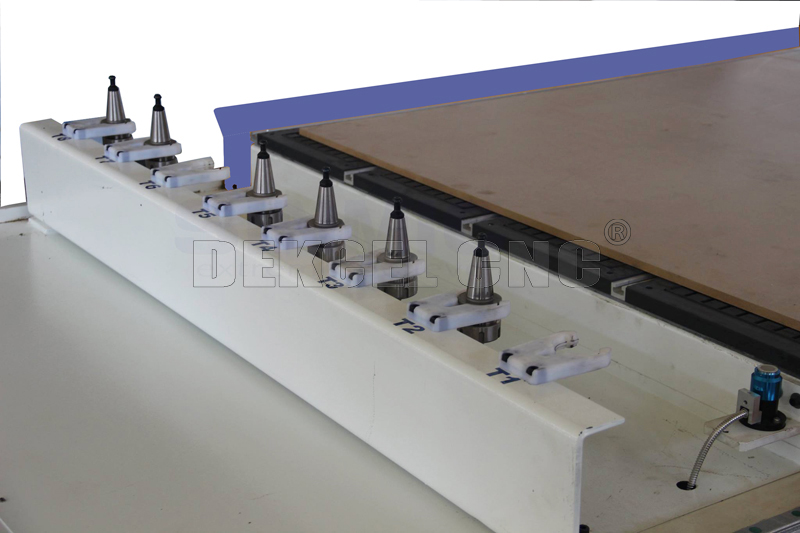

8 automatic tool change Magazine
Taiwan Syntec control system

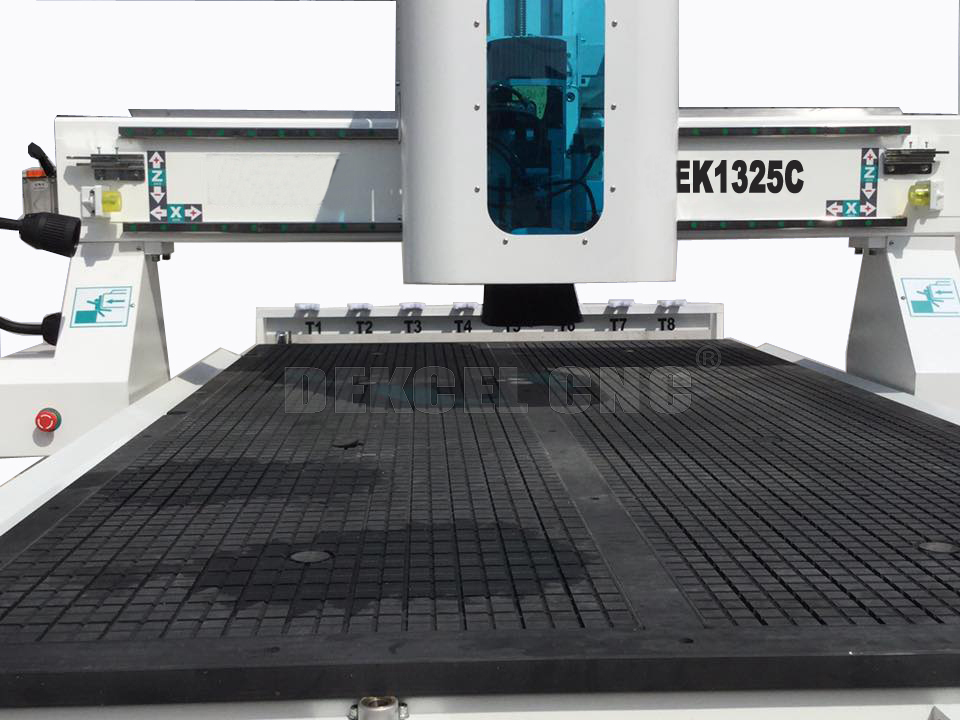

Vacuum table

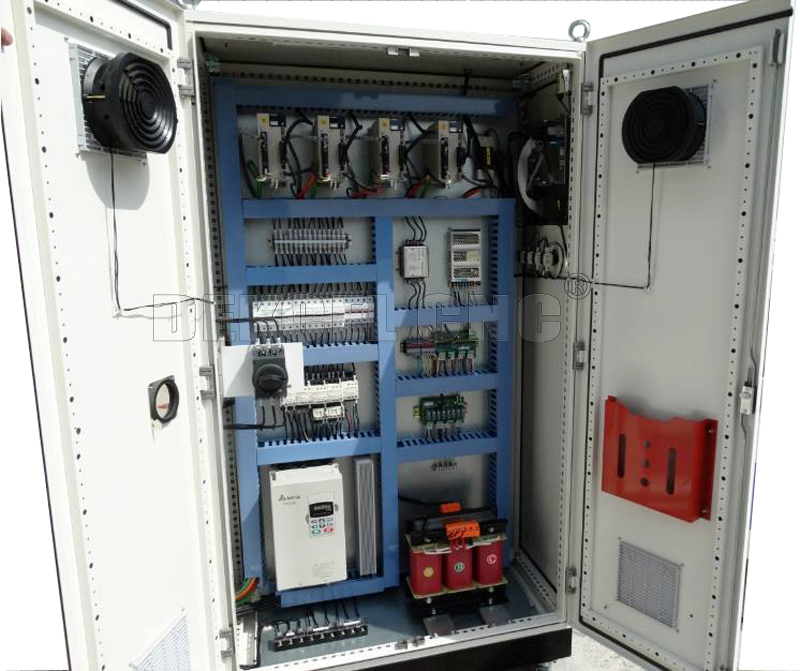

Control box
Packing & Shipping of this atc cnc router
Machine size:
3420*2150*1740mm
Packing size:
3520*2250*1990mm
Weight:
1100KG/ 1450KG with package
Packing & shipment
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
