portable mopa color fiber laser cutting machine for stainless steel
You are here: Home » Cnc Laser » Laser marking machine » Fiber laser making machine » portable mopa color fiber laser cutting machine for stainless steel
Share to:

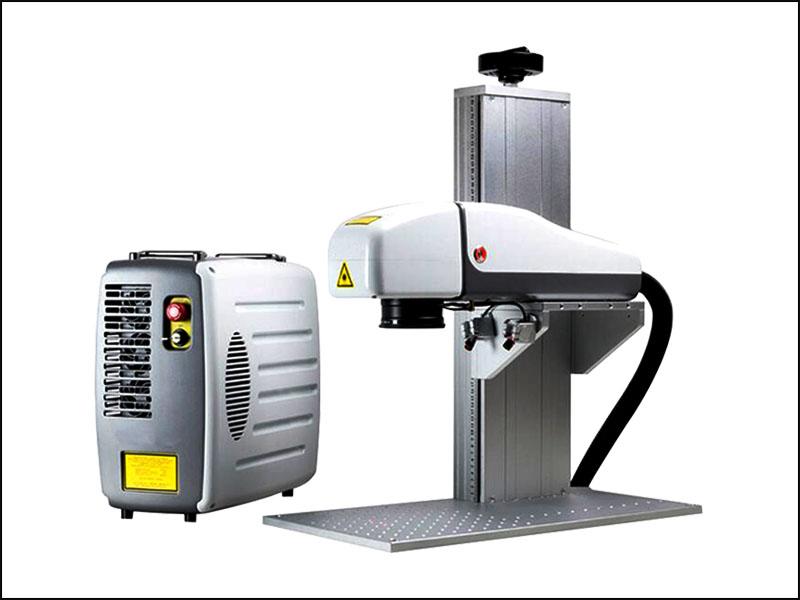

portable mopa color fiber laser cutting machine for stainless steel

DECKEL CNC MOPA color laser marking machine belongs to the category of fiber laser marking machine,MOPA laser generator with perfect laser characteristics and good control capability of pulse shape can mark black logo,trademark,model,text on the surface of Anodized aluminum material ,can mark any color on surface of stainless steel as you prefer,
DEKCEL CNC offer the best quality and best price of MOPA color marking machine for you.

Quantity:
  • DEK-20F-MOPA
  • DEKCEL CNC
  • 147

Portable Mopa Color Fiber Laser Marking Machine Price for Stainless Steel

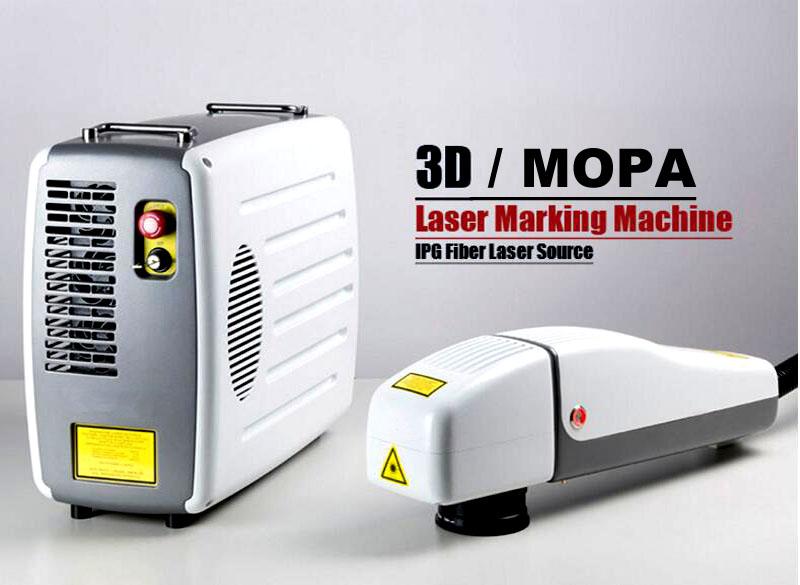

JPT mopa color fiber marking machine price

Working Video Of Color Marking On SS By Our MOPA Machine

The Description for Mopa Laser Marking Generator

mopa color marking laser generator



1. MOPA color marking machine belongs to the category of fiber laser marking machine,mopa laser generator with perfect laser characteristics and good control capability of pulse shape.

2. The pulse frequency and width of MOPA fiber laser are independent and controllable.
3. Through the adjustment of these two laser parameters,it can achieve constant peak power output and can be applied to a wider range of marking substrate.
4. The main advantage is that the first pulse is available, the pulse width modulation is wider, and the response speed is faster.

mopa color laser marking machine
Advantage of Mopa Laser Marking Machine

1.MOPA color marking generator - Pulse frequency and pulse width are independent and controllable.
The pulse frequency and pulse width of MOPA fiber laser are independent and controllable,through two laser parameter adjustment collocation,it can achieve constant peak power output and can be applied to a wider range of marking substrate.It has the advantages of first pulse is available, the pulse width modulation is wider, and the response speed is faster.
2.Aluminum Oxide blackening and stainless steel color marking
It is mainly used in stainless steel color marking, aluminum oxide blackening, stripping anode, stripping coating, semiconductor and electronics industry, plastic and other sensitive material marking and PVC plastic pipe industry.
3.The marking speed is fast and the efficiency is high
During the same working time,the processing quantity is obviously improved,accelerating the return on user investment,the marking and engraving speed ≤12000mm/s.

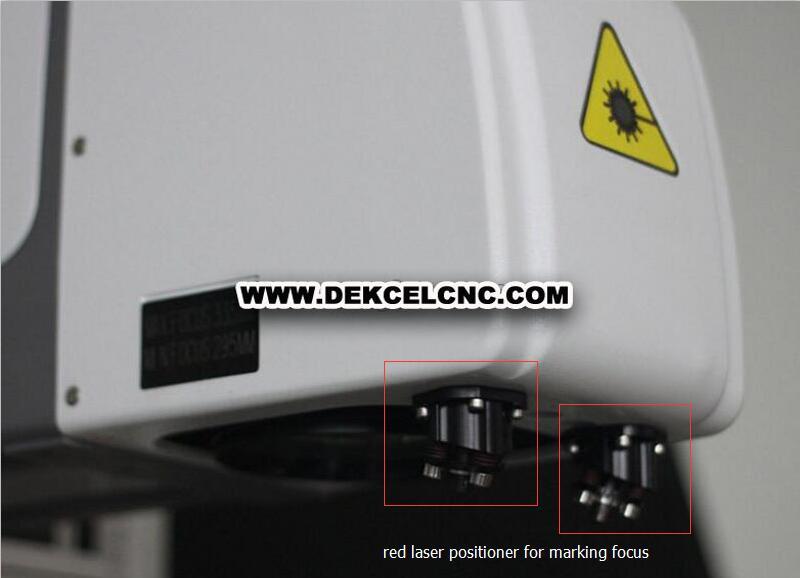

red laser positioner for mopa color marking focus

4.Higher reliable performance of Mopa laser generator

The mopa laser source is designed to be quite small and flexible,compact structure and small size, good heat dissipation effect,can work in a bad environment, such as high impact, high vibration, high temperature, under the condition of dust.
Parameter of Stainless Steel Mopa Color Marking Machine



Laser model

DEK-20-MOPA

DEK-30-MOPA

DEK-50-MOPA

DEK-70-MOPA

DEK-100-MOPA

Laser power(W)

20W

30W

50W

70W

100W

Wavelength (nm)

1064

Laser beam quality (M2)

≤1.3

≤1.5

≤1.8

Frequency Rate Range(kHZ)

1-1000

Modulation (kHZ)

20-80

20-80

50-100

20-100

20-100

Pulse width (ns)

60-250

Marking speed (mm/s)

5000-30000

Locating speed (mm/s)

7000-50000

Min resolution (mrad)

0.012
Repetition accuracy ±0.002mm
Power connection 220V±10%/50HZ
Total power (w) 300 300

400

500 600

Cooling way

Air Cooling

Type Option

Mini Portable / Desktops / Handhold Type / Intelligent

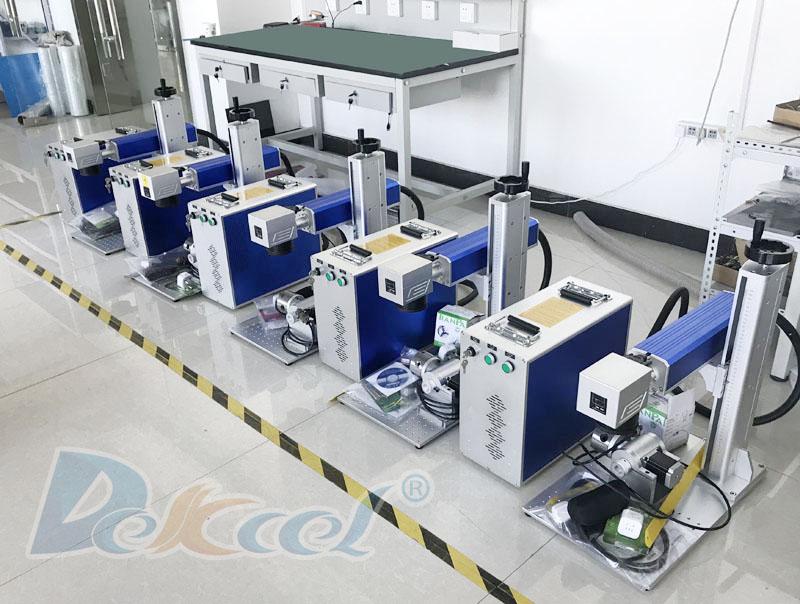

mopa color laser marking machine price

Please tell us your request,we can cusmoized any type mopa color marking machine for you.

DEKCEL CNC not only offer you the best quality machine,but also offer you best laser marking solution.
Application for China mopa color marking machine
It is mainly used in stainless steel color marking, aluminum oxide blackening, peeling anode, stripping coating, semiconductor and electronics industry, plastic and other sensitive material marking and PVC plastic pipe industry.

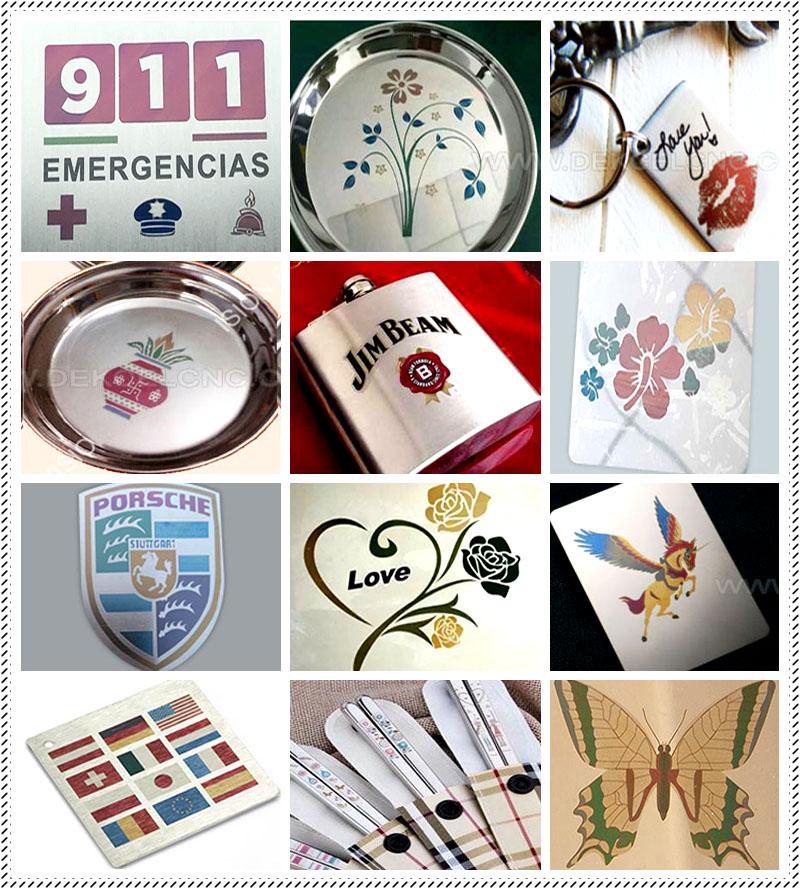

mopa color marking on stainless steel
