Hand held metal and plastic portable fiber laser marking machine

Hand held metal/plastic portable fiber laser marking machine suitable for Gold, Silver, Diamond, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing,Clock, Auto Parts,Plastic& Paper Materials,

Quantity:
  • DEK-20WF
  • DEKCEL
  • 083
Standard Model of hand held portable fiber laser marking machine
Including Control Box ,Lifting worktabke with laser head ,Laptop .
This machine is very compact and can put on the desk for marking works.
Package size : 850x480x850mm.
Gross weight: 95 kgs .
Transporaton : By Sea or Airline .

Features of hand held portable fiber laser marking machine
Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
Maintenance Free, save equipment and worker cost;
Imported Galvonometer, Higher precision,faster speed;
Higher photoelectric conversion efficiency,  Low power consumption;
Red light preview, more accurate and reduce positioning time;
Laptop with Powerful marking software;
User friendly software interface, easy operation;
Set and deal different layers graphic separately;
Support PLT,PCX,AL,DXF, BMP,JPG formats file;
Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code  auto  arrangement and amendment.


Technical Parameters of hand held fiber laser marking machine

 Type

DEK-10WF

FL-20WF

 Power

10W

20W

 Laser Wavelength

1064nm

 Marking Area

150mm*150mm

 Optional Marking Area

100mm*100mm / 200mm*200mm / 300mm*300mm

 Marking Depth

≤1.2mm

 Marking Speed

800 standard characters/second

 Minimum Line Width

0.012mm

 Minimum Character

0.15mm

 Repeated Precision

±0.003mm

 Life-span of Fiber Laser Module

100 000hours

 Beam Quality

M2 <1.5

 Focus Spot Diameter

<0.01mm

 Output Power of Laser

10%~100% continuously to be adjusted

 System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

 Cooling Mode

Air cooling--Built-in

 Temperature of Operation Environment

15℃~35℃

 Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

 Power Requirement

<400W

 Communication Interface

USB

 Machine Dimension/after package

650mm*210mm*550mm/880*420*700mm

 Net Weight/gross weight

30KG/53kgs

 Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation

Detail parts of hand held portable fiber laser marking machine

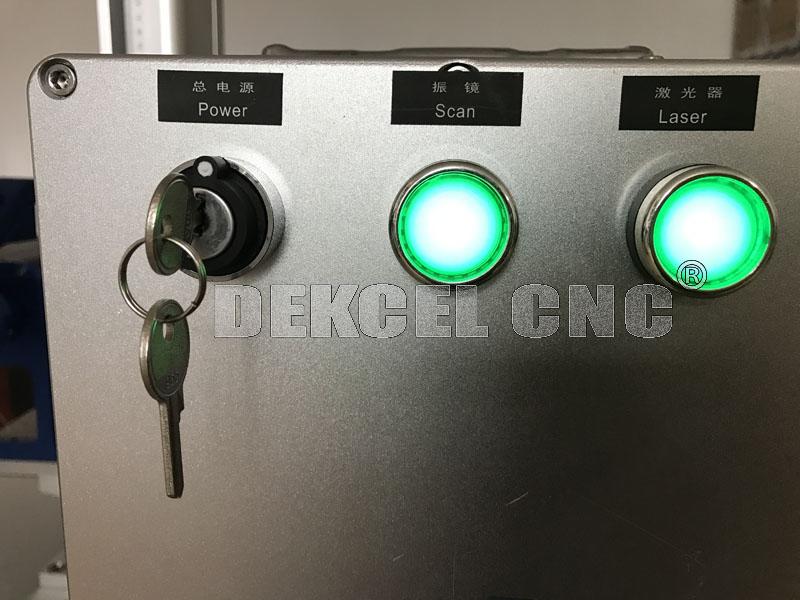

power switch of portable fiber laser marking machine

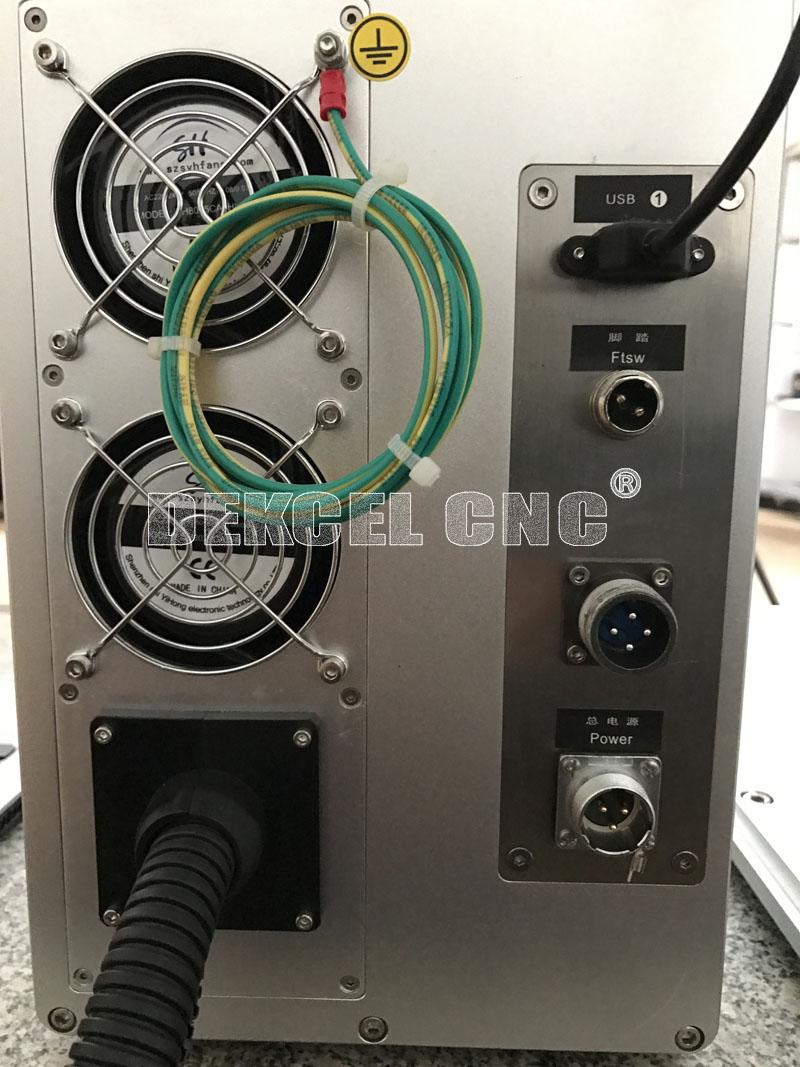

back side fiber laser marking machine

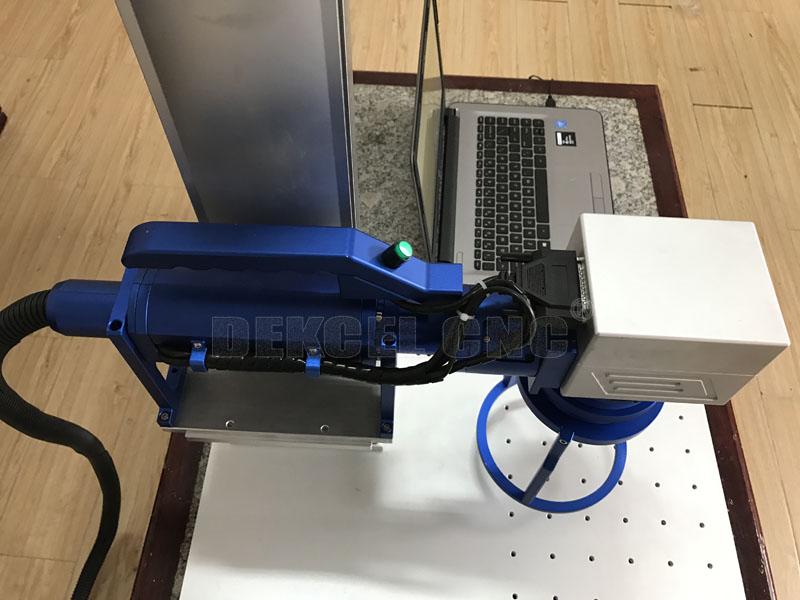

handheld fiber laser marking machine

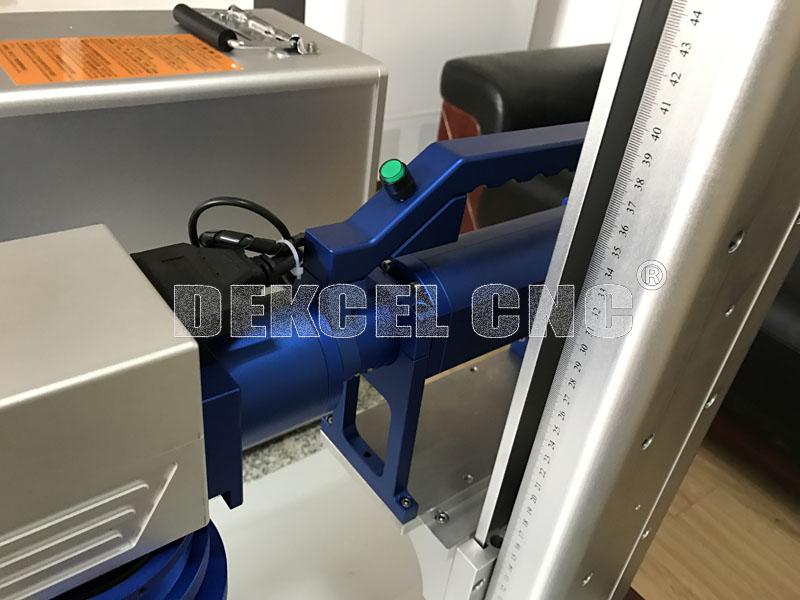

metal portable fiber laser marking machine

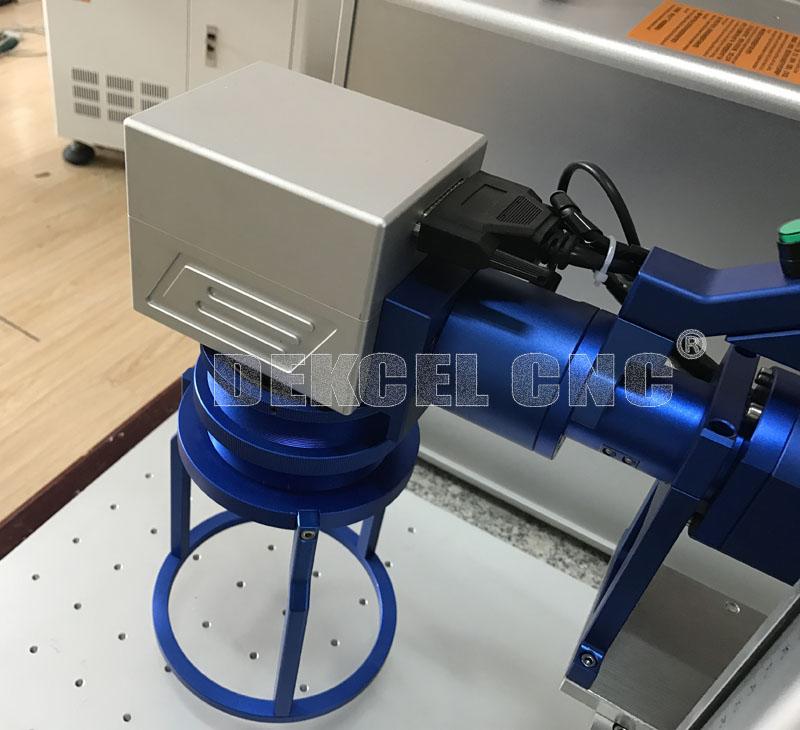

plastic portable fiber laser marking machine

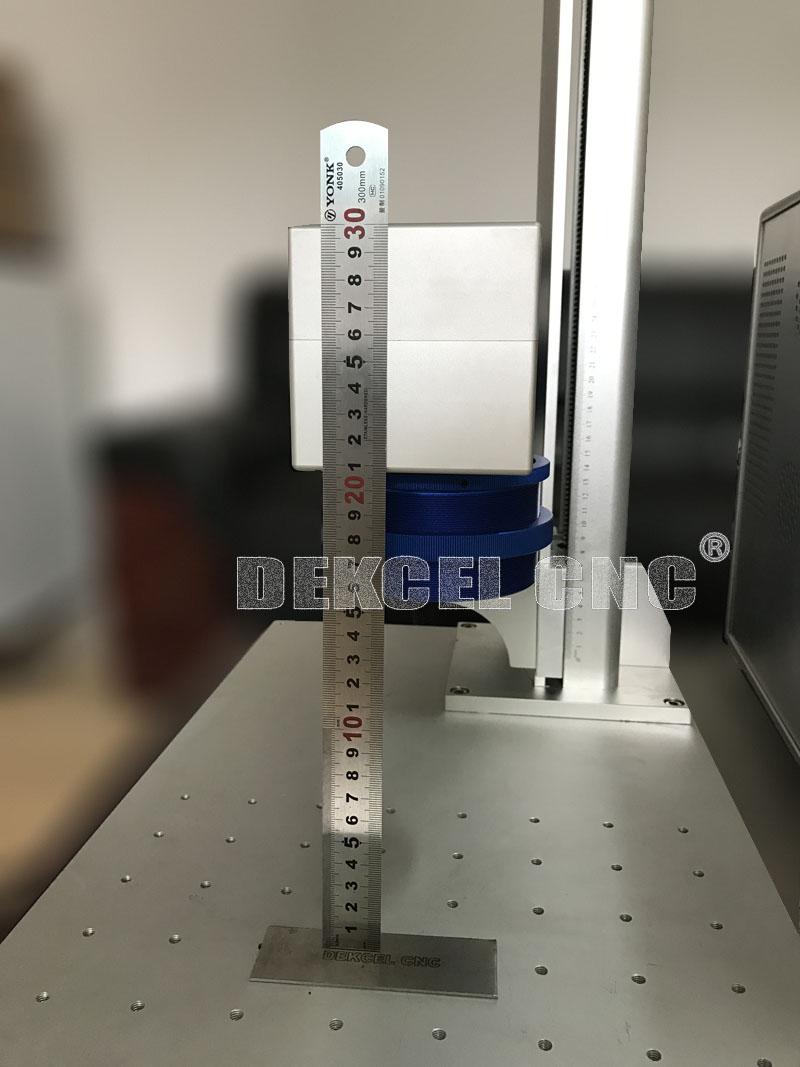

steel fiber laser marking machine





Applicable Industry of hand held portable fiber laser marking machine
Mainly used to mark on various plastic buttons and electric devices, to mark code on CMOS chip, color paper and food package. It can also be used in the scope with high requirements, such as clock, jewelry, module, bitmap marking etc..

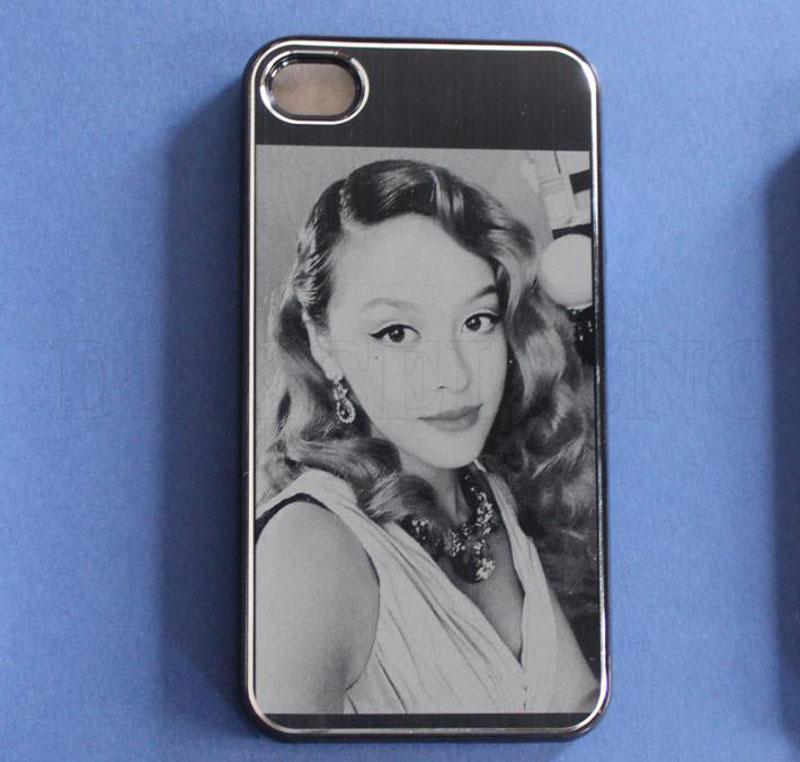

fiber laser marking on mobile

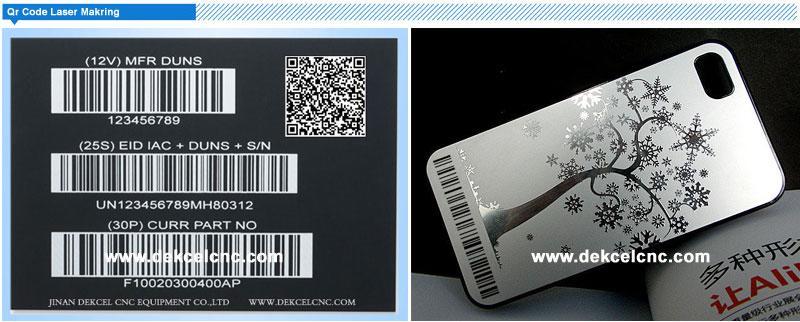

fiber laser marking 2 code

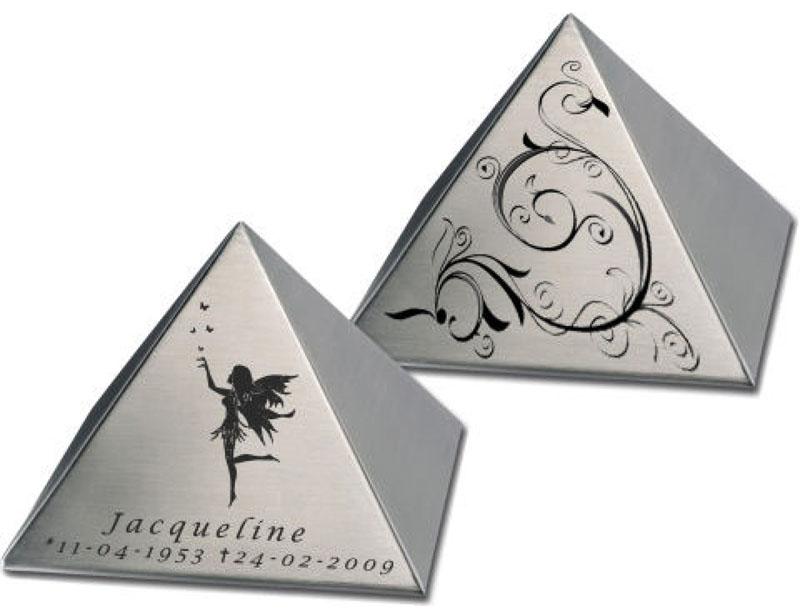

fiber laser marking on steel

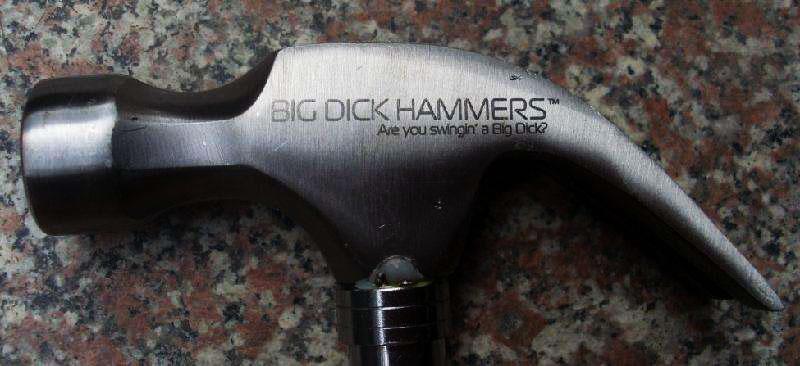

fiber laser marking machine for metal
