DEK-30W-F
DEKCELCNC
103
Handheld IPG, Raycus 30w fiber metal copper aluminium laser marker machine
Features of 30w handheld laser marker machine

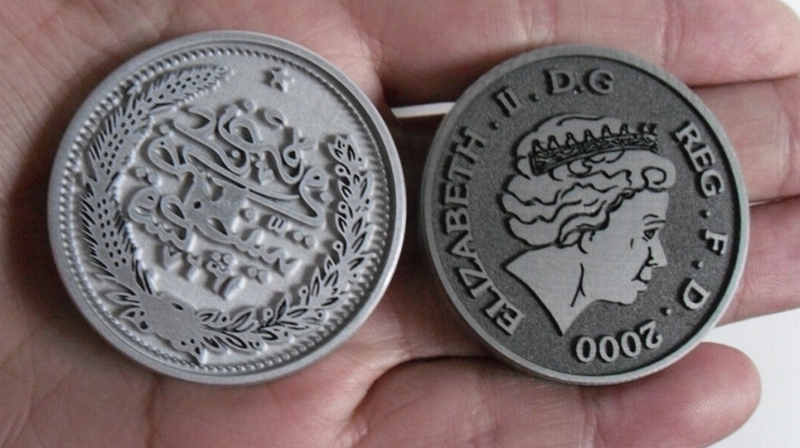

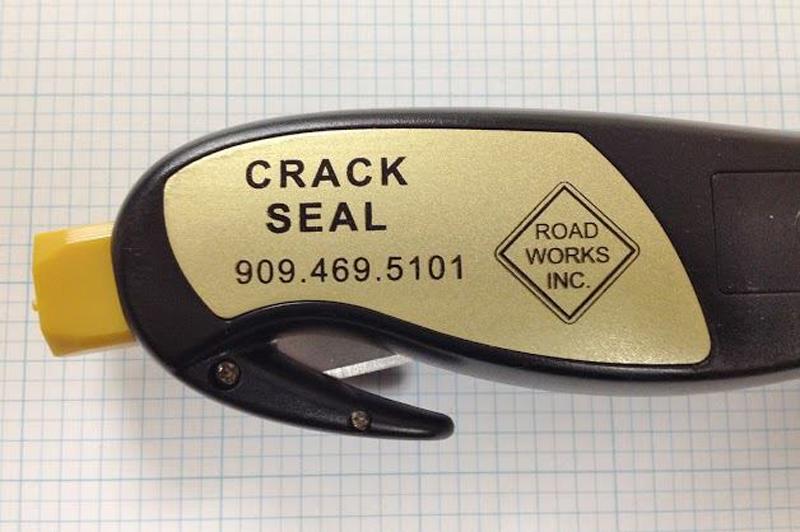

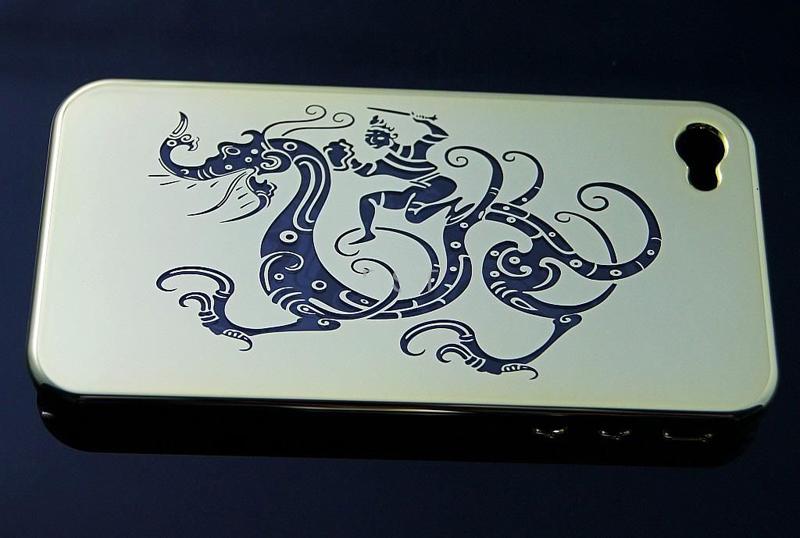

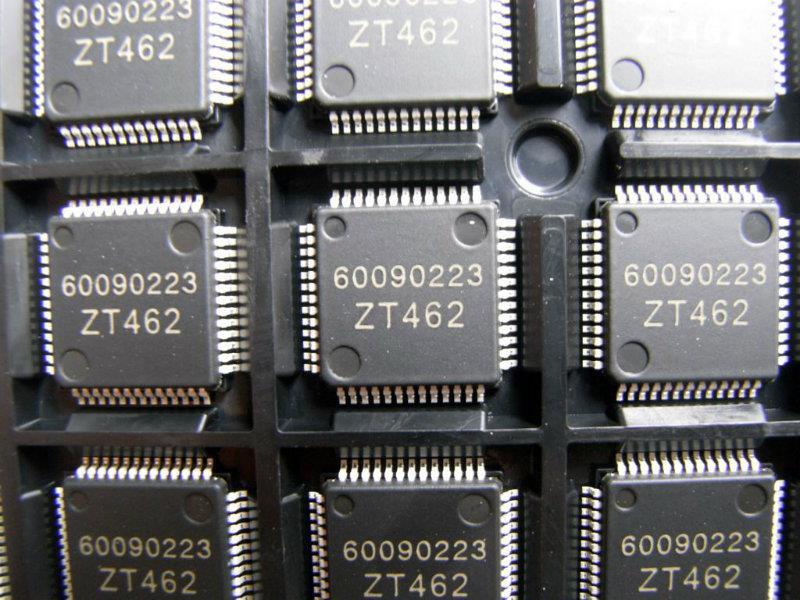

1.The machine can marking on many type of metals such as gold,lilver,stainless steel,copper,aluminum,chrome Brass,alloy,anodized aluminum and some non-metallic materials & Special surface treatment such as silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,plastic,coating film ect
2.Long-span working life: its working life is up to 100,000 hours.
3.No maintenance:Without any consumptive part and no maintenance within life time.
4.Original EZCAD controller, USB interface, swift and stable transmission, easy software operation, strong functions.
5.High precision:0.0025, suited for fine processing on all metal and some non-metal
6.Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
Parameters of metal and nonmetal laser marker
| DEK-30W-F | |
| Power | 10W /20W / 30W/ 50W |
| Laser Wavelength | 1064nm |
| Laser Generator | IPG/Raycus/Mopa(color marking) |
| Marking Area | 100mm*100mm / 200mm*200mm / 300mm*300mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
| Controller | JCZ from China ( EZ CAD software) |
| Life-span of Fiber Laser Module | 100 000-200 000 hours |
| Beam Quality | M2 <1.6 |
| Focus Spot Diameter | <0.01mm |
| Power Stability (8h) | <±1.5%rms |
| System Operation Environment | Windows XP / Windows 7 / Windows 8 |
| Cooling Mode | Air cooling--Built-in |
| Working Temperature | 0℃~40℃ |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement | <500W |
| Computer Requested | There will be one PC with the machine |
| Dimension (L*W*H) | 750mm*200mm*500mm |
| Package Size | 850mm*300mm*600mm |
| Net Weight | 50KG |
| Gross Weight | 65KG |
| Optional | Rotary Device, Moving Table, other customized Automatic Matching System |
30w metal and nonmetal laser marker details show

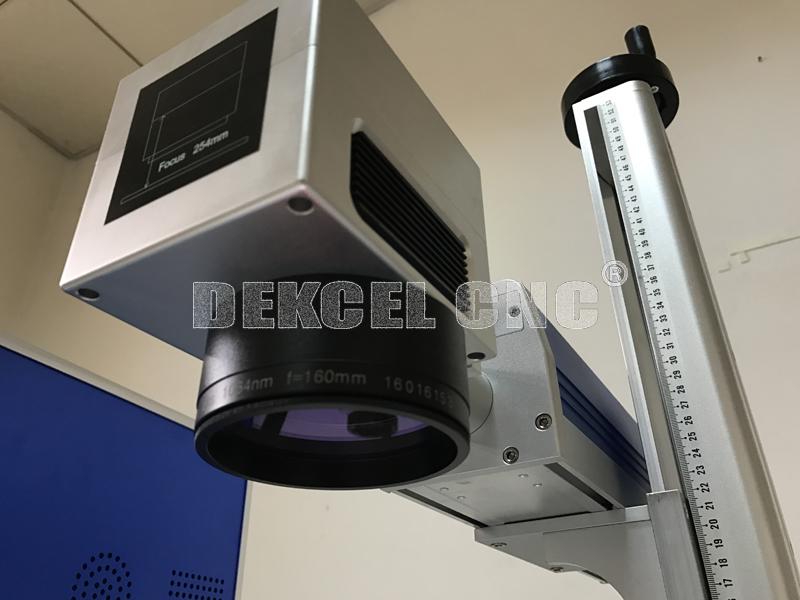

Laser marker machine galvanometer head

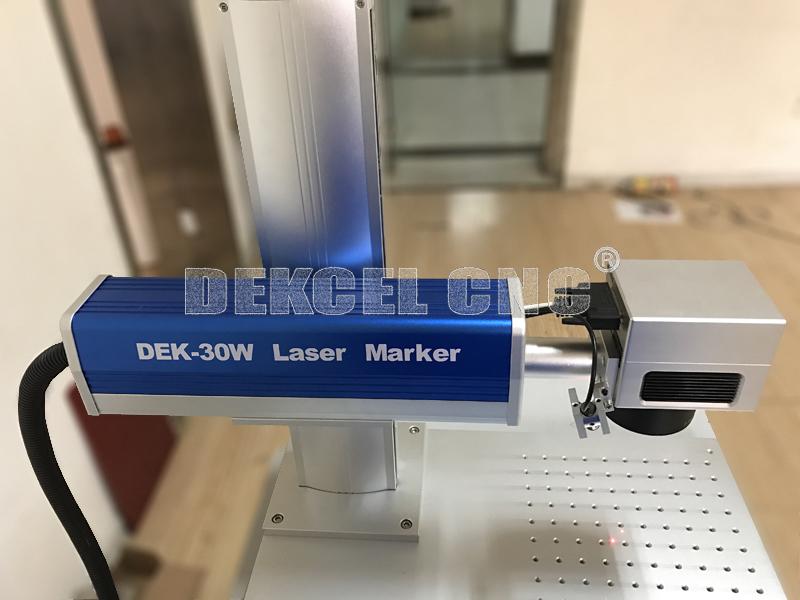

Raycus laser marker machine's frame
Fiber laser marker field lens
IPG metal laser marker control panel
30w fiber metal laser marker

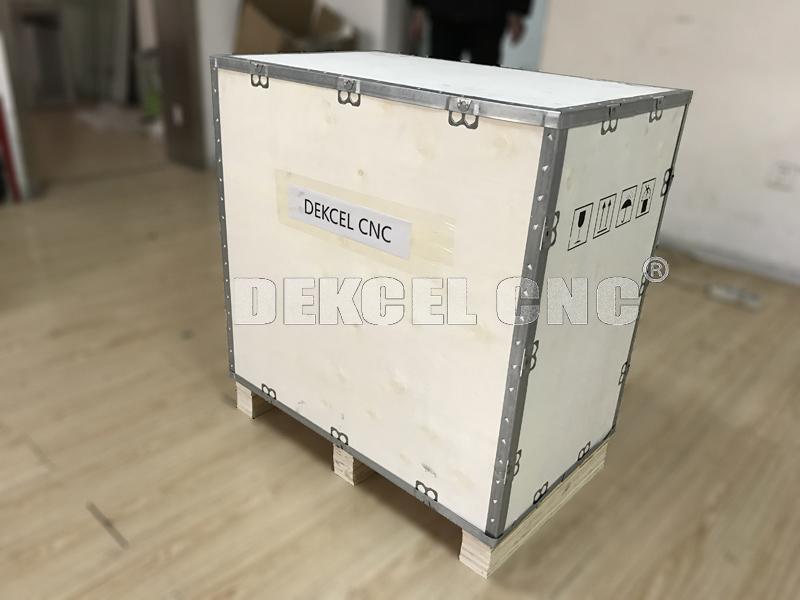

Laser marker package
