DEK-1616L
DEKCELCNC
109

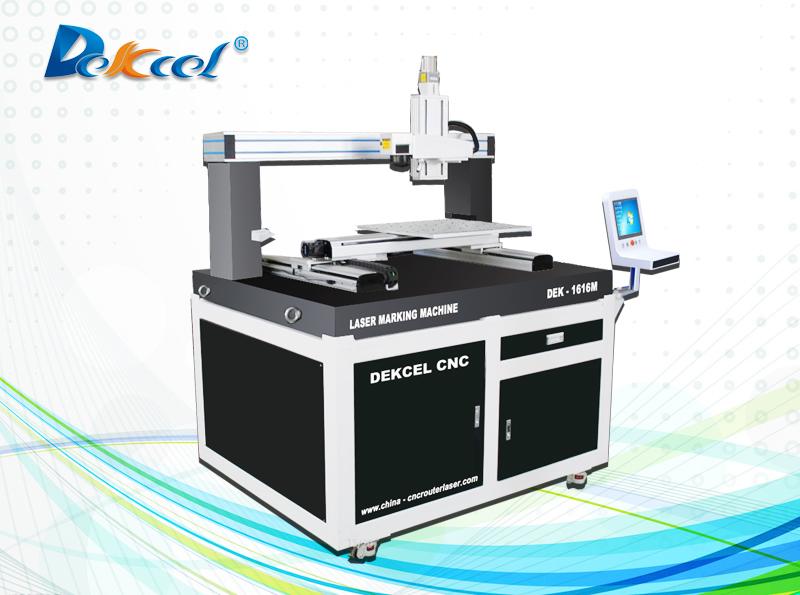

Customized Dynamic Large Size Glass Fiber Laser Marking Machine
Features of large size glass laser marking machine
1. This is our new model for large size glass marking industry, Its marking szie is 1600mm*1600mm
2. Specially for marking design on large size glass
3. High precision servo motor and driver transmission for galvanometer marking head and moving work table,,to reach the large size glass marking with good performance.
4. Adopt TBI ball screw and Hiwin guide rail for the table moving system,ensure the laser marking precision
5. Beijing JCZ control system, more stable and easy to operate, have detailed English user manual.
6. Large marking size can be customized,we can offer you the best large size laser marking solution according to you request.
7. Perfect performance, 24 hours continuous working ability.
8. Compatible AutoCAD,Corel Draw,Photoshop and etc, support bmp,jpg,gif,tga,png,tif,ai,dxf, dst,plt formats file.
Technical parameters of fiber laser machine for large size glass marking:
| Model | DEK-1616L |
| Laser power | Raycus 30w/50w/70w fiber laser generator |
| Marking Speed | 0~2000mm/s |
| Graphic Format Supported | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
| Repeat Precision | ±0.0025 |
| Whole Machine Power | <1200W |
| Mini Character | 0.1mm |
| Laser Wavelength | 1064mm |
| Working area | Customized 600mm*600mm,1600mm*1600mm ect. |
| Cooling Way | Air cooling |
| Transmission systerm | Japan YASKAWA motor and driver |
| Working Table | Moving table with TBI ball screw |
| Galvanometer | Sino-Galvo _SG7110 |

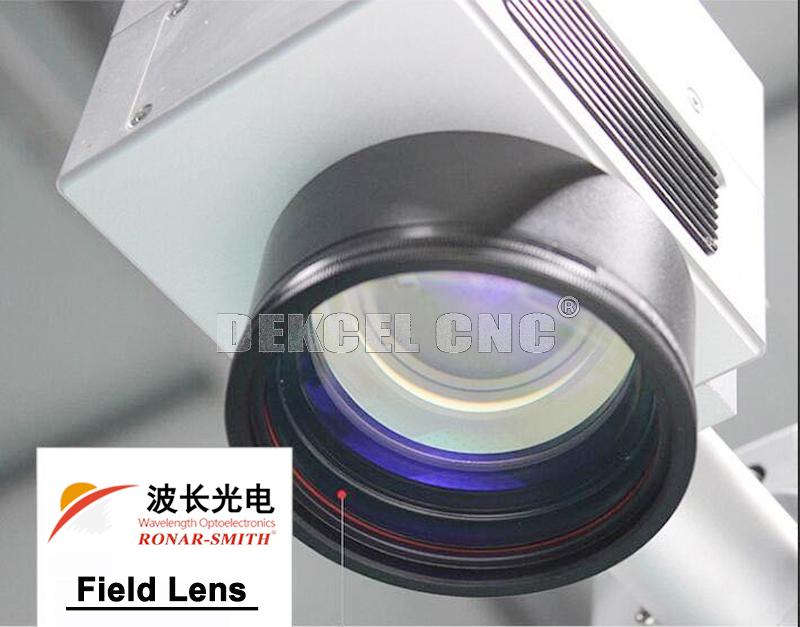

| Field Lens | Wavelength Opto Tech _LZ-1-400-ET3 |
| Option | CO2 laser marking machine generator |
Detail Introduction for fiber laser marking machine for large scale glass

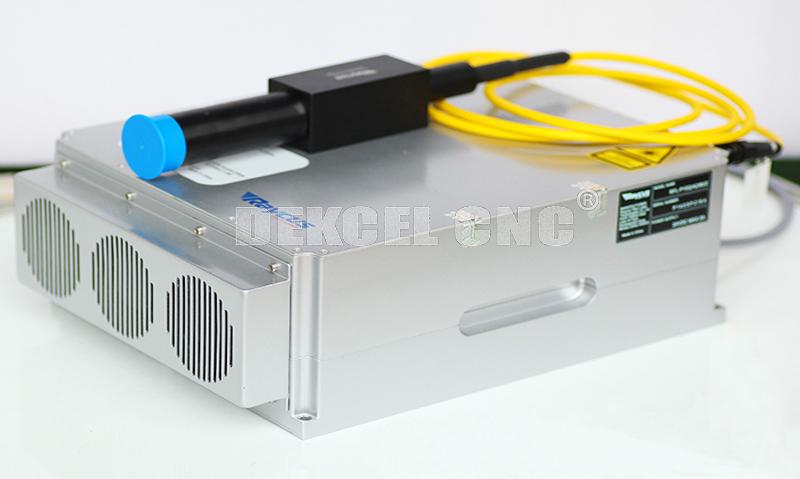

1.The quality of the laser is determined by the laser generator,we choose Raycus laser generator,the laser beam is thin and the laser dot is small, can help the laser to focus , realizes the fine marking.

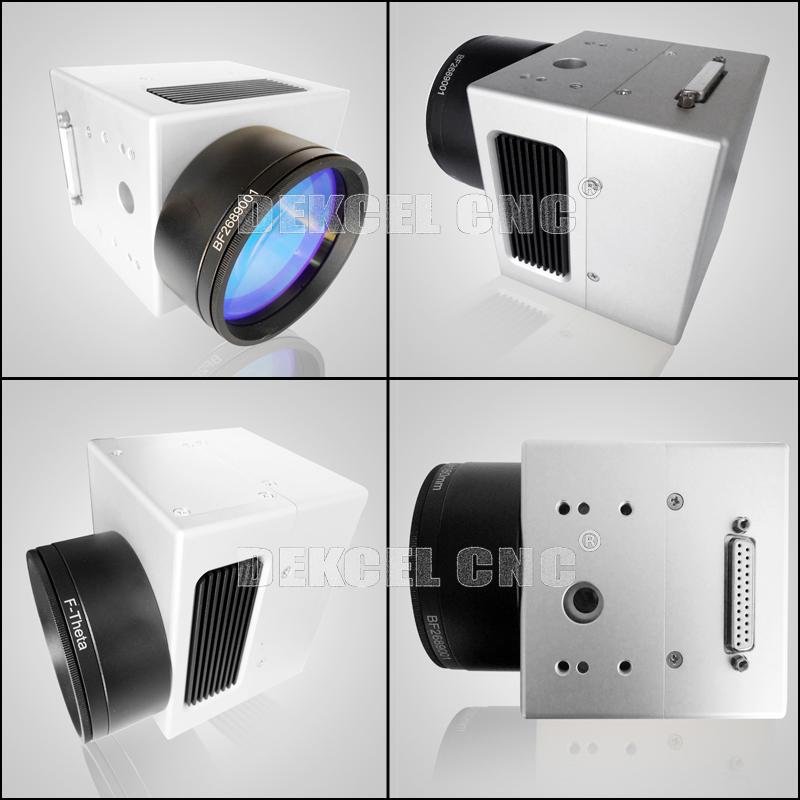

2.Sino-Galvo brand Galvanometer with high repeat precision±0.0025,the higher the precision of galvanometer is, the more clear and beautiful the marking patterns will be
3.The focus light beam less than 20μm,especially apply to stable and precise marking.

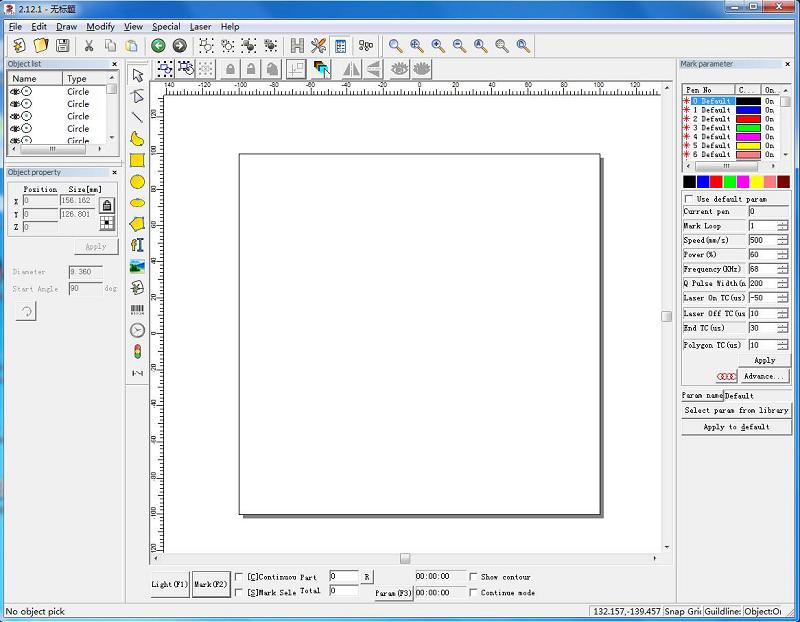

4.EzCAD2 laser marking software,Compatible AutoCAD,Corel Draw,Photoshop and etc, support bmp,jpg,gif,tga,png,tif,ai,dxf, dst,plt formats file.

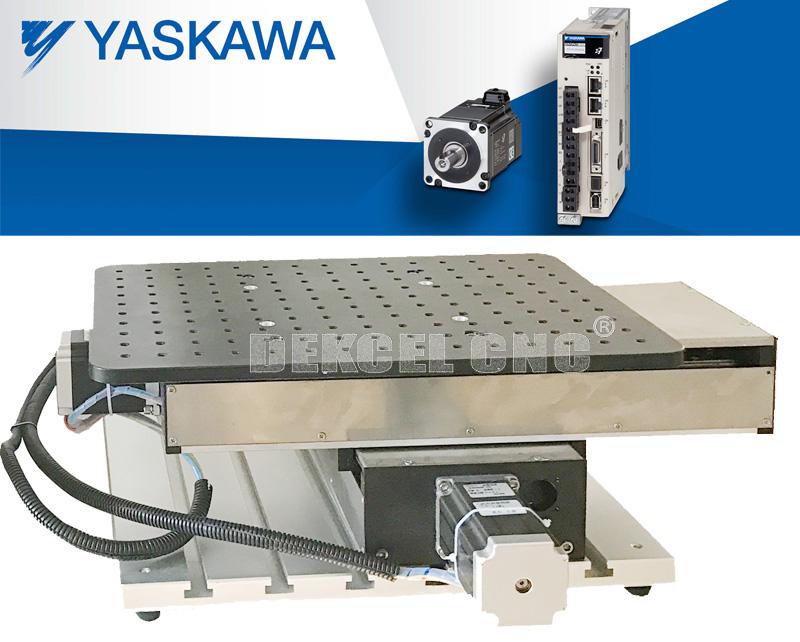

5.Japan YASKAWA servo motor and driver for table moving transmission system.
6.TBI ball screw transmission with high precision

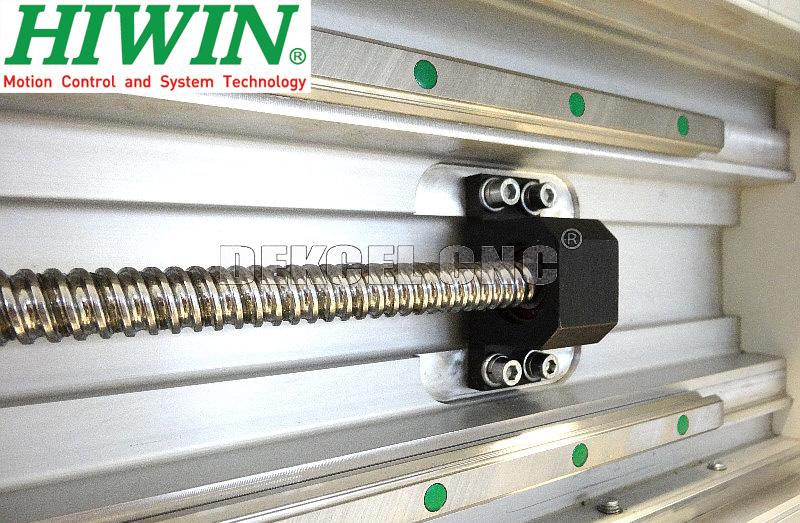

7.Taiwan Hiwin guide rail, guarantee the precision for large size marking.
Application of large size laser marking solution

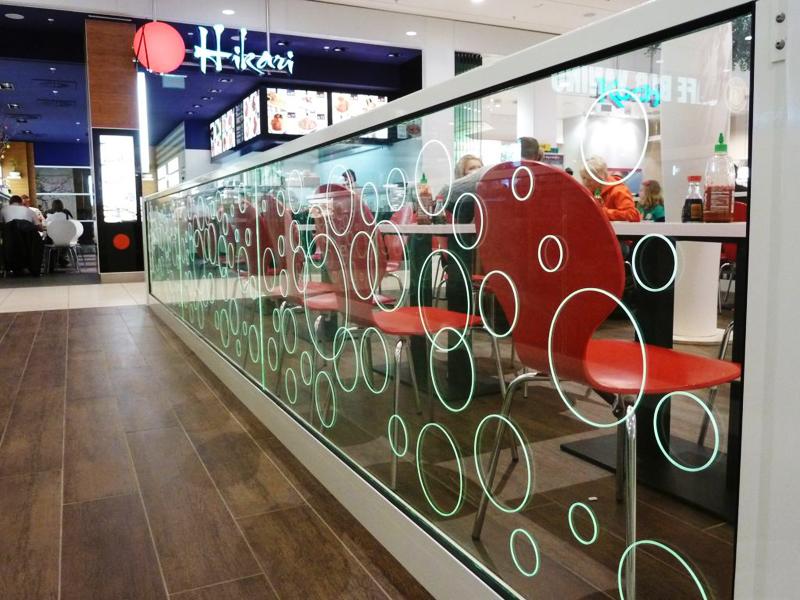

This type of large glass laser marking machine mainly used for large size product laser marking, which size bigger than 300mm*300mm,such as door glass,window glass,glass screen,gate glass,large size crystal ,wood,acrylic,metal,stainless steel ect.
Machine can be customized large size marking equipment according to your request,Dekcel cnc sincerely at your service and offer the best ;arge laser marking solution for you.
