Customized 1530 Large Scale Glass Laser Marking and Engraving Machine

With the development of industry,because of the limits of marking area,more and more clients prefer to the customized large scale laser marking machine.In order to meet this request,Dekcel cnc research a new type - DEK-1530L laser marking machine specially for large size and customized marking, fast marking and engraving speed,save the working time,improve the produce efficiency.

Quantity:
  • DEK-1530L
  • DEKCEL CNC
  • 136

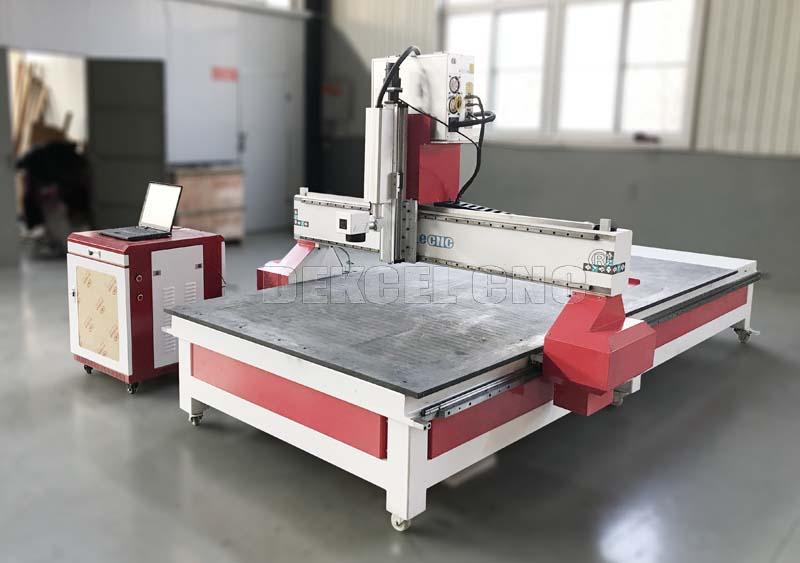

Features of 1530 Customized Large Scale Laser Marking machine
Customized 1530 Large Scale Splice Laser Marking and Engraving Machine.jpg
1. With Dekcel CNC customized large scale marking machine,there is no limit for big marking area.We can according your request,specially customized the big marking area for you,such as working table as 1600mm*1600mm,1300mm*2500mm ect.

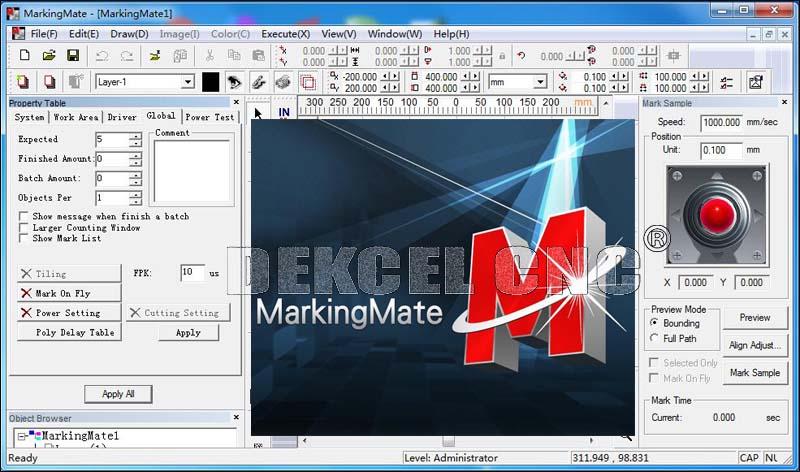

2. Our customized large scale marking machine adopt Taiwan Markmate Control System,specially for quantity marking production and splice marking .

Taiwan Markmate large scale splice marking machine software.jpg

2.1 Good for volume production by our customized large size laser marking machine.You just let the worker put the products which need marking on the working table one by one,the software will do the marking work,after marking finish,it will do the next marking automatically till all the pieces marking finish.

2.2 Specially applied for splice marking

Sometime people want to mark 1m*1m or 1.5m*2.5m pattern on the large glass,mirror,wood plate,metal ect,you can do this large laser splice marking easily with our customized marking machine.

3. According the size of the project,you can choose the high speed scanning galvanometer and filed focus lenS ,like F-200,F300,F600 .
4. DEK-1530L large laser marking machine adopt stepping motor and driver with gear and rack transmission,for some high precision large scale laser marking ,we suggest you choose Japan Yaskawa or Panasonic servo motor and driver with ball screw for transmission.
5. According to your marking material,our large scale laser marking machine can choose fiber laser generator for metal materials and CO2 Coherent/Synrad laser generator for non-metal material marking.
Fiber laser Generator : IPG/Raycus 20w/30w/50w
CO2 Laser Generator : America Coherent / Synrad 30w/55w/150w/200w
6. with our large scale customized marking machine,there is no limit to the marking area,you can marking any big size as you prefer,save the time,lower the cost,highly improve the production efficiency.

DEK-1530 Large Size Laser Marking Video

Technical Parameter of Customized Large Glass Marking Machine

Technical Specification

 Model

DEK-1616L

DEK-1325L

DEK-1530L

 X / Y Marking Area

1600mm*1600mm

1300mm*2500mm

1500mm*3000mm

 Z Axis

500mm  ( auto up & down by motor )

 Laser Generator

Fiber Laser : Raycus,IPG ect.   | CO2 Laser : Synrad,Coherent ect.

 Machine Transmission

Leadshine Stepping motor and driver with gear and rack transmission

 Positioning System

Red point laser

 Laser Wavelength

1064nm

 Scanning Galvanometer Marking Area

200mmx200mm / 300mm*300mm / 400mm*400mm / 600mm*600mm

 Marking Controller

Taiwan Markmate large scale Splice Marking Software

 Laser Marking Depth

≤5mm(depending on material and marking time).

 Laser Marking Speed

≤7,000 mm/s

 Minimum Line Width

0.01mm

 Minimum Character

0.15mm

 Repeated Precision

±0.003mm

 Life-span of Fiber Laser Marking

100,000 - 200,000 hours

 Beam Quality

M2 <1.5

 Focus Spot Diameter

<0.01mm

 Output Power of Laser

10%~100% continuously to be adjusted.

 System Operation Environment

Win7(32/64bits) / Win8(32/64bits)/Win10.

 Cooling Mode

Built-in fan for Air cooling.

 Power Input

220V-50HZ(single phase) or 110V-60HZ(single phase).

 Option

1. Big marking size can be customized

2. Japan Yaskawa servo motor with ball screw transmission

3.  Rotary device
Details Show of Customized Laser Engraving Machine

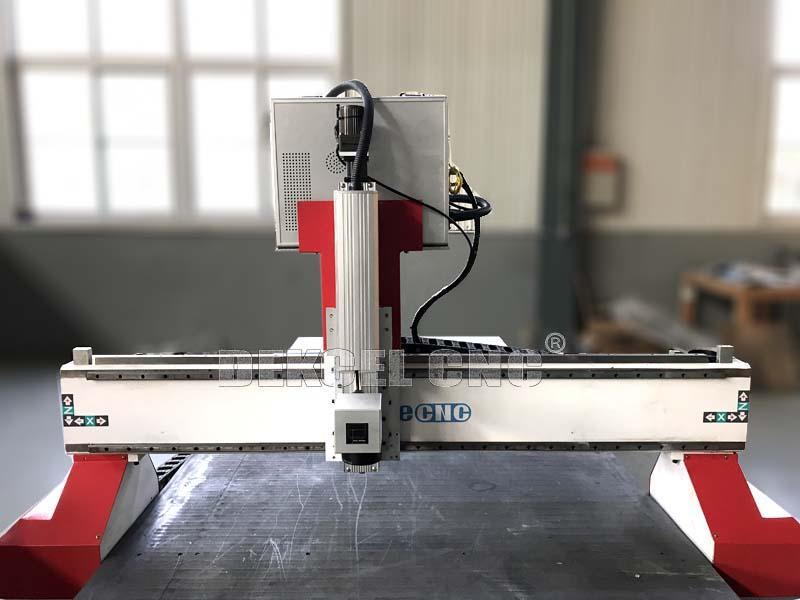

1. Customized large size laser marking machine F-200 scanning galvanometer head

customized large size laser marking machine scanning galvanometer head.jpg

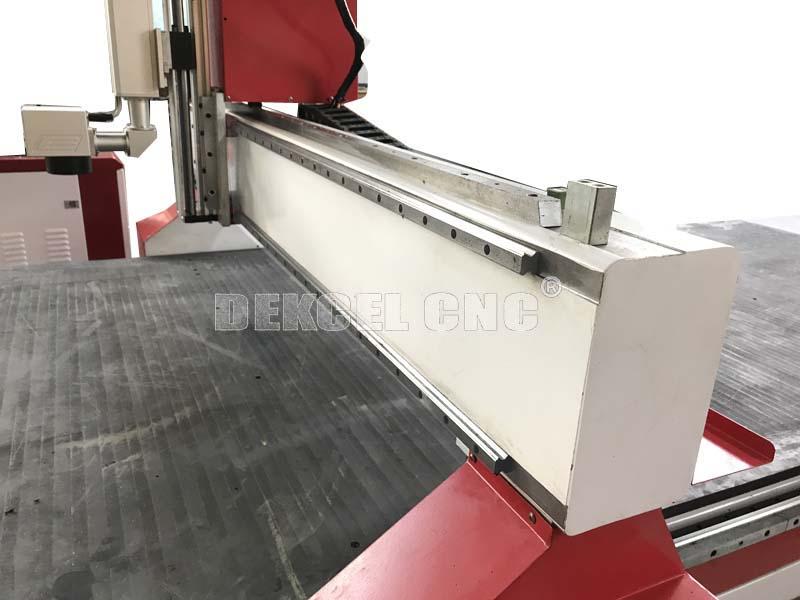

2. Customized large size laser marking machine scanning galvanometer head

large glass laser engarving machine hiwin guide rail.jpg

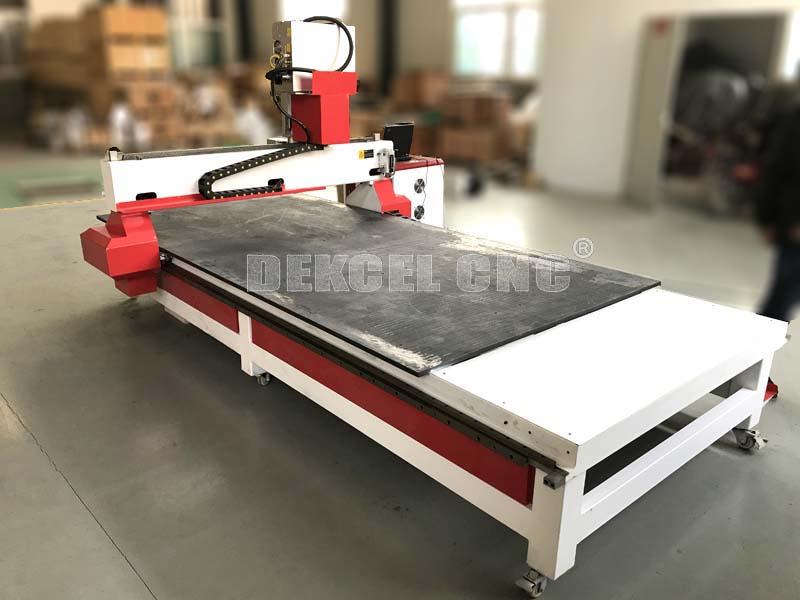

3. Large scale laser marking machine working table

large scale laser marking machine working table.jpg

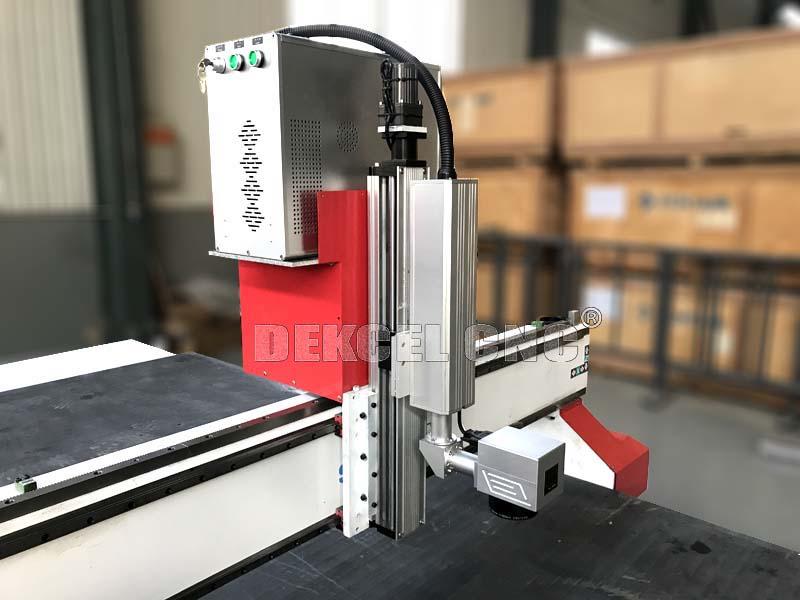

4. Large size marking machine head and auto up and down system

large size marking machine head and auto up and down system.jpg

5. Large size laser marking machine lubrication system

large size laser marking machine lubrication system.jpg

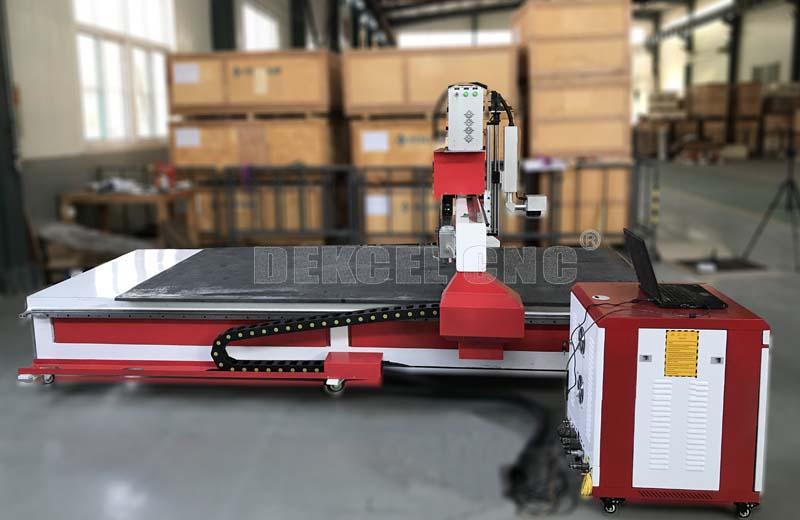

6. Customized large laser marking machine heavy body frame

customized large laser marking machine heavy body frame.jpg

Application of Customized Laser Marking Machine

customized large size laser marking machine sample.jpg

Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Application Materials of Large Scale Glass Engraving Machine:
Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments,
glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
