Mini portable type fiber laser marking machine
You are here: Home » CNC Laser » Laser marking machine » Fiber laser making machine » Mini portable type fiber laser marking machine
Share to:

Mini portable type fiber laser marking machine

Mini portable fiber laser marking machine widely used in mobile phone shells, rings, bracelets, watches, mugs, glasses, watches, key, instrumentation, sanitary ware, home appliances, electronic components, integrated circuits (IC) etc metal and nonmetal material.

Quantity:
  • DEK-Portable 20W
  • DEKCEL
  • 022

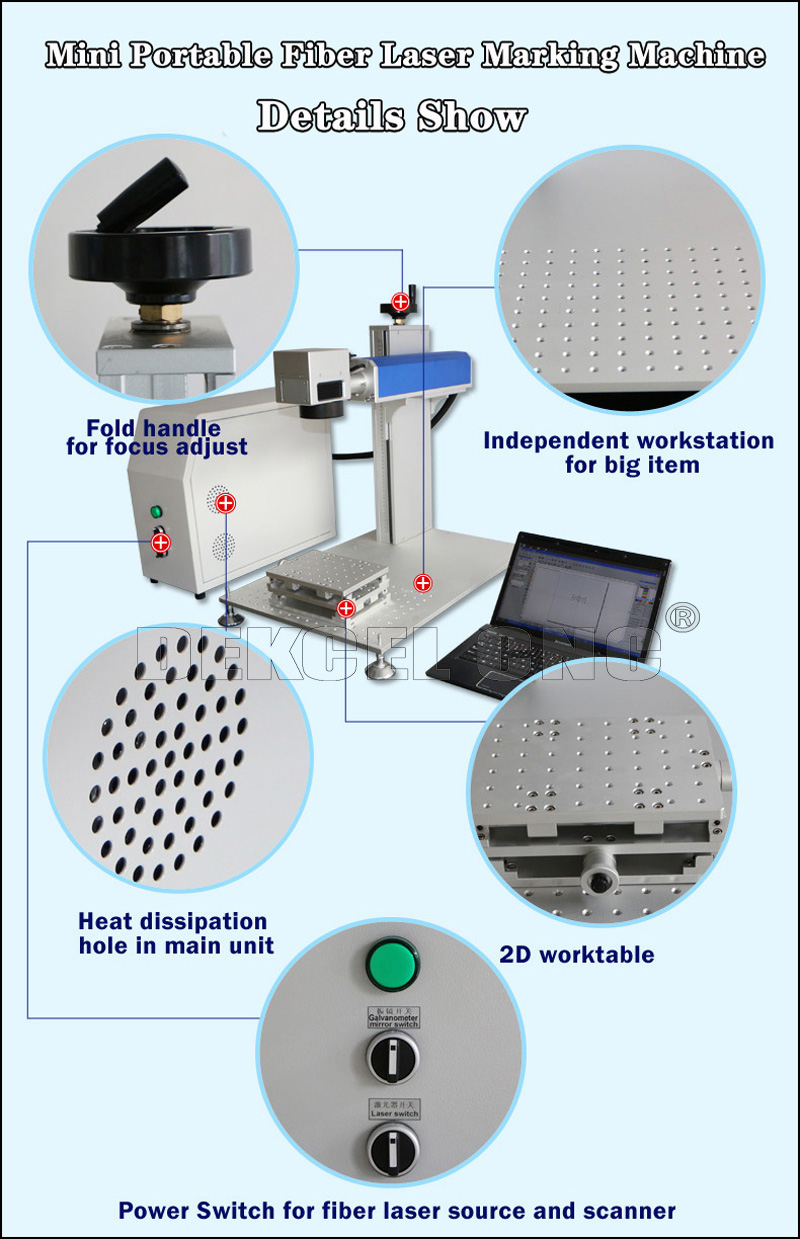

mini portable fiber metal laser marker

mini portable fiber metal laser marking machine backside



Portable fiber laser marking machine feature

DEK-Series high quality mini laser marking machine is a new generation laser marking system made with newest laser technique in the world,It design with fiber laser maker as laser source, and high-speed vibration-mirror scan system to actualize marking function,The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.



Advantages of mini fiber laser marking machine

1) USB interface connection: will work with a Laptop.

2) Small and compact: the dimension of fiber marker is very small, convenient to be taken away.

3) High Precision, bring you the fantastic and satisfied marking effect.

4) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

5) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

7) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.

8) With Motorized Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.



Mini portable fiber laser marking technical parameter


No. Name Parameter
1 Laser power Pulsed (20W, 30W, 50W)
2 Laser wavelength 1064NM
3 Repeatability frequency 20- 100KHZ
4 Beam quality M2≤2
5 Marking area 30x30MM--300x300MM
6 Marking speed ≤1000MM/S
7 Min. front 0.15MM
8 Repeatability accuracy 0.002
9 Power supply 220V, 50HZ/ 60HZ
10 Total power 500W
11 Dimensions 460x160x250MM 570x270x200MM
12 Total weight 10.5KG 22KG
13 Operation system WIN98/WIN2000/WINXP
14 Cooling mode Air cooling
15 Control interface Standard USB
16 File format All the fonts in Windows system

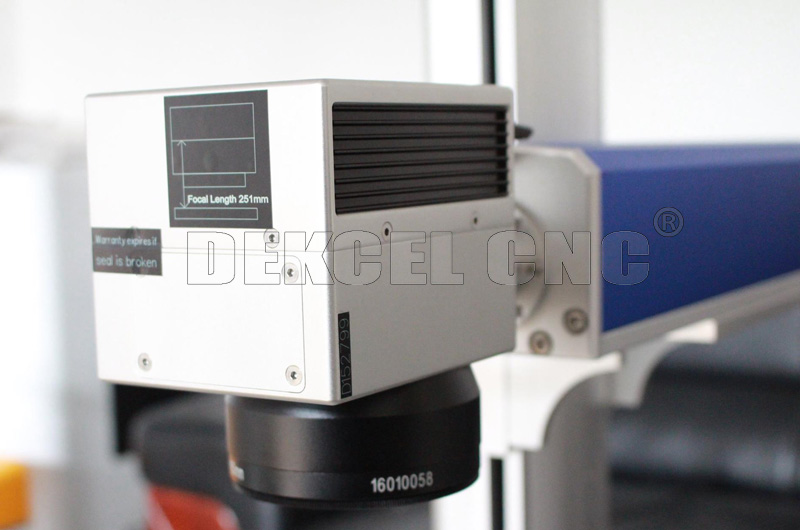

20w IPG mini portable fiber laser marker machine lens

mini portable cnc fiber laser marker machine power switch

mini portable IPG fiber laser marking machine working table

Mini fiber laser marking machine packing

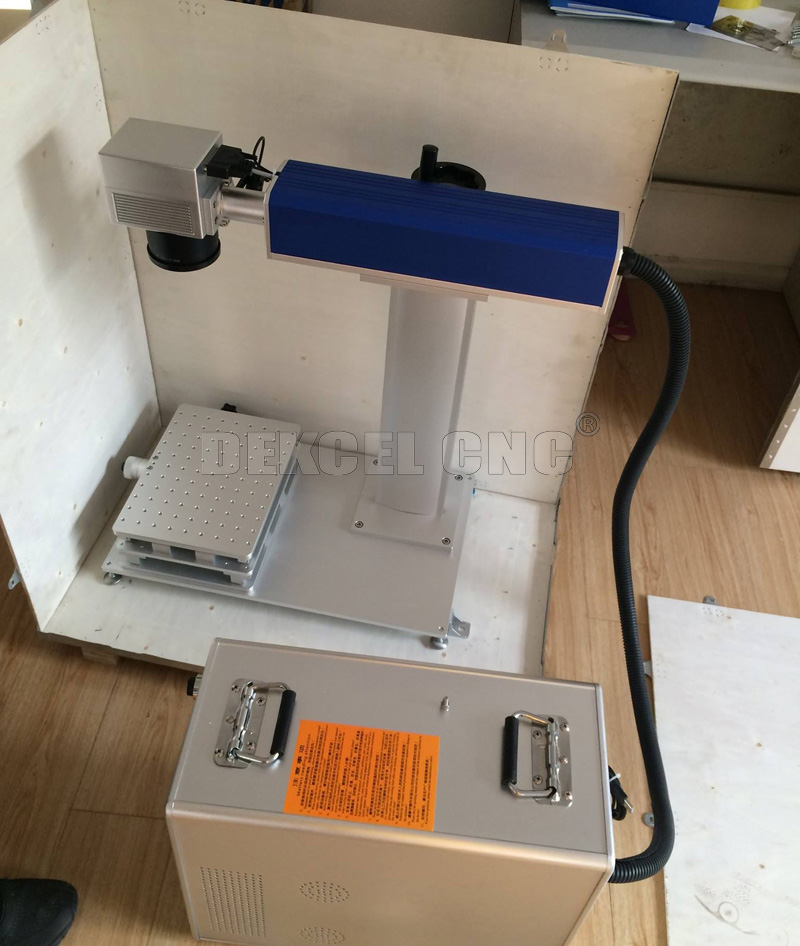

IPG 30w cnc desktop fiber laser marker machine package

portable fiber metal laser marking machine packing

Application of mini fiber laser marking machine

This kind of machine widely used in mobile phone shells, rings, bracelets, watches, mugs, glasses, watches, key, instrumentation, sanitary ware, home appliances, electronic components, integrated circuits (IC), the cell phone button, luggage buckles, cutlery, water faucet, stainless steel products, car accessories, cell phone chargers, cables and wires, and medical device industries.

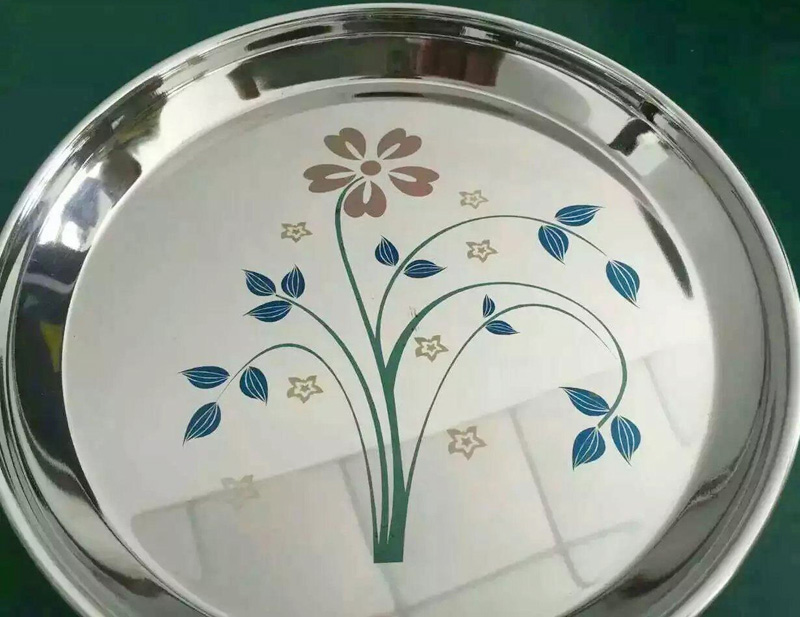

color marking by mini potable laser engraver machine

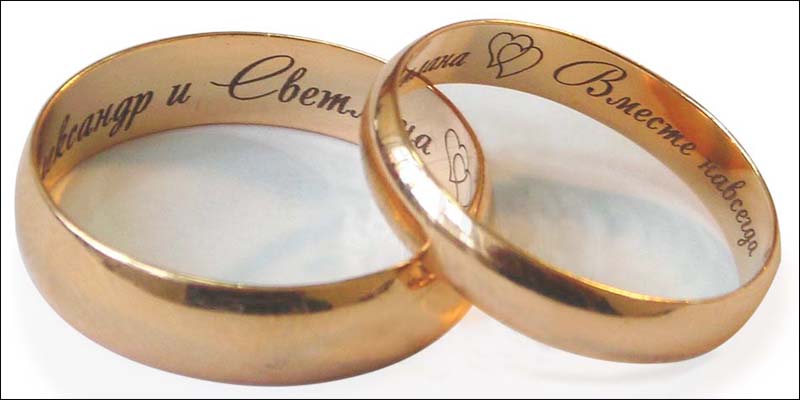

ring mnarking by mini fiber laser marker machine

wood nonmetal portable fiber laser marker machine sample

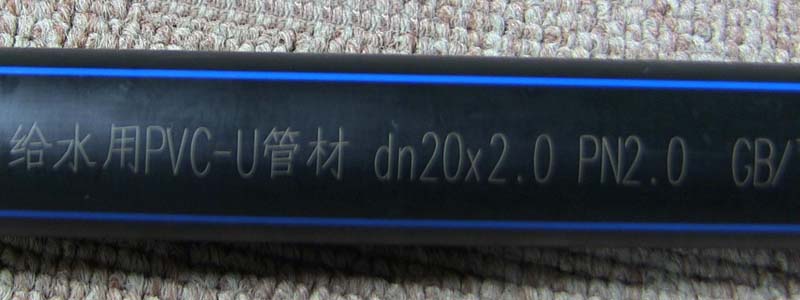

PV rubber cable plastic mini fiber metal laser marking machine sample
