Desktop Fiber Laser Marking Machine 20W/30W
You are here: Home » Cnc Laser » Laser marking machine » Fiber laser marking machine » Desktop Fiber Laser Marking Machine 20W/30W
Share to:

Desktop Fiber Laser Marking Machine 20W/30W

Fiber laser marking machine suitable for marking on metals like gold, copper, aluminum, stainless steel, chrome, Brass .PCB etc,some non-metallic materials like silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink.Plating, Spraying, Coating film and special surface treatment.

Quantity:
  • DEK Fiber-20W
  • DEKCEL
  • 020

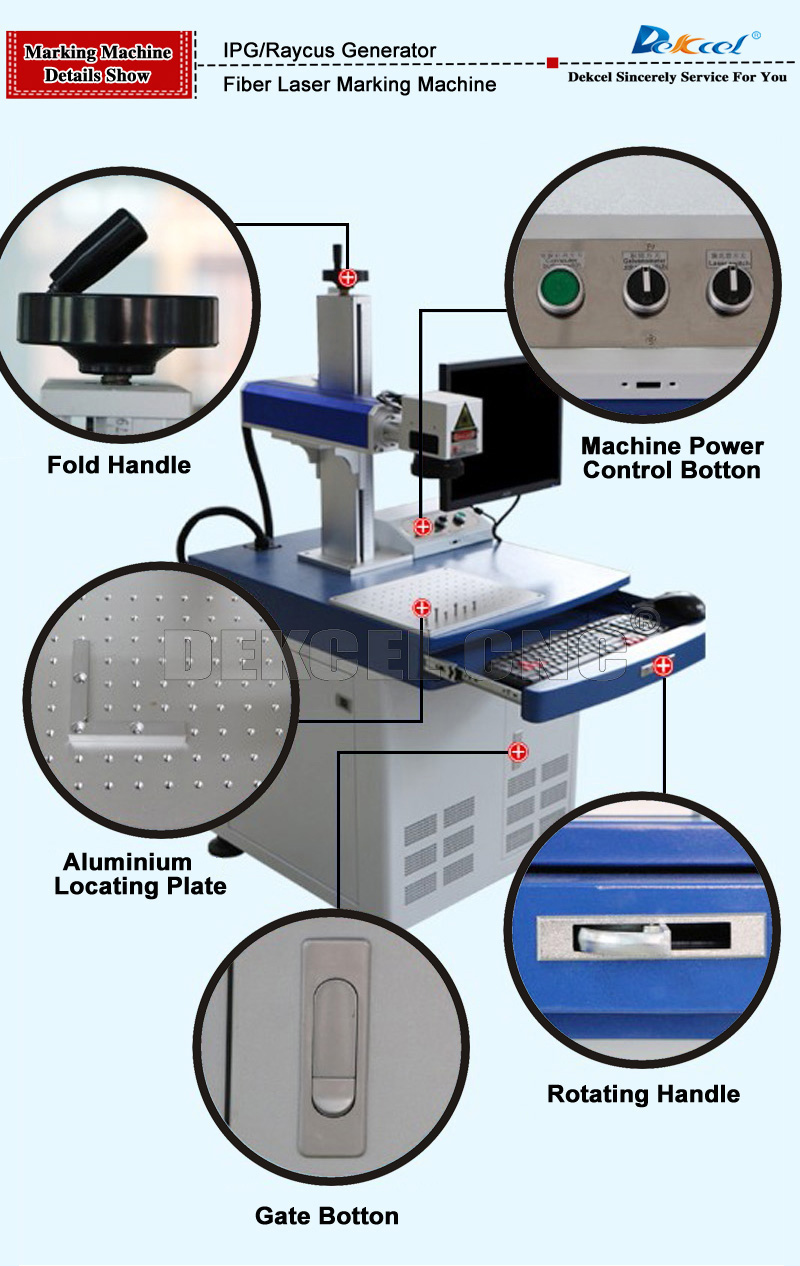

cnc fiber metal laser marking machine

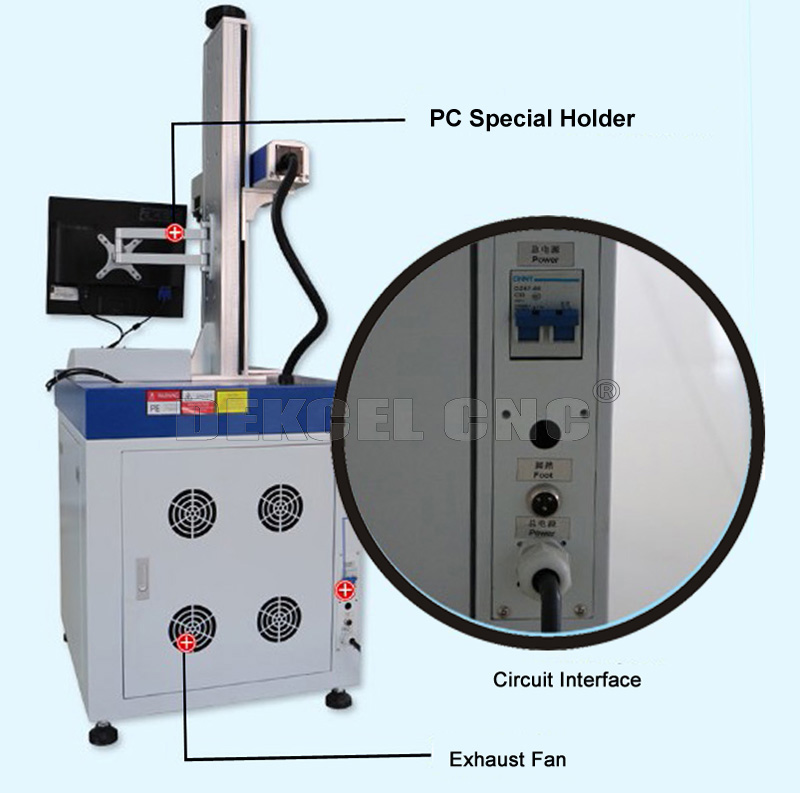

cnc fiber metal laser marking machines



Fiber Laser Marking Machines Description

1.Compactness,with the unique all built-in integration design,the optical electronic and mechanical components are highly integrated,so that the whole machine weight only 35kg.It can be called the smallest fiber laser marker in the word.In addition,it adopts imported fiber laser,and coupled with all air-cooled design,it need not external cooling devices.

2.High Durability,The laser module has a long service life(greater than 100,000 hours;while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).

3.Low consumption,Due to the all air-cooled design,no consumable materials and free of maintenance,it has a low cost at use.Furthermore,it saves energy with a total power below of 0.5kw.

4.High speed,It applies imported high-speed galvanometer scanning head,which has greatly reduced the latency and increased the marking speed,which is 3 to 10 times of the fist generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).



Fiber Laser Marking Machines Features

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.

High Precision: Re-position precision is 0.002mm

High Speed: Imported scanning systems makes the scanning speed is up to 7m/s

Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.

High Reliability: MTBF>100,000 hours

Energy Saving: The efficiency of optic-electrical converting is up to 30%

Low Running Cost: No wearing part. Free maintaining



Specifications of Fiber Laser Marking Machine

 Model  DEK-10W/20W/30W/50W
 Laser power  10W 20W 30W 50W
 Laser wavelength  1064nm ±10nm
 Q-frequency  20KHz~100KHz
 Pules frequency  20KHz~200KHz
 Divergence  0.3mard
 Marking range  110*110mm/200*200mm/300*300mm
 Minimum line width      0.001mm
 Minimum character  0.1mm
 Marking speed  10000mm/s
 Marking depth  0~0.5mm
 Engraving line speed  ≤ 7000mm/s
 Repeat accuracy  ±0.001mm
 Beam quality  M2:1.2~1.8
 Marking format Graphics, text, bar code,two-dimensional code,automatically marking the date, batch
number,serial number, frequency,etc.
 Graphic format supported  bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
 Working voltage  220V ± 10%/50HZ/4A
 Unit power   <0.5KW
 Use of the environment  Clean and dust free of dust less
 Working condition:Humidity  5%-75%,Free of condensed water
 Laser module life  >100000 hours
 The whole life  More than 15 years
 Packing size  770*250*600*mm
 Net weight  35kg

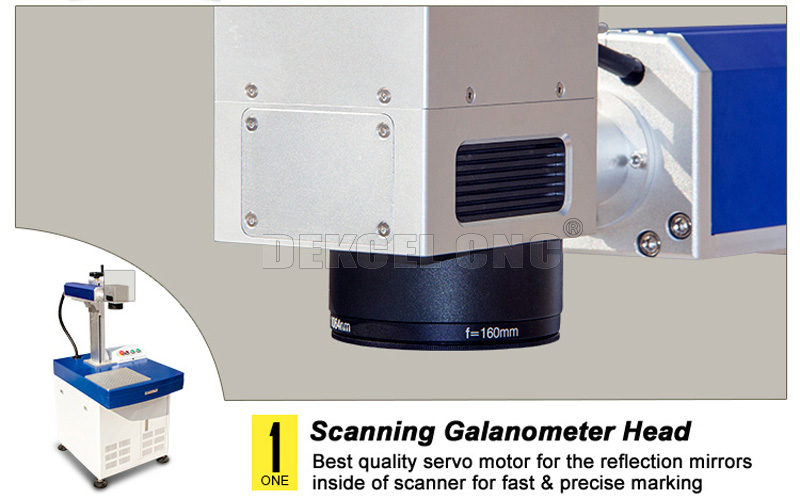

fiber laser marking machine Scanning Galanometer Head

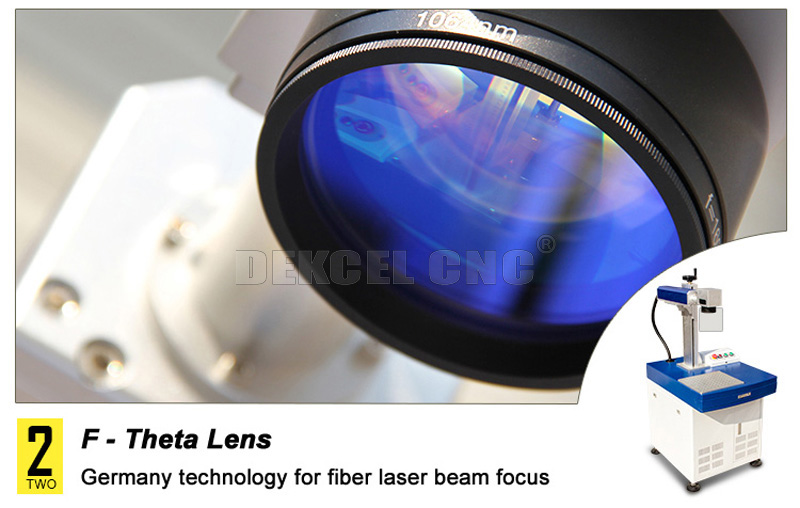

fiber laser marking machine F - Theta Lens
 fiber metal laser marking machine lifting wheel

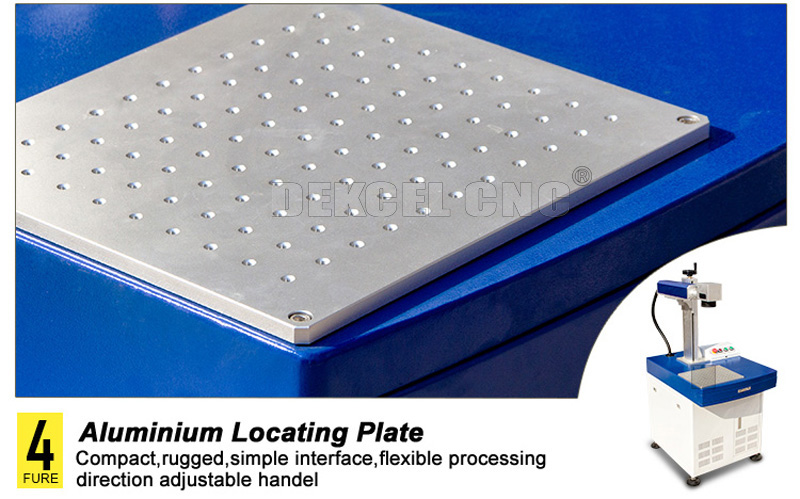

fiber metal laser marking machine locating plate table

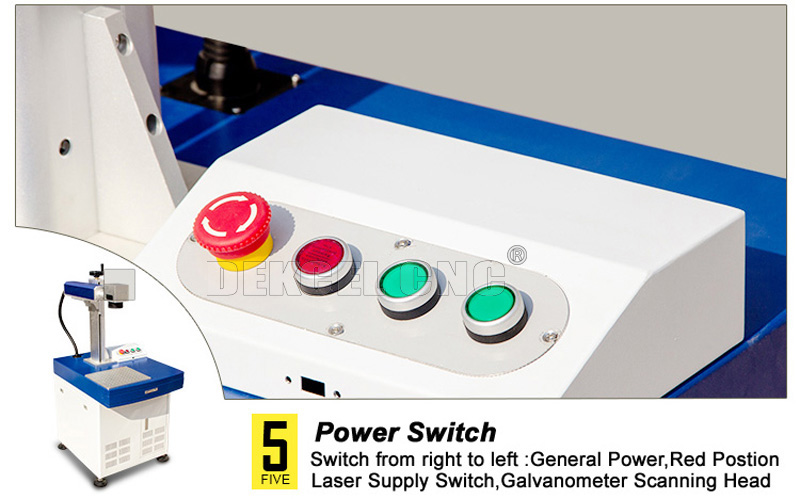

 fiber metal laser marking machine power switch

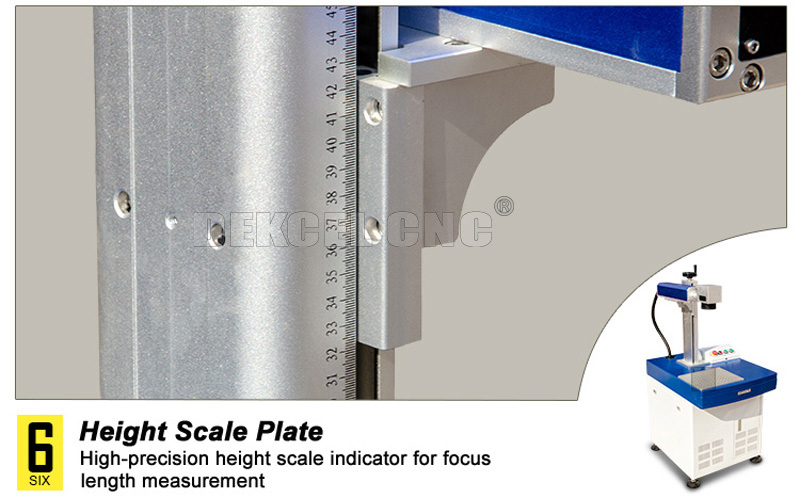

fiber metal laser marking machine height scale

Customize


The fiber laser head can move according to processing demand, and mark on big and heavy materials directly, which break through the machine.
The standard length of the fiber laser lines is 2000mm.

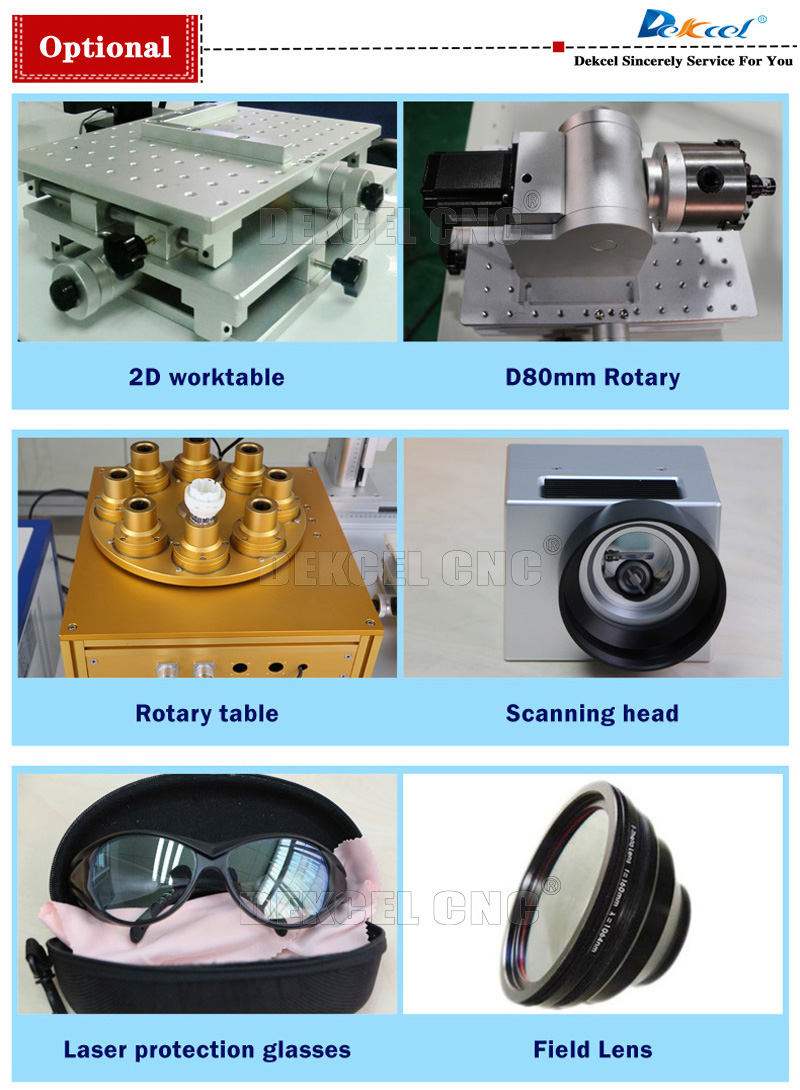

cnc laser marker machine optional parts





Applied Materials of fiber laser marking machine

1. Many type of metals like gold, copper, aluminum, stainless steel, chrome, Brass .PCB etc

2. Alloy and Metal oxides

3. Some non-metallic materials like silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink.Plating, Spraying, Coating film and special surface treatment.



                Electronic Components                 Resistance, capacitance, chips, printed crcuit boards, computer keyboard
                Apparatus And Meter                 Panel signs, precision equipment,ec
                Instrument                 Panel signs nameplate, precision equipment,etc
                Hardware Tools                 Knives,tools,measuring tools,cutting tools,etc
                Automobile Parts                 Fistons,piston rings,gears,shafts,bearings,clutch,lights,etc
                Mechanical Parts                 Bearings,gears,standard parts,motors,etc
                Daily Necessities                 Handicrafts,zipper,key holder,sanitary ware,etc
                Jewelry Rings                 Jewelry,gold,silver,etc


CO2 WOODlaser marking andengraving machine

QR code laser marking machine
