Vertical rotary fiber laser engraving on glass vase
You are here: Home » CNC Laser » Laser marking machine » Fiber laser making machine » Vertical rotary fiber laser engraving on glass vase
Share to:

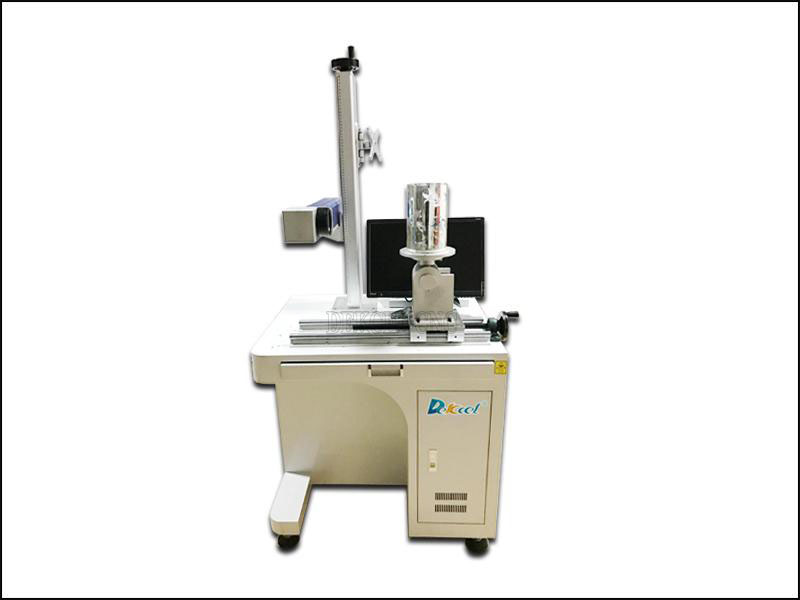

Vertical rotary fiber laser engraving on glass vase

The fiber laser engraving machine install with special vertical rotary system,can rotated by itself,suitable for engraving on round material, like glass vase, the laser head can move up and down when engraving and marking on high glass vase.

Quantity:
  • DEK-30WF
  • DEKCEL
  • 085
Introduction
New fiber laser marking engraving machine uses advanced laser technology developed using the fiber laser output laser, and then system to achieve high-speed scanning galvanometer marking function. Fiber laser Marking electrical and optical conversion efficiency, by way of cooling , compact machine, the output beam quality, high reliability. Metallic materials can be engraved and some non-metallic materials ,mainly used for depth, smoothness, finesse higher areas.

Why fiber laser engraving machine is better
1. Producing higher quality beam,higher photoelectric conversion, the marking quality will be more finer and higher precision.
2. No maintenances laser source(100,000 hours service time), Easy to adjust focus, low operation cost (LOw power consumption) Maintenance free without routine replacement of consumables Easy to use by unskilled operator
3. Old lamp and diode pump laser marking machine, both need maintenance the laser source(replace lamp or diode laser modular every year), also require an water chiller to control heat.

What is Features of our fiber laser marking engraving machine for glass vase?
Portable: Integration design causes small volume. Can be easily installed. Air cooling.
High speed scanning galvonometer mirror: Providing high speed precise marking/engraving.
Various field lens for different marking size: F=100mm/160mm/254mm/300mm/420mm.
Red dot pointer: To indicate the laser beam position.
Aluminum worktable: Easy to adjust focal point.
Powerful software: Can be used in many applications like serial number marking, data marking, text/logo/graphic marking, barcode, 2d code etc.
Support files in many format: PLT, PCX, AI, DXF, BMP, JPG etc.
Various add-ons for different application like rotary marking on cylinder items. Automatically marking on production line, filling line etc.
Fiber laser: Raycus laser generator is very good quality laser source.


Technical parameter

Machine models
DEK-20WF
DEK-30F
DEK-50W
Laser source
20W
30W
50W
Laser source brand
Raycus, super, Maxphotonics  etc.
Marking speed
≤8000mm/S
Marking area
110*110mm(option:200*200mm,300*300mm)
Max.Marking Depth
≤0.4mm
Laser Wavelength
1064nm
Marking lines
1-10 marking lines(in the marking area)
Minimum line width
0.01mm
Minimum character
0.15mm
Resolution ratio
0.01mm
Repeatability accuracy
±0.002mm
Unit Power
≤500W
Graphic format supported
BMP,JGP,PNG,DXF, etc.
Supply Voltage
110V/50HZ/10A(option:220V)
1.High electro-optic conversion efficiency;
2.Low power consumption, stability laser output;
3.High quality beam, consumable free,small machine dimension ;
4.Smaller output laser beam , finer marking line.suitable high precision marking;

The fiber laser engraving machine install with special vertical rotary system,can rotated by itself,suitable for engraving on round material, like glass vase, the laser head can move up and down when engraving and marking on high glass vase.

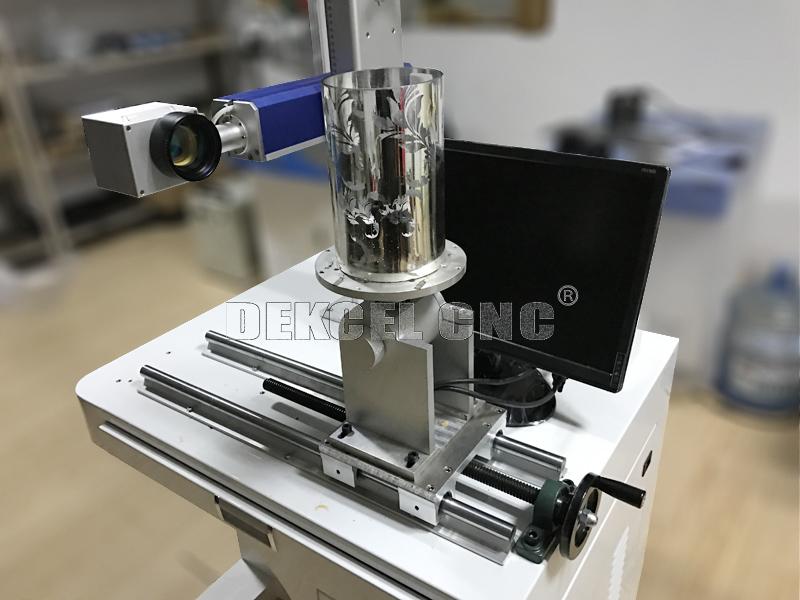

customized fiber laser marking machine

fiber laser engraving machine for glass vase

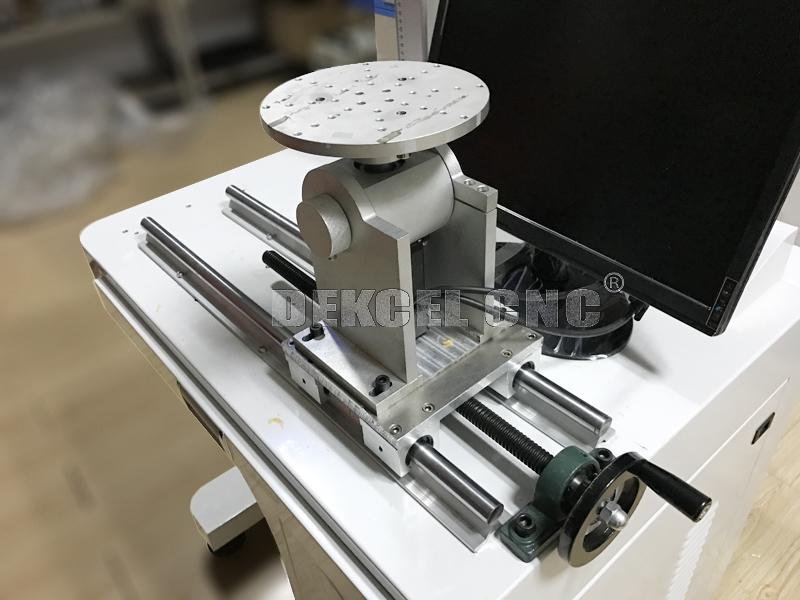

vertical rotary system for glass vase engraving

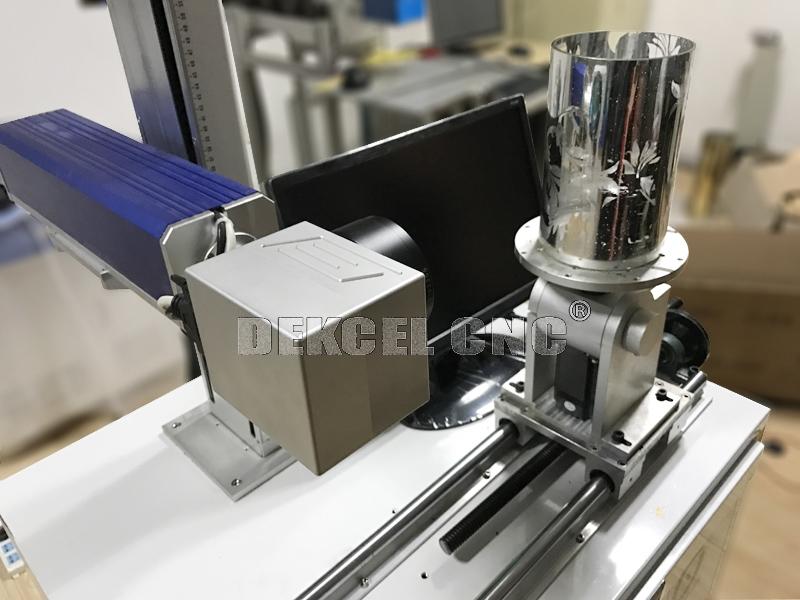

laser engraving device for glass vase



Application
The fiber laser engraving machine can engrave and mark on the surface of many metal and non-metallic ,widely used in the marking of below area :industrial bearings,gear,various automobile components,hardware tools,aerospace components,IC chip,computer accessories,watch,electronic and communication products,wire and cable,food package,jewelry etc .
Its material includes metal such as gold,silver,copper,aluminum,stainless steel,hard metal alloy ,chromeplate,titanize etc, and other non-metallic material such as ceramic,PVC,plastic,epoxy resin,leather,glass vase and so on .
fiber laser engraving lampshade

Glass lampshade engraving machine

flower vase laser engraving machine

laser engraving machine for glass vase
