Tombstone cnc laser engraving on curve surfaces
You are here: Home » Cnc Laser » Laser engraving machine » Tombstone cnc laser engraving on curve surfaces
Share to:

Tombstone cnc laser engraving on curve surfaces

This cnc laser engraving machine is newly designed model to meet the increased requirements of using co2 cnc laser tube to engraving on nonmetal material,like stone,marble,granite etc.With nonmetal following system suitable for curve surfaces engraving.

Quantity:
  • DEK-1318J
  • DEKCEL
  • 070
Machine feature of tombstone cnc laser engraving machine
1,This machine is newly designed model to meet the increased requirements of using co2 laser tube to engraving on nonmetal material,like stone,marble,granite etc.With nonmetal following system suitable for curve surfaces engraving.
2,Ruida control system is easy to learn and operate, connect to laser engraving machine with USB, or connect with the computer.
3,Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
4,Imported high precision linear guide rail and professional optical system, dust proof and lubricate, which improve the engraving quality and prolong machine lifetime.
5.Leadshine stepper driving system--stable
6.Singapore lens and mirror--reflection and focusing, long working life.
7.Red light position system --position precision
8.All the feature of our laser engraving machine make sure its high quality and good work performance.

Tombstone cnc laser engraving machine technical parameter
Model DEK-9060J DEK-1610J DEK-1318J
Laser power: 80W
Engraving Area (mm) 900 x 600 1600 x 1000 1300 x 1800
Laser type:  Reci/Yongli CO2 Laser tube
Engraving speed : 0-1200mm/s
Resetting positioning accuracy: <0.01mm
Maximum forming character: English:1.5 x 1.5mm
Power supply: 220V±10% 50HZ or 110V±10% 60HZ
Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF
Engraver for Curve surfaces: Nonmetal following system so as to engrave on curve surface
Water Cooling:  CW3000
Assistant Equipment: Exhaust Fan Air pump
Recommended Spare Parts/Consumable Laser Tube and Lens

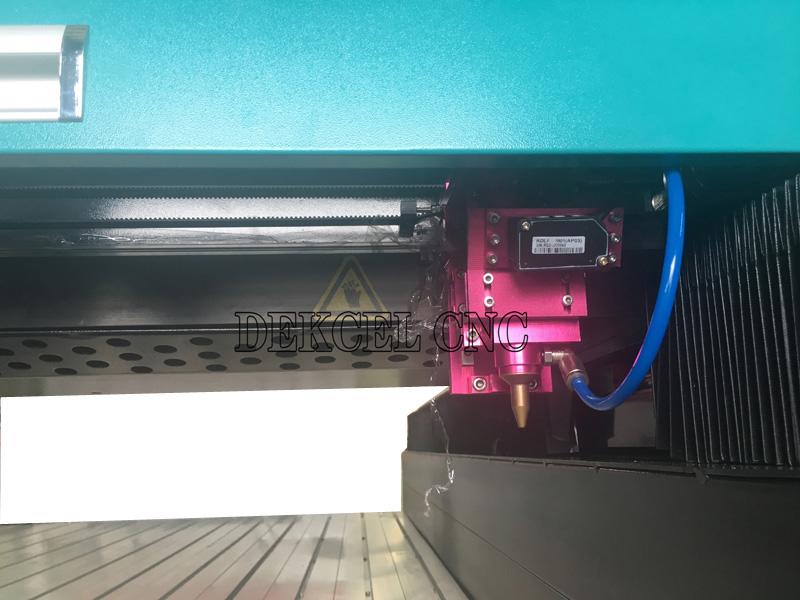

Nonmetal following head system suitable for engraving and cutting on curve surface material.
nonmetal following head of cnc laser
Feeding wheels easy to put the material on the cnc laser machine table.
feeding wheels of cnc laser engraving machine

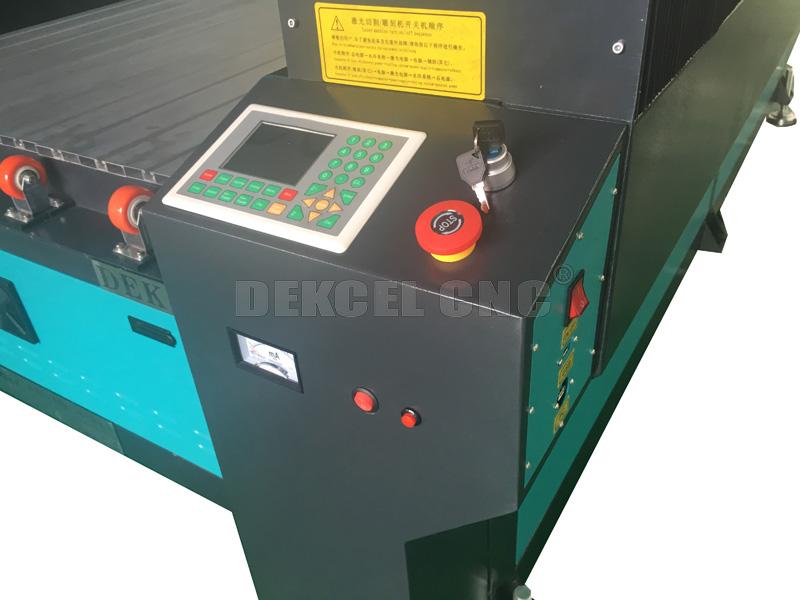

Ruida control system,easy to operate and learning.
cnc laser engraving machine control system

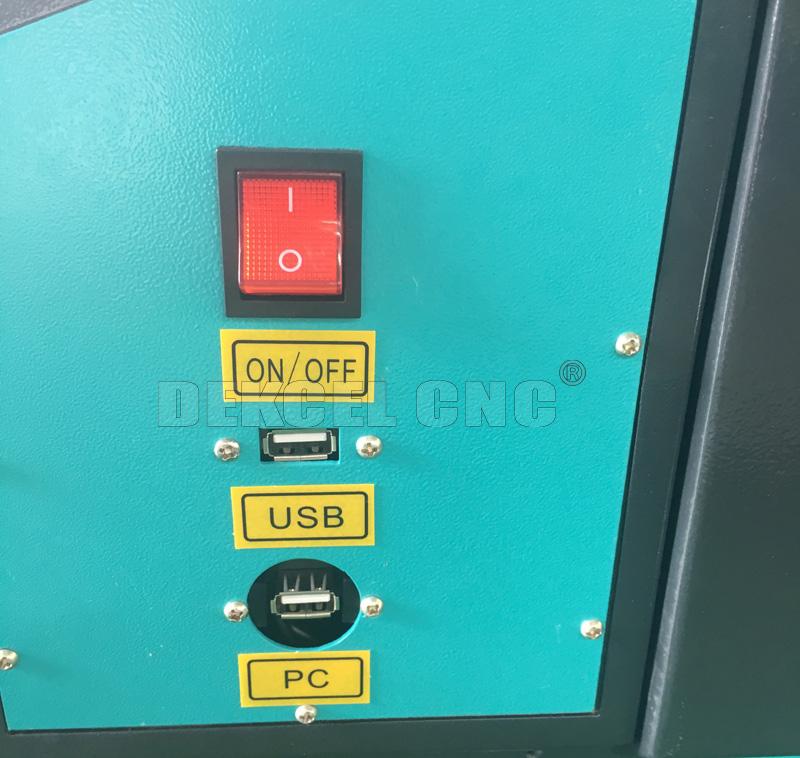

Cnc laser engraving machine can connect with USB,also can connect with PC.
cnc laser engraving machine for curve surfaces

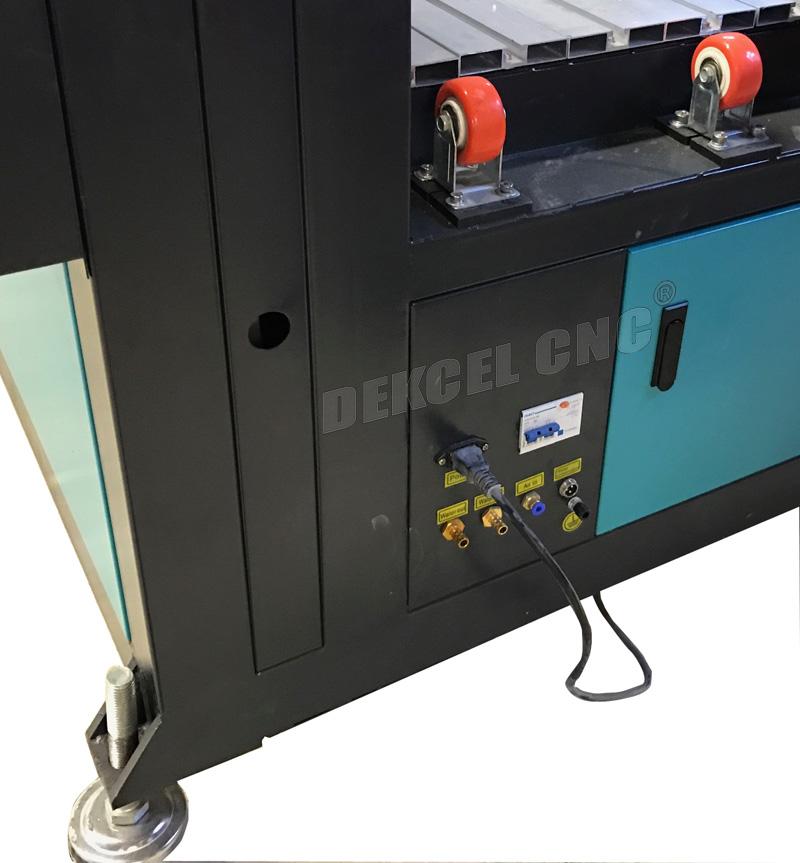

Water chiller and air pump connection way marked very well.
water chiller connection way
Will packing well the laser tube and other part,in case of damage during the shipping.
cnc laser engraving machine packing

Applicable industry of cnc laser engraving machine
Tombstone industry, Decoration industry, Advertising industry,etc

Applicable material
Marble ,granite, black stone,ceramic, wood, acrylic, organic glass, fabric, paper, leather, rubber, glass and other non-metal materials

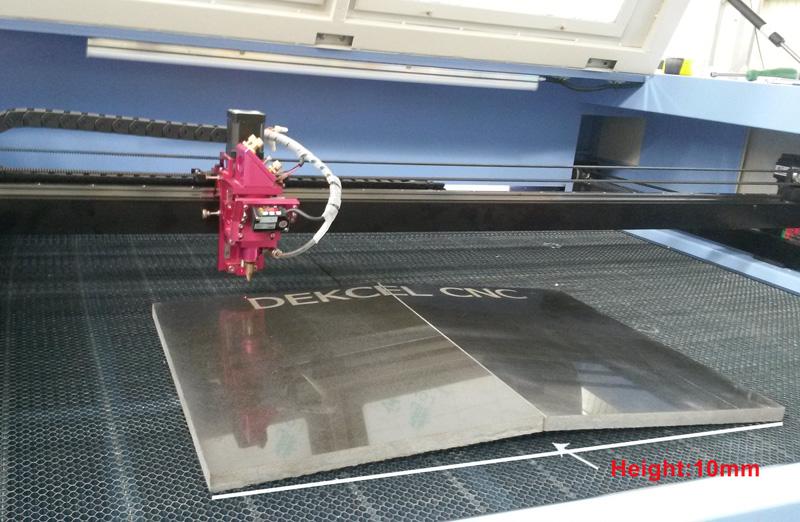

cnc laser engraving for curve surface stone

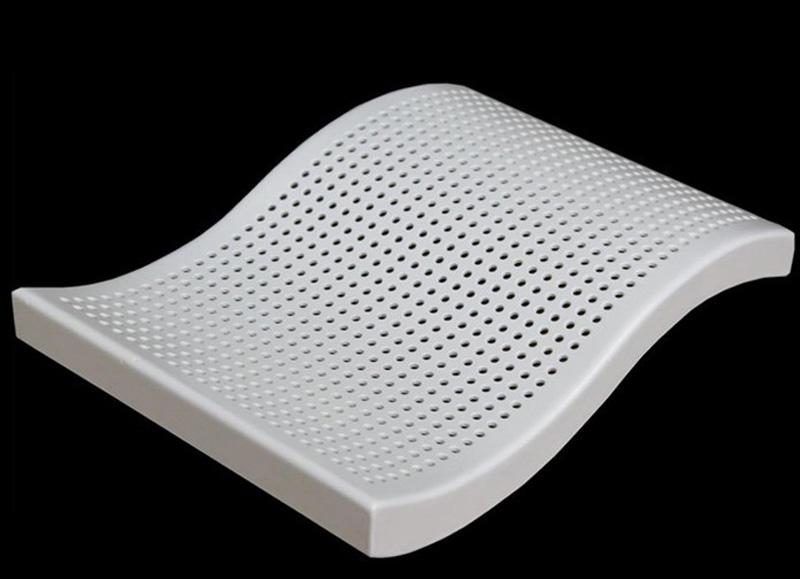

cambered surface laser cutting

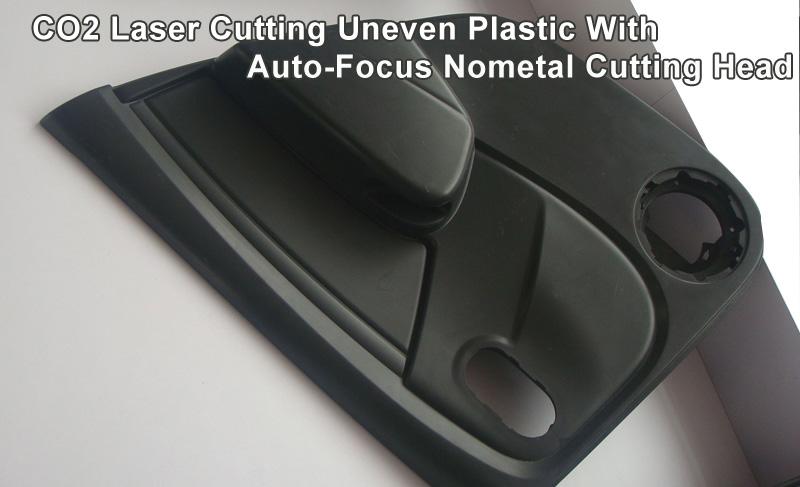

cnc laser cutting curve surface plastic

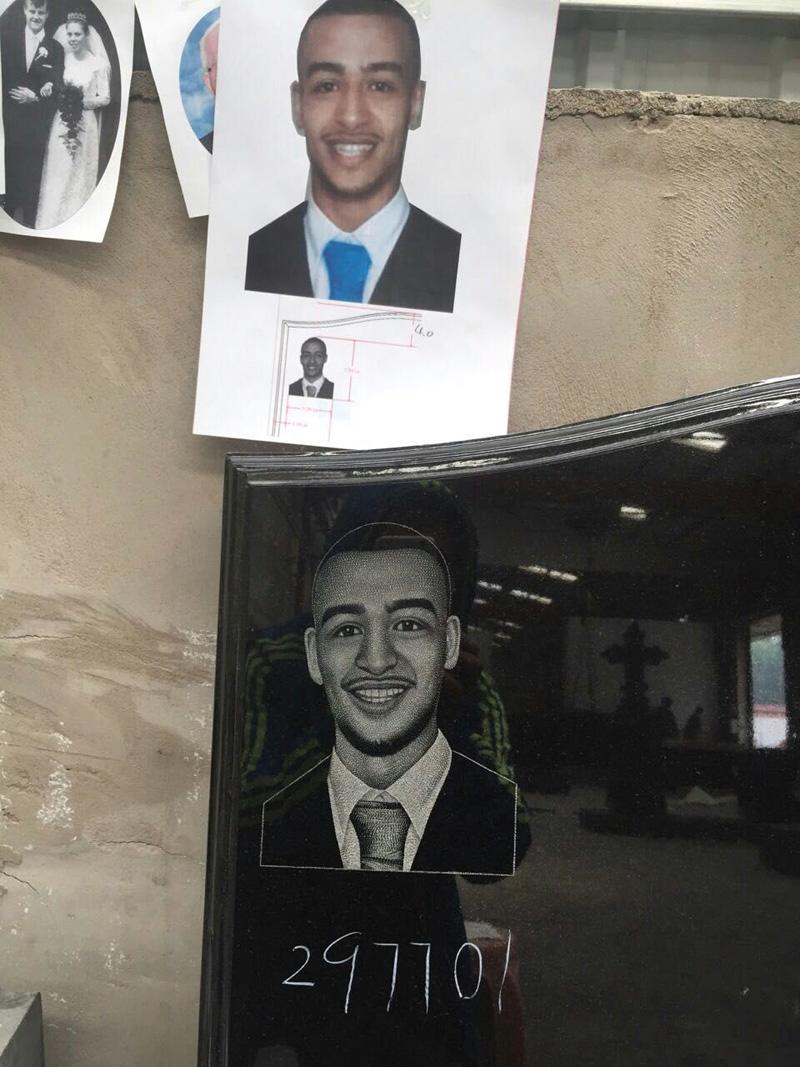

tombstone laser engraving machine
