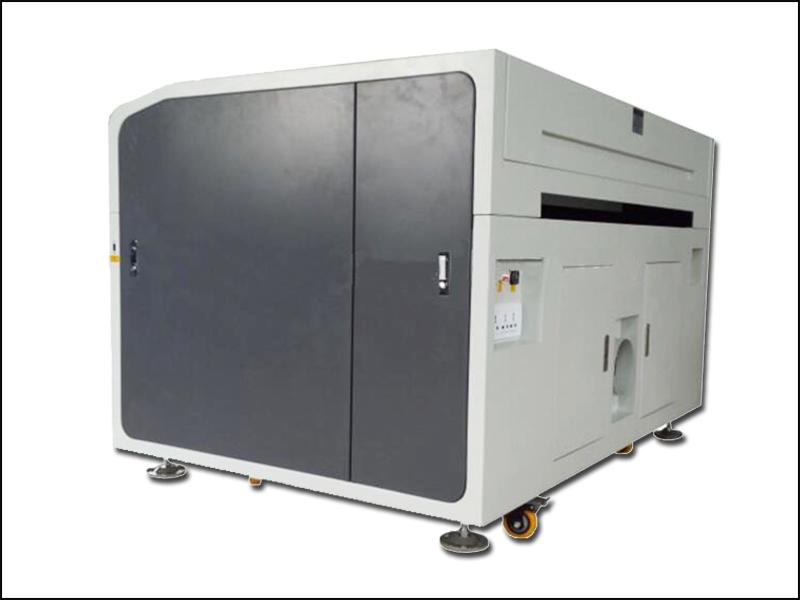

900*600mm Laser Engrave Machine used to acrylic

Dekcel laser engraver machine suitable for engraving on the acrylic, wood,mdf,stone etc nonmetal material.We have many size of laser machine, as working size: 900*600mm,1300x900mm, 1300x2500mm,1600x1000mm and so on.

Quantity:
  • DEK-9060J
  • DEKCEL
  • 056
Machine advantage  of acrylic laser engraver machine
1.Low maintenance cost
2.Convenient operation
3.Strong soft optical effects
4.Advanced imported machine parts:Imported AC servo system driver and imported transmission system, imported gear and rack transmission, linear guide track for guiding
5.Automatic switching table configuration
6.Fully enclosed protective cover
7.The machine tool adopts grantry double driving structure, high damping machine tool bed, good rigid.

Features of  acrylic laser engraver machine
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth. We also have the SEVEO, The motor can be choice. But price is higher than the stepper motor.
3. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4. High quality laser tube provides the strong beam and long service life.
5. More scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube. Beijing RECI LASER TUBE, can be over 10000 hours.

Acrylic laser engraver machine technical parameter
Model DEK-9060J
Engraving Area (mm)W*L 900*600mm
Laser tube power 60W 80W
Laser Type CO2 sealed laser tube
Engraving Speed 0-64000mm/min
Cutting Speed 0-36000mm/min
Resetting positioning accuracy ≤±0.01mm
Laser Output 1-100%software setting
Cooling mode Circulating-water-cooling and protection system
Machine control and drive Speedy DSP controlling, stepper motor
Cutting Platform knife-strip platform
Min. shaping character Character2.0mm×2.0mm,English1.0mm×1.0mm
Power Supply AC220V 50HZ
Operating system DSP off-line control system
Dictate format *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.
Operating Temperature 5°C-40°C
Operating Humidity 5-95%(Free of Condensed Water)
Compatible Software CorelDraw ,AutoCAD transmit directly
Optional Spare Parts Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump
Recommended Spare Parts Laser Tube

Detail parts of  acrylic laser engraver machine

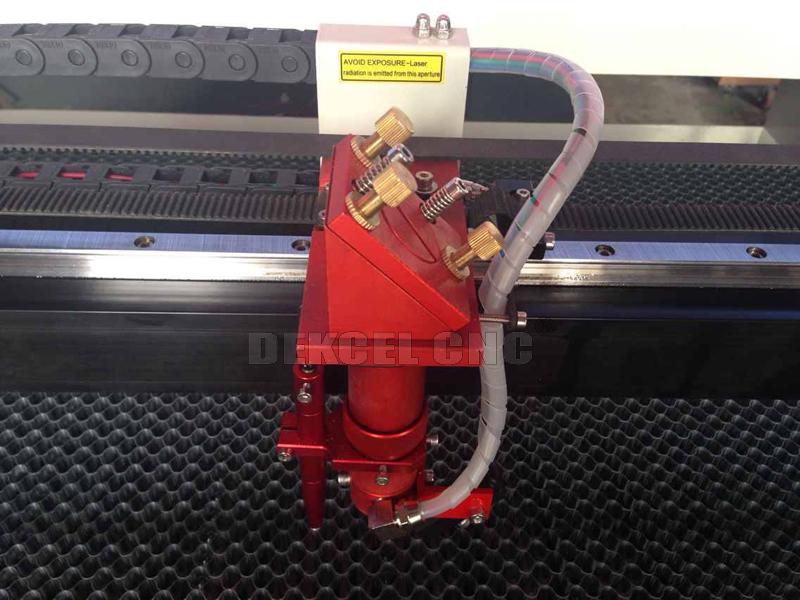

laser engraver machine cutting head

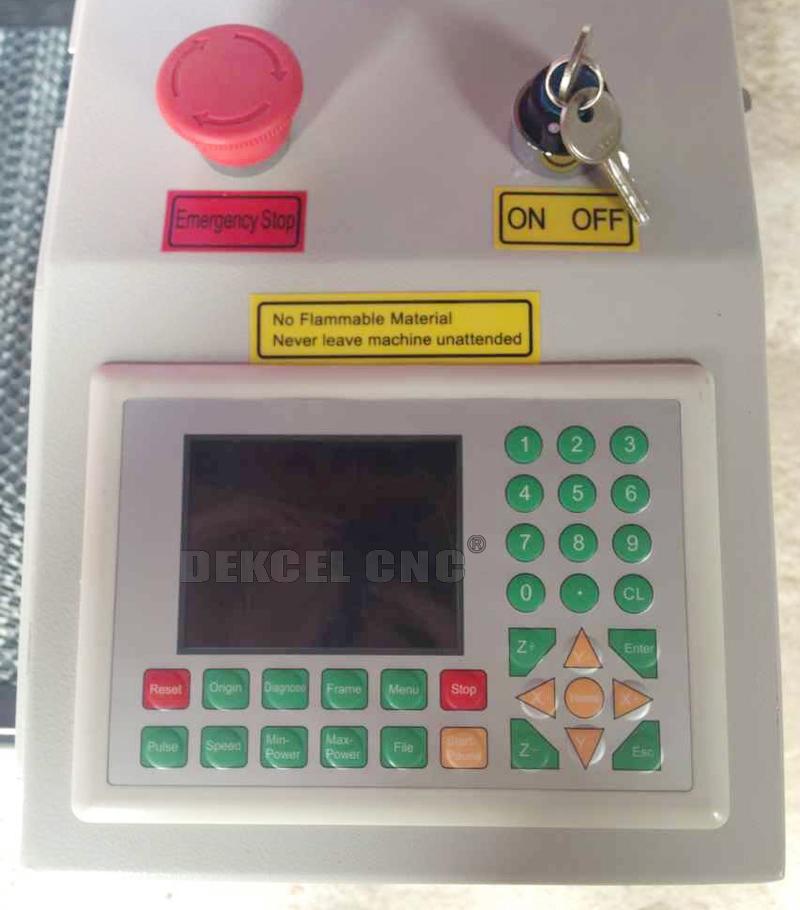

acrylic laser engraving machine control system

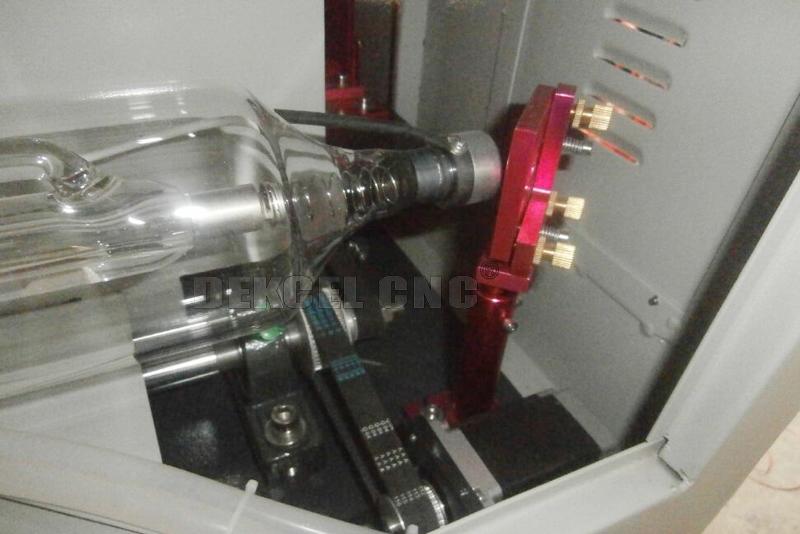

acrylic laser engraver laser tube

acrylic laser engraver packing

Main application
Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials
Comprehensive application: advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.
laser engraver stone

wood laser engraver

laser engraver acrylic

laser engraver bamboo

laser cutting wood
