Machine Features of cnc laser engraving on glass for sale
1.Beijing Reci Co2 laser tube,lifetime more than 8000 hours.
2. Laser Power,
80W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. Ruida control system
Support online/offline working, English language system, adjustable engraving and cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Tiwan Hiwin square guide rails.
Technical parameter
| Product Type | Cnc laser engraving on glass |
| Model | DEK-9060J |
| Effective area | 900*600mm (customerized available) |
| Laser power | 80w |
| Laser type | 10.6um,co2 sealed glass laser tube |
| Cooling mode | Water cooling |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Laser energy control | 1-100% software setting |
| Mini-shaping character | Chinese character2.0*2.0mm,English1.0*1.0mm |
| Max-scanning precision | 2500DPI |
| Positioning precision | 0.01mm |
| Supported graphic format | DSP PLT BMP DXF AI |
| Operating system | Windows98/ME/2000/XP/VISTA/2007 |
| Division cutting yes or no | Yes |
| power | AC110V-220V+10%,50-60HZ |
| Driving system | Stepper motor |
| Optional configuration | (1) up-down table(2) rotary attachment
(3) auto focus(4)honeycomb table |
| Standard accessories | (1)laser engraving cutting software: laser cut 6.1(English version) (2)knife table (3)USB cable (4)red point (5) air exhaust fan (6)air pump (7)3 reflecting mirrors and 1 focus lens from Singapore (8)one laser tube(has been installed in the machine) (9) tool box that you need to repair or maintenance (10)User manual of machine (English version) |
Standard configuration of cnc laser engraving on glass

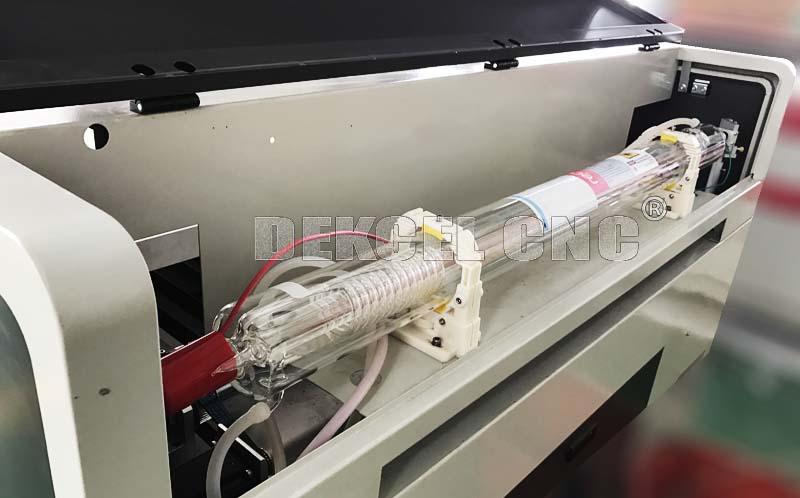

80W Beijing Reci laser tube for doing engraving work.

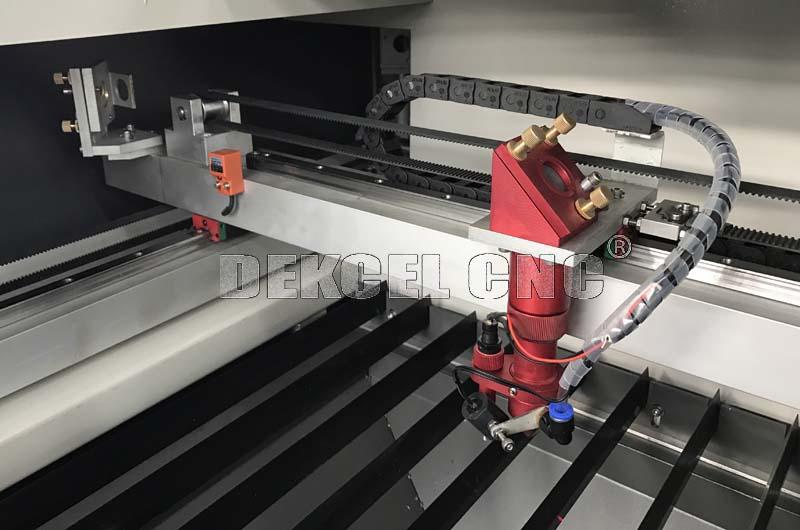

Laser engraving head with auto focus

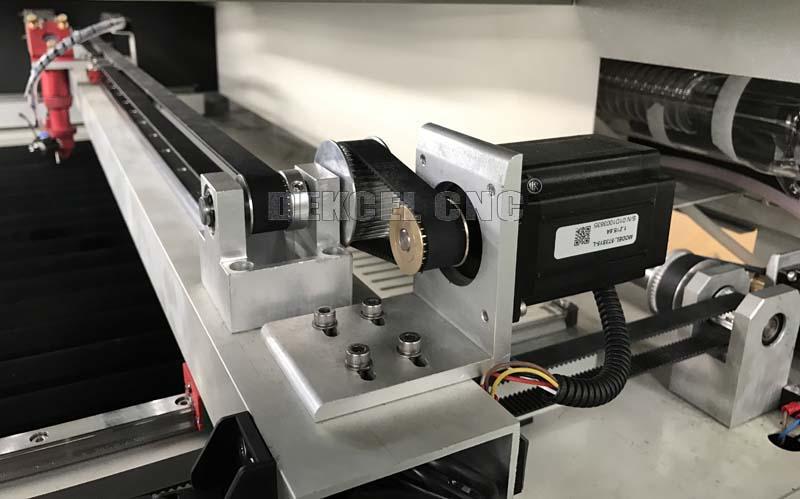

Leadshine stepper motor and drivers, shanghai fulong belt transmission.

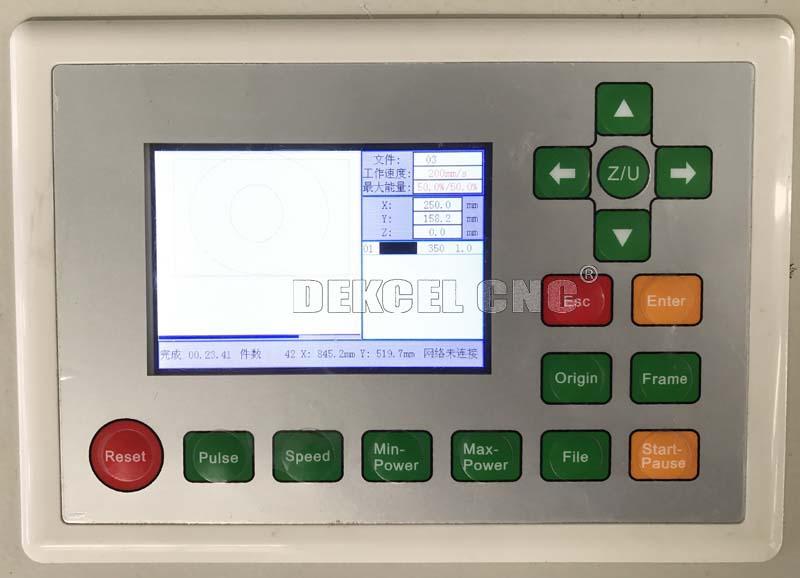

Ruida control system,easy to operate

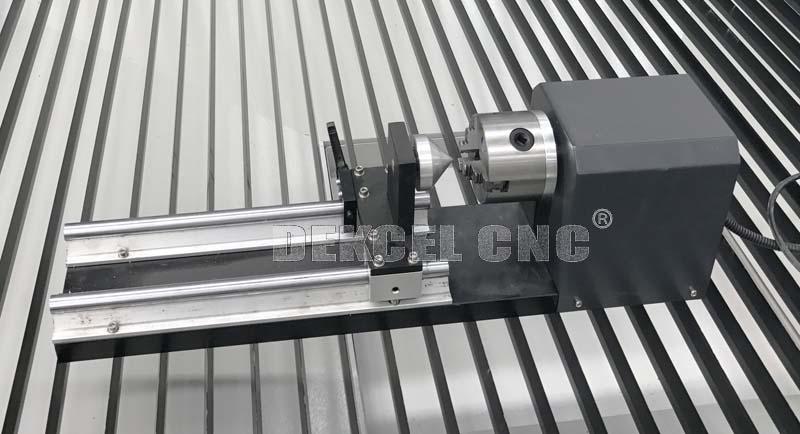

Knife blade table,rotary device for engraving on glass bottles

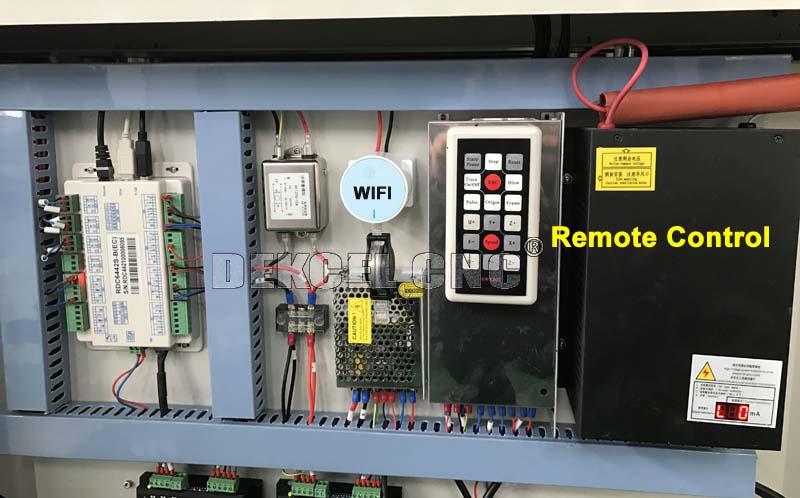

Cnc laser engraving machine for glass with Wifi connector, can use the mobile to control the machine by App.
Machine Features of cnc laser engraving on glass for sale
1.Beijing Reci Co2 laser tube,lifetime more than 8000 hours.
2. Laser Power,
80W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. Ruida control system
Support online/offline working, English language system, adjustable engraving and cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Tiwan Hiwin square guide rails.
Technical parameter
| Product Type | Cnc laser engraving on glass |
| Model | DEK-9060J |
| Effective area | 900*600mm (customerized available) |
| Laser power | 80w |
| Laser type | 10.6um,co2 sealed glass laser tube |
| Cooling mode | Water cooling |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Laser energy control | 1-100% software setting |
| Mini-shaping character | Chinese character2.0*2.0mm,English1.0*1.0mm |
| Max-scanning precision | 2500DPI |
| Positioning precision | 0.01mm |
| Supported graphic format | DSP PLT BMP DXF AI |
| Operating system | Windows98/ME/2000/XP/VISTA/2007 |
| Division cutting yes or no | Yes |
| power | AC110V-220V+10%,50-60HZ |
| Driving system | Stepper motor |
| Optional configuration | (1) up-down table(2) rotary attachment
(3) auto focus(4)honeycomb table |
| Standard accessories | (1)laser engraving cutting software: laser cut 6.1(English version) (2)knife table (3)USB cable (4)red point (5) air exhaust fan (6)air pump (7)3 reflecting mirrors and 1 focus lens from Singapore (8)one laser tube(has been installed in the machine) (9) tool box that you need to repair or maintenance (10)User manual of machine (English version) |
Standard configuration of cnc laser engraving on glass
80W Beijing Reci laser tube for doing engraving work.
Laser engraving head with auto focus
Leadshine stepper motor and drivers, shanghai fulong belt transmission.
Ruida control system,easy to operate
Knife blade table,rotary device for engraving on glass bottles
Cnc laser engraving machine for glass with Wifi connector, can use the mobile to control the machine by App.
Applicable Industry of cnc laser engraving machine for sale
1.Engraving beautiful patterns and words such as glass, wood, bamboo, Ivory, bone, leather, marble,shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove,handbag, shoes, hats toys.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate,plastic plate, double board, die cut plate,etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material
Glass, organic glass,leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf,Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
Applicable Industry of cnc laser engraving machine for sale
1.Engraving beautiful patterns and words such as glass, wood, bamboo, Ivory, bone, leather, marble,shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove,handbag, shoes, hats toys.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate,plastic plate, double board, die cut plate,etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material
Glass, organic glass,leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf,Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
