Competitive Price 100W laser engraving machine for wood/acrylic
You are here: Home » CNC Laser » Laser engraving machine » Competitive Price 100W laser engraving machine for wood/acrylic
Share to:

Competitive Price 100W laser engraving machine for wood/acrylic

This type competitive price 100W laser engraving machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, marble, leather, cloth, double-color board, etc. nonmetal materials .

Quantity:
  • DEK-9060J
  • DEKCEL
  • 078
Characteristic
This type good price 100W laser engraving machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .

Product feature of 100W laser engraving machine
1).Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly
2).Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
3).Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal display brings out much convenient operation and simpler maintenance.Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.
4).Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
5). Offline control system: Apply USB interface to communicate with computer under the system of WIN98/NT2000/XP, which can instantly compete transmission.

100W laser engraving machine technical parameters

Laser Power

80W (100W is optional)

Laser Type

Hermetic CO2 glass tube

Power Supply

AC220±10%  50HZ / AC110±10%  60HZ

Working Area

900*600mm

Max Moving Speed

0-25000mm/min

Worktable

honeycomb worktable/aluminium knife/steel nail(optional)

Locating Precision

<0.01mm

Min Shaping Character

Character 3×3mm  Letter:2×2mm

Operating Temperature

5°C-35°C

Resolution ratio

≤4500dpi

Control Configuration

DSP

Data transfer Interface

USB2.0(offline)

System Environment

WINDOWS 2000/ WINDOWS XP/Visa/win7

Cooling Way

Water Cooling and Protection System

Graphic Format Supported

files which CorelDraw,Photoshop, AutoCAD can identify(BMP,GIF,JPGE,

PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.)

Compatible Software

CorelDraw, AutoCAD

Cutting Thickness

0–20mm(depends on different material)

Color Separation

Separation of cutting up to 256 colors

Sloping Engraving

Yes,slope can be designed discretionarily

Water break protection

Yes

Packing

plywood case or according to customer’s request

Net Weight/Gross Weight

380/430kg

Machine Dimension

1980*1300*1120mm

Package Dimension

2100*1700*1300mm

Optional parts

High-grade cooling system/imported focus lens/ double head/cylinder

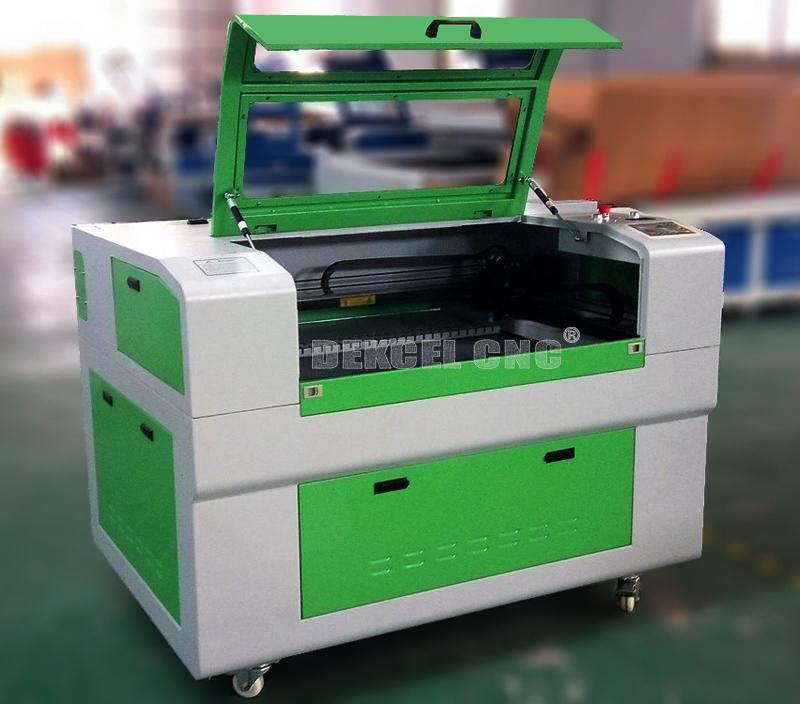

laser engraving machine 600*900mm

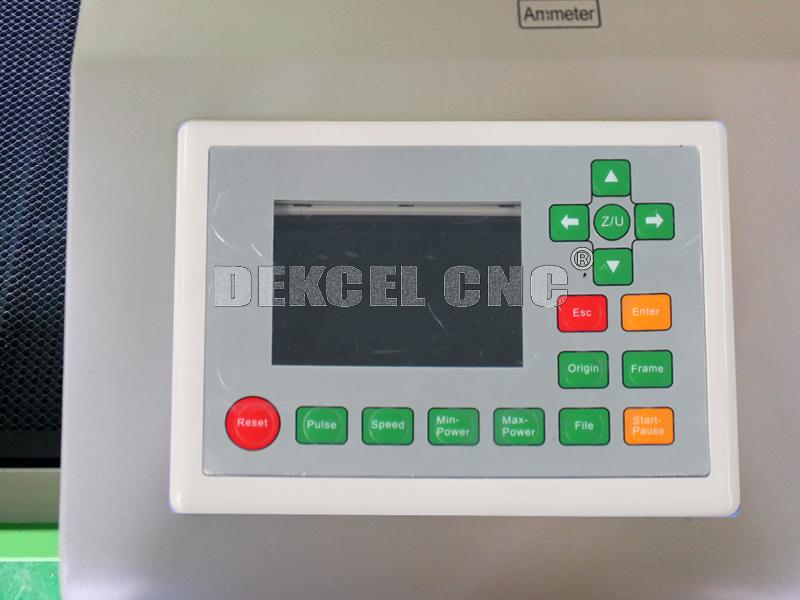

English control panel,easy to learn,can be offline.
ruida control system laser engraving machine

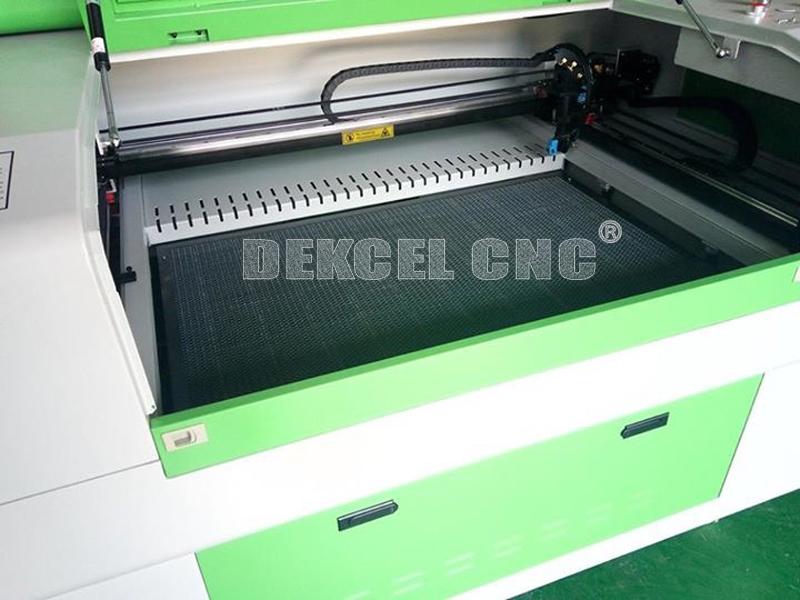

Honey comb table, option blade knife cutting table
laser engraving machine honey comb table

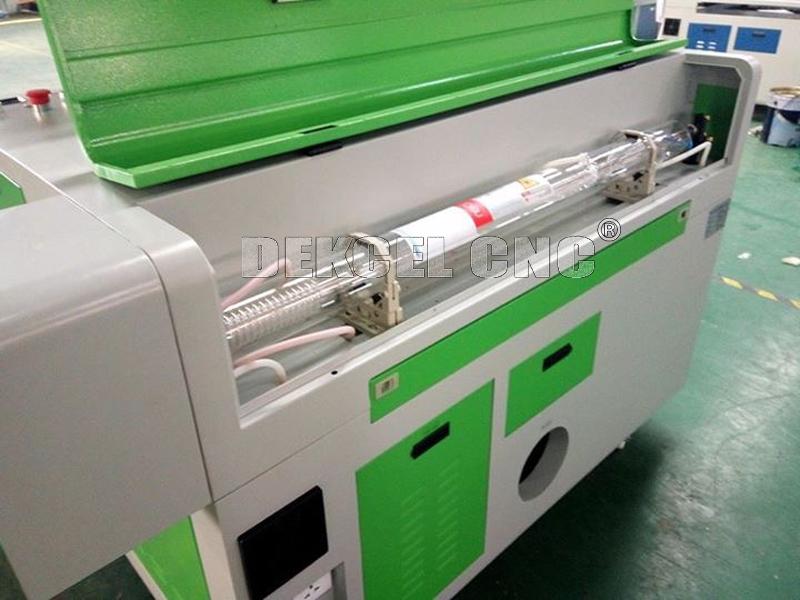

Beijing Reci laser tube 80W,100W laser tube,lifetime 8000-10000 hours
100W reci laser tube laser engraving machine


100W laser engraving machine applicable materials
Nonmetal materials such as leather, fabric, cloth, textile, paper, plastic, rubber, double color board,acrylic glass, bamboo and wood,MDF, plywood, marble, granite and crystal etc.

Applicable industry
Large width tailoring, shoe making, furniture, advertisement, molding, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry .small business industry.etc
laser cutting acrylic

cucurbit laser engraving

paper laser cutting machine

leather laser cutting machine
