Cnc Separable 9060 shoe leather engraving and cutting laser machine
You are here: Home » CNC Laser » Laser engraving machine » Cnc Separable 9060 shoe leather engraving and cutting laser machine
Share to:

Cnc Separable 9060 shoe leather engraving and cutting laser machine

Dekcel separable laser cutting and engraving machine is new model. It brings great convenience to customers. First,if some customer workshop’s gate too small can not move the machine inside,so you can divide the machine into 2 parts and take the machine into the shop.Second,for some big and heavy material,
we can put the upper part onto them, so that avoiding the difficulty of moving heavy material.

Quantity:
  • DEK-9060J
  • DEKCEL CNC
  • 151

Separable 9060 Laser Engraving and Cutting CNC machine

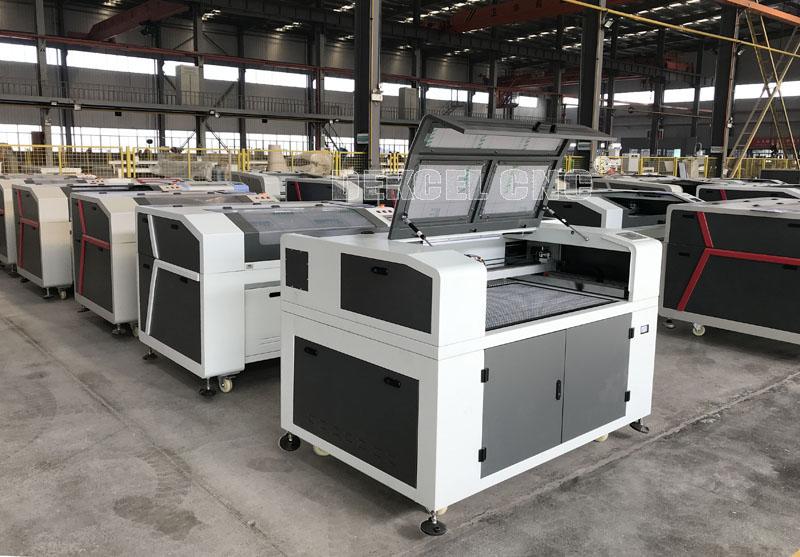

phone case laser engraving machine

Advantage of Separable Laser Cutting and Engraving Machine
The machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the machine,and the lower part can configure suitable platforms according to customers’ requirements. The design changes the traditional engraving method.

For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material. Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.

※ If some customer workshop’s gate too small can not move the machine inside,so you can divide the machine into 2 parts and take the machine into the shop

Separable Laser Engraving Machine Parts

1. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time
2. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
3. CO2 Glass sealed laser tube
China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.
4. RD control system
It adopts current most mature technology control system,with stable performance,easy operation,practical function and friendly operation surface.
5. Honeycomb worktable or blade worktable:
According your cutting material choose the right working table.
Blade worktable suitable for cutting and engraving hard materials such as acrylic,wood,plastic etc
Blade worktable suitable for cutting and engraving soft material like leather,fabric,paper card,rubber ect.
6. Taiwan Hiwin/PMI linear square Guide Rails
It is the most famous brand for linear square guide rails,it can assure the machine has a high precision.
7. Stepper motor
We adopt Leadshine stepper motor for laser cutting machine,it have a big power and high precision,it is suitable for cutting and engraving with good performance.
8. Exhaust Fan
The exhaust fan can exhaust out the smoke which will be produced during the cutting,it will product the breath in the work area.
Leather Engraving Laser Machine parameter
Machine models
DEK-5030J
DEK-6040J
DEK-9060
DEK-1390
Max working area
500*300mm
600*400mm
900*600mm
1300*1900
Laser tube watts
60-80W
60-80W
80-180W
60-180W
Laser tube type
Co2 sealed laser tube
Standard features
Red dot pointer, Singapore lens, Hinwin guide rail, Fulong belts, air pump, water chiller
Intelligent memory
Store unlimited files up to 128MB
Motion drive system
High speed stepper motor and servo motor
Control system
Rdworks
Compatible software
Coreldraw, Autocad, Photoshop
Graphic format
BMP, PLT, DST, AI,DXF
Resolution
2500dpi
Resolution rate
0.05mm
Minimum character
English 1*1mm
Speed and power control
Computer or manually controlled speed, max up to 600mm/s, and power in 1% increments to 100%
Print interface
Enthernet or USB interface. Compatible with Windows8/7/XP, etc.
Electrical requirments
AC110-220V
Note: 1. Machine color and size can be customized.
            2. Warranty: 2 years for machine body, 10months for RECI laser tube.

DEK-9060 Separable Laser Engraving Machine Details

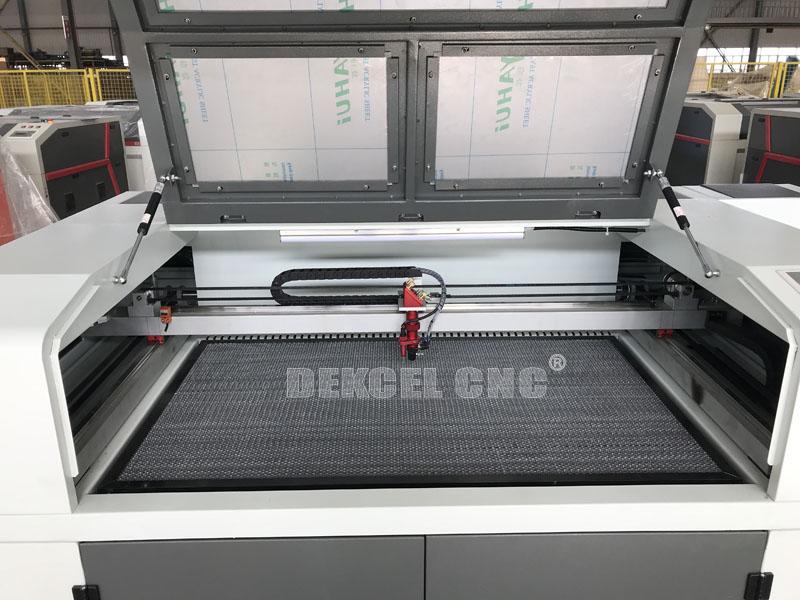

※ Honeycomb working table

honeycomb table laser machine

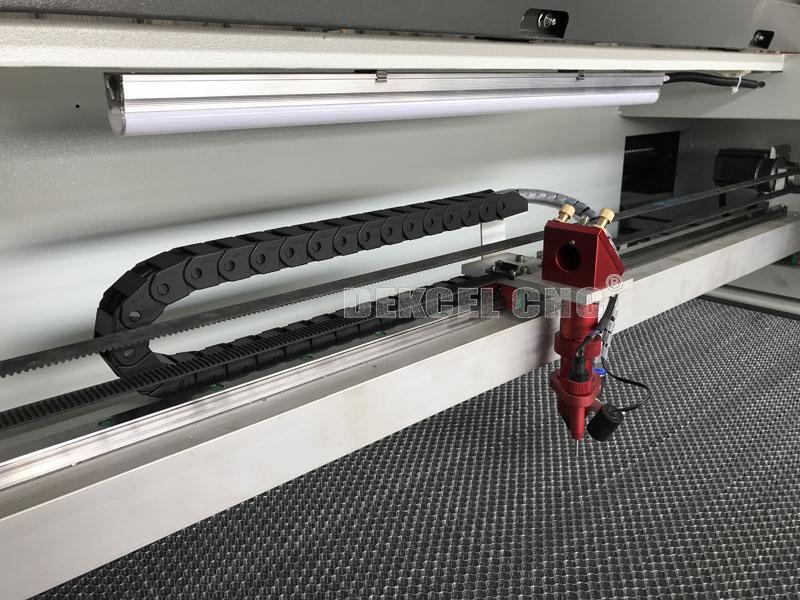

※ Laser Cutting Head with red laser positioner and auto-focus device

laser cutting machine head

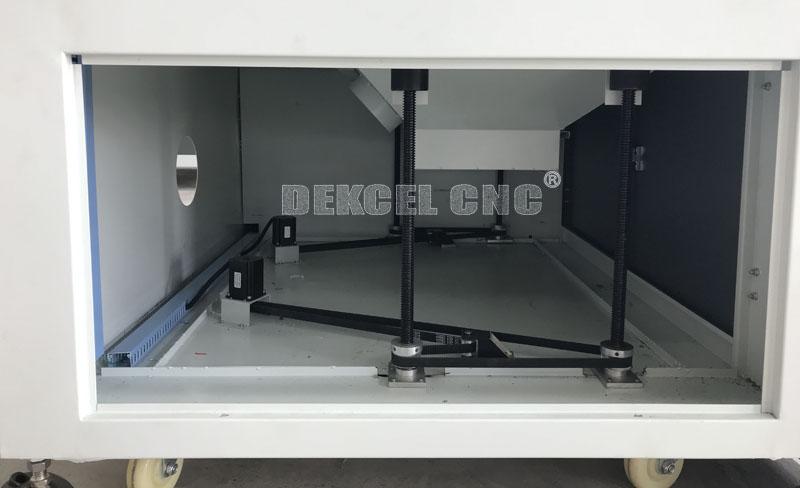

※ Up and down woring table

up and down table laser machine

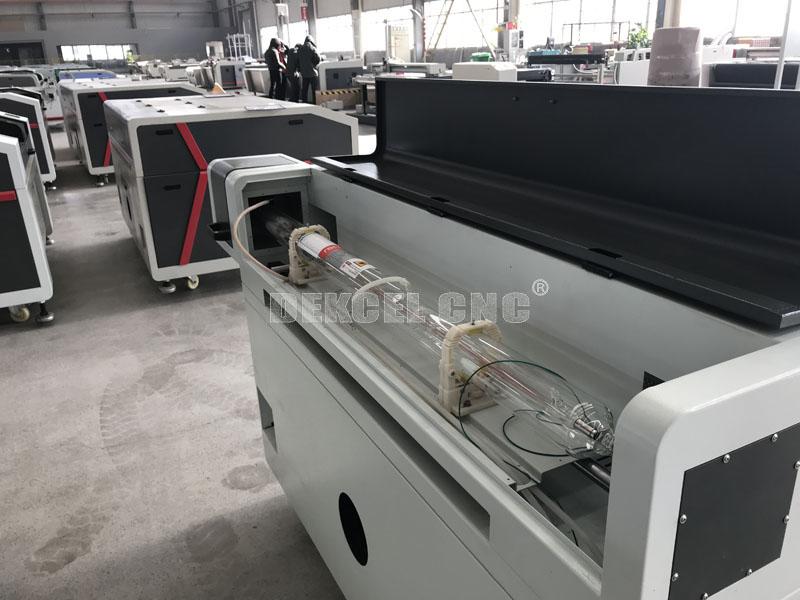

※ Beijing Reci co2 laser tube

wood craft cutting machine

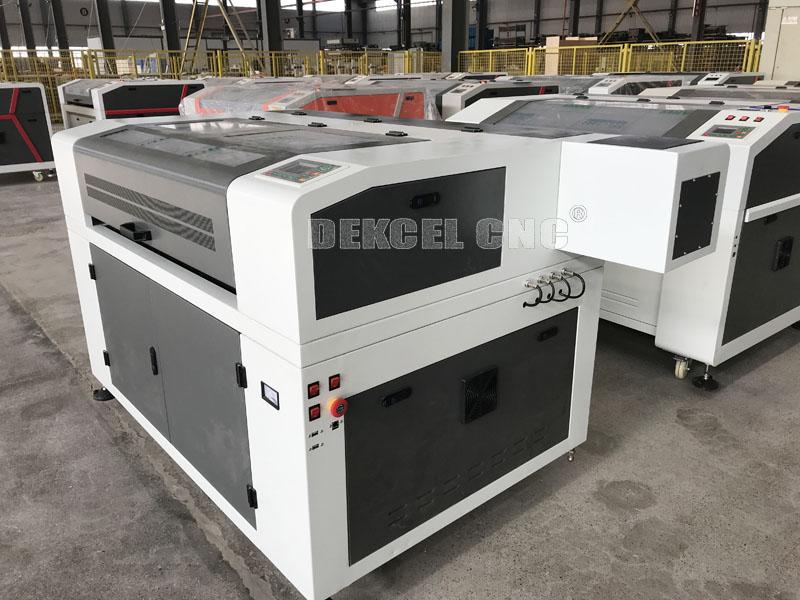

※ There are 4 plugs on the right side of machine,when you separate the machine,please disconnect the plugs first.

9060 laser cutting engraving machine

Applicable Materials : Wood, Plywood, Bamboo, MDF, Balsa, Veneer Inlays, Acrylic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, Rubber Sheet, Plastic, Industrial Plastics (PP, PE, PET, PVC, ABS, PA, PS, PC, etc.), Paper,Corrugated Paper, Cardboard, Pressboard, Paperboard, Chipboard, Marble ,granite, brick etc.

acrylic laser cutting and engraving machine

leather engraving laser machine

MDF craft laser cutter machine manufacture

phone case laser engraving machine
