Gravestone Headstone Marble Shadow Engraving Carving Laser Machine
You are here: Home » CNC Laser » Laser engraving machine » Gravestone Headstone Marble Shadow Engraving Carving Laser Machine
Share to:

Gravestone Headstone Marble Shadow Engraving Carving Laser Machine

Dekcel gravestone marble laser engraving machine is our company newest design for engraving on the marble,tombstone,granite ect .In order to meet the cutting request of the customer,there is aluminium knife blade table on the table ,you can according your processing choose the reasonable table,so humanity design make this products sold well.

Quantity:
  • DEK-1325S
  • DEKCEL CNC
  • 156

Gravestone Headstone Marble Shadow Engraving Carving Laser Machine
gravestone laser engraving machine price

Machine Introduction:
1) This machine is specially used for large size marble ,granite, and tombstones as well as other nonmetal materials such with large formats
2) Machine structure is with heavy body which can withstand loads up to 2 tons
3) Install wheels in front of worktable, make moving heavy materials very easy.
4) Application of 3 phases stepper motors to ensure the processing stability and high accuracy.
5) Applicable for various of materials, such as marble, granite, tombstone, acrylic, wood, glass, crystal, cloth, leather, rubber, paper, ceramic tile, etc.
With special design machine structure, this model is widely used in marble processing, advertising, souvenir and gift products, leather goods and textiles, modeling, decorations, etc.

Technical Parameters:

Model

DEK-1318

DEK-1325

Option

Working Area

1300*1800mm

1300*2500mm

According to Demands

Laser Power

 80w/100w/130w//150w

Laser Type

CO2 Sealed Laser Tube , 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-36000mm/min

Laser Output Control

0-100% Set by Software

Min. Engraving Size

Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

Color Separation

Yes

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V+10%,50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Option parts

Water chiller Red Dot Position System

 1325 Mable Stone Engraving Machine Details

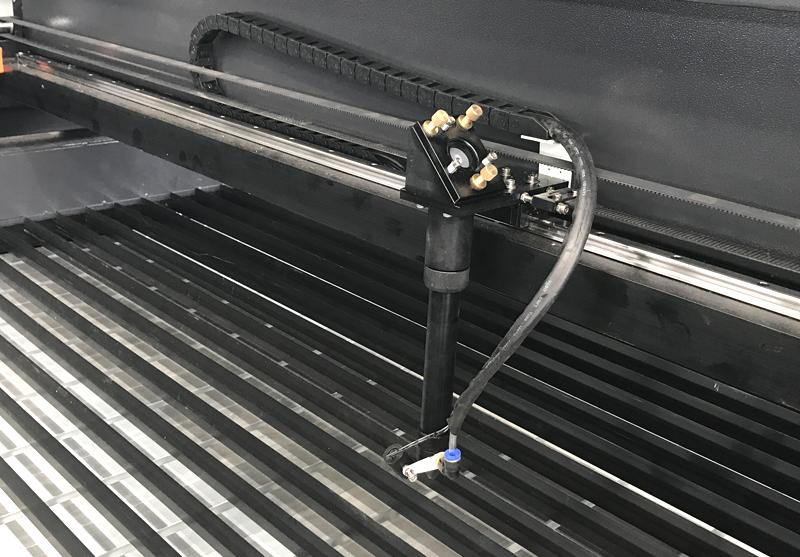

1. With customized laser engraving head,the thickness for stone can up to 450mm

jinan stone engraving cnc machine price

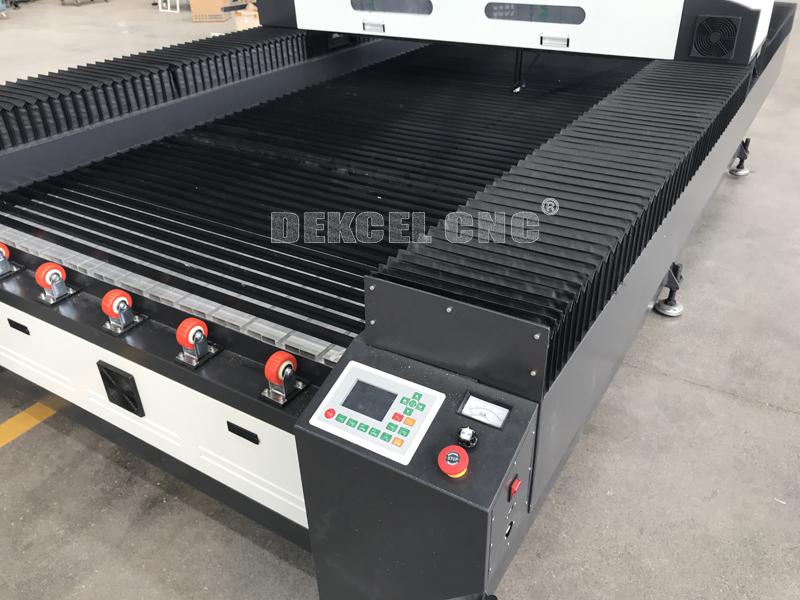

3. Ruida control system for stone laser engraving machine

photo picture engraving laser machine

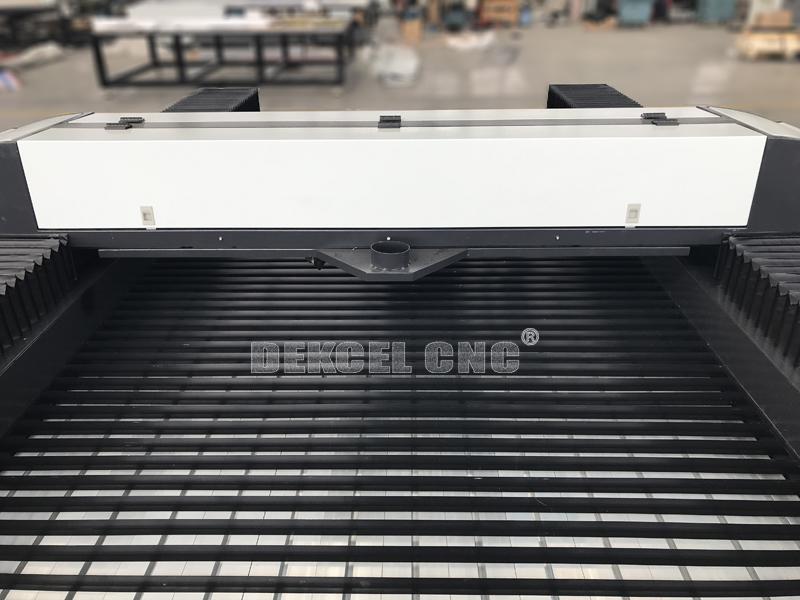

3. Machine with 2 kinds of working table:flat aluminium table and knife blade table.
   Flat aluminium table : marble,stone,granite,glass...

   Knife blade table   : mdf,acrylic,wood,cardboard,rubber,plastic ...

multi function table for stone laser engraving machine

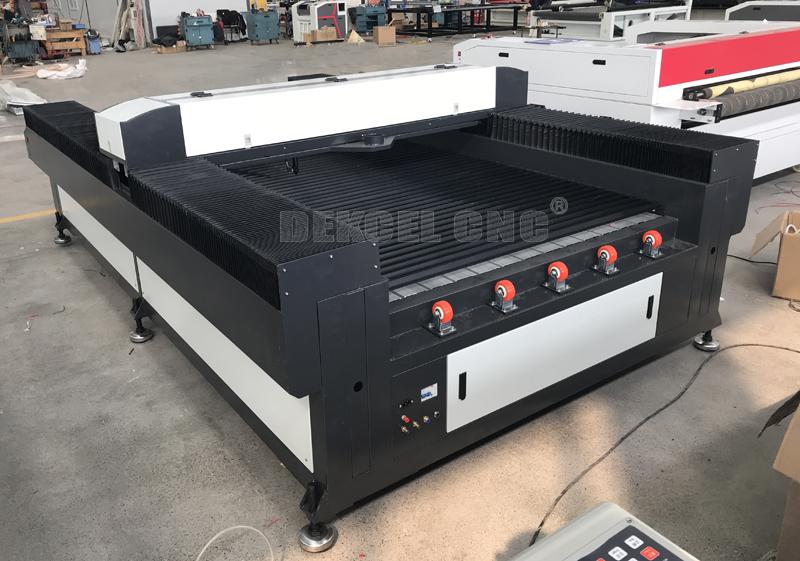

4.  Install wheels in front of worktable, make moving heavy materials very easy.

 headstone laser engraving machine

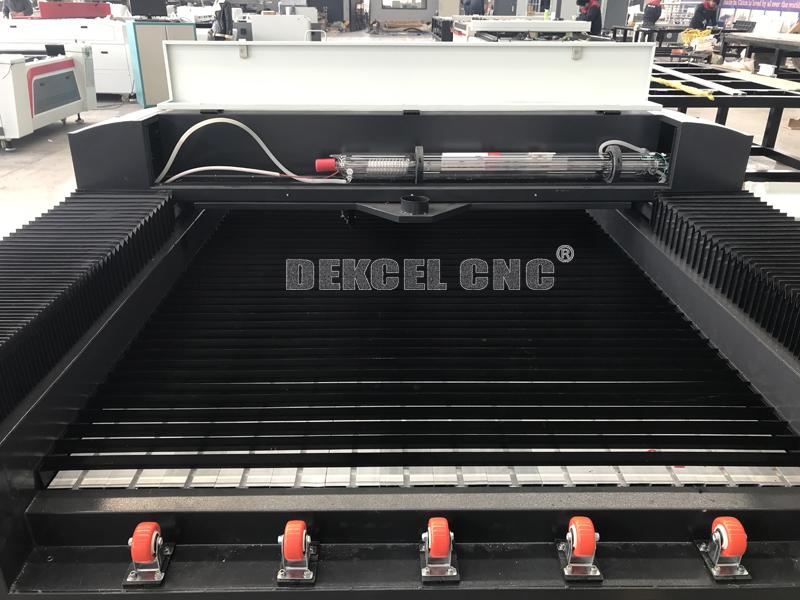

moving wheel for loading heavy marble stone

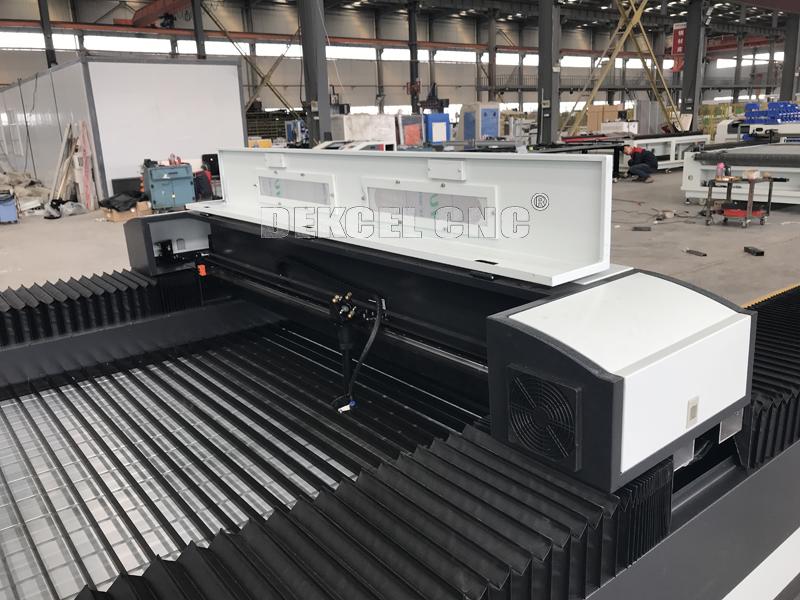

5. Dust cover to protect the guide rail,ensure the engraving accurancy.

marble engraving cnc machine for sale

Applicable Industries:

Monument tombstone/gravestone industry, model industry construction models, aviation and navigation models and wooden toys advertisement, decoration, art crafts, electronics, and electric appliances, etc

Applicable  Materials:

Nonmetal materials such as stone, marble, granite, gravestone, tombstone, acrylic, glass, ceramics, bamboo, leather, perspex,  wood, rubber, leather,fabric, paper, cltoh, dual-colour boards.etc Etc.

wood engraving laser machine

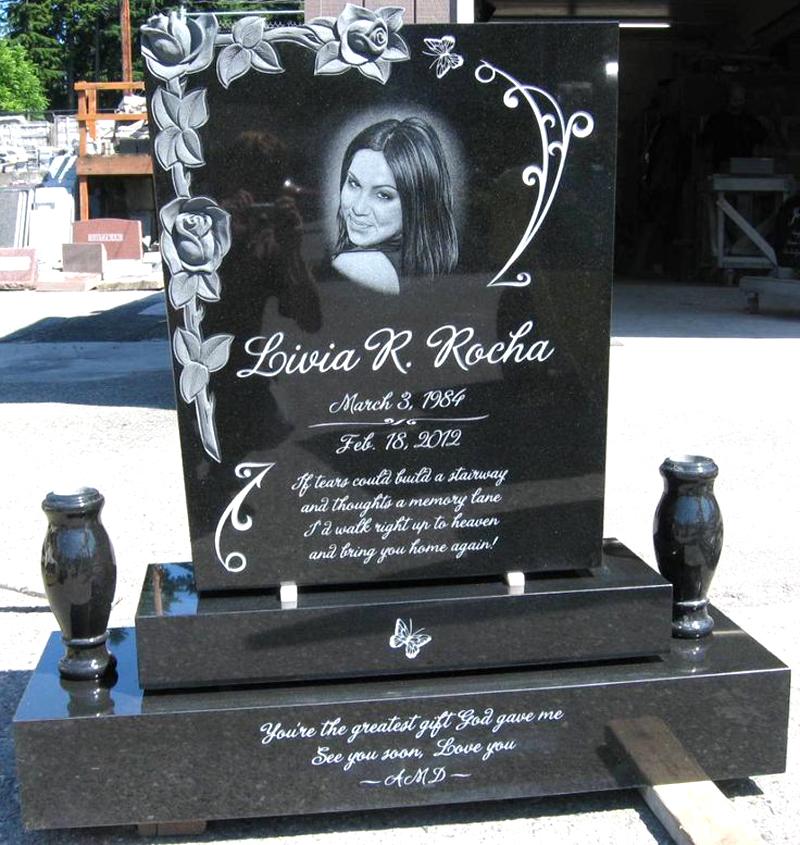

grave stone laser engraving cnc machine

window glass laser engraving marking machine

advertising board cutting engraving cnc machine
