Detailed advantage of stone laser engraving machine
1. For laser tube,we use RECI brand,very popular among customers,its lifetime is 3 times longer than common laser tubes.
2.We use stepper motor,providing enough power,ensuring high speed of machine.
3.We use Taiwan HIWIN/PMI linear rail for transmission,to ensure high precision,faster speed,lower noise,and its lifetime is 10 times longer than common rail ways.
4.we have two kinds of worktable: Aluminum knife table for hard material like wood,acrylic,helping small cutted pieces fall off; and honeycomb worktable for soft material like leather,cloth,to keep the material as flat as possible,ensuring cutting effect. If you work on both hard and soft material,we can make the table with double use.
5.The control system is DSP, supporting offline work. There is USB interface on the panel,so it support U disk,very convenient.
6.Red dot will help position the laser,protecting operator.
Technical Detailes for stone and marble laser engraving machine
| Type | DEK-1610J | |||
| Engraving Area | 1600 x 1000mm | |||
| Laser Power | 80w | |||
| Laser Type | CO2 Laser Tube | |||
| Engraving speed | 0~1000mm/s | |||
| Cutting speed | 0~600mm/s | |||
| Resetting positioning accuracy | 0.01mm | |||
| Cutting depth | depend on materials | |||
| Minimum Shaping Character | 1.5×1.5mm | |||
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ | |||
| Gross power | 1200W | |||
| Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD | |||
| Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF | |||
| Engraver for Curve surfaces (Yes/No) | No (rotary attachment can be added for cylinders) | |||
| Water Cooling: (Yes / No) | Yes | |||
| Maximum Height of Materials to Engrave (mm) | 280mm(Up and down by motor) | |||
| Laser Tube (life hours) | 10000 hours | |||
| Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable | |
| Optional Spare Parts | RF Tube | Rotary System | Cooling water system | Red Dot Pointer |
| Recommended Spare Parts / Consumables | Laser Tube and Lens | |||
| Machine parts | Tools bag | ||||
| Name | Amount | Units | Name | Amount | Units |
| Water pump | 1 | set | Manual book | 1 | PC |
| Air pump | 1 | PC | Software CD | 1 | PC |
| Power line | 1 | PC | USB line | 1 | PC |
| Smoke pipe | 1 | PC | Water pipe | 1 | PC |
| Air pipe | 1 | PC | Pass lock | 1 | PC |
| Tool bag | 1 | PC | | | |
| More parts can provide to you as your request | |||||

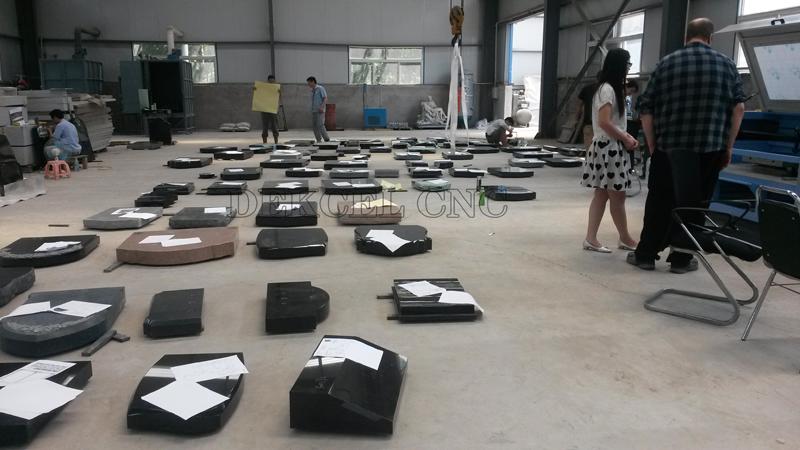

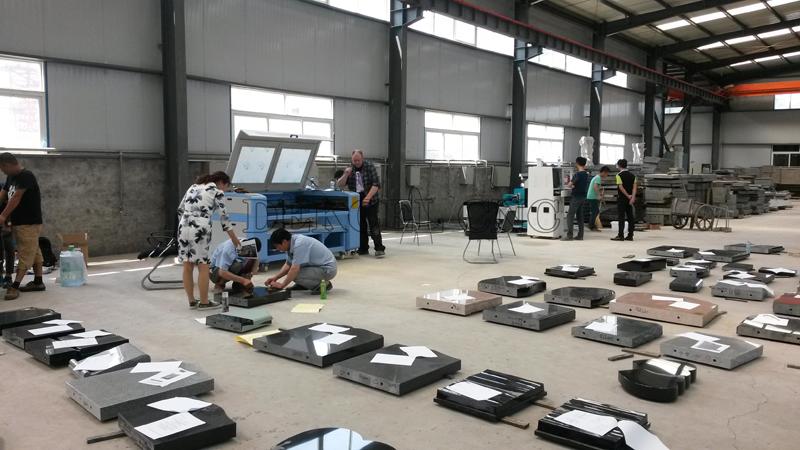

Stone,marble engraving machine work in customer side
