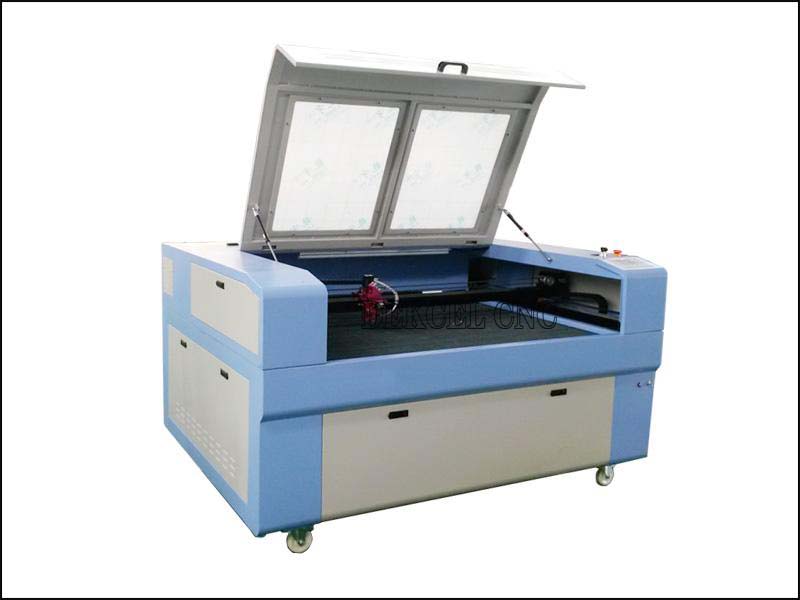

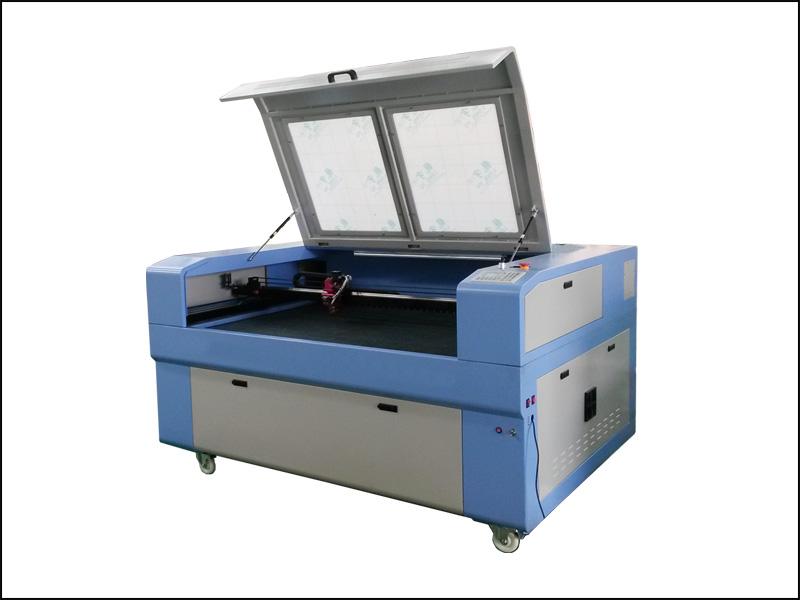

CNC Laser Engraver for Nonmetal Non Flat Material

Cnc laser engraver is newly designed model to meet the increased requirements of using co2 laser tube to engraver and cut non flat nonmetal materials with CO2 auto-focus nonmetal cutting head.
Quantity:
Inquire

  • DEK-1390J

  • DEKCEL

  • 076

Advantages of cnc laser engraver for non flat nonmetal material
1.This machine is newly designed model to meet the increased requirements of using co2 laser tube to cut nonmetal materials with CO2 auto-focus nonmetal cutting head.
2. Ruida control system is easy to learn and operate, connect to laser cutting machine with USB, or connect the computer.
3.Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4.LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
5. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
6.Red Light Pointer realizes the exact position without laser.
7.Advanced USA lens and mirrors, longer focal depth,Smaller cutting slope and higher cutting power.
8.Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

Parameter of cnc laser engraver for non flat nonmetal material

Model

DEK-9060

DEK-1390

DEK-1325

Laser power:

40w/60W

60w/80W

80w/100w/120w

Engraving Area (mm)

900 x 600

1300 x 900

1300 x 2500

Gross power

1200W

1500W

2500W

Laser type:

 Reci/Yongli CO2 Laser tube

Cutting depth:

acryl 0-20mm

Engraving speed :

0-500mm/s

Cutting speed:

0-600mm/s

Resetting positioning accuracy:

<0.01mm

Maximum forming character:

English:1.5 x 1.5mm

Power supply:

220V±10% 50HZ or 110V±10% 60HZ

Software supported:

ArtCut, CorelDraw, PhotoShop, AutoCAD

Graphic format supported:

PLT, DXF, BMP, JPG, GIF, PGN, TIF

Engraver for Curve surfaces:

we can provide rotary system so as to engrave on curse surfaces

Water Cooling:

Yes

Assistant Equipment:

Water pump

Exhaust Fan

Aluminum alloy worktable

Optional Spare Parts:

Laser Tube

Rotary System

Cooling water system

Recommended Spare Parts/Consumables

Laser Tube and Lens

Detail parts of cnc laser engraver for non flat nonmetal material

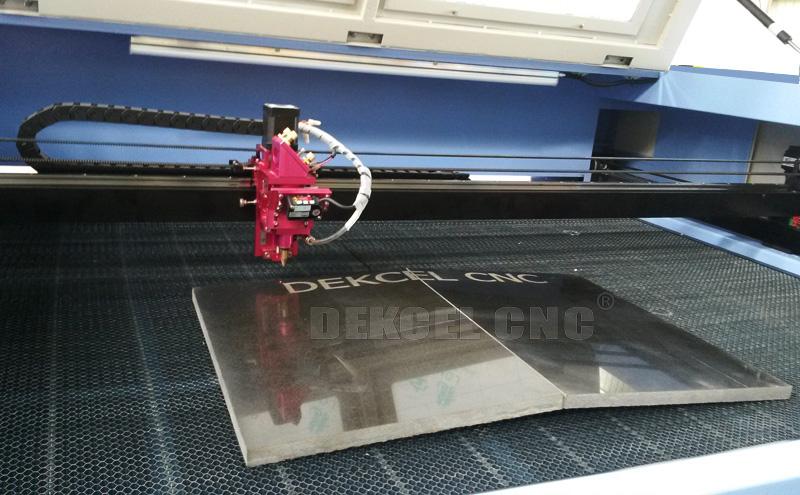

nonmetal following head of laser engraver

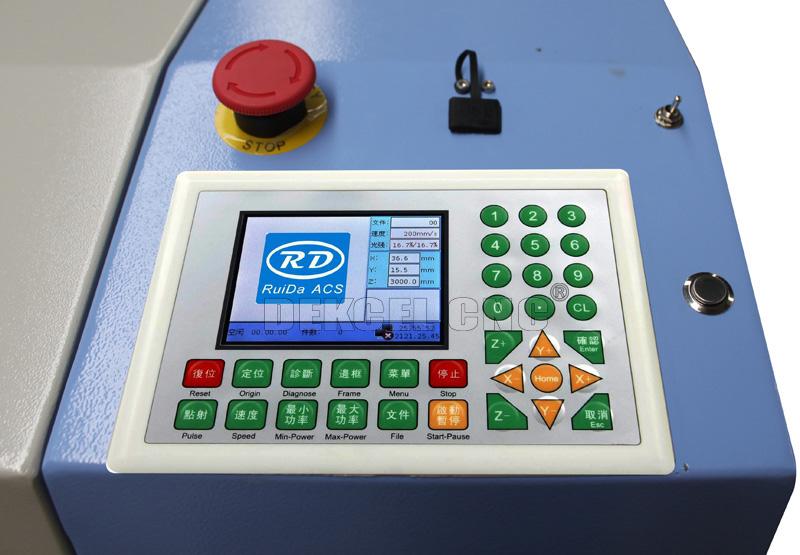

ruida control system of laser engraver

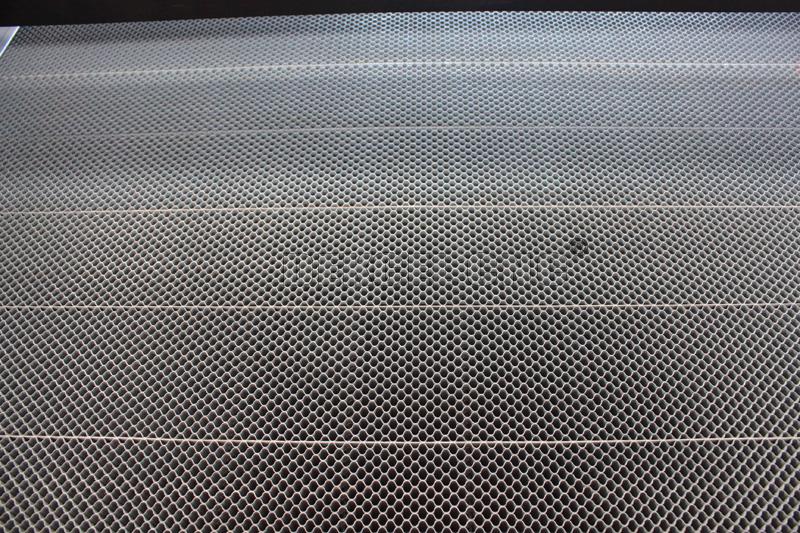

Honey comb table of laser engraver

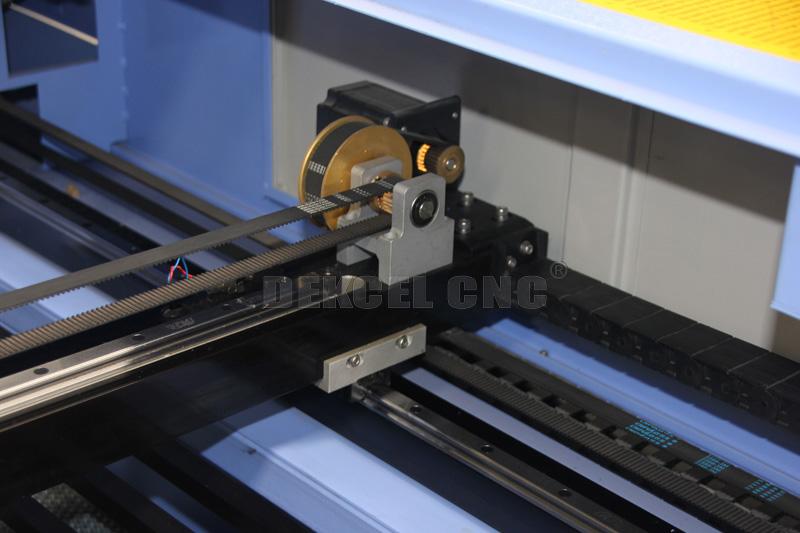

Belt transmission of laser engraver

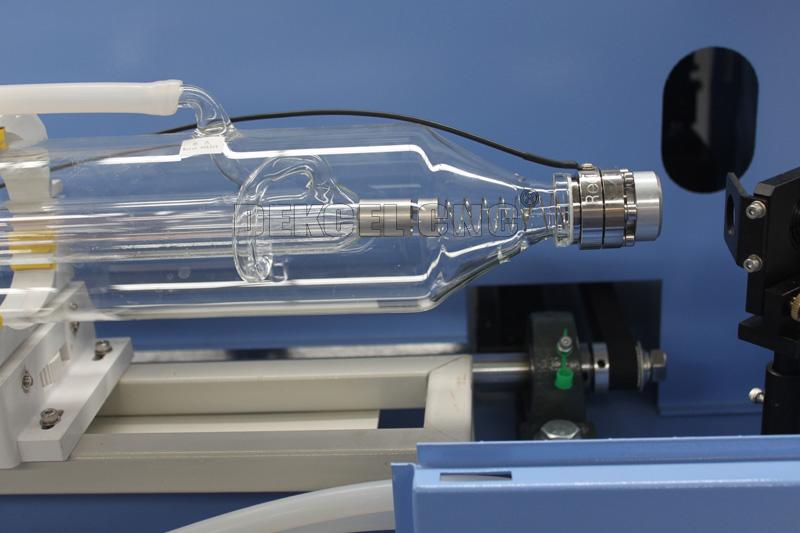

laser tube of laser engraver

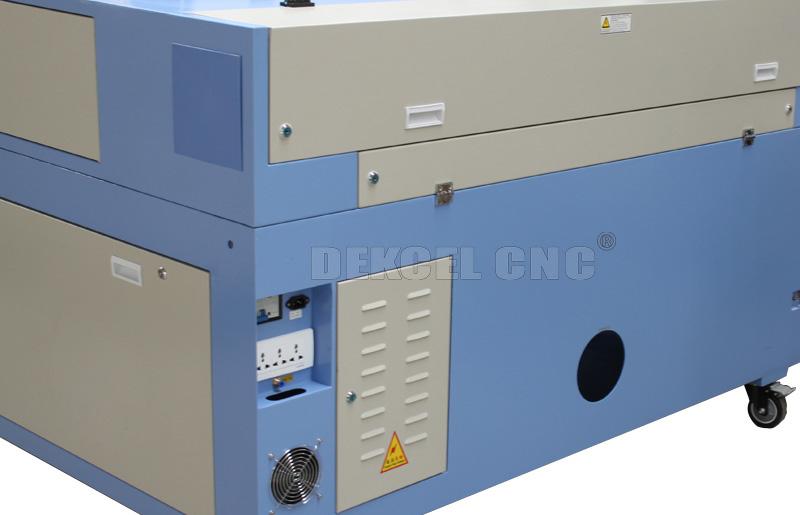

cnc laser for nonmetal material

Application of cnc laser engraver
1.Cutting beautiful patterns and words such as wood,bamboo,Ivory,bone,leather,  marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.

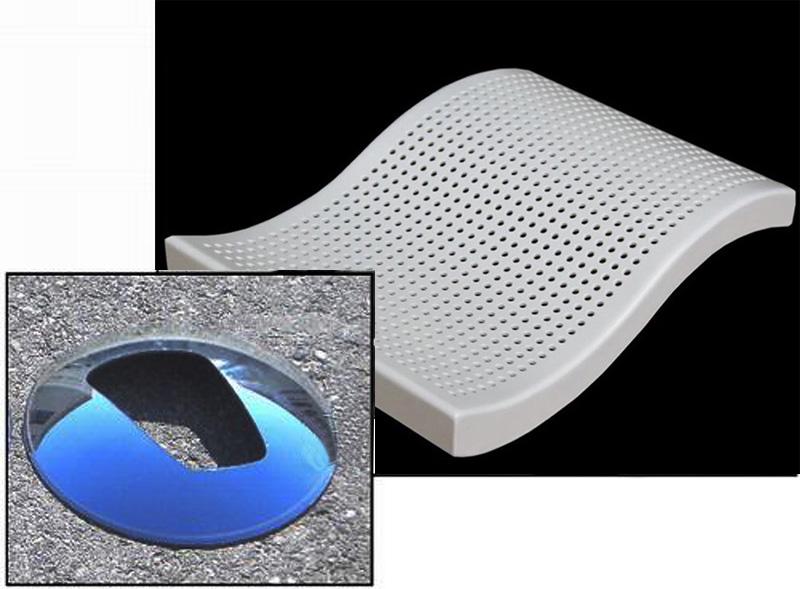

laser cutting non flat material

cnc laser engraver for nonmetal material

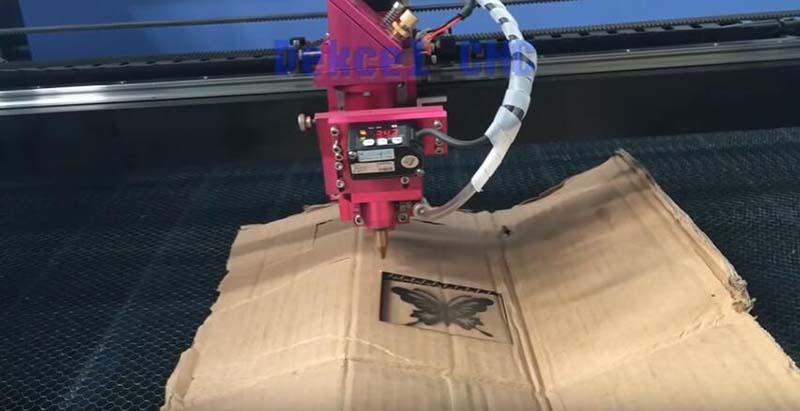

cnc laser cutter non flat material
