How to use and set oscillating knife cutting plotter machine software ?

How to Use and Set Oscillating Knife Cutting Plotter Machine Software ?

electric oscillating knife cutter software

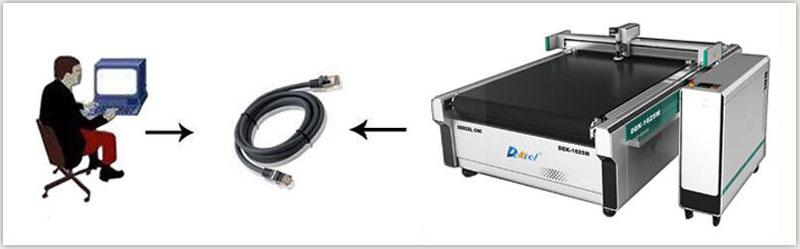

1.Please power on the machine and PC before the software installation,then find the USB data cable one side connect with the machine USB hole and another side connect with the PC USB .

oscillating knife cutter plotter software installation

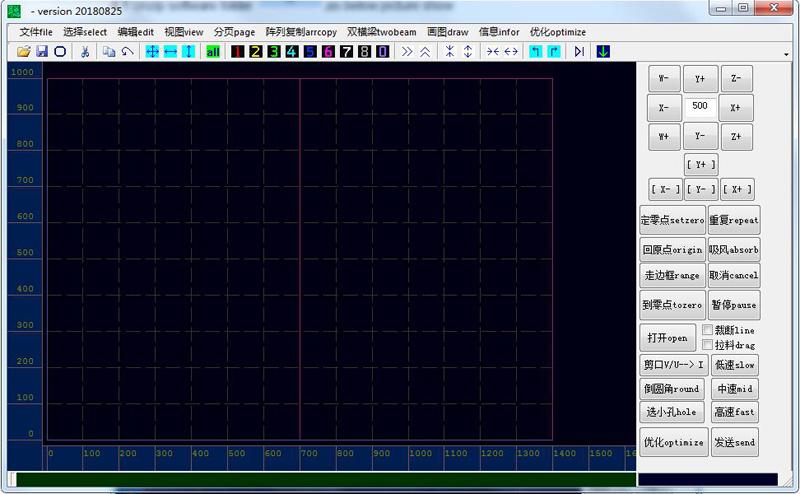

2. Unzip the software folder of oscilalting knife cutter plotter machine oscillating knife cutter machine software,double click the software iconzhongrui oscillating cut software ( or create Desktop Shortcut ),you can open the Zhongrui oscillating knife cutter machine software as below picture show :

oscillating cutting plotter machine software

* This software only can import the cutting file and send the cutting data to the control panel,can not edit the file or chage the processing speed .

* You need design the file and set the right size in the software like CorelDRAW,Illustrator,Solidworks ect.

* Machine tool processing speed can be set in the control panel.

3.Machine Parameters Read from the Control Board

please power on the machine and connect well the USB data cable,then do as below step:

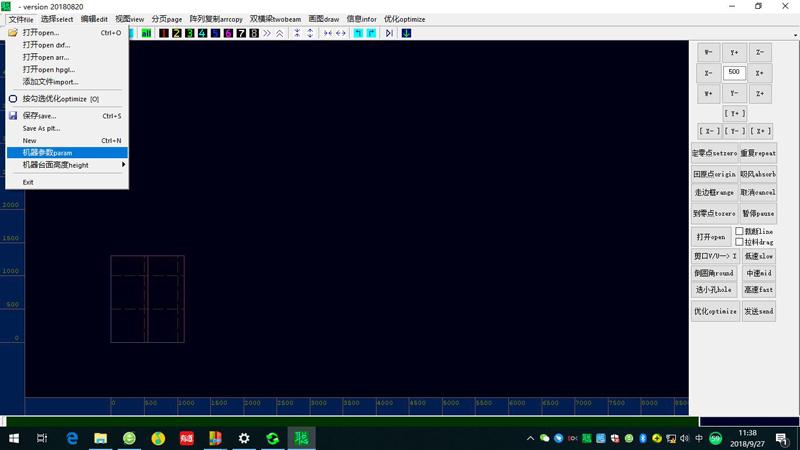

3.1 Open the software and click 【文件-File】- 【机器参数-Param】

oscillating cutter machine software

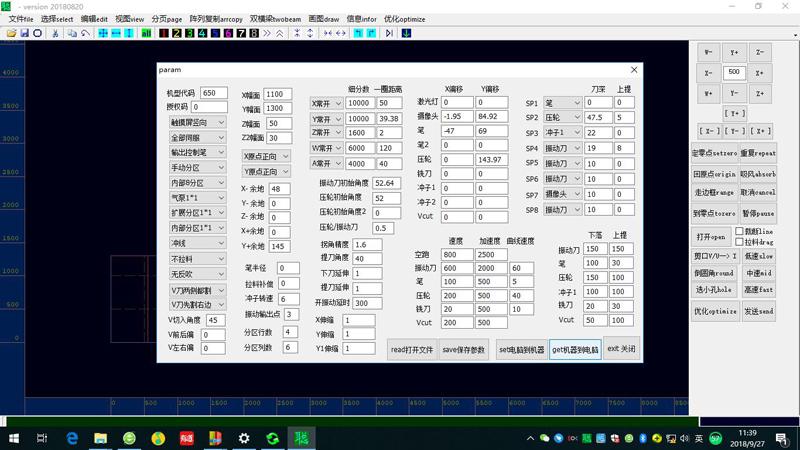

3.2 click【Get-机器到电脑】,because the machine tested well and parameters saved in the control board,click 【Get-机器到电脑】the software will read all the parameters from the control board.

oscillating cutting plotter software setting

3.3 Then click【Set-电脑到机器】.

how to use oscillating cutter software

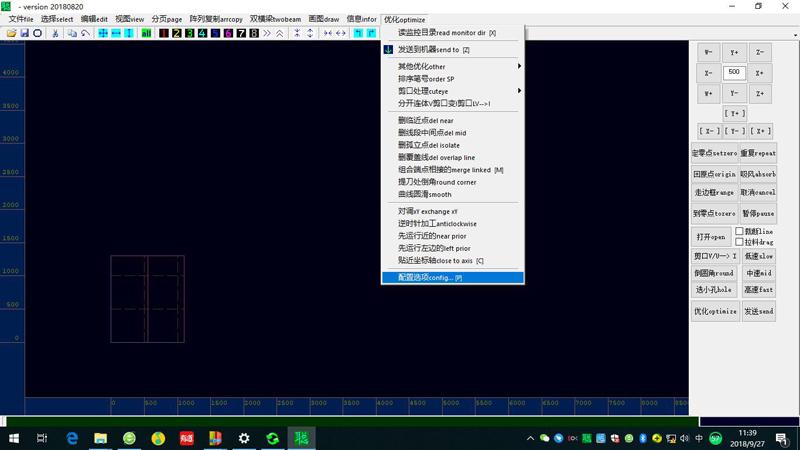

3.4 Click 【优化-Optimize】- 【配置选项Config...】

how to use oscillating machine software

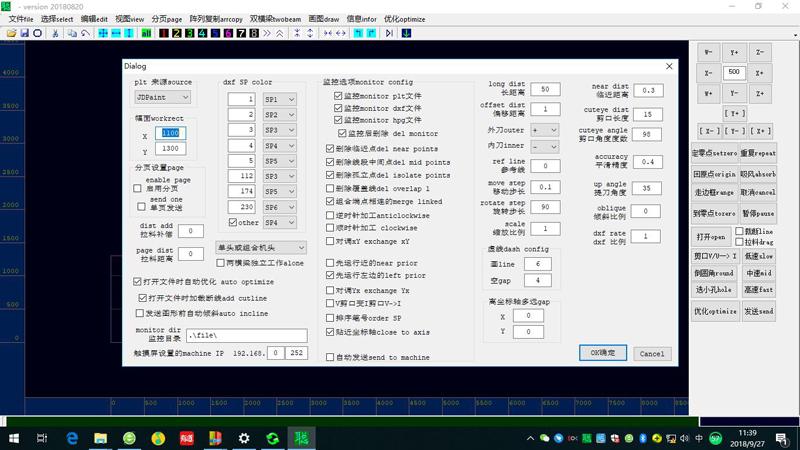

3.5 Check the 【Workrect】according your machine szie .Then click 【OK】.

oscillating cutter software setting

After the software parameters setting well, you can use the Zhongrui oscilalting cut software for the data transfer.
