RF metal tube co2 laser marking machine 30W

Dekcel RF Metal Tube CO2 laser marking machine with high marking speed as well as integrated controller. Its' marking speed could achieve 7000mm/s(80 charactors/s). And the surface of the markers are very clean, beautiful and without black imprinting.

Quantity:
  • DEK-RF CO2 30W
  • DEKCEL
  • 021

Machine features and advantages of RF metal tube co2 laser marking machine



* Laser tube: equipped with original imported(Synrad/Coherent) RF laser tube or stable domestic metal laser tube

* Laser tube life span: be able to reach 45000 hours, about 6 years, most important, it can be used repeatedly after filling in the air.

*Cooling type: air cooling, which can ensure machine work stablely.

*Beam quality: 0.07mm, which is suitable for high precision material engraving/cutting/marking

*High stability: RF laser tube---whole sealing metal tube, adopt 30V low-voltage power supply, which make sure machine work stable and safe.

*Safety: customer don't worry about tubes broken and  fragile

* Laser power control: 0~100% set by software

* Engraving depth ≤5mm (can be controlled by laser energy)

* Low run cost and maintance



Machine General Introduction



RF Metal Tube CO2 laser marking machine with high marking speed as well as integrated controller. Its' marking speed could achieve 7000mm/s(80 charactors/s). And the surface of the markers are very clean, beautiful and without black imprinting.The control software suitable for Windows 98, Windows 2000, XP, NT, and Win 7 for 32,win10. It could mark on soft stuff with very complicated images, charactors, logo, etc.



Machine parameters of RF co2 laser marking machine



Model DEK-RF10W-150W
Laser Power 10w/20w/30w/55w/150w
Laser Wavelength 1064nm
Repetition Rate ≤100KHz
Marking Range 300*300mm-600*600mm
Min.Line Width 0.1mm
Min.Character 1.0mm
Marking Depth 0~0.6mm
Marking Line Speed ≤7000mm/s
Repeatability Accurancy ±0.02mm
Response Time 0.5ms
Graphic Format Support BMP , JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT, etc.
Working Voltage 220V/Single/50Hz/15A
Unit Power <1.5kw
Cooling System Water cooling
Net Weight 215KG
Working humidity 2050*1050*1520mm

Customized
online fly marking, 3D dynamic marking, Rotary marking, according to customer request,



Co2 laser marking machine detail parts

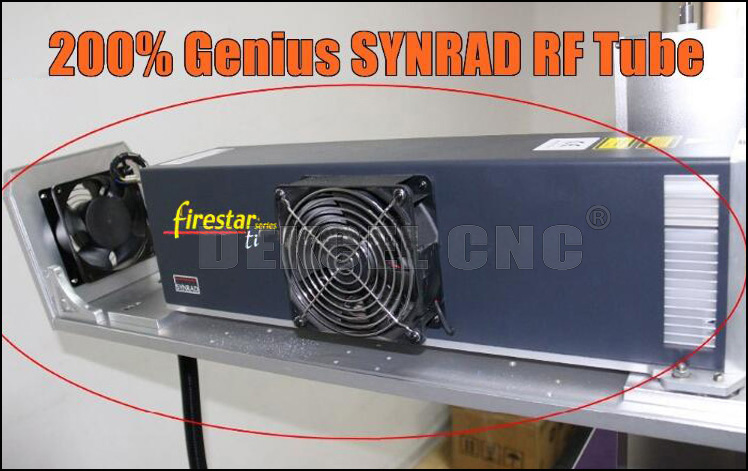

synrad RF metal tube of co2 nometal laser marking machine

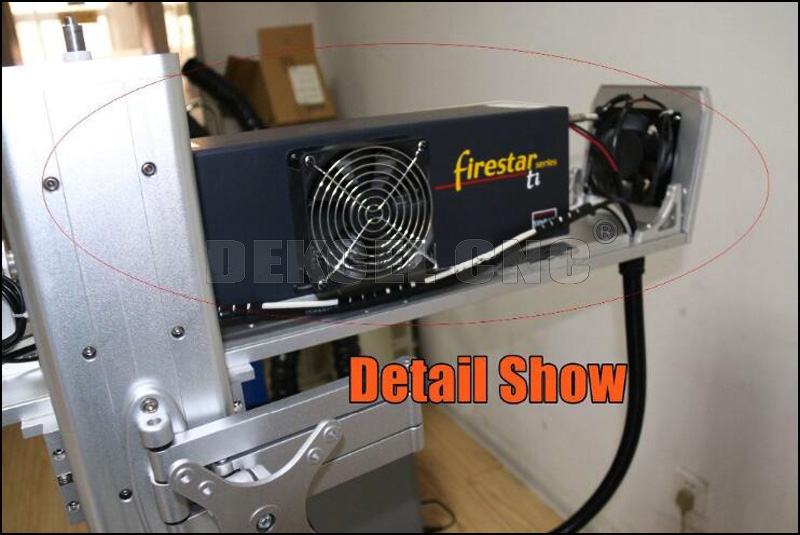

synrad RF metal tube cooling fan of co2 nometal laser marking machine

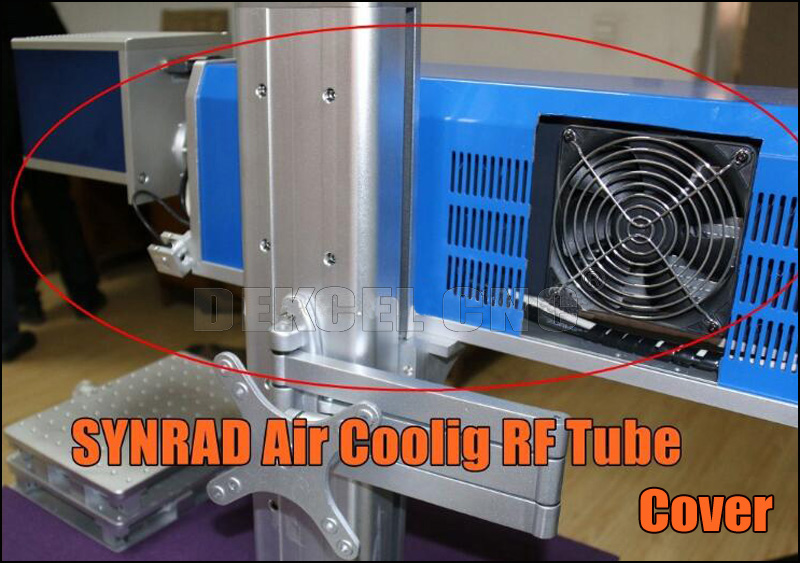

synrad RF metal tube cover of co2 laser marking machine

synrad RF metal tube of co2 nometal laser marking machine air pure device



RF metal tube co2 laser marking machine

Applicable Materials

Most non-metals, for example, leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, etc.



Applicable Industries

Tobacco, food and beverages, wines, medical packing, leather, plastic, rubber, wood products, advertisement, arts and crafts, glass, printing, ornament, jewelry, etc.


wedding card cutting by dekcel cnc laser marking machine

fabric laser cuting by co2 marking amchine
