China 30W Synrad Kitchen Ware Chopping Wood Board Laser Marking Machine

CO2 laser marking machine is specially developed for non-metals marking industry. It is equipped with original American Synrad laser source and high-speed galvanometer, the speed is extremely fast and the precision is very
high. The machine performance is steady and can continuously working 24 hours. The optical system is fully sealed,
it can prevent the dust enters laser body and reduces the equipment failure rate.
Quantity:
  • DEK-30W

  • DEKCEL CNC

  • 135

China 30W Synrad Kitchen Ware Chopping Wood Board Laser Marking Machine

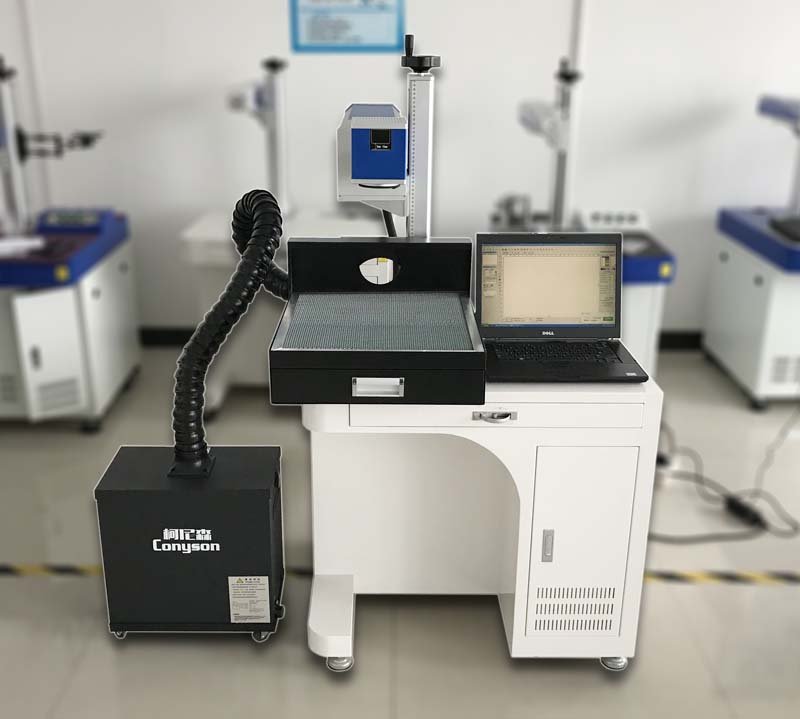

30w synrad laser amrking machine with honeycomb table.jpg

What can Co2 laser marking machine make ?

China Dekcel Co2 wood laser marking machine can engrave on all non-metals' surface, the marking speed is 1-7000mm/s, will save lots of working time. The marking effect & speed are much better than Co2 laser engraving machine. Also, this machine has at least 30,000 hours lifetime. If you want to engrave wood, acrylic, rubber, leather etc., this machine is your best choice.
Technical Parameters of 30w Synrad Laser Marking Machine

Model Type

DEK-10W

DEK-20W

DEK-30W

DEK-200W

Max.laser power

10W

20W

30W

200W

Marking area

110*110mm

150*150mm

300*300mm

600 *600mm

Laser type

RF Co2 metal tube / America COHERENT / SYNRAD

Laser Tube life Time

>100000 hours

Laser repetition frequency

≤50KHZ

Marking speed

8000mm/s

Laser wave-length

10.64u m

Marking depth

0.01mm ~0.3mm

Min.line width

0.015mm

Min.character size

0.4mm

Repetition accuracy

±0.01mm

Cooling mode

Air cooling

Total power consumed

≤2KW

Power supply

380V/220 (50HZ-60Hz)

China 30w Synrad Laser Marking Machine Details Show

1. High scanning galvanometer head of 30w laser marking machine

high scanning galvanometer head of 30w laser marking machine.jpg

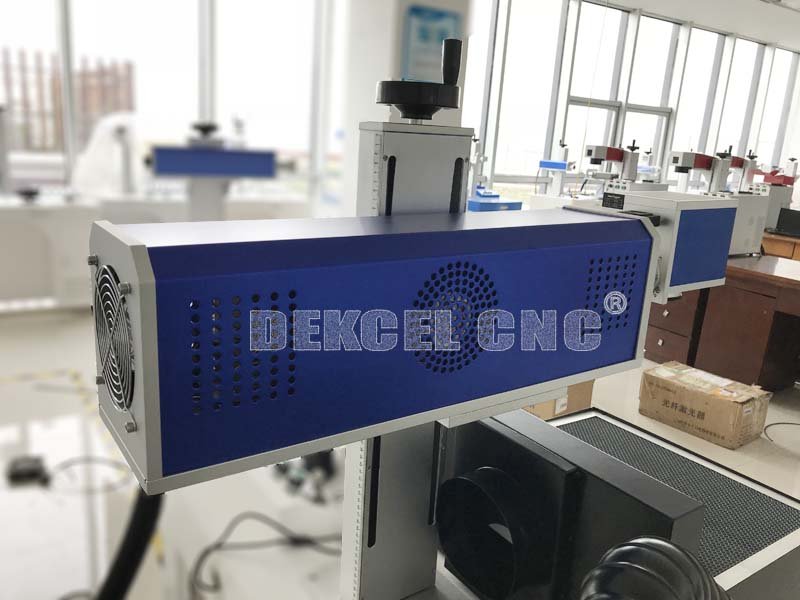

2. Air cooling for 30w synrad laser marking machine

air cooling for 30w synrad laser marking machine.jpg

3. America synrad 30w laser tube for marking machine

america synrad 30w laser tube for marking machine.jpg

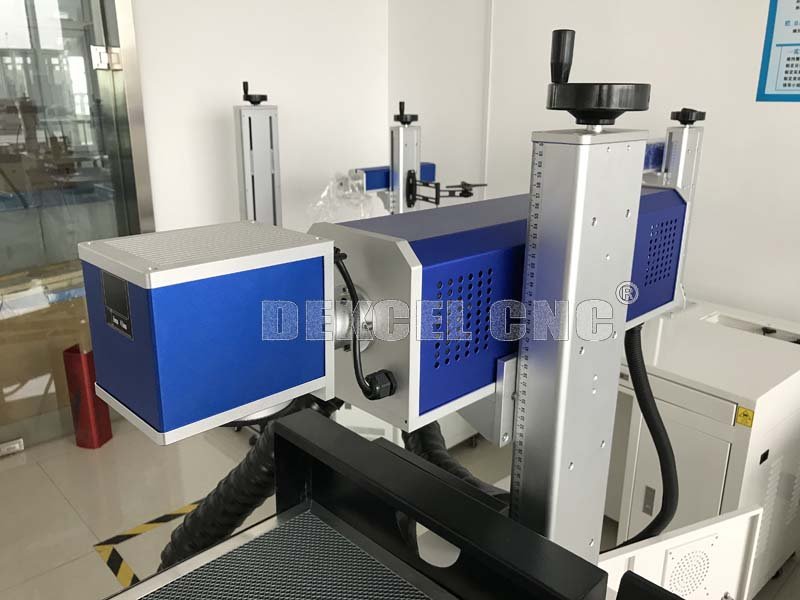

4. Z axis height 500mm for laser marking ( CAN BE CUSTOMIZED )

Z axis height 500mm for laser marking.jpg

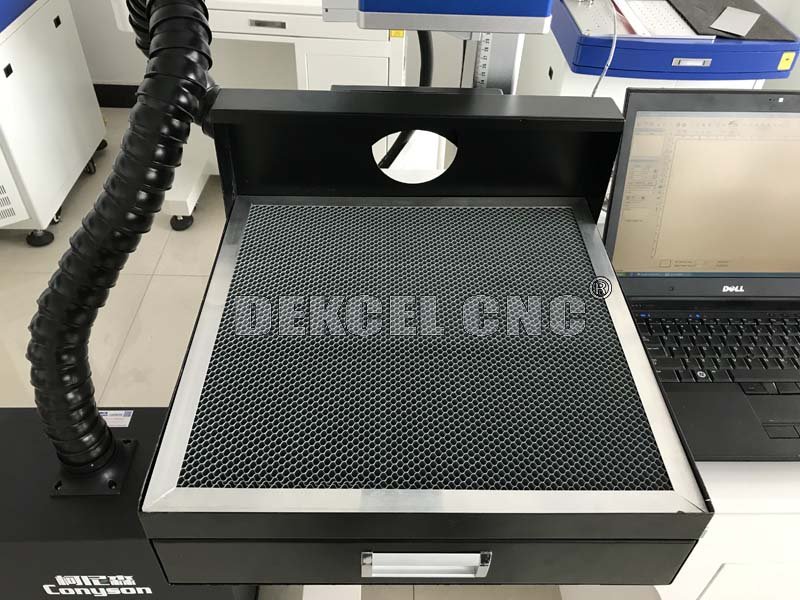

5. CO2 wood marking machine honeycomb table

co2 wood marking machine honeycomb table.jpg

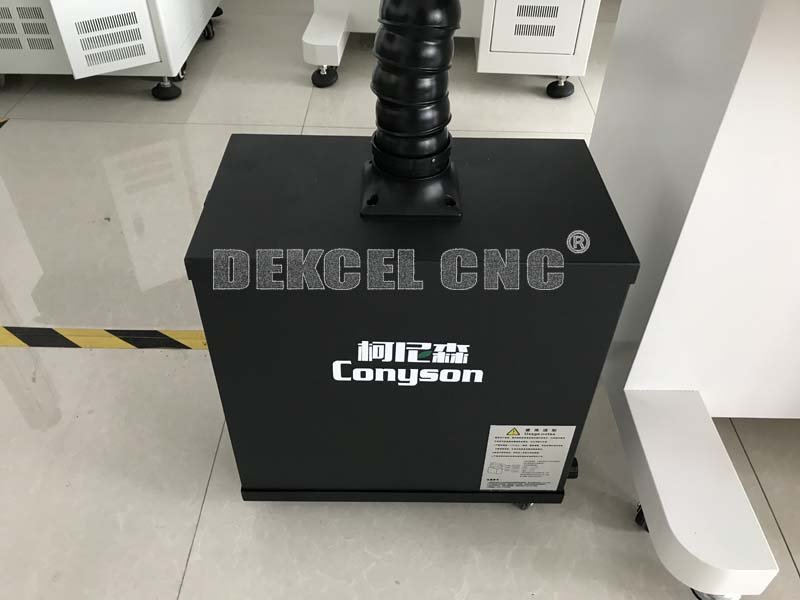

6. Wood marking machine air cleaner

wood marking machine air cleaner.jpg

Application of 30w CO2 Wood Laser Marking Machine:

It is mainly used for nonmetal material, it can suitable for Craft gifts,  leather garments, advertising signs, model making,food packaging, electronic components, pharmaceutical packaging, medicine packaging, printing plate, shell plate etc. With Keyboard Laser marker,Glass laser marker, Arts laser marker, bath ware laser marker, building ceramics, beverage packaging, textile cutting, rubber products, shell plate, electronic components, leather and other industries.



Material CO2 Laser machine Material fiber laser machine
Wood √ Aluminum √
Acryic √ Stainless Steel √
Fabric √ ABS √
Glass √ Brass √
Coated Metals √ Carbon Fiber √
Ceramic √ Carbon Nanotube √
Delrin √ Cobait Chorme Steel √
Cloth √ Copper √
Leather √ Colored Delrin √
Marble √ Diallyl Phthalate √
Matte Board √ Gless Filled PPEK √
Melamine √ Gless Filled Telfon √
Paper √ Magnesium √
Mylar √ Metal Plated Ceramics √
Press Board √ Molybdenum √
Rubber √ Mild Steel √
Wood veneer √ Nylon √
Fiber Glass √ Polybutylene Terephthalate √
Paintde Metals √ Polysulphone √
Title √ PET √
Plastic √ Santoprene √
Cork √ Silicon Carbide √
Corian √ Silicon Steel √
Anodized Aluminum √ Silicon Wafers √
Cloth hanger marking machine sample



cloth hanger marking machine sample.jpg

Craft gift box laser marking machine sample

gift box laser marking machine sample.jpg

Kitchen ware cutting board marking

kitchen ware cutting board marking.jpg

Wood craft clock laser marking

wood craft clock laser marking.jpg

Wood spoon laser marking by synrad laser tube

wood spoon laser marking by synrad.jpg
