DEKCEL CNC UV laser is one kinds of CO2 laser series,with the characteristic of cold laser,high precision marking,small thermal deformation widely used for marking on metal,stainless steel,aluminium,gold,silver,plastic,leather,PE film,ceramic,glass,fabric,silicon rubber , ect.
DEK-UV-5W UV Laser Marking Machine Manual for Germany Customer

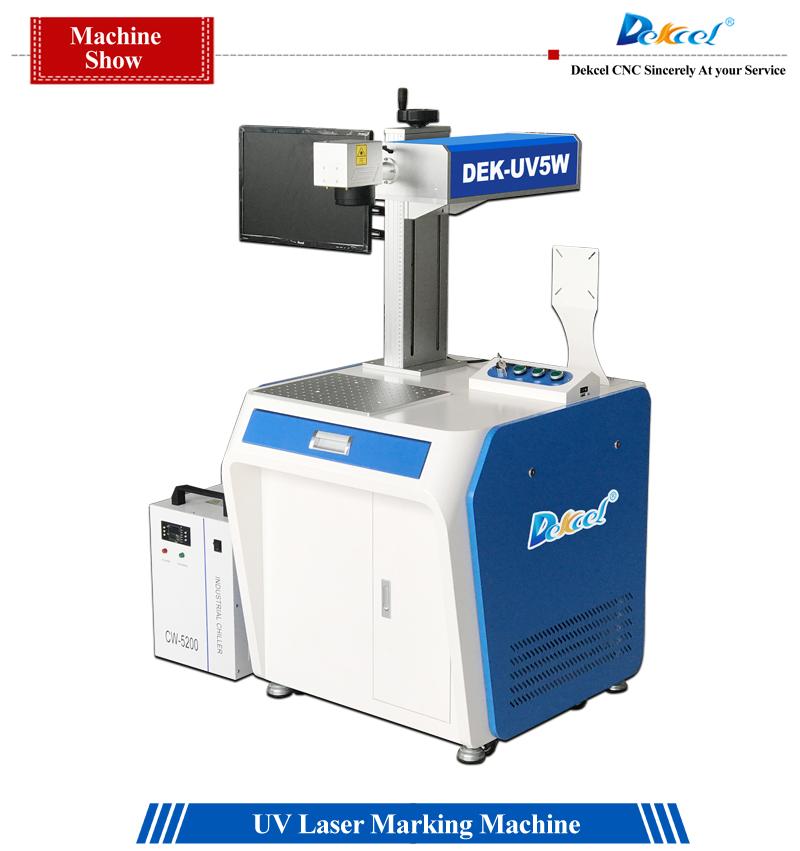

DEKCEL CNC Metal & Nonmetal 5W UV Laser Marking Machine With the increase of the ultra-fine processing market, DEKCEL CNC UV laser marking without heat effect,the effect of laser marking and cutting is precise, smooth and steep,the demand for UV laser marking machines has also increased.
● UV laser spot size is small, minimum heat-affected area during marking,used in ultra fine and special material marking.
● Our UV marking machine generator with output 355 nm wavelength laser, electro-optic conversion efficiency high beam quality as TEM100 mode.
● Ultraviolet laser belongs to cold light source, small heat affected zone, and the beam quality of excellence to create the effect of super fine marking.
● The heating characteristics of ultra high peak power and rarely, very suitable for alumina and zirconia ceramics marking and cutting.
● A modular design, convenient maintenance, small volume.
● Machine performance is stable, small size, low power consumption.
● The software can receive DXF, PLT, BMF, AI and JPG format, and can automatically generate serial number and production date, bar code, the QR code.

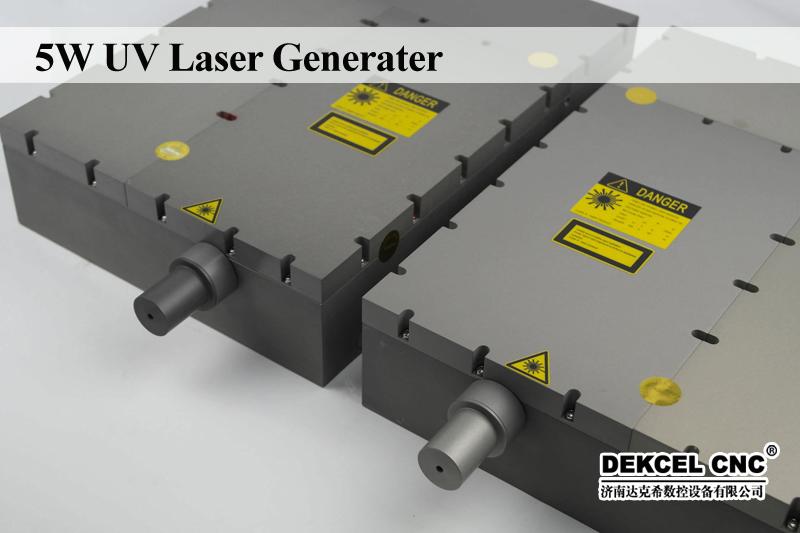

Top Brand & High Quality UV Marking Laser Menerator
DEK-3W/5W UV Laser Marking Machine Parameters
UV Marking Machine Features
Huaray 3W / 7W / 10W /15W / 25W
≥ 3W / 7W / 10W /15W / 25W
high precision galvanometers
water cooling / Air Cooling
UV Laser Machine Parameters
focus distance 150mm(optional)
Marking Line Type
dot-matrix,vector font can be printing
Min line Size
100*100mm / 200*200mm(Optional)
red light positioning
multi-line within marking size
0~230m/min (based on different materials)
English,logo, number, date, time, bar code
PLT,DXF, BMP, AI, JPG,GIF,TIF,DST
110V /220 V, 50Hz-60Hz
Application of China 5W UV Marking Machine

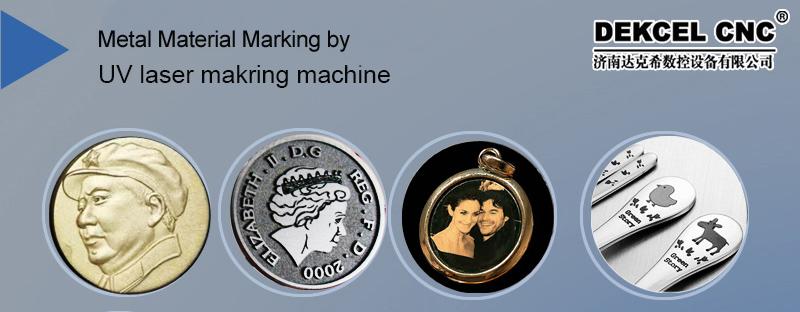

UV laser marking machine not only can mark on all the metal material by fiber laser marking machine but also can mark all the nonmetal material by CO2 laser marking machine.
1. DEKCEL cnc uv laser marking machine is widely used in electronic components, battery chargers,electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
2. Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device,aerospace,military industry products, hardware machinery,tools,measuring tools, cutting tools,sanitary ware.
3. Pharmaceutical,food,beverage and cosmetics industry.
4. Glass,crystal products,arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and watches and glasses.
5. Our 5w uv laser marking machine can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc..

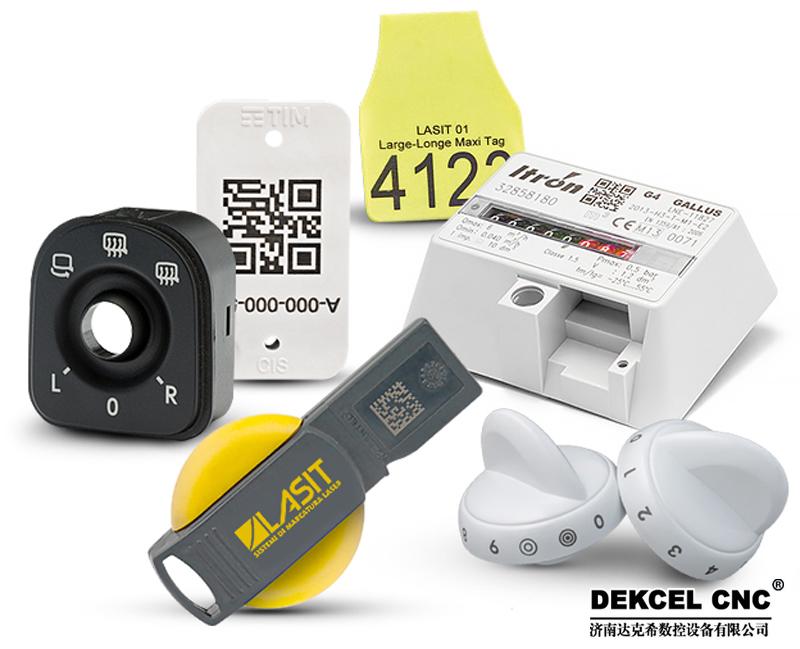

Plastic black color marking by UV laser marking machine

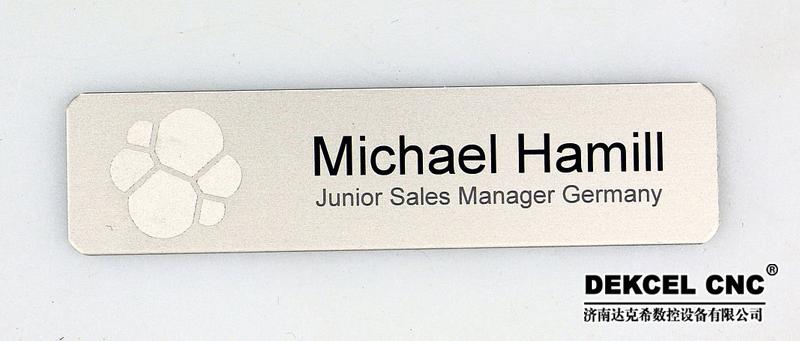

Black color marking on Aluminium by uv laser

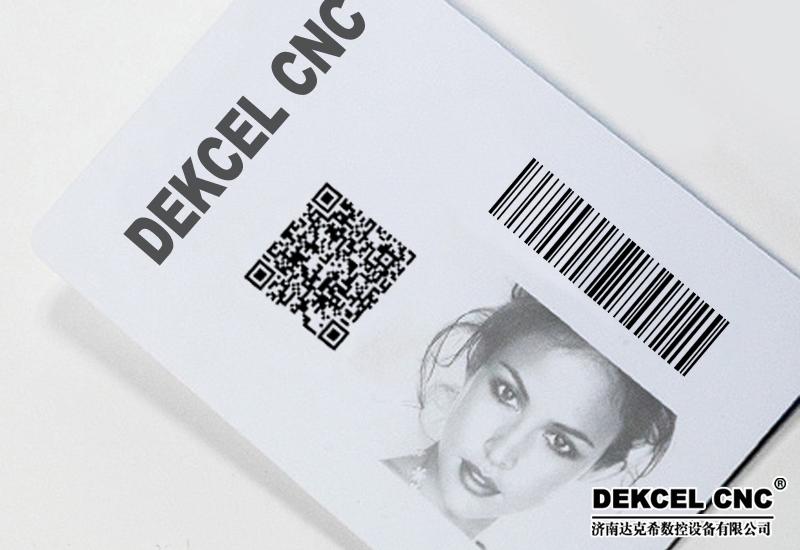

QR codes and barcodes marking with uv laser marking machine

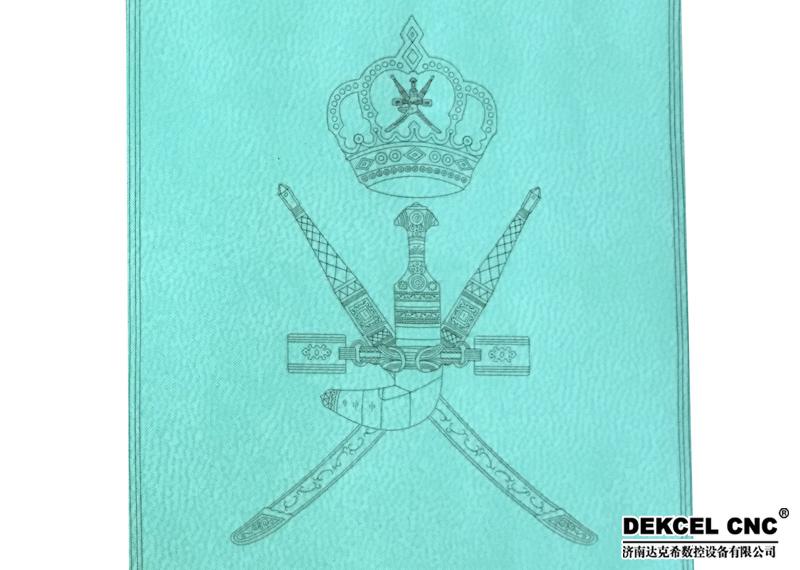

UV laser marking machine With the characteristic of non-heat effect and cold laser, it had a good performance for cutting or marking on leater,fabric,paper,PE film ect.

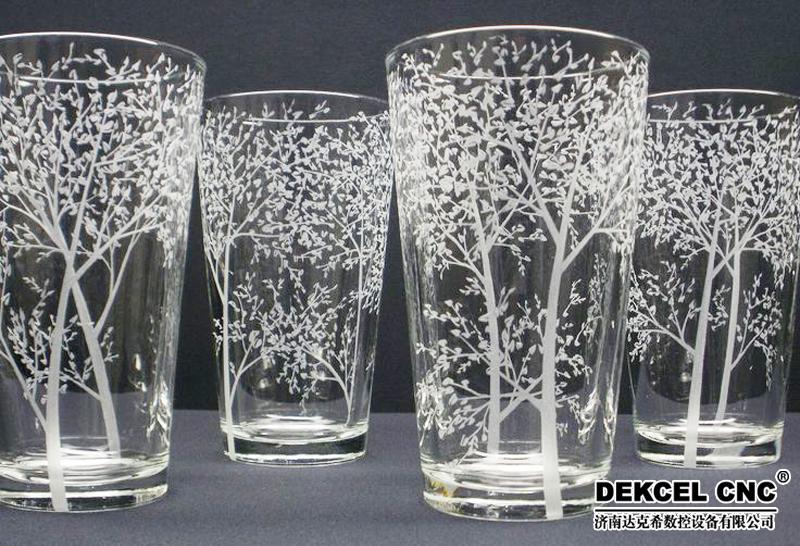

Logo or pattern marking on glass material by uv laser marking machine
1) This is the first time I use this kind of uv laser marking machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If the uv laser marking machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set uv laser marking machine.

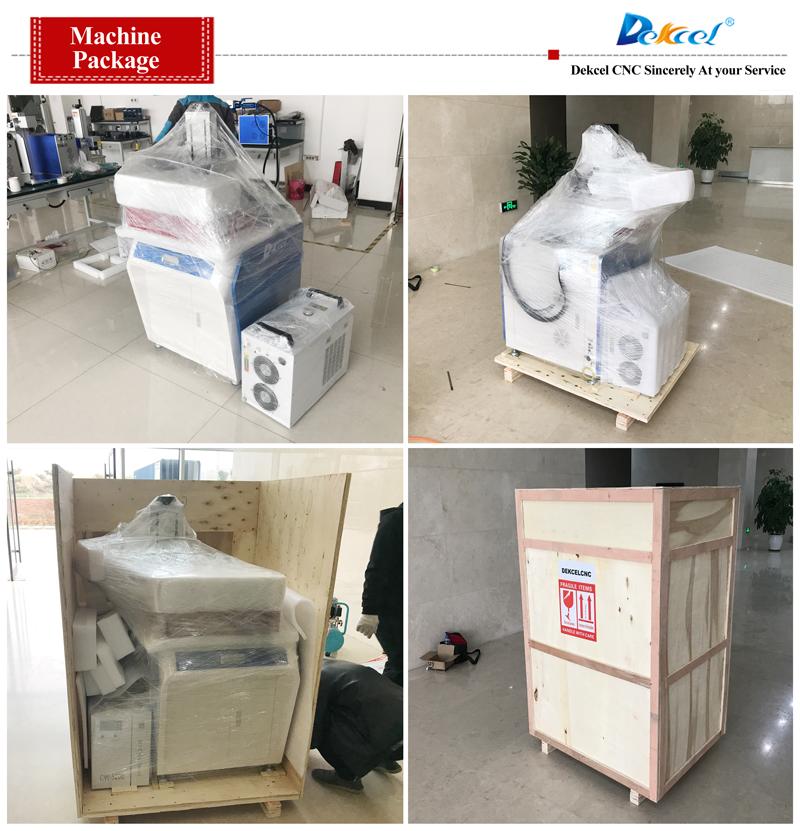

We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
After sales service of uv laser marking machine
1.one years quality guaranty, the 5w uv laser marking machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
