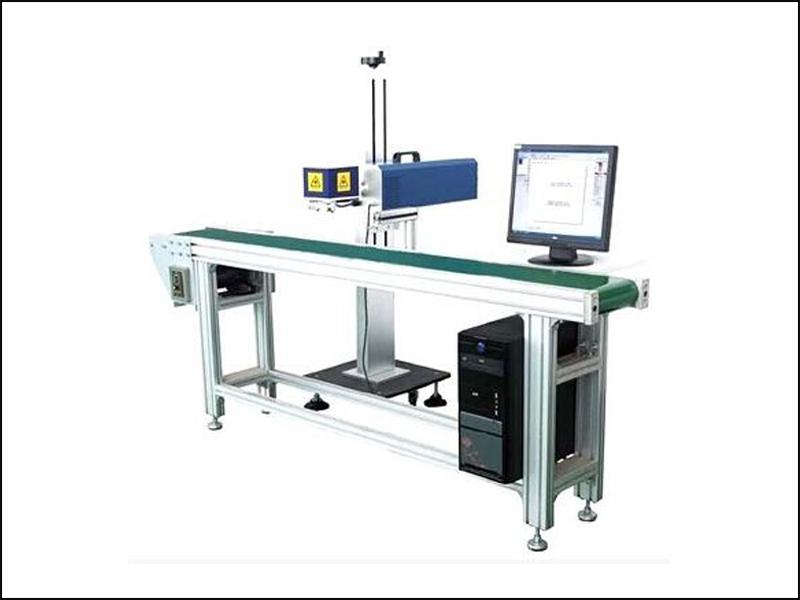

Online flying CO2 laser marking machine for production line

Dekcel cnc providing an intelligent online fly laser marking solution for production line,our online flying laser marking systems allow manufacturers to mark serial numbers,produce date,logo, bar codes, 2D Data Matrix and graphics on the widest variety of materials, including metals, plastics and ceramics.

Quantity:
  • DEK-30F
  • DEKCELCNC
  • 110

Online Flying CO2 Laser Marking Machine for Production Line

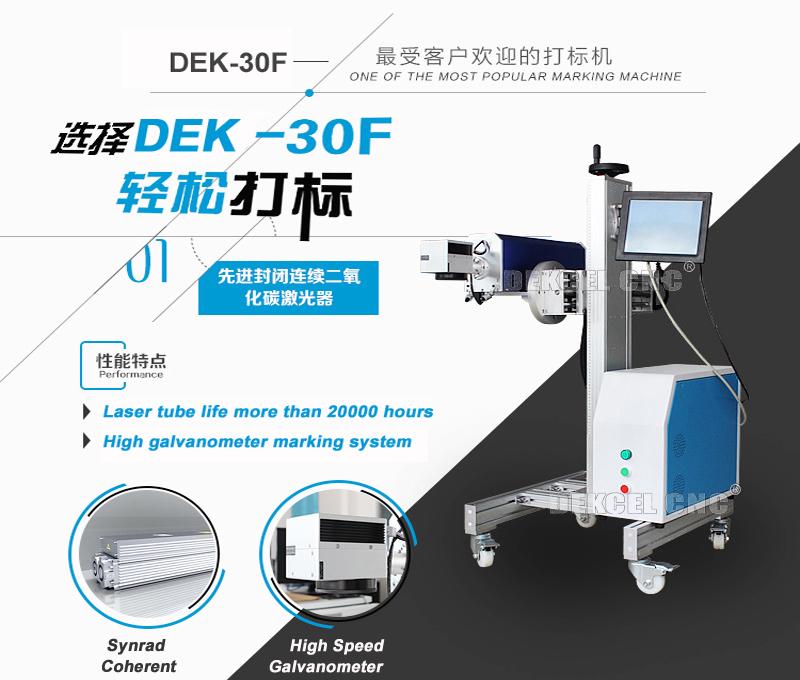

 fly laser marking production line machine

Dekcel online flying co2 laser marking machine is the new generation laser marking system especially for production line.Adopt high speed scanning galvanometer and extending focusing system;High precise vertical up-and-down lifting system,its very conveniently combined with your production line. Dekcel cnc co2 laser marking machine can work on a continuous 24 working hours in high stability, high precision, high speed.Lifetime can reach 45,000 hours, 8-10 years without any consumables and maintenance.



Dekcel production line laser marking machine especially excels in marking PVC pipe, cables, wires, high speed to working in production line, also can work with Paging Machine.

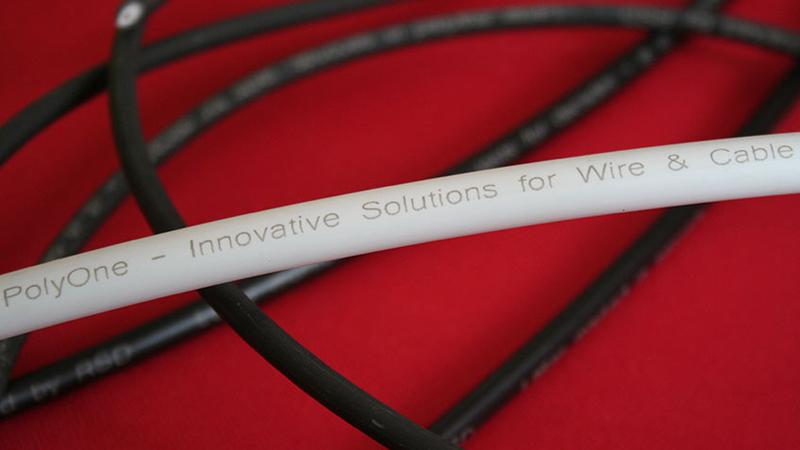

flying laser marking production line for cable

Feature of flying production line laser marking machine

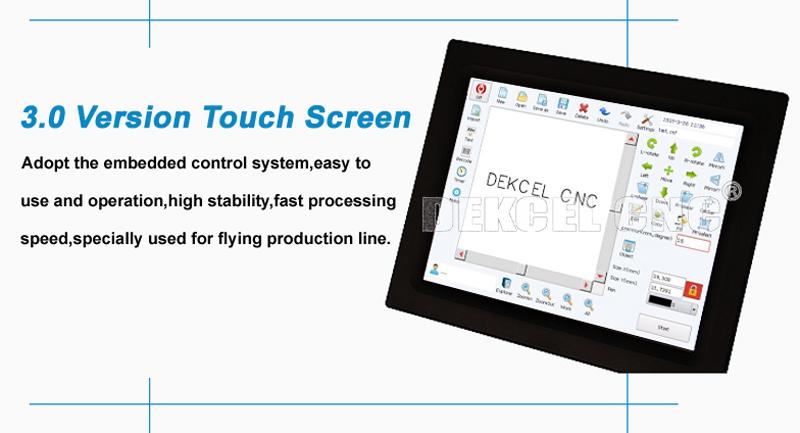

1. Controlling System: Clefine LCD online marking control system, no need computer.

fly marking amchine control system.jpg

2. Air-cooling: Energy consumption being low, reduces the heating and cooling needs of the system makes air-cooling possible.

3. Fast Speed: Speed can reach 8000mm/s, which can suitable for various speed production line.

4. Rotating head system for the marking head,you can adjust the marking angle freely.

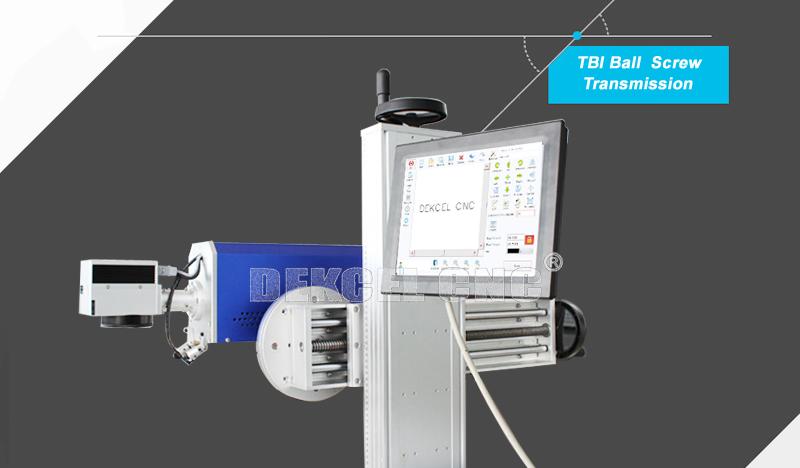

Rotating head and TBI ball screw transmission and

5. Dekcel flying laser marking machine adopting imported Co2 RF laser tube which has excellent performance and long life

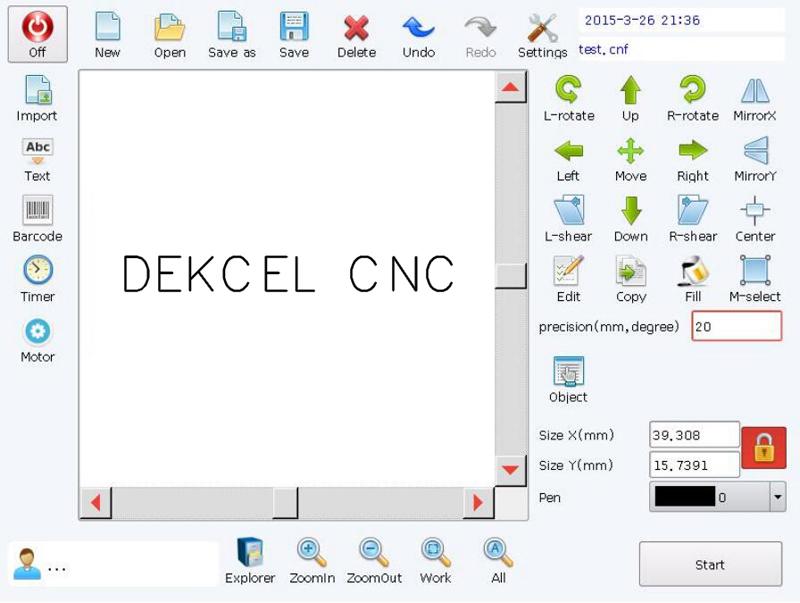

6. The marking software is mightiness, under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.

laser marking machine control system.jpg

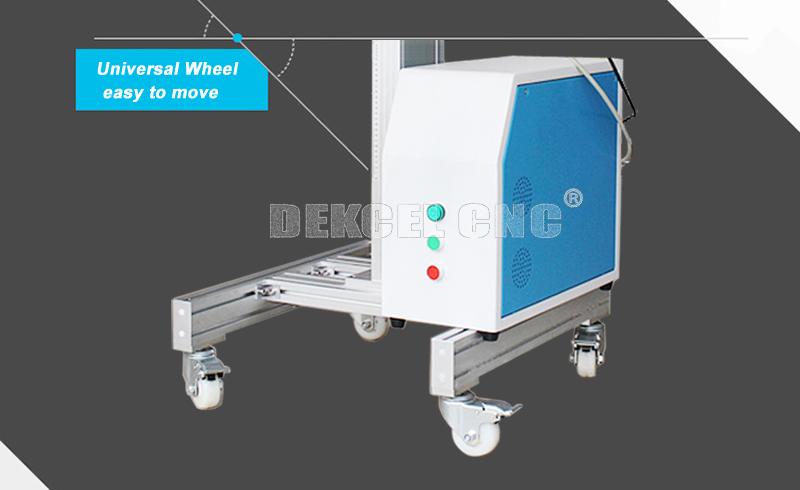

7.Machine with universal wheel,its very conveniently combined with your production line.

universal wheel for moving system.jpg

Technical Parameter of online co2 laser marking production line

Mode DEK-C10F DEK-C30F DEK-C60F DEK-C100F
Laser Output 10W 30W 60W 100W
Laser wavelength 10.64μm
Repeat Frequency ≤20KHz ≤25KHz ≤100KHz
Standard Engraving Range 100mm*100mm(175mm*175mm/260mm*260mm)customized
Minimum Line Width 0.1mm
Minimum Character 0.4mm
Repeat Precision ±0.01mm
Total power 500W 1.2kw 2kw 4kw
Engraving Depth ≤2mm ≤3mm ≤5mm ≤8mm
Engraving Line Speed ≤7000mm/s
Electricity demand 220V/50Hz
Cooling System Built-in air cooling system&Water cooling

Applicable Materials of Fly Laser Marking Machine

Dekcel cnc production line laser marking machine is used to mark logo, numbers, code, characters, letters and graphs on different kinds materials, such as stainless steel, aluminum, plastic, wood, silver, gold and so on. As the laser beam is very thin and powerful, the machine can do non-contact high accuracy marking which will not destroy the surface of objects.So,our CO2 flying laser marking machine is widely applied in electronics, apparatus and meters, instrument, hardware tools, automobile, mechanical parts, daily necessities, jewelry rings, food packages etc.

Fly CO2 laser marking for package

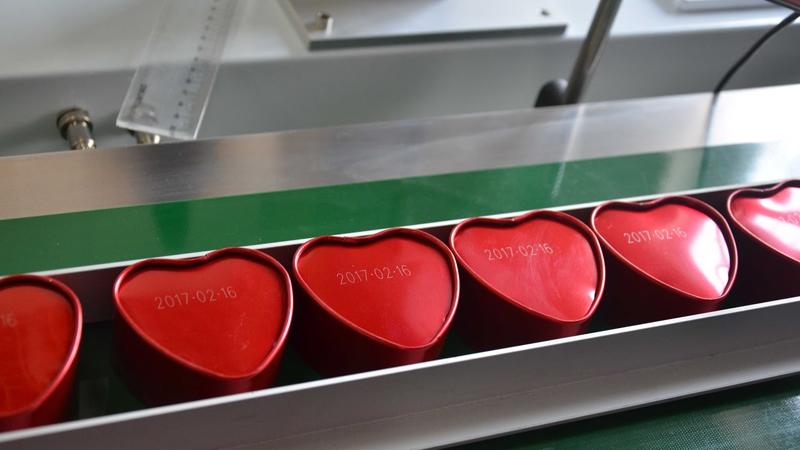

package production line laser makring machine

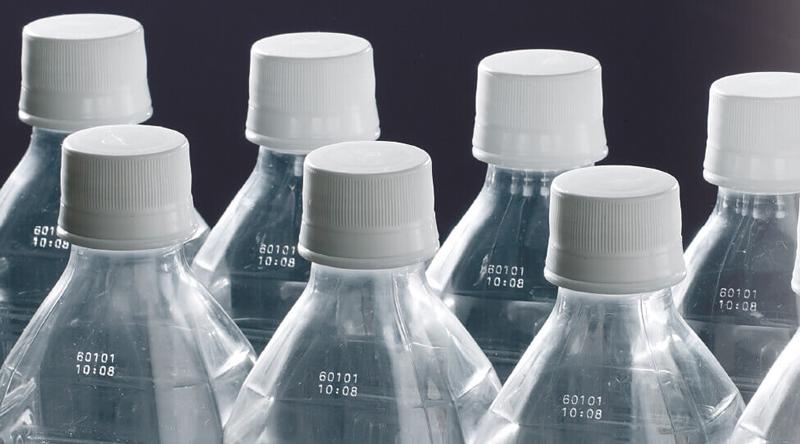

production date by flying laser makring machine

production date flying laser makring machine

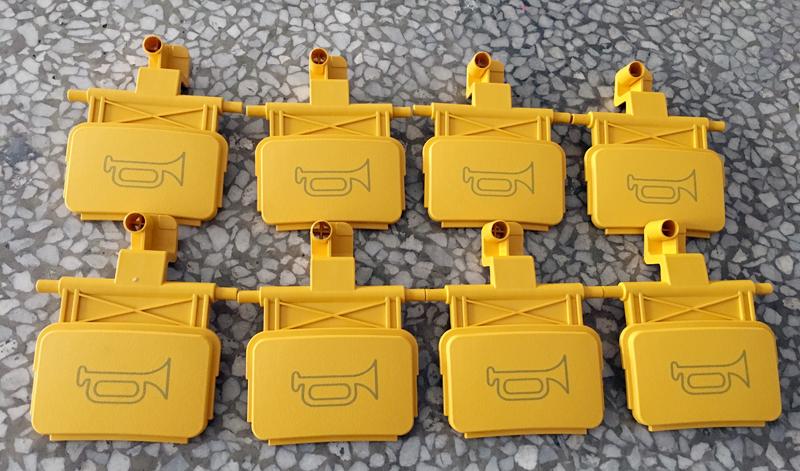

online flying plastic laser marking machine

online flying plastic laser marking machine
