Mini 5 axis aluminium metal mold milling engraving router machine

Dekcel mini 5 axis cnc router are widely used in advertising, seals processing, handcrafts, special instruments processing, little moulds processing, etc and can engrave kinds of metal or nonmetal stuff, such as: iron engraving, iron cutting, copper engraving, copper cutting, aluminum engraving, aluminum cutting, plastic engraving, plastic cutting, wood engraving, wood cutting etc.

Quantity:
  • DEK-Mini 5 axis
  • DEKCEL
  • 103

Mini 5 axis aluminium metal mold milling engraving router machine features

1. It can work with 3 axis / 4 axis / 5 axis, just as you like !

2.changsheng wanter cooling spindle,max.speed reach 24000rpm/min,low noise,large torque strength.

3.independent drives for control box configuration to guarantee the three axis run independently.

4.table moving and three axis TBI ball screw transmission can prove the work precision highly.

5.high quality structure of machine,ensure the stability and accuracy of the machine

6.XYZ triaxial are set the limit switch in posiotion,avoid the machine beyond the working area.

7.for the rotary axis configurate with reducer, so it can stop at any angel.


Technical Parameters

NO.

Description

5 axis cnc 3040

1

X,Y,Z Working Area

300*400*200mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

Table Surface

iron Table

5

Frame

cast iron Structure

6

X, Y Structure

Hiwin Rail Linear Guide

7

Z Structure

TBI Ball Screw

8

Max. Power Consumption

(Without Spindle)  2.2kw

9

Max. Rapid Travel Rate

25000mm/min

10

Max. Working Speed

18000mm/min

11

Spindle Power

2.2kw auto tool change water cooling spinle

12

Spindle Speed

0-24000RPM

13

Drive Motors

Stepper Motor

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

15

Command Language

G Code

16

Operating System

NC STUDIO control system

17

Computer Interface

USB

18

Flash Memory

128M(U Disk)

19

Collet

ER25

20

X,Y Resolution

<0.01mm

21

Software Compatibility

Type3

22

Running Environment  Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%

24

Inverter

Delta/Fuling

25

Electrical components

Schneider

26

Limit switch

OMRON

27

Driver

Leadshine or Yako

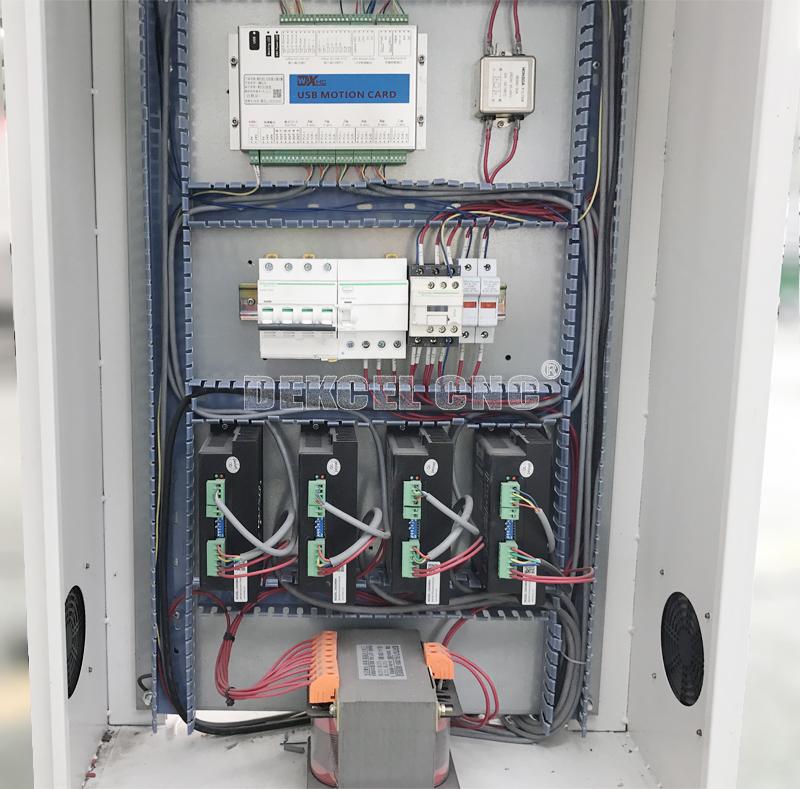

Mini 5 axis aluminium metal mold engraving machine main parts

metal mold engraving machine

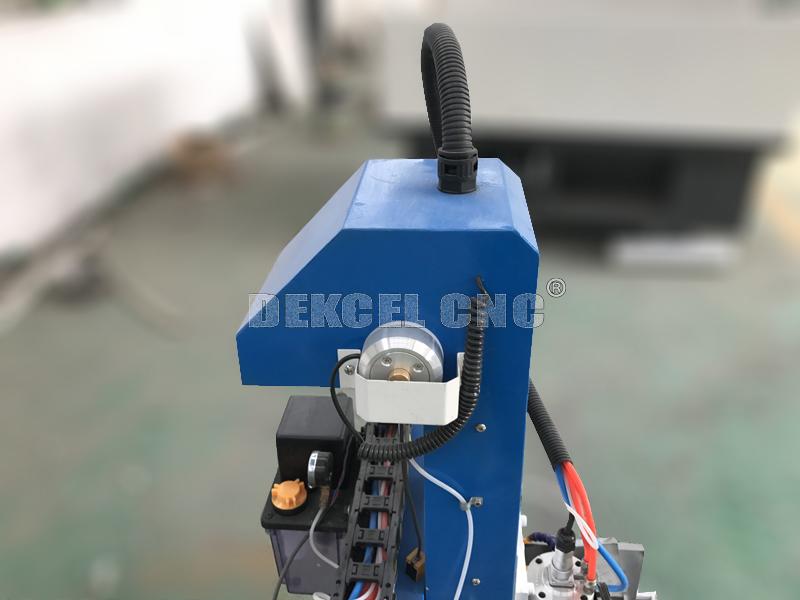

injection system of molding engraving machine

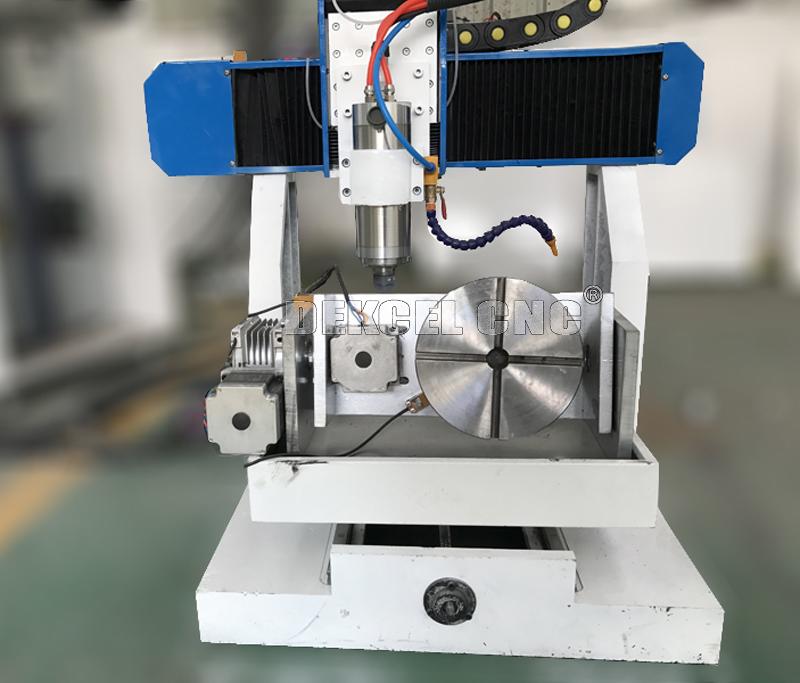

rotary system of molding engraving machine

aluminum molding engraving machine

metal molding engraving machine



Application of Dekcel CNC Mini Engraving Router Machine

1. Our cnc engraving router is widely used for different area, like industry,technology research,advertising design,arts creation,teaching,student project and hobby purposes,building model making,advertising signs,artwork,crafts,aircraft models ect.
2. Our CNC router is designed for different engraving work such as Wood, Jade, PCB ,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home.
3. Ideal for milling, engraving, drilling & cutting.

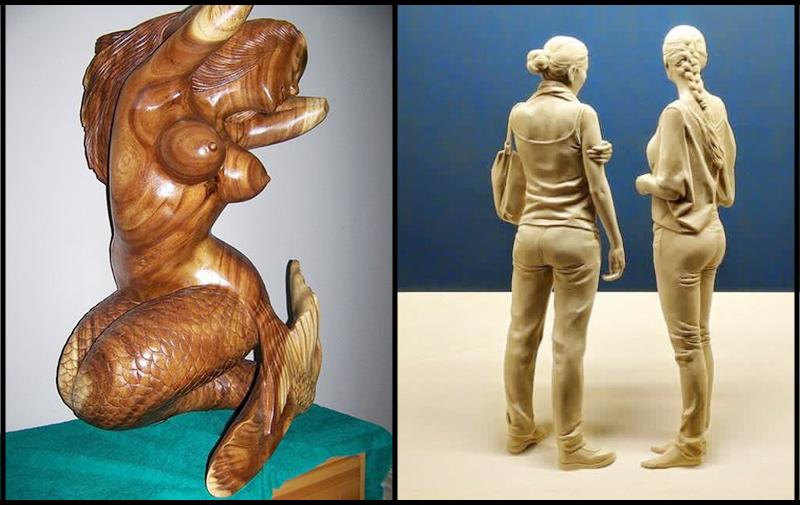

cnc wood router with rotary.jpg

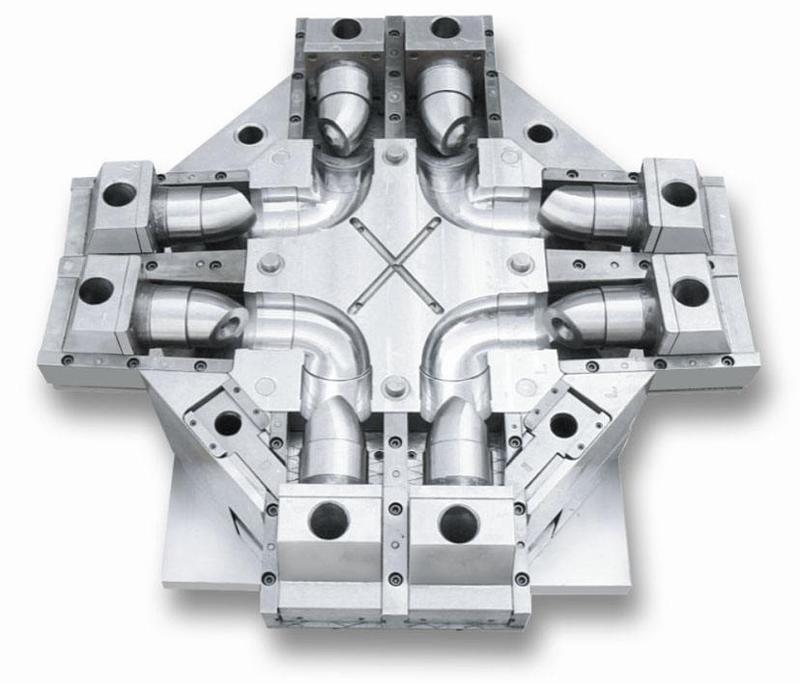

metal mould engraving sample..jpg
