 Brand of DEKCEL, CNC router, CNC laser, CNC parts manufacturers and suppliers in china. Supply different types of cnc routers machine used in different industries.
 |
| Quantity: | |
|---|---|
DEK-1325-4 axis
Dekcel
001
Features

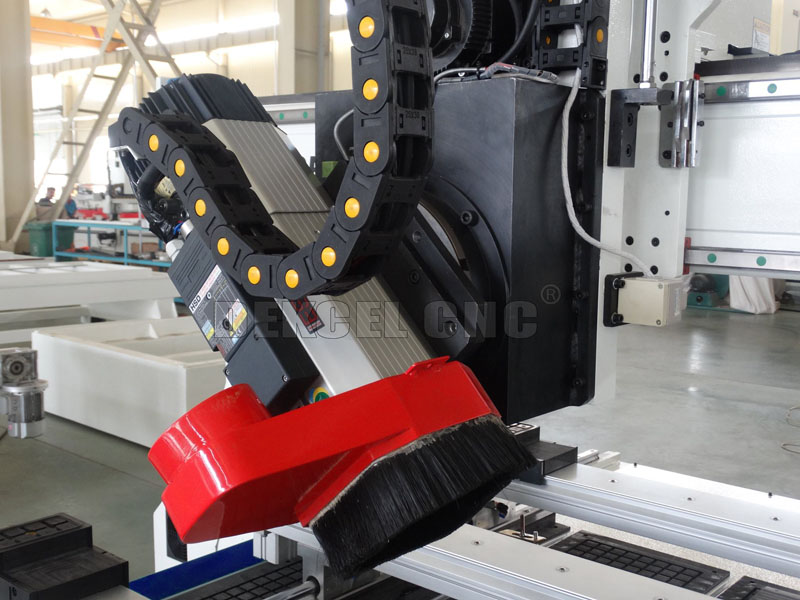

1,DEKCEL cnc router 4 axis, is specially for 4D work, the A axis can rotate +/- 180 degree.
2,The machine's main parts are all from world famous suppliers, such as Syntec 6MB control system, Yaskawa servo motors, France reducer, HSD spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.
3,With this 4 axis machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
4,It can work on foam, MDF, Acrylic, wood, and the soft metal etc.
Top Quality Components
1). The cnc router 4 axis machine's body is strong, high-precision, reliable and durable.
2). Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
3). Well-known HSD Auto Tools Changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4). High-performance driven motor to ensure the machine's high speed and accuracy.
5). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
6). Auto lubrication system and separated control system, easy to operate.
7). Perfect design, top quality accessories, to minimize the machine's failure rate

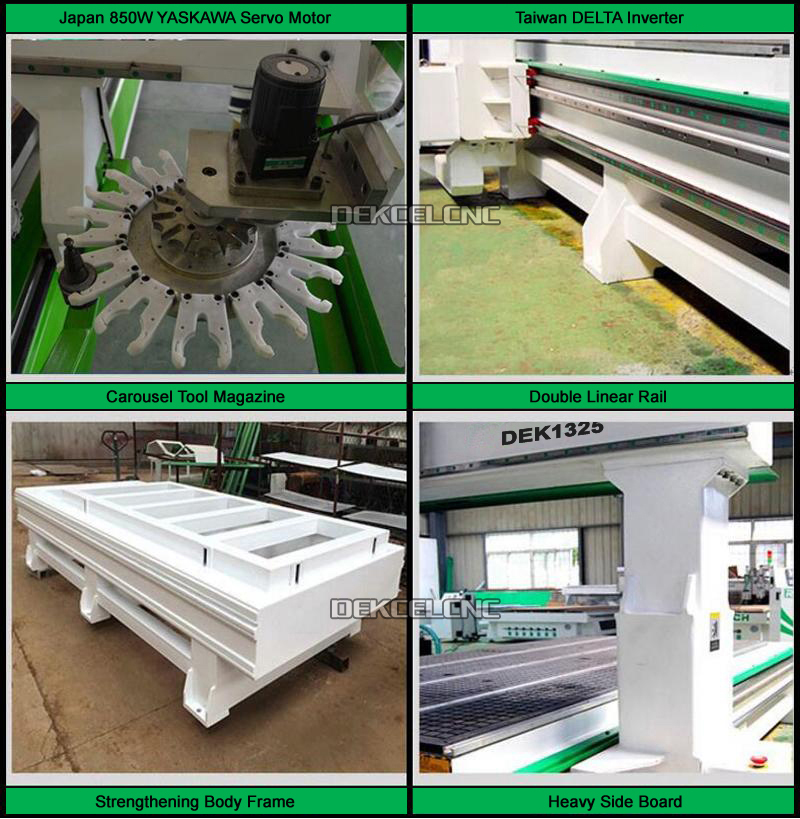

Cnc router 4 axis parts
Standard configuration
Working area: 1300*2500*600mm*180degree
T-Slot table ( with Aluminum profile)
9KW Italy HSD air cooled spindle
Servo motor
Taiwan HIWIN Linear Guide 30mm
Taiwan TBI ballscrew 32mm
Taiwan syntec control system
Taiwan DELTA Inverter
Siemens Electronic Spare Parts
Japanese OMRON Switch
Voltage: 3PH 380V 50HZ / 60HZ
Package: plywood case
Technical Parameter of 4 axis cnc router
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x600mm*180degree |
| 2 | Table Size | 1450×2940mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Big Steel Tube Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 9.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W Yaskawa Motors |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3300X2100X2300mm |
| 26 | N.W. | 1750KG |
| 27 | G.W. | 2150KG |
| 28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| Delta/ Panasonic Servo Motors | ||
| Colombo Spindle |
