Best 4 Axis CNC Router Tool Changer | ATC Woodworking Machine For Sale

The EPS is made of foamed plastic,with buffer, insulation, heat insulation, sound insulation, anti-vibration etc function.The food box,electrical product shipping,the fire protection of the construction industry, the sound insulation material, and the packaging of high-tech products area all depend on EPS foam. So choosing a good EPS foam engraving ATC 4 axis cnc router machine is especially important.
  • DEK-2040MC


  • 20190401

Best 4 Axis CNC Router Tool Changer | ATC Woodworking Machine For Sale

Compared with 3 axis cnc router only can engraving and carving on flat material,4 axis cnc router tool changer machine can process one surface,then arbitrarily process other surfaces.

180-Degree Rotate Spindle 4 Axis ATC Woodworking Router Machine

ATC cnc router machine show

Best 4 Axis CNC Router Main Configuration:

#Working area: 2000*4000mm Z axis 700mm

#Split bed structure, convenient for loading in the container.

#9KW Air-cooled ATC spindle.Option China HQD and Italy HSD brand.The spindle can rotated 180-degree.

#Aluminum profile table

#Taiwan Hiwin square rails

#Taiwan Syntec control system

#Japan Yaskawa servo motor and drivers

$Japan Shimpto reducer

#Delta inverter

#vacuum table and pump

#8 ISO30 tool change system

#Dust collector

#Tool box

#Whole machine weight is 4500KG,ensure the 4 axis cnc router after long time working, not easy deformation.

ATC Woodworking CNC Router options:

1, Can without ATC system.

2, Mist cooling system for engraving on aluminum material.

3, Working area also can be 1500*3000mm, 2000*3000mm.

4, Leashine hybrid servo motor and drivers

5, The machine color and body design all can according to your requirement customized.

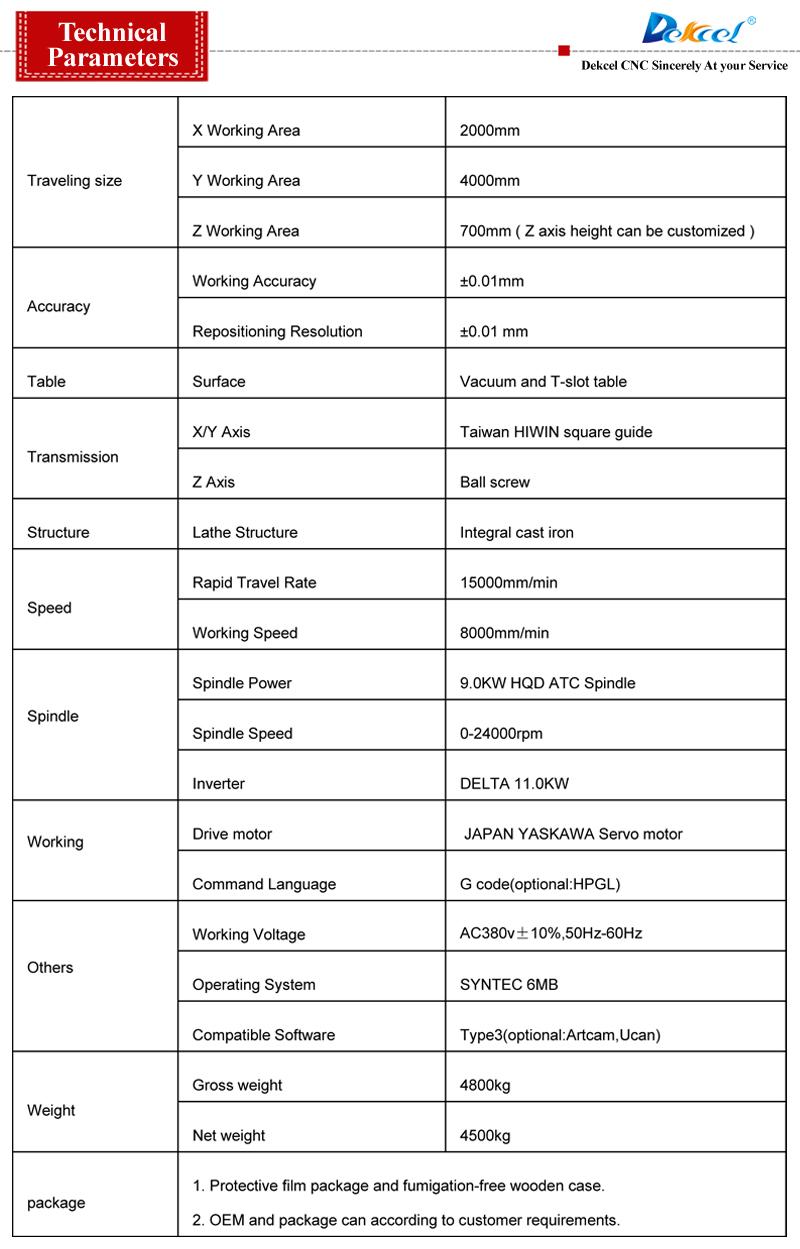

2040 ATC engraving router technical parameters

ATC Router Tool Changer Machine Main Features

1,The 4 axis cnc router tool changer operating system very safe and easy to learn.

2,High quality electrical accessories to minimize malfunctions.

3,Dustproof and waterproof design, fully protection of machine transmission components.

4,Adopt imported linear square guide rails, double row and four rows of ball slider, large bearing capacity and stable operation。

5,Large spindle power and stable performance。

6,Intelligent processing cross-border protection to prevent mechanical collisions caused by the design layout exceeding the processing width.

7,Long-term working: It can realize power-off, breakpoint, and processing every other day, which is convenient and labor-saving. Using breakpoint memory to ensure that it can be processed in case of accident (broken knife) or every other day。

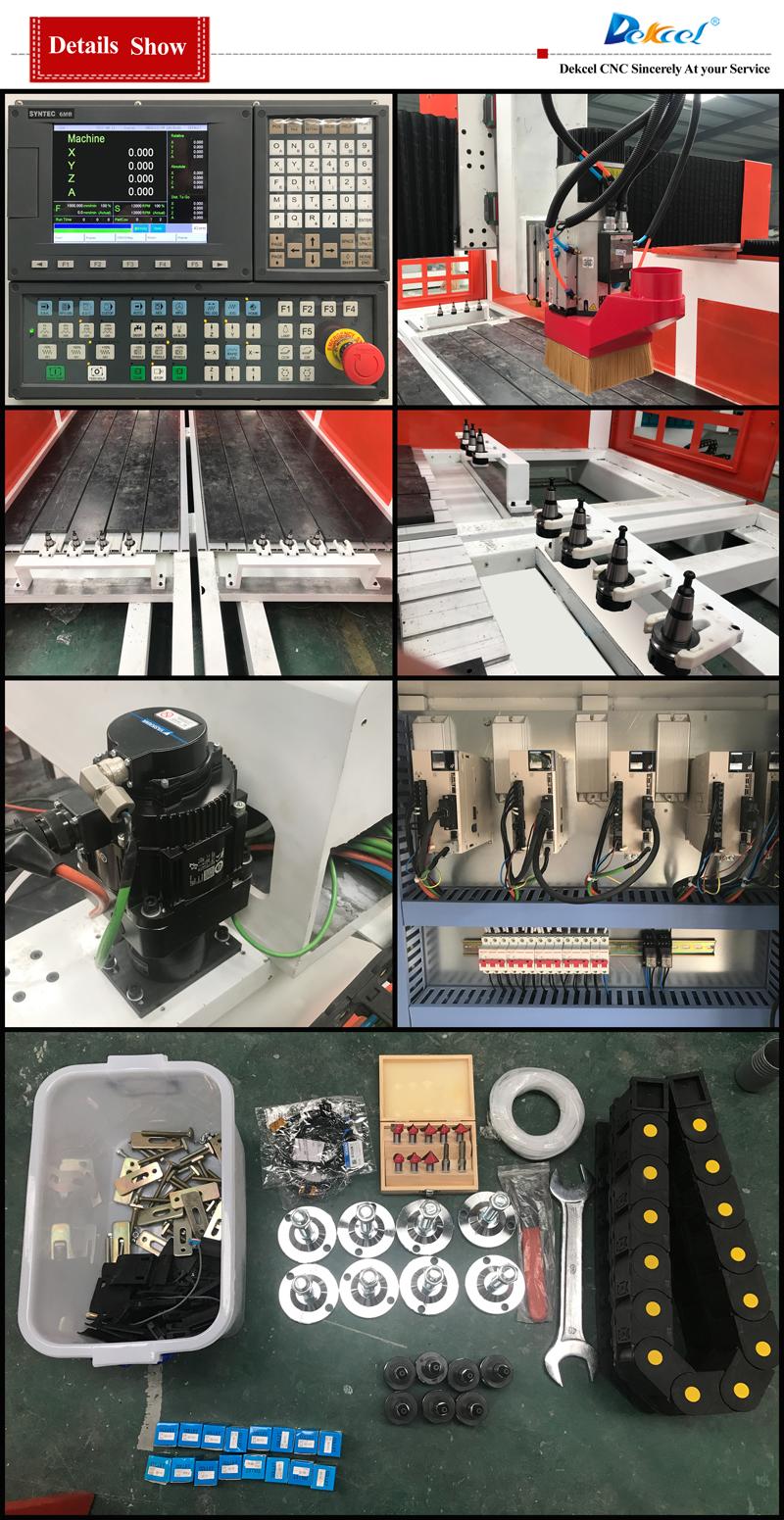

4 axis cnc router details show

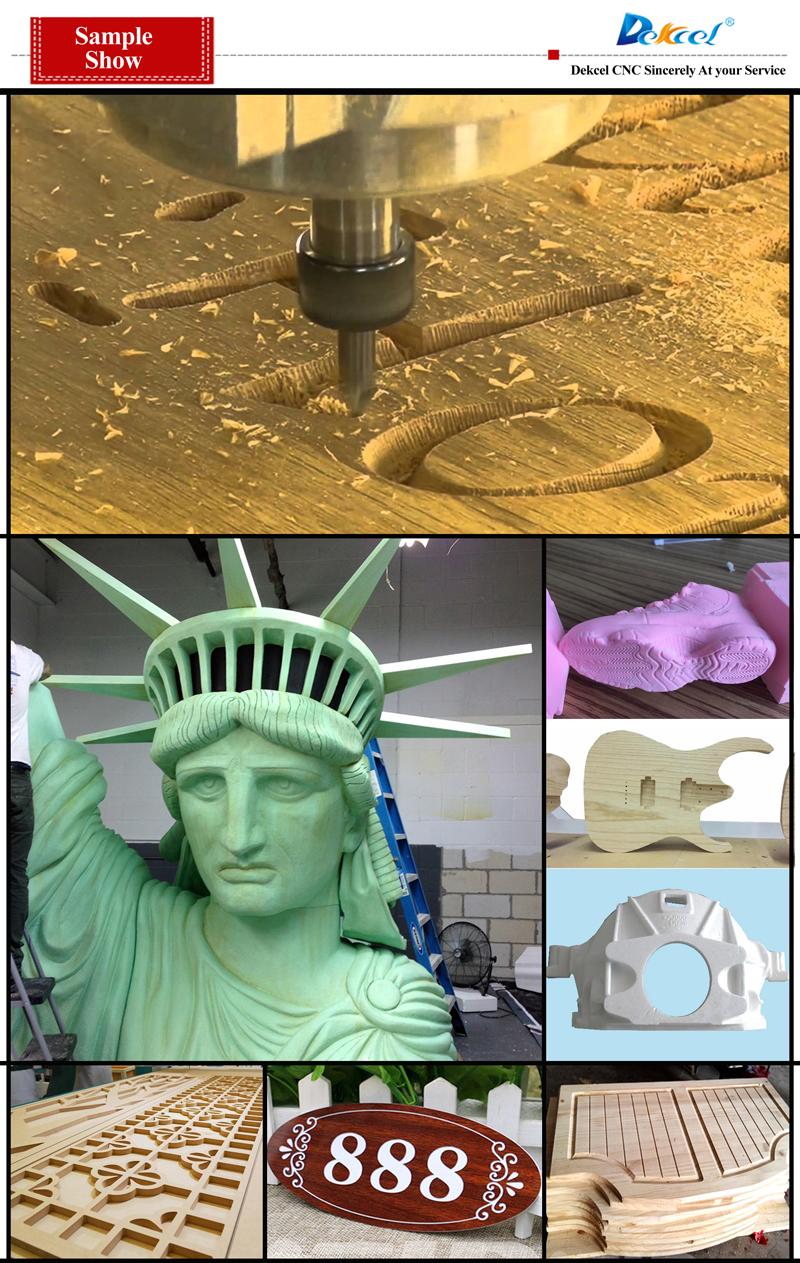

Application of ATC CNC Woodworking Machine:

1.Wood furniture industry

Doors; Cabinets; Tables; Chairs.Antique furniture,composite gates,sofa legs, headboards and so on.

2.Advertising industry

Logo; Badges; Display board; Meeting sign board;acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4.EPS foam


Relief sculpture and 3D engraving and Cylindrical object.


Best 4 axis cnc router service:

1,1.5 years warranty for whole machine.

2,The technician can send to your factory install and traing the machine if needed.

3,Or can send your engineer come to our factory free training.

If interested this ATC 4 axis cnc router for EPS foam, please feel free to inquiry from us. Thank you so much.

Also we have the 3 axis cnc router with rotary system for your reference.
