3D wood sculpture cnc router carving machine 5 Axis
You are here: Home » Cnc router » 4&5 axis cnc router » 3D wood sculpture cnc router carving machine 5 Axis
Share to:

3D wood sculpture cnc router carving machine 5 Axis

Intelligent 5 Axis 3D wood sculpture cnc router carving machine suitable for cylinder engraving,portrait sculpture etc

Quantity:
  • DEK-M360 5 axis
  • DEKCEL
  • 064

3D Wood Sculpture 5 Axis Carving CNC Router Machine

Configuration

#Working area:X-680mm,Y-320mm,Z-550mm.(The size can customized)
#AB axis,A axis 360 degree,B axis 90 degree.
#4.5KW china air cooling spindle
#Taiwan Hiwin square rails
#X,Y,Z axis high precision ball screw transmission
#Fuling inverter
#Taiwan Delta servo motor and drivers
#Taiwan syntec control system

Cnc router wood carving machine 5 Axis advantage Features
1) Adopt high precision, powerful,and fast speed advanced CNC processing system
2) All components are imported from international top brands.
3) Five-axis linkage is suitable for small and medium size complete three-dimensional surface processing.
4) Diversity control can separately control the processing speed,idling speed ,cutting speed,greatly improve the quality of processed product and processing efficiency.

Techinical parameter of cnc router wood carving machine 5 Axis
Model DEKCEL-M360 5 axis cnc router
Working area X axis:680mm;
Y axis:320mm;
Z axis :550mm;
A axis:360 degree;
B axis:±90 degree
Workpiece length 300MM-600M(or customized as your requests)
Spindle motor 4.5kw air cooling spindle(optional:6kw or bigger spindle motor)
Guideway square linear rail
Drive mode ballscrew drive mode
Tools diameter 3.175,4,6,8,10,12,12.7mm
Drive motor Taiwian Delta servo motor
Electronic parts German Schneider electronic parts
Cables Shanhai Ehu
Limit switch Taiwan Omron
Guideway test precision 0.001
Ballscrew test precision 0.001
Engraving precision 0.05mm/300mm
Compatiable design software UG,PowerMill,etc
X,Y,Z Connection Mode German C-class coupling
Controlling system SYNTEC
Travel speed X,Y:40000mm/min; Z axis:10000mm/min
Engraving speed 20000mm/min
Design gallery we send for free
Remarks Machines can be customized as you required



5 axis control system

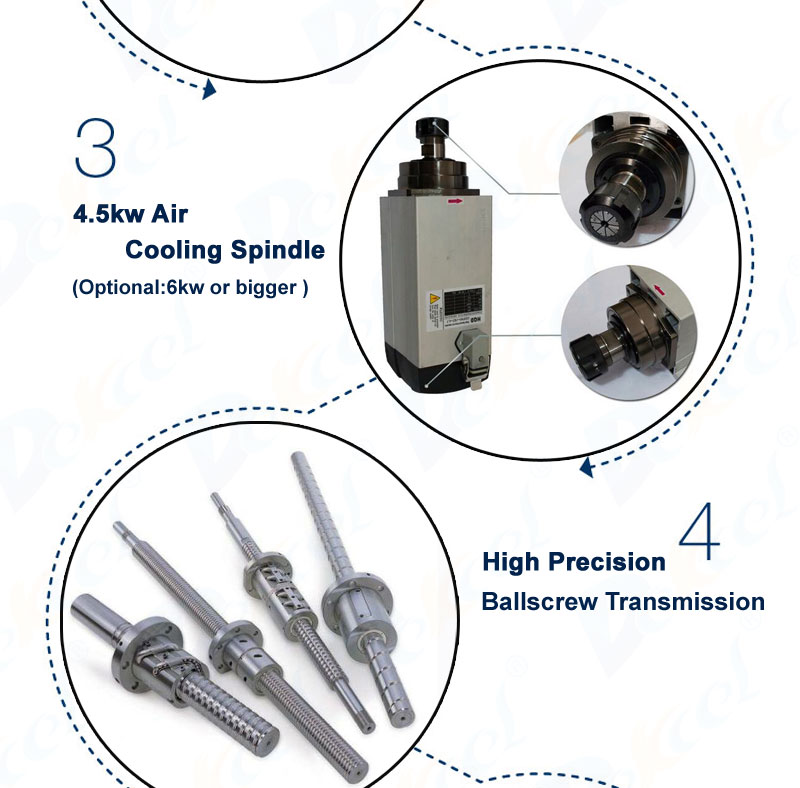

5 axis wood cnc router machine spindle

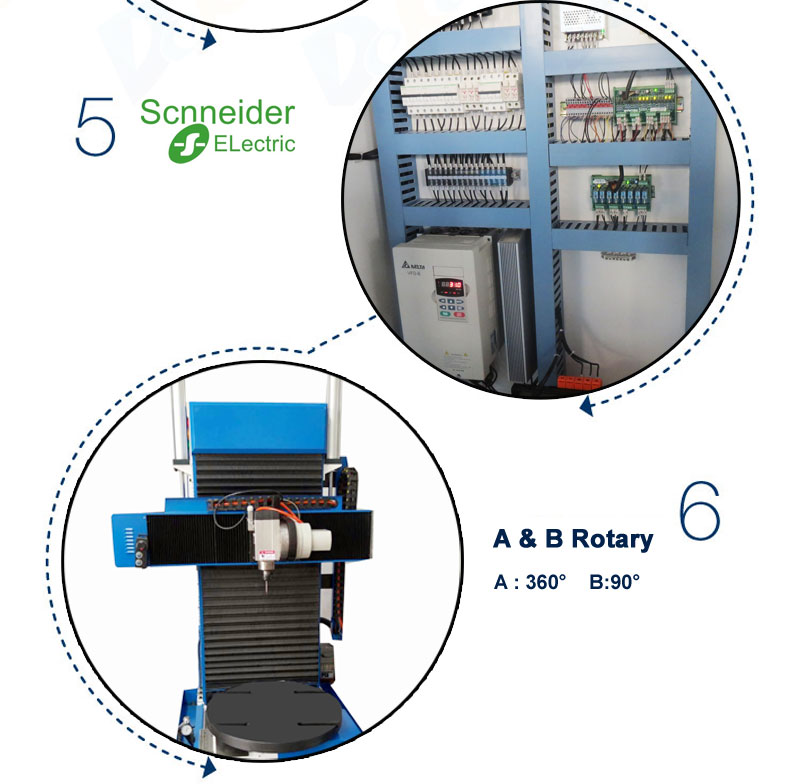

5 axis control box

About delivery time
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 30 working days .because we must ensure all things are ready,then can send the machine to you.



Our Package Advantage
1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.



Application Industry of Cnc router wood carving machine 5 Axis
1. Mould industry: casting. car. ceramic and wash utensils, steamer, barge, space flight, chemical industry,  wind power generation, rail traffic, andArtworks.
2. Three-dimensional processing industry: process large-scale stone, FRP edge cut, process resin and other solid carbides.
3. Teaching experience industry:Chairs and other furniture that need 3D processing.

Application Material
All kinds of wood , Styrofoam bubble(EPS), resin, gypsum, fatlute and other non-metal carbide composite materials

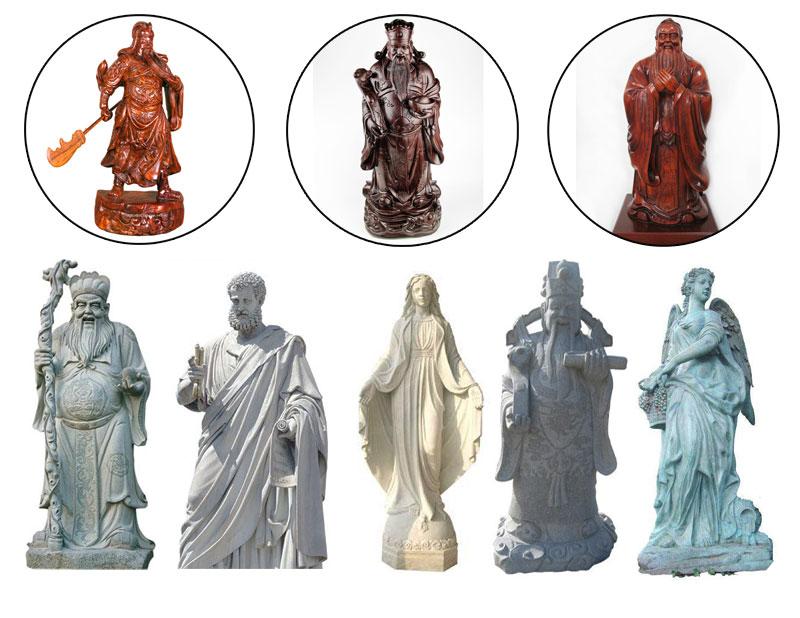

wood sculpture cnc router carving machine 5 Axis samples
