Cnc wood engraving machine 5 axis for sale

Dekcel cnc wood engraving machine 5 axis use top quality components,like Syntec control system from Taiwan,HSD ATC Air cooling spindle from Italy,Original 1300W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.

Quantity:
  • DEK-4020 5 axis
  • DEKCEL
  • 80
5 axis cnc wood engraving machine
Introduction of wood engraving machine 5 axis
With 5 axis spindle ( which can be rotated 360 degrees ), this machine is specially designed for mold prcessing, like: yacht boat car shoes aluminum molding making...

For wood engraving machine 5 axis, we use top quality components
1) Syntec control system from Taiwan, with high performance and competitive price. Professional famous brand in 5 axis machine line.
2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.
3) Original 1300W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.

Choose wood engraving machine 5 axis ,You will find we are difference as follows
1. At the same quality grade, our products' price is better.
2. At the same products' price level, our service is better
3. About 40 days delivery,One year’s warranty.
4. Response within 2 hours
5 .OEM and ODM service provided
6. Standard Package box
7. CE certificates
8. English, French, Spanish,Russian, Arabic etc languages support.

Technical parameter

Model

DEK-4020 5 axis

Working area

X Y Z Axis

2000 mm *4000 mm* 600 mm

Working table



Thick T- slot and PVC vacuum table

Move system

X Y Z Axis

XY adopt Taiwan helical gear wheels

Z axis adopt Germany neff ball screw

Control system

CNC System

Taiwan Syntec control system



Memory

512M



LCD Panel

3’’ LCD



Interface

USB

Working accuracy

Moving

±0.003/300mm



Repeat

±0.003mm



DPI

0.002mm

Working speed

Max.moving speed

30000mm/min



Max.engraving speed

20000mm/min

Software Use

Computer OS

Windows 98/2000/XP



Command

G-Code/HPGL-3D

Spindle

Power

9.0KW



Rotary Speed

0-18000RPM



Collect

ER30-3.175-16

Power supplier

AV

220V/380V  , 50HZ /60HZ

Lubrication system

Thin Oil lubrication

Auto /  Hand

Machine  Frame

Thick material

Casting / welded structure

Machine  Function

Main work

Engraving  cutting  drilling milling

Machine other parts

Frequency converter

Fuling / Delta famous brand

Machine supplier

Motor and driver

Yaskawa Servo motor

Machine Package

Weight

4000KG



Dimension

5600mm*2800mm*1900mm

Working environment

Temperature

+5℃ to + 35℃



RH

30%-75%



Air pressure

86-106Kpa

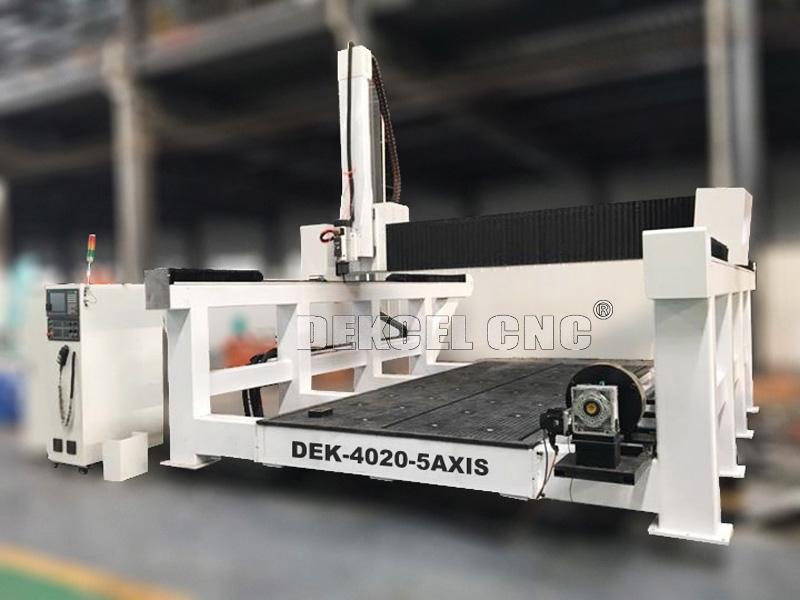

5 axis wood engraving machine body

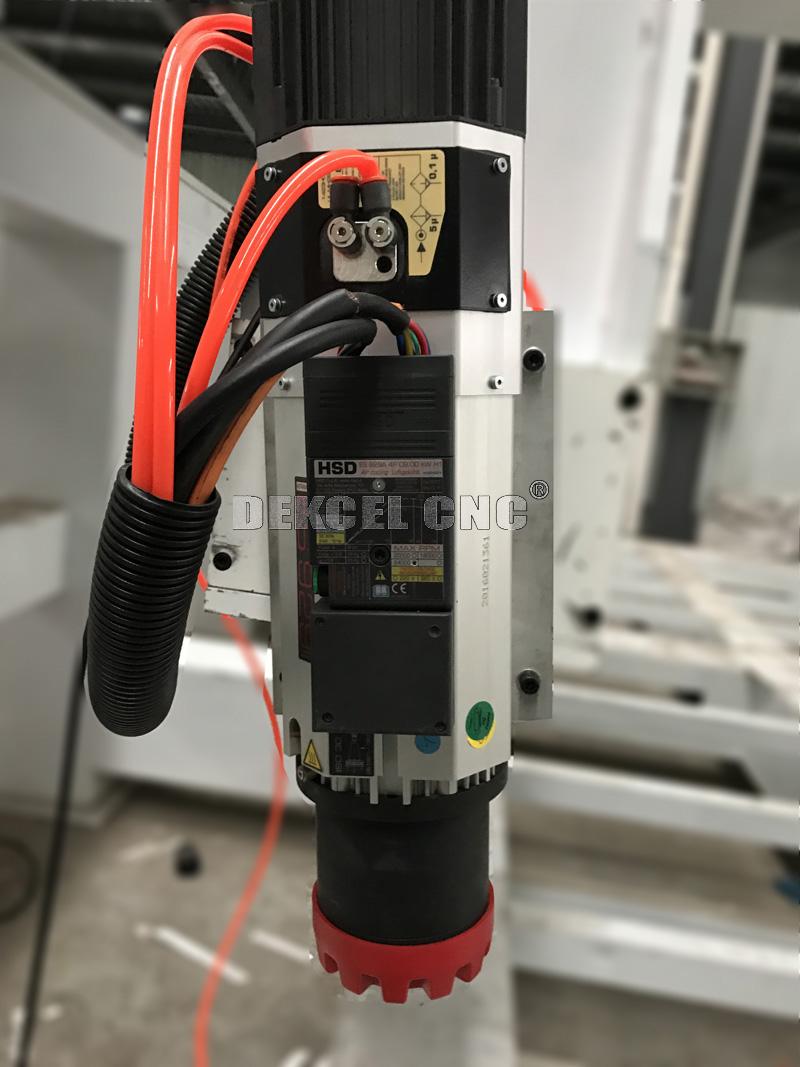

HSD spindle wood engraving machine 5 axis

5 axis for sale

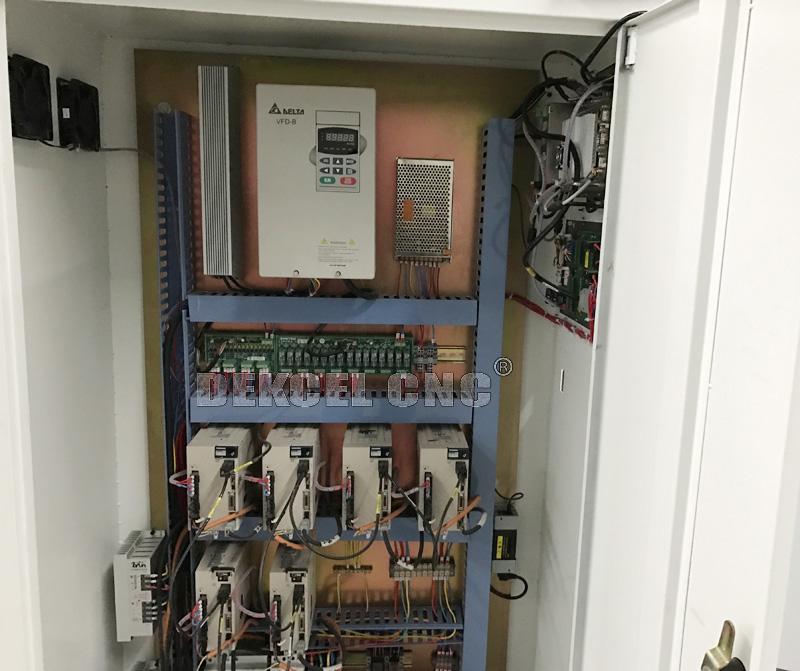

5 axis control box

injection system of 5 axis

syntec control system of 5 axis

Applicable of wood engraving machine 5 axis for sale
1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

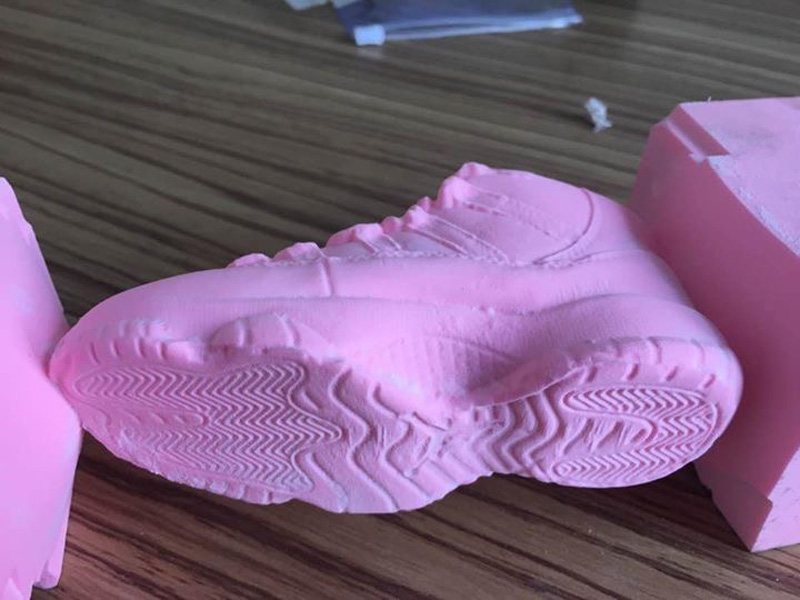

IMG_3405

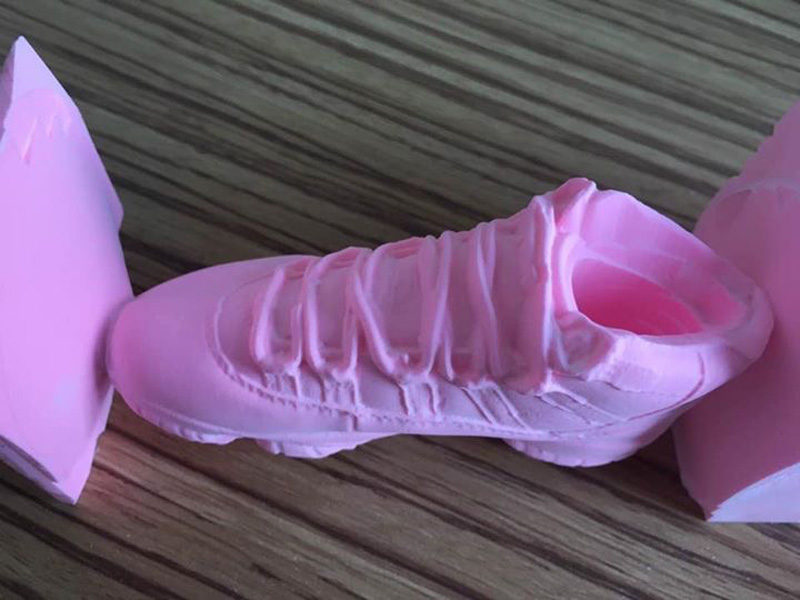

IMG_3406

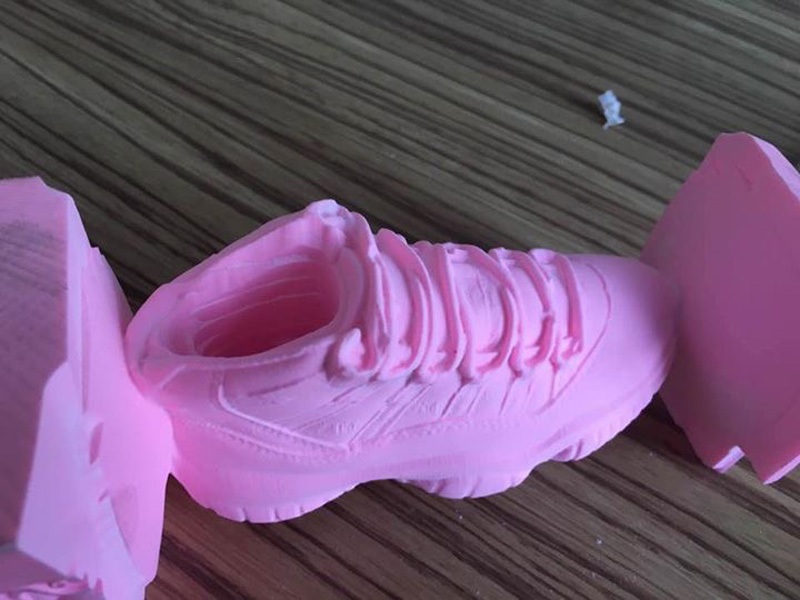

IMG_3407
