Foam cnc engraving & router machine 4 axis

Foam cnc engraving & router machine 4 axis, suitable for engraving EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .

Quantity:
  • DEK-2030M-4 axis
  • DEKCEL
  • 071
Features of foam cnc router 4 axis
Effective working area :2000x3000x1200mm
Italy 9.0KW HSD ATC spindle
4th axis can move ±180°
Taiwan DELTA inverter: 5.5kw
Japan YASKAWA servo driver 850KW
Taiwan SYNTEC control system 4 axis 6MB model
Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
Taiwan TBI ball screw with high precision
Divided structure bed structure ,Fixing with screws
Working table:T-slot working table.
Japan Shimpo reducer

Advantages of foam cnc router 4 axis
Self-lubricating, life-long maintenance-free Taiwan guide rail.
Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.
Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.

Foam cnc router 4 axis technician parameters

Description

Parameter

X,Y,Z Working Area

2000x3000x1200 mm*±180°

Effective working area

2860x3500x1450 mm

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z Repositioning Accuracy:

±0.01mm

Table Surface

T-slot Table

Frame

Divided structure bed structure ,Fixing with screws

X,Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

Z Structure

TBI ball screw,4 pcs slider

Max. Power Consumption

(Without Spindle) 6Kw

Max. Rapid Travel Rate

40000mm/min

Max. Working Speed

30000mm/min

Spindle Power

HSD ATC 9.0KW

Spindle Speed

0-18000RPM

Drive Motors

Japan 850W YASKAWA servo

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G Code

Operating System

SYNTEC Control System 6MB

Computer Interface

USB

Flash Memory

512M

Collet

ER30

X,Y Resolution

<0.01mm

Software Compatibility

UG , Power mill

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS: All the working area and specifications can be customized according to your requests.

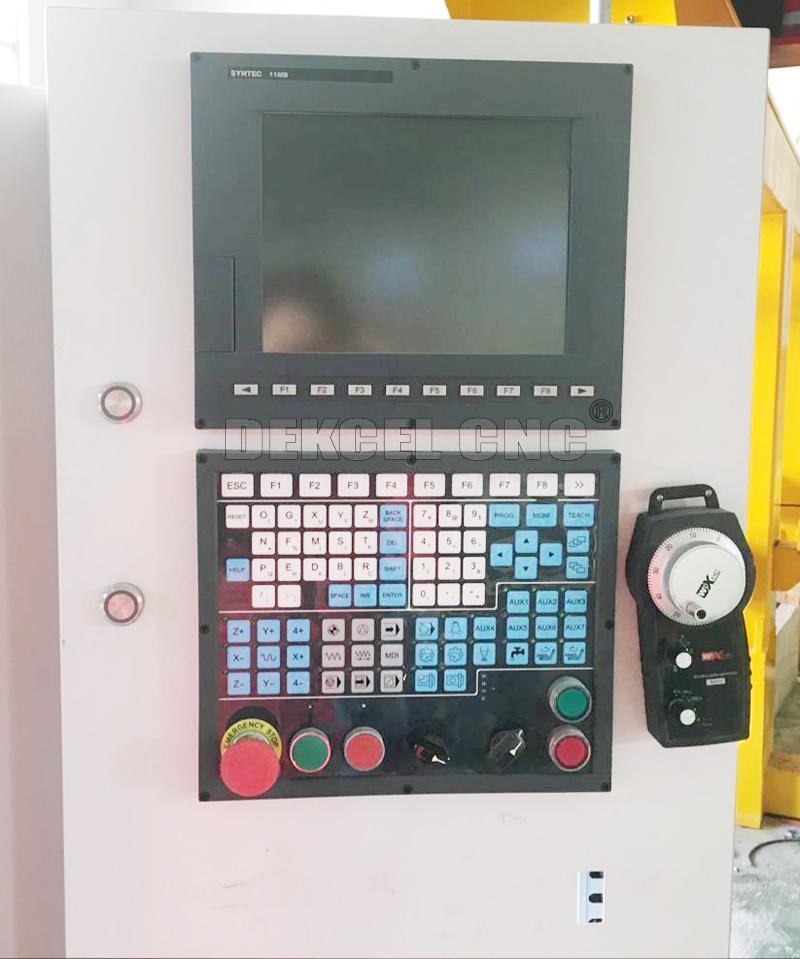

Has the function of forecasting process time. Taiwan Imported Syntec control system can completely work off-line and do not take any computer resources.


1

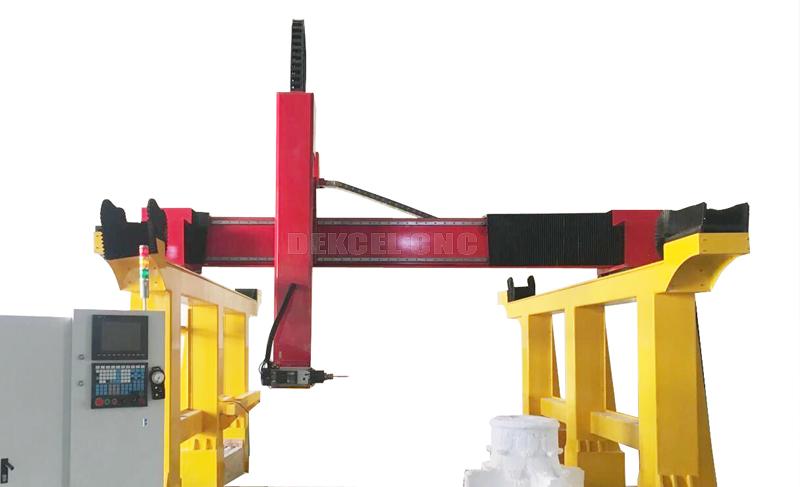

Heavy Hard Steel Lath Body, keep the machine's working High stability.Whole machine is welded with seamless steel structure, dealing with Time-treatment, the stability is excellent, never to be deformed.
2

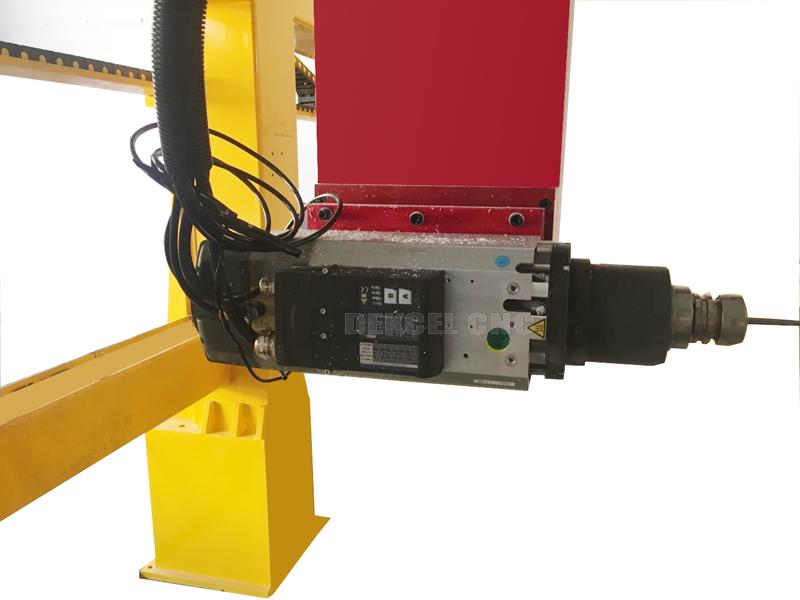

HSD 9.0KW ATC spindle,can rotate 180 degree.
3

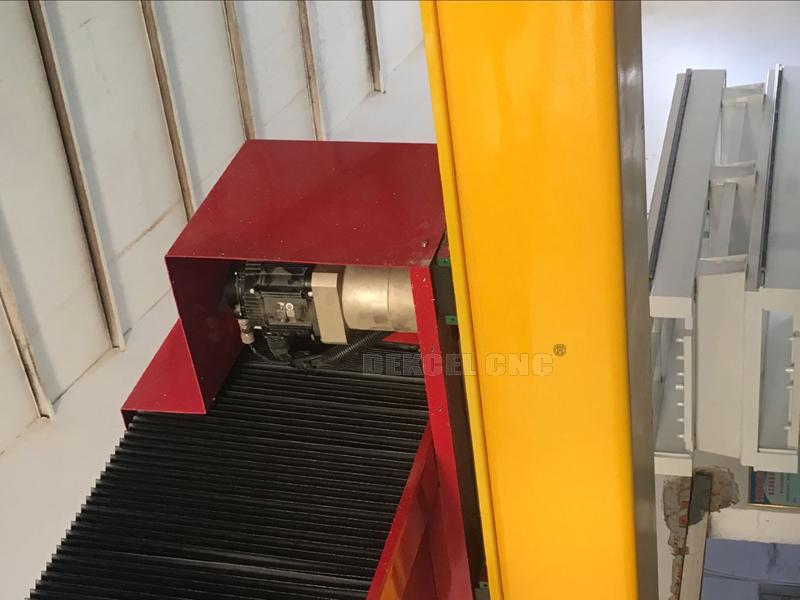

High power Japan YASKAWA servo motor with famous brand reducer.
4

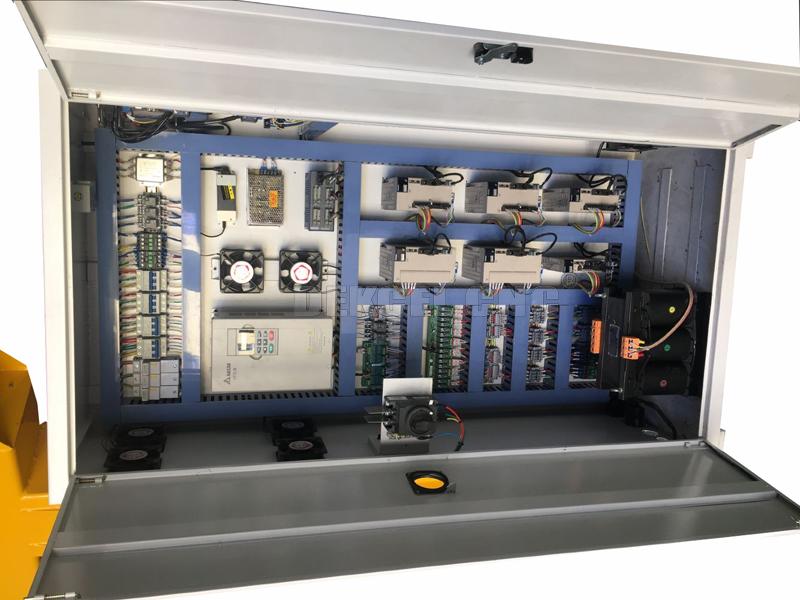

Foam 4 axis cnc engraving&router machine control box
5
Applicable materials
Wood, EPS (Any kind of Foam) and non-metal materials.

1. Mold industries:    sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model,wooden model aviation and other wooden mould.
2. Foam industry: Can carve and cut on any kind of Foam (EPS) , do 2D and 3D dimension processing.
3. Three dimension: with 4 axis, big diameter Rotary, can do any kind of 3D cylinder material and mould processing for advertisment industry , cloth and shoes industry

Processing effect:
Foam cnc router 4 axis can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow, enchasement and so on.

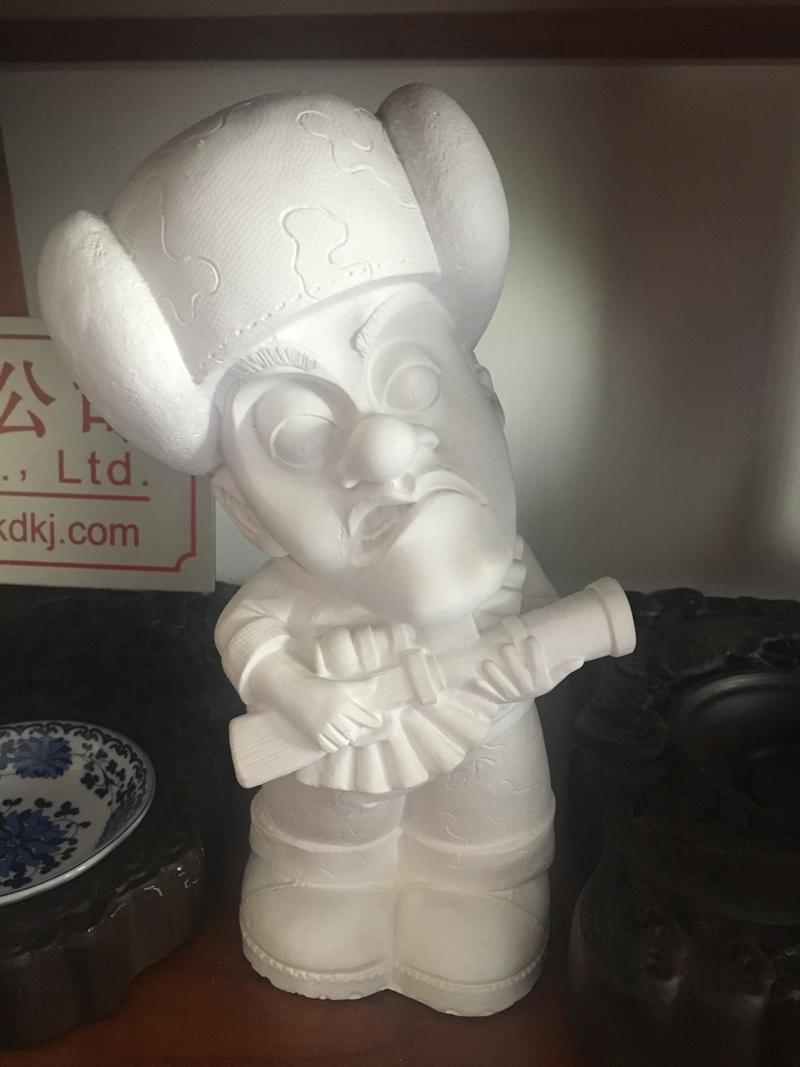

foam 4 axis cnc router machine

cnc router engraving machine 4 axis

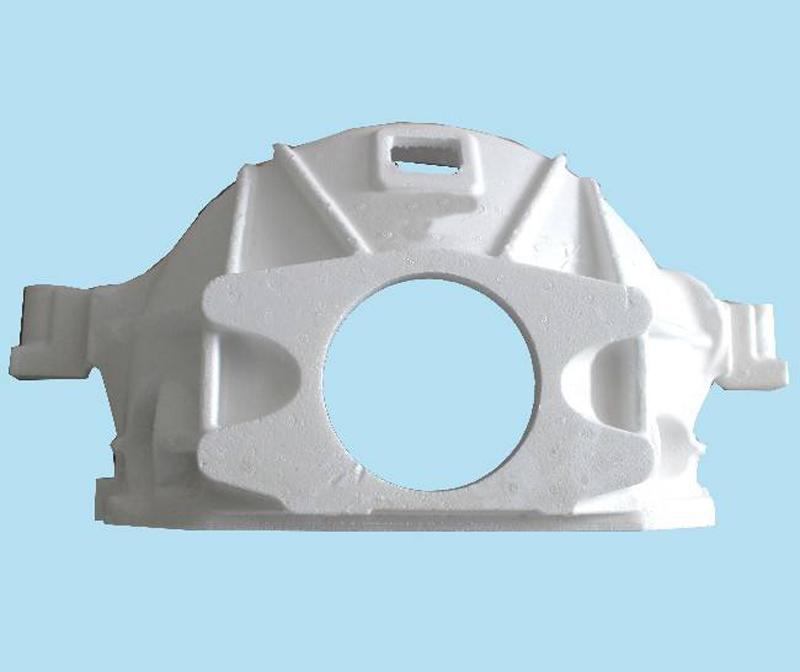

foam cnc engraving machine 4 axis
