4 Axis Wood Mould Carving and Engraving ATC CNC Router Machine Price

Dekcel 4 Axis ATC CNC Router is a professional special machining center used for curved surface processing ,fits custom furniture and cutting material, completely replace the traditional push table saw and electronic cutting saw, get rid of the traditional dependence on artificial cutting mode,through combined with a dedicated production design software, realize intelligent production.

Quantity:
  • DEK-4-AXIS
  • DEKCEL CNC
  • 140

Wood Mould Engraving CNC Router Working Video

4 Axis Wood Mould Carving and Engraving ATC CNC Router Machine Price

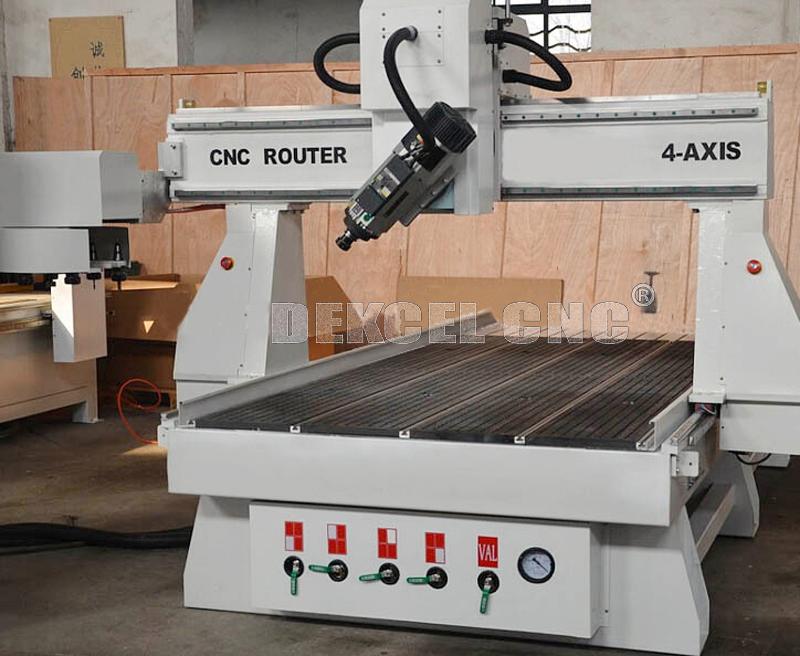

ATC 4 axis molud engraving cnc router
Features of ATC 4 Axis Engraving CNC Router

1 ) .  9KW HSD air cooling Spindle
Imported from Italy, air cooling spindle, no need water pump, very convenient to use, cooling effect is very good, long life.It can be rotated 180 degrees to engraving industrial mould.

Italy HSD 9.0kw spindle on 4 axis cnc router.jpg

2 ) . Japan YASKAWA servo motor and drivers

The precision of the servo motor is higher than the stepper motor.Japan Yaskawa servo motor runs smoothly,no vibration phenomenon even in the low speed.The output torque of the servo motor will not decrease with the speed,and at a higher speed will not drop sharply.

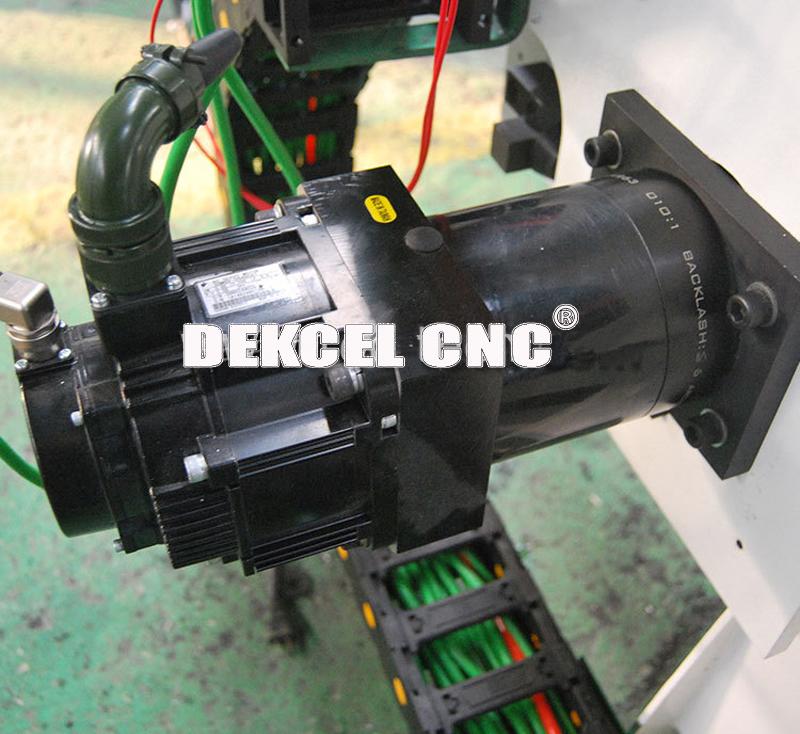

japan YASKAWA servo motor.jpg

3 ) .  T-slot & vacuum combination table(It can absorb different size material and has strong suction of 250m 3/hour)

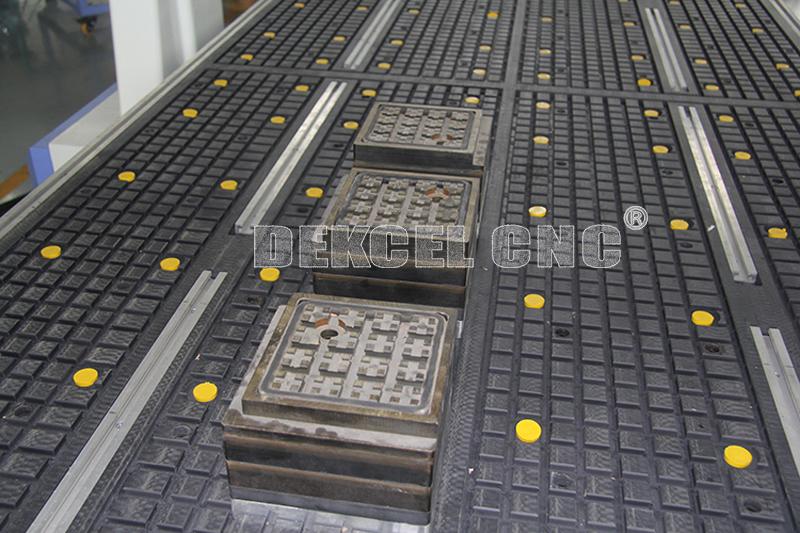

Vacuum & T-slot table including vacuum blocks.jpg

4 ) . Original Taiwan Syntec control system:

Professional Taiwan Syntec control system,extend maximum performance of machine,keep high precision and best stability.

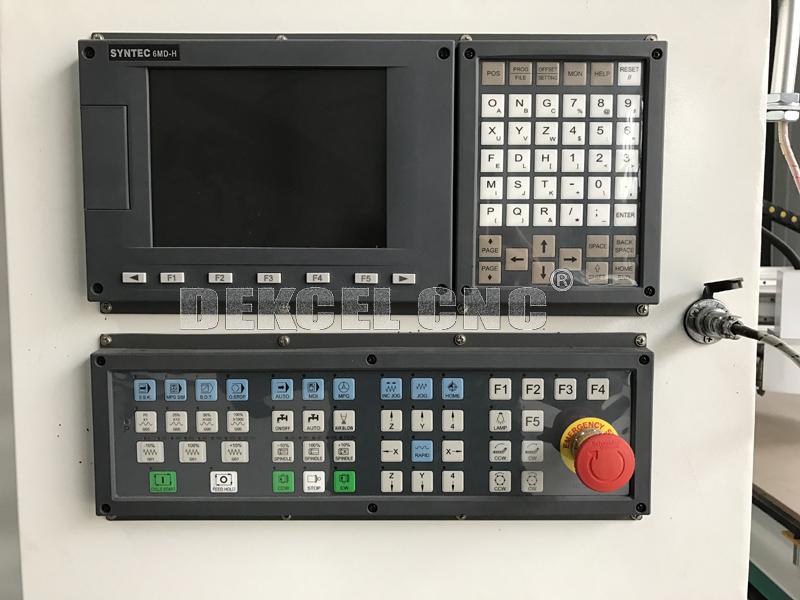

Original Taiwan Syntec control system.jpg

5 ) . Circle ATC

Circle type automatic tool changer with 8 tool storage .The tool magazine will move with the gantry together, which can realize change the tools within 5s.

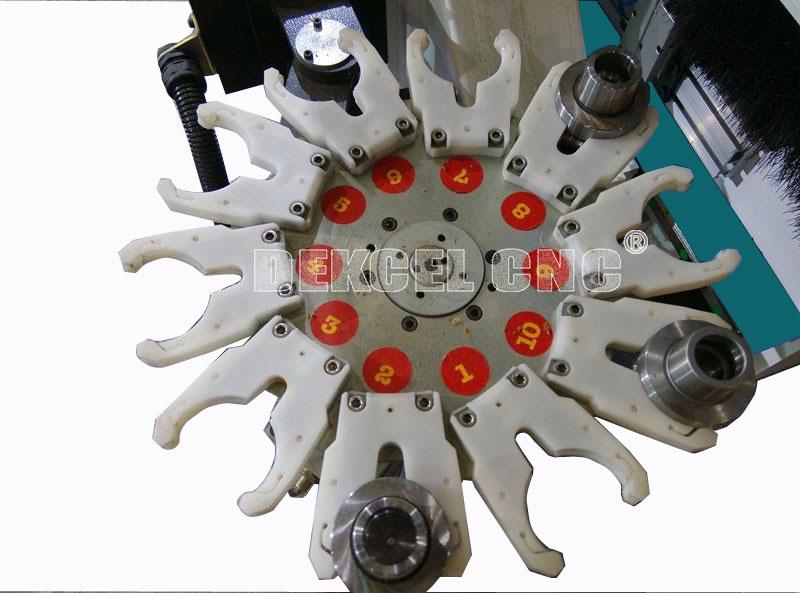

Circle type automatic tool changer with 8 tool storage.jpg

6 ) . Taiwan Delta inverter

Taiwan Delta inverter.jpg

Parameter  of 4 Axis Mould Engraving Machine

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x(300-700mm)*±180°

2

Table Size

1300×3000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Big Steel Tube Structure

7

X, Y Structure

Helical rack gear , HIWIN Linear guide

8

Z Structure

Imported Ball Screw , HIWIN Linear guide

9

Max. Power Consumption

(Without Spindle)  4.2Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

 Italy ATC HSD 9.0kw spindle

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 850 W YASKAWA servo motor

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER25

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

4.1*2.3*2.6m

26

N.W.

2500KG

27

G.W.

2800KG

28

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

SIEMENS/DELTA/ Panasonic Servo Motors

Colombo Spindle

Linear type ATC

Applicable of ATC Mould Engraving CNC Router Machine

1) Mould: wood,wax, wood, gypsum,foams,wax

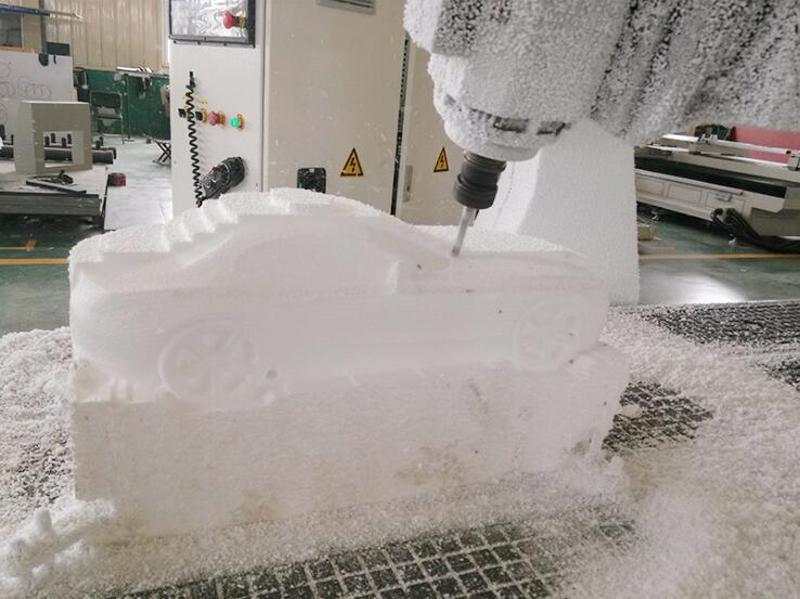

4 axis foam mould engraving router.jpg

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,

instruments.

4 axis foam mould engraving router.jpg

4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process
wood foam mould engraving ATC cnc router sample.jpg
