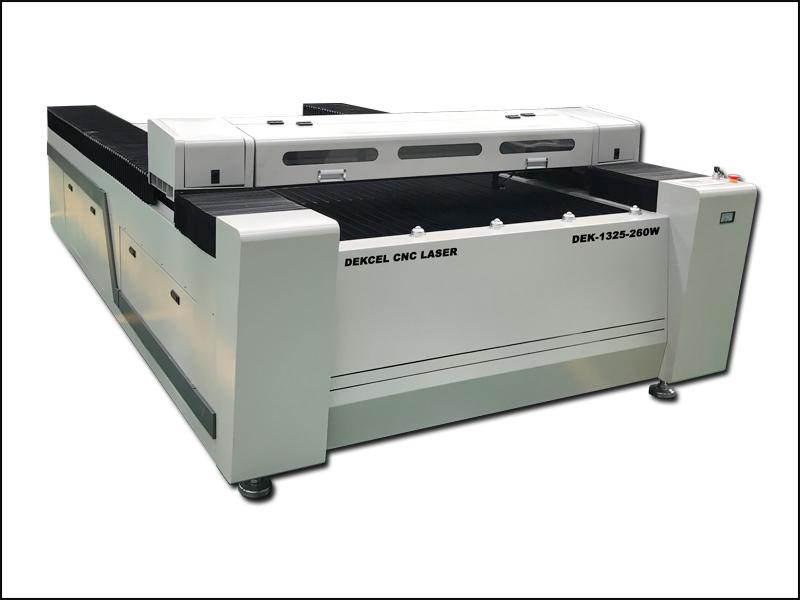

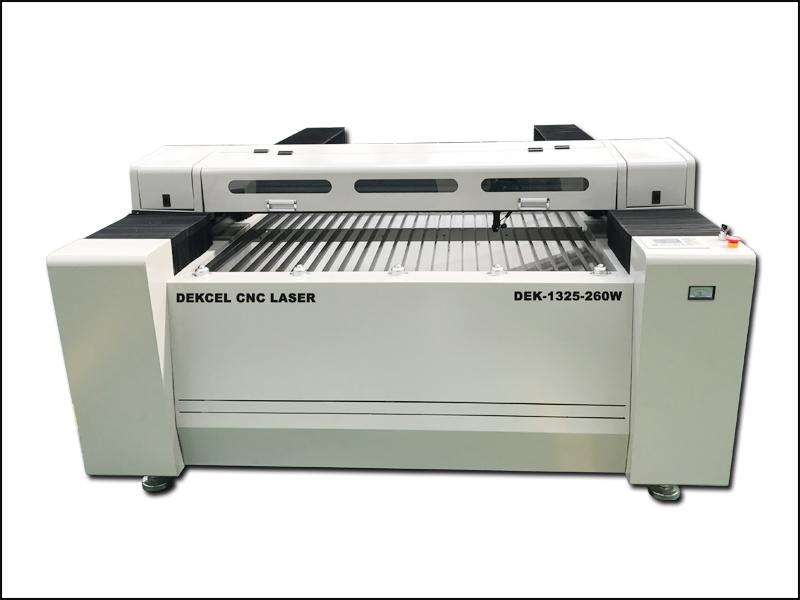

Co2 metal sheet laser cutting machine 260w for 2mm stainless steel

DEKCEL Co2 laser cutting machine with Yongli 260w suitable for cutting nonmetal material ,like wood,acrylic,mdf sheet, also can cutting metal material,like stainless steel, carbon steel max 3mm, 150W can cutting max 2mm steel.

Quantity:
  • DEK-1325J 260W
  • DEKCEL
  • 096

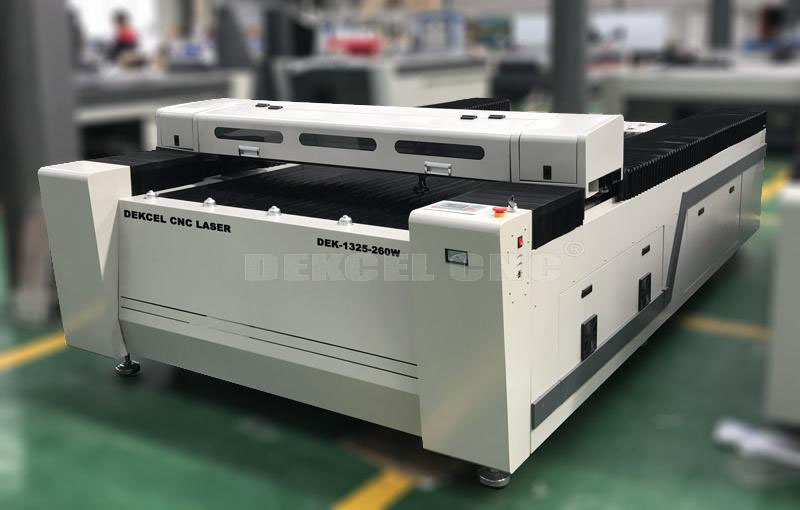

china cnc laser manufacturer


Co2 laser cutting machine for 2mm stainless steel features
1. Stepper motor: numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect
2. Automatically follow cutting head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically
3. Belt drive: with fast speed and high precision
4. Control panel: which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software
5. Dust cover: meets the needs of diversified laser procession
6. Electric control part: which can not only work without computer, but also connect to U disk, USB communication
7. knives platform: dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime

8. Mirror Holder:Imported Focus Lens and reflect mirror, makes high efficiency and steady

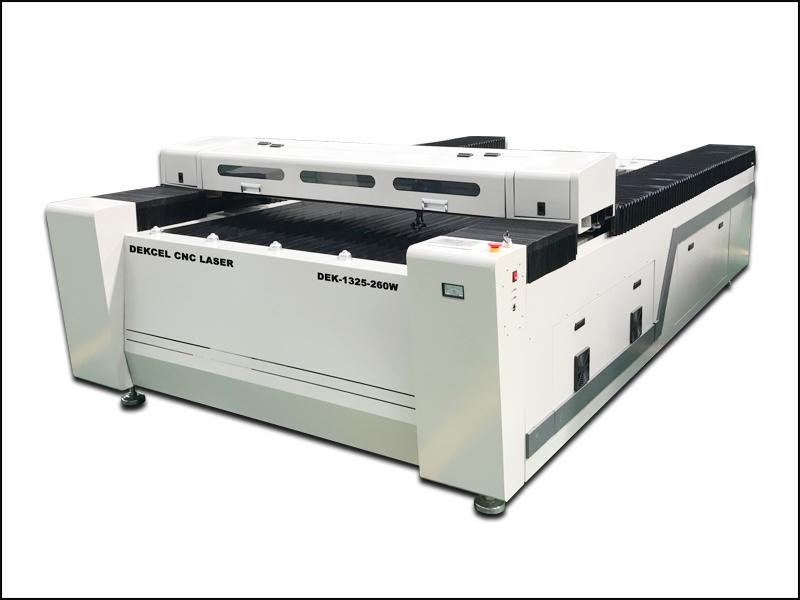

260w CO2 laser Cutting 2.5mm Stainless Steel

Technician parameter of co2 laser 260W

Model DEK-1390J DEK-1325J Option
Working Area 1300*900mm 1300*2500mm According to Demands
Laser Power  150w 150w / 260w / 300w

Transmission Method

& Driving System

 Standard Machine use Belt Transmission + Chinese Top Brand

“Leadshine” Step Motor and Driving System

 Optional Machine use Ball Screw Transmission + Japan IMported

 Yaskawa Servo Motor and Driving System

Laser Type  CO2 Sealed Laser Tube, 10.6um
Cooling Type  Water Cooling,
150w-180w Machine use CW-5000, 260w-300w Machine use CW-6000
Working Table  Stainless steel and knife table
Laser Output Control  (0-100% Set by Software )

Smallest Character

 Engraving

 Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm

Highest Scanning Precision

 4000DPI
Positioning Accuracy  ±0.02mm/m
Positioning Speed  20m/min
Max. Cutting Thickness  40mm
Max. Cutting Speed  20m/min
Controlling Software  DSP Control System

Graphic Format Supported

 BMP, PLT, DST, DXF, and AI, etc
Compatible Software

 CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software

Drive System  High-precision 3-phase Stepper Motor
Auxiliary Equipment  Exhaust Fan and Air Exhaust Pipe
Controlling software  Off-computer controlling system
Working voltage  AC110-220V ±10%/10A,50-60HZ
Power  <2000W
Packing    Standard Plywood
Warranty  12 month for whole machine, 10 month for laser tubes
Weight  1000 kgs
,
Yongli 260W laser tube suitable for cutting max 2.5mm stainless steel,3mm carbon steel,30mm acrylic,20mm MDF,30mm wood.

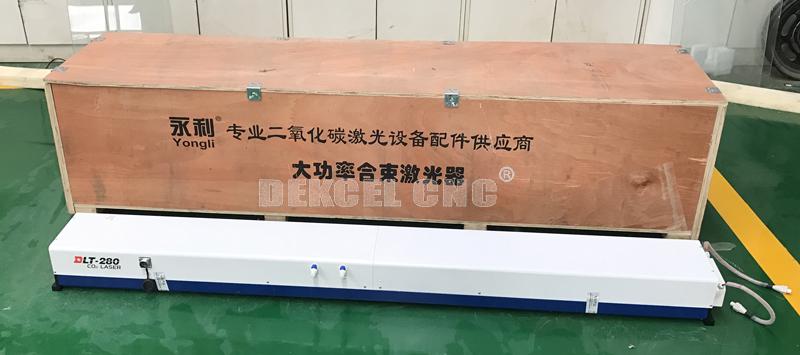

280W Yongli laser tube

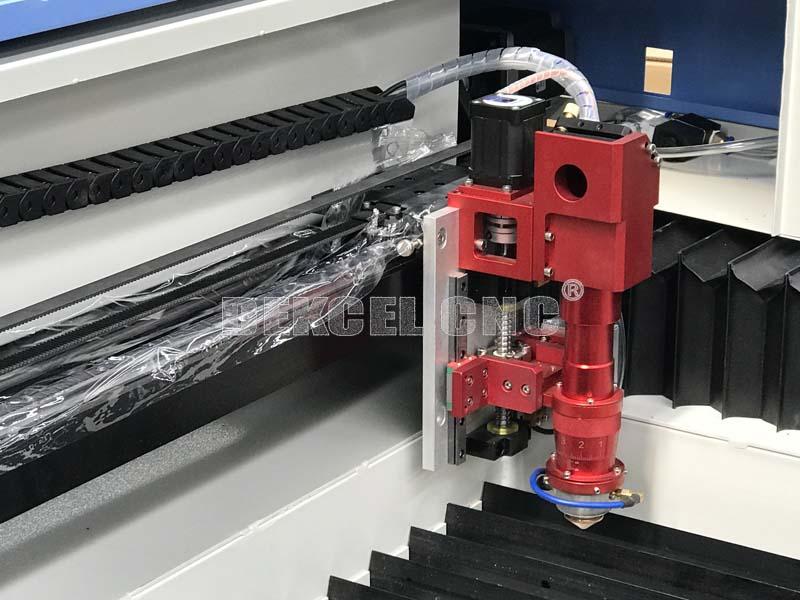

Metal steel cutting following head
metal steel cutting following head

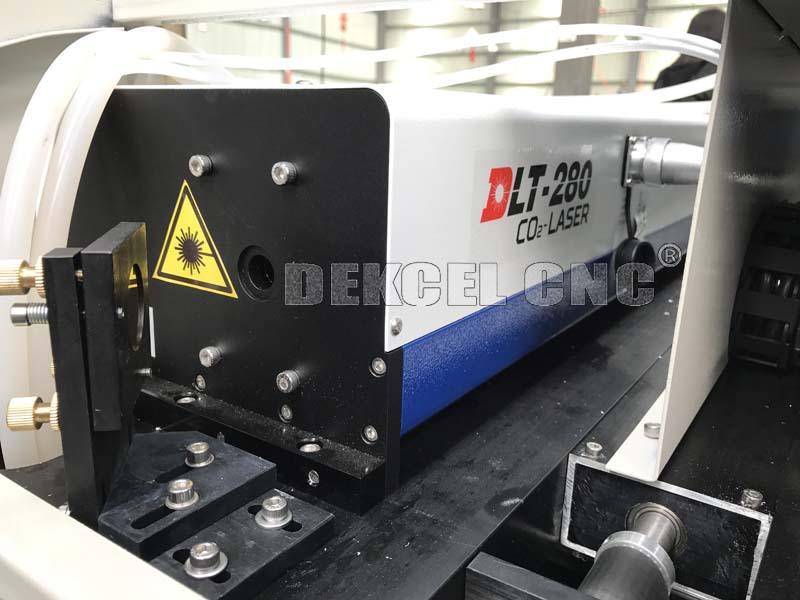

280W laser tube

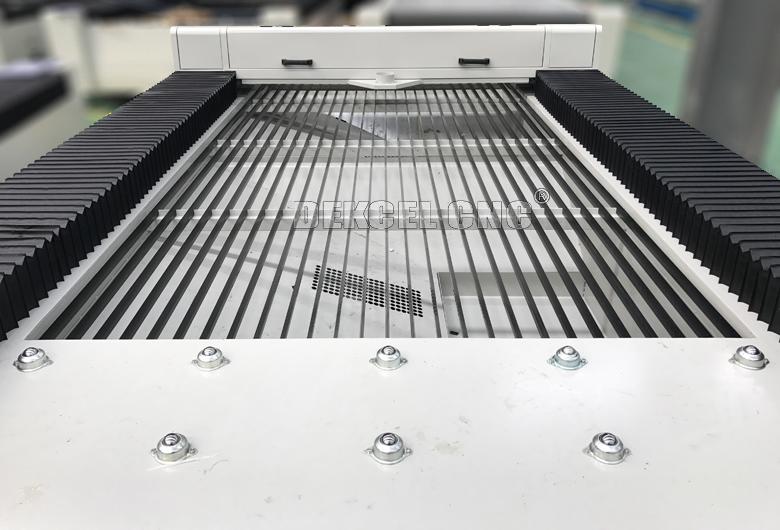

Knife blade cutting table
co2 cnc laser knife cutting table

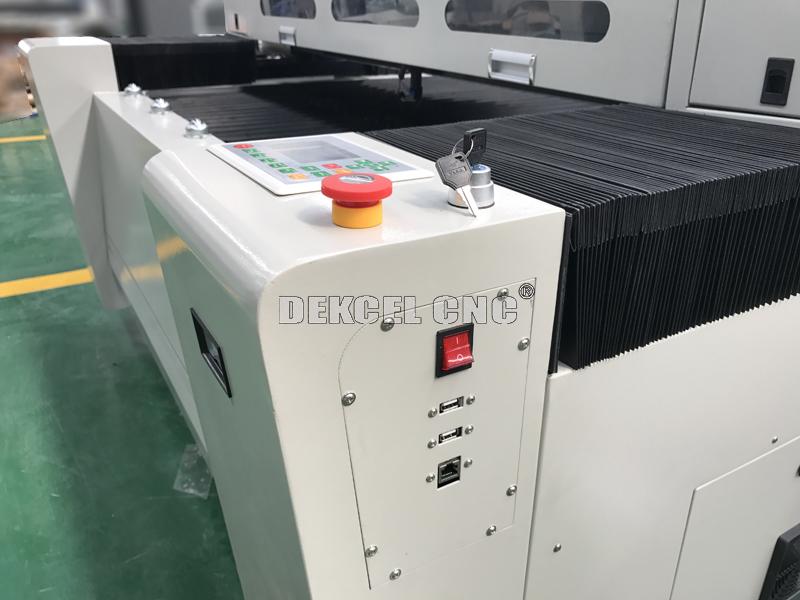

RDCAM DSP control system,Emergency stop,USB interface,support online/offline work,English language,
co2 laser cutting machine manufacturer

co2 260W laser cutting metal

Co2 laser cutting machine can use for cutting metal&nonmetal meterial
Metal material: Co2 laser can cut carbon steel, stainless steel.
Non-metal material
Bamboo, jade articale,organic glass, crystal(only can engraving), rubber, plastic, cloth, leather,wood,acrylic,MDF sheet etc.

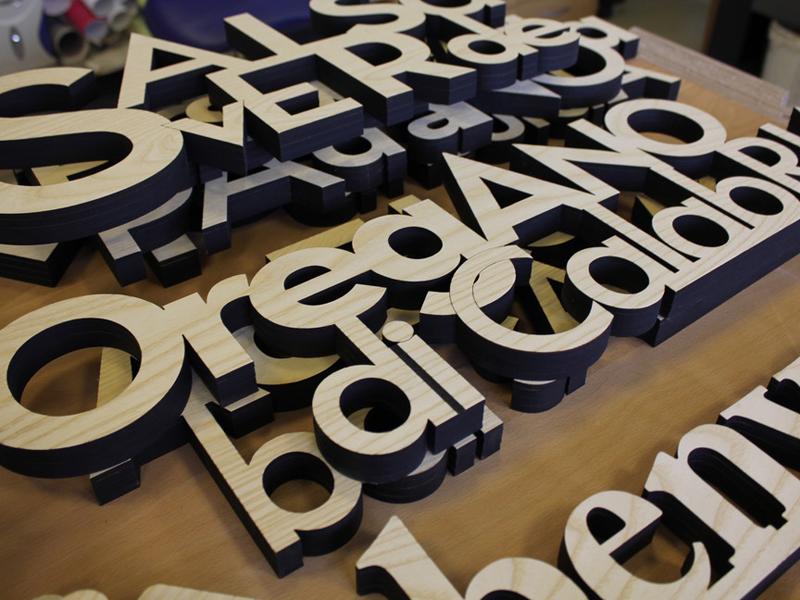

18mm die board laser cutting

nonmetal following cutting head cnc laser

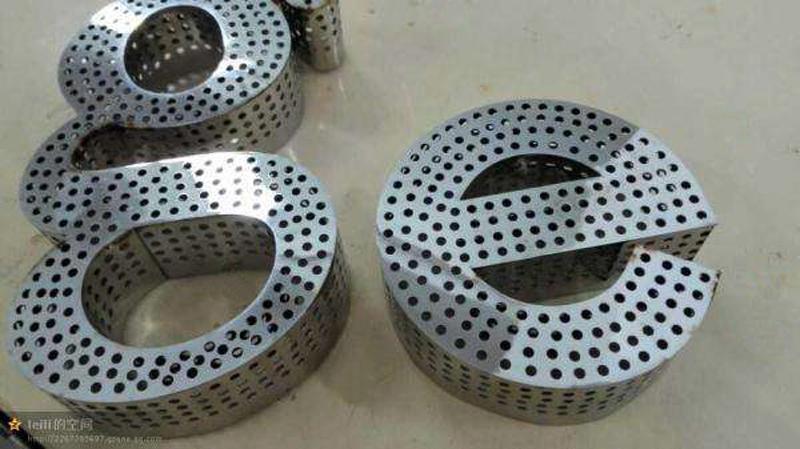

LED 1mm metal steel laser cutting
