China Manufacture 280w CO2 3mm Stainless Steel Laser Cutting Machine
You are here: Home » Cnc Laser » Metal laser cutting machine » CO2 laser cutting machine » China Manufacture 280w CO2 3mm Stainless Steel Laser Cutting Machine
Share to:

China Manufacture 280w CO2 3mm Stainless Steel Laser Cutting Machine

Dekcel 280w cnc laser cutting machine,this model is CO2 metal & nonmetal laser cutting machines designed for efficient processing of steel,acrylic,wood,MDF and many more. Available in different workstations sizes with several power options(150w/280w), these laser cutting systems provide high-quality results at maximum speed.

Quantity:
  • DEK-1390J
  • DEKCEL CNC
  • 138

DEK-1390J CO2 280w Stainless Steel Laser Cutting Machine

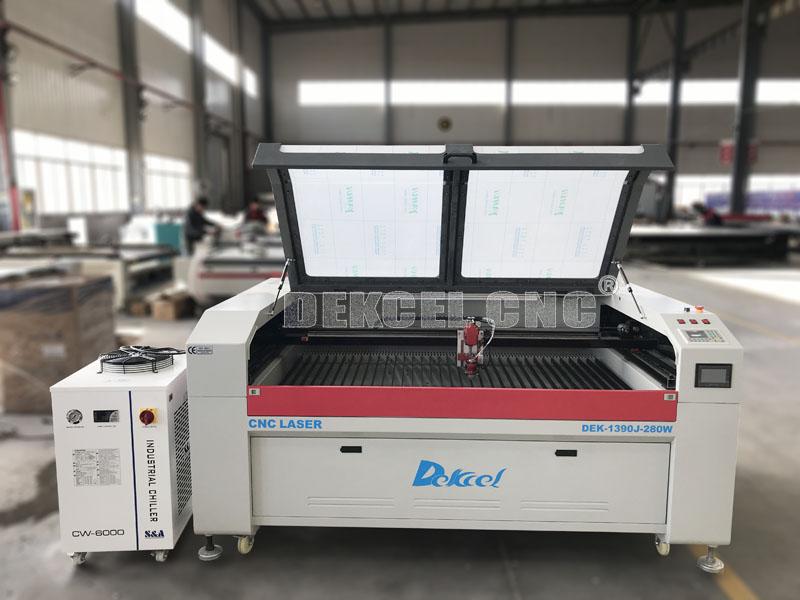

280w stainless steel laser cutting machine with CW-6000 water chiller

Features of 280w laser cutting machine:
1) Open-type worktable, widely used in cutting and engraving large size materials with high precision and speed, such as advertising, light industry, woodworking, arts and crafts
2) Powerful stepper motors and high imported HIWIN linear guide ensure the fast speed and stability.
3) Can add CO2 laser tube 60W / 80W / 100W / 150W / 180W.
4) Professional software for laser machine, which support PLT, DXF, BMP, AI, DSF formats, applicable for drawing programs such as Corel Draw, PhotoShop, Auto-CAD, etc.
5) Machine has 512 memory which allow to save and store files in the machine and can work without connecting computer.
6) Good design of dust-proof structure for X Y axis to ensure longer life of machine.

Video of 280w Laser Cutting 3mm Stailess Steel

Technical parameters of DEK-1390J 280w CO2 Metal Cutting Machine

Model DEK-1390J DEK-1325J
Working Area 1300MM*900MM 1300*2500mm
Transmission Belt / Ball Screw with servo motor Belt / Ball Screw with servo motor
Laser Power Reci 150w / Yongli 280w
Laser Type Sealed Co2 280w Laser Tube,10.6μm
Cooling Type CW-6000 Water Cooling Chiller with refrigeration compressor
Laser Control Ruida 280w laser cutting machine control system
Smallest Character Engraving Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Positioning Accuracy 0.05mm
Positioning Speed 20m/min
Max. Cutting Thickness 40mm
Max. Cutting Speed 20m/min
Controlling Software Ruida offline Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS, etc
Compatible Software TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software
Power Supply AC110V/220V+10%,50HZ/60HZ

Details Show of 1390 CO2 280w Laser Machine

1. CO2 280w laser cutting machine control system

CO2 280w laser cutting machine control system.jpg

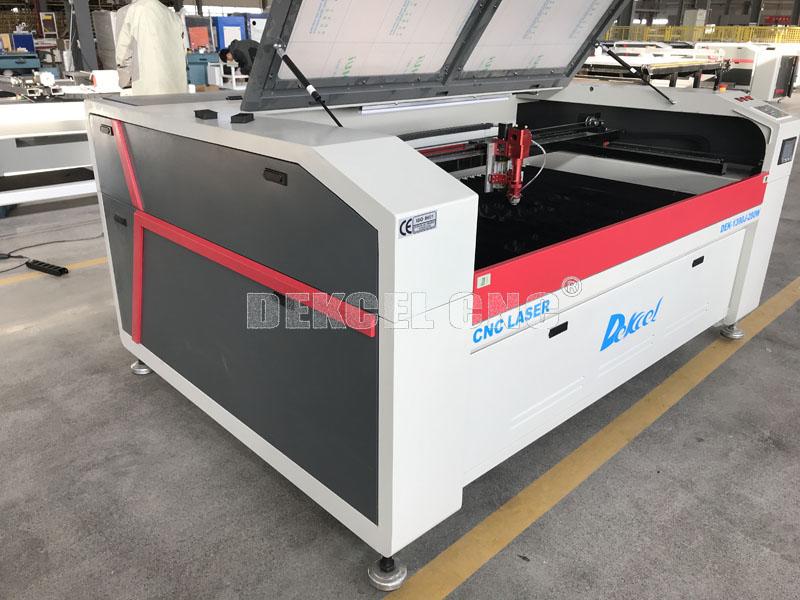

2. New design body for 280w laser cutting machine

New design body for 280w laser cutting machine.jpg

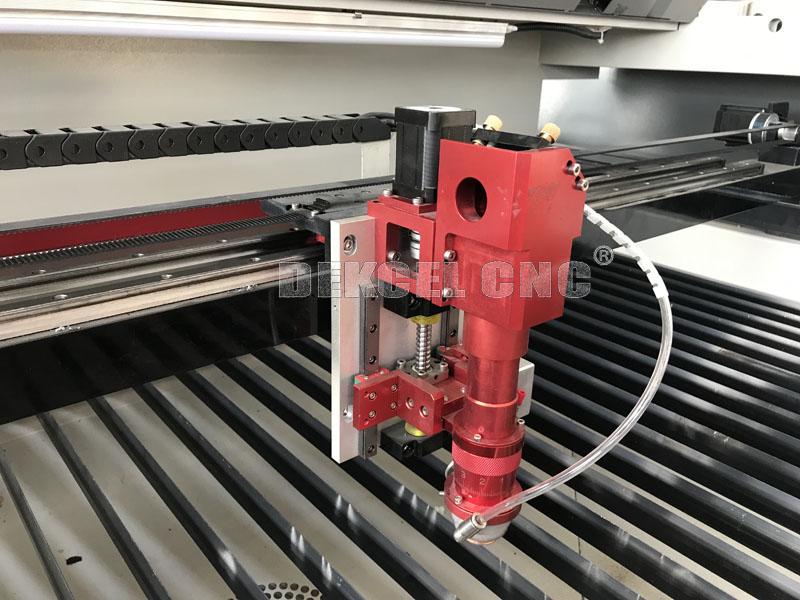

3. 280w laser cutting machine head with auto folowing function

280w laser cutting machine head with auto folowing function.jpg

4. 280w laser cutting machine head's auto flowwing control system

280w laser cutting machine head auto flowwing control system.jpg

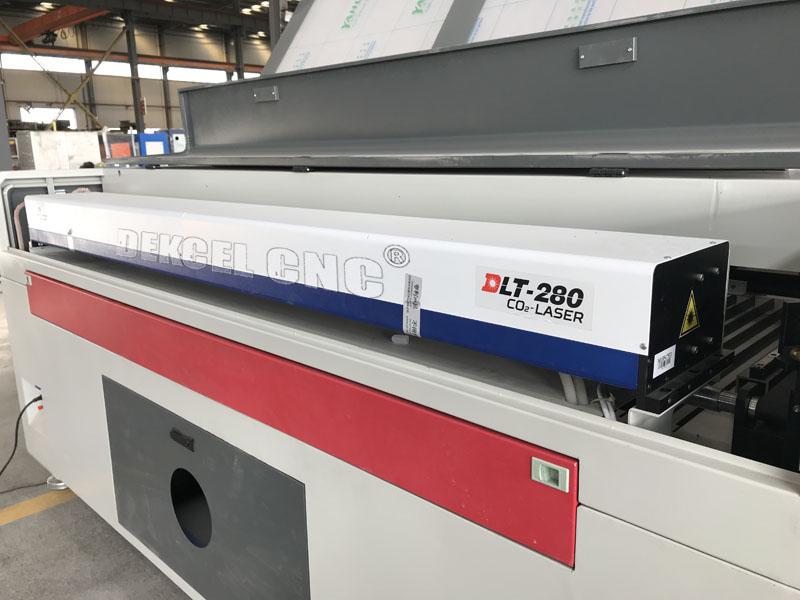

5. Jilin yongli co2 280w metal and nometal cutting laser tube

Jilin yongli co2 280w metal and nometal cutting laser tube.jpg

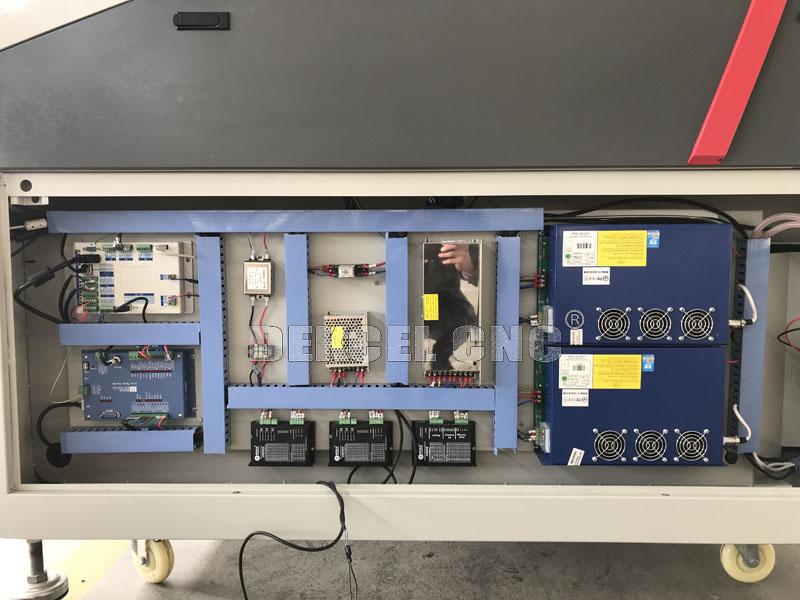

6. 280w laser cutting machine controol cabinet

280w laser cutting machine controol cabinet.jpg

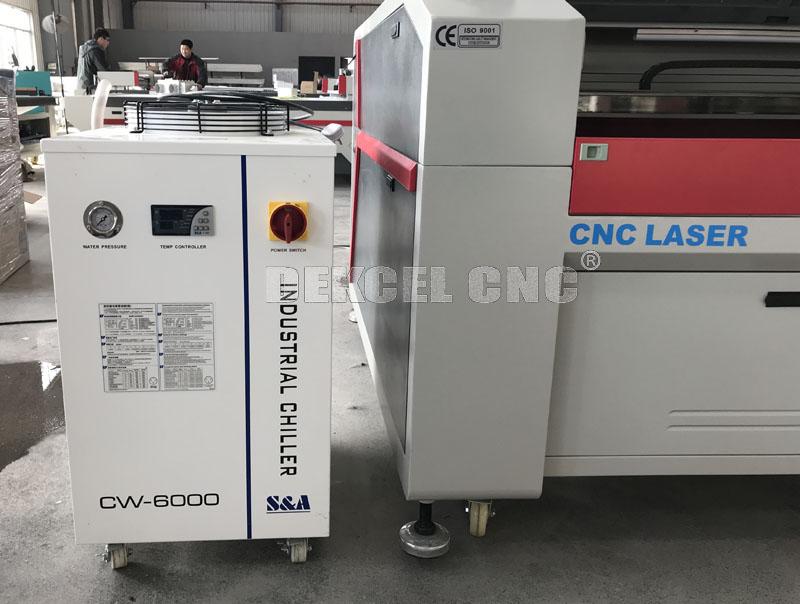

7. CW-6000 water colling chiller for 280w laser tube

cw-6000 water colling chiller for 280w laser tube.jpg

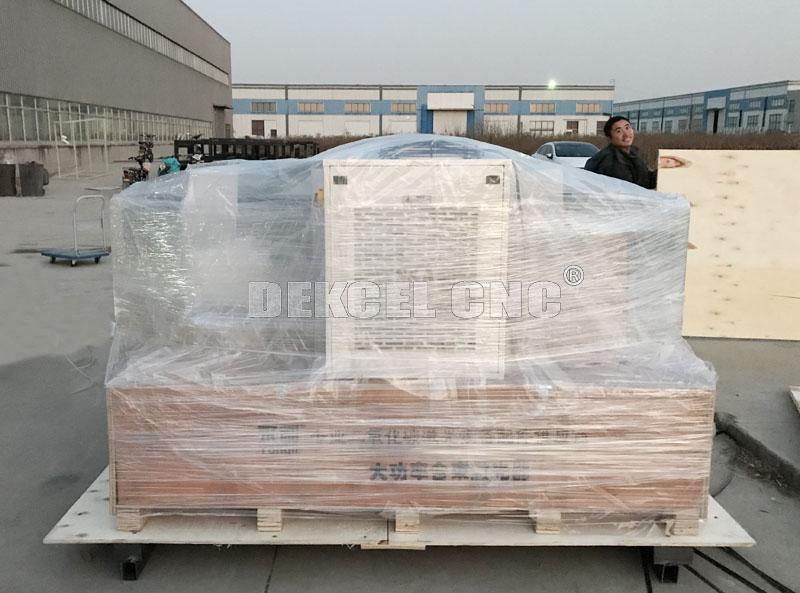

8. DEK-1390J 280w stainelss steel cutting machine package

DEK-1390J 280w stainelss steel cutting machine package.jpg

Applicable Materials cut by 280w laser machine : Wood, Acrylic, Plywood, MDF, Leather, Glass, Plastic, Acryl,

PMMA, Perspex, Plexiglas, Plexiglass, ABS Double Color Board, Organic Glass, PVC, Paper, Paperboard, Cardboard, Marble, Bamboo, Balsa, Rubber Sheet, etc.

Applicable Industries by CO2 280w cnc laser machine : Advertising, Signs, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Souvenirs, Models, Architectural Models, Furniture, etc.

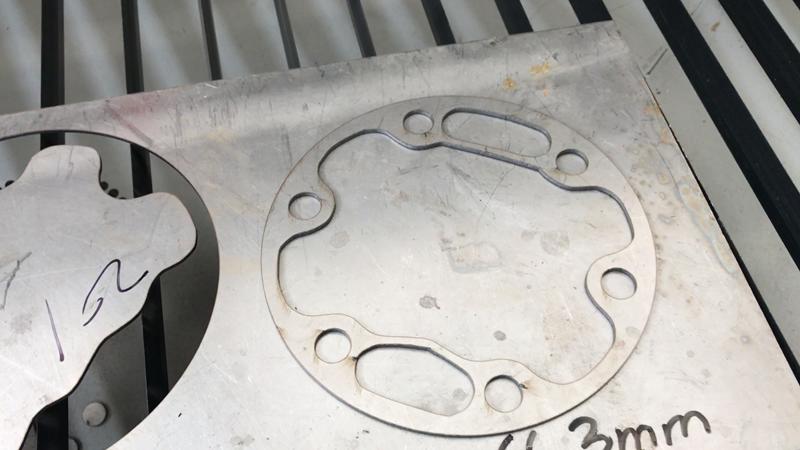

3mm stailess steel cutt by CO2 280laser machine

3mm stailess steel cutt by CO2 280laser machine.jpg

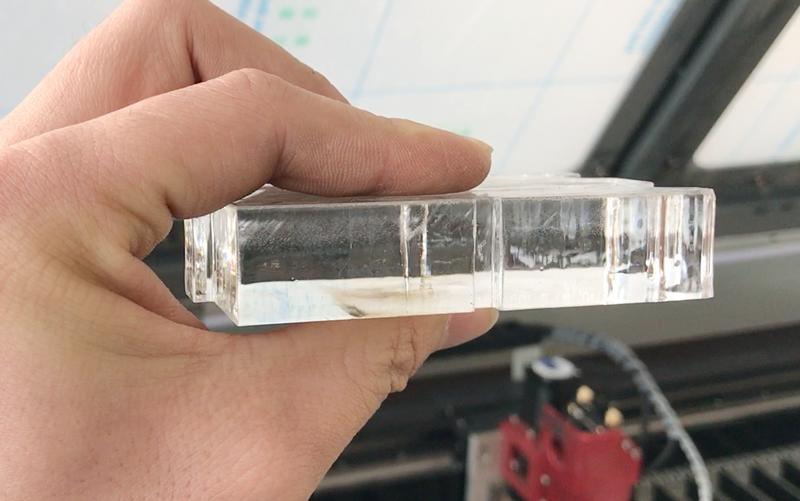

20mm acrylic cutting by 280w co2 laser machine

20mm acrylic cutting by 280w co2 laser machine.jpg

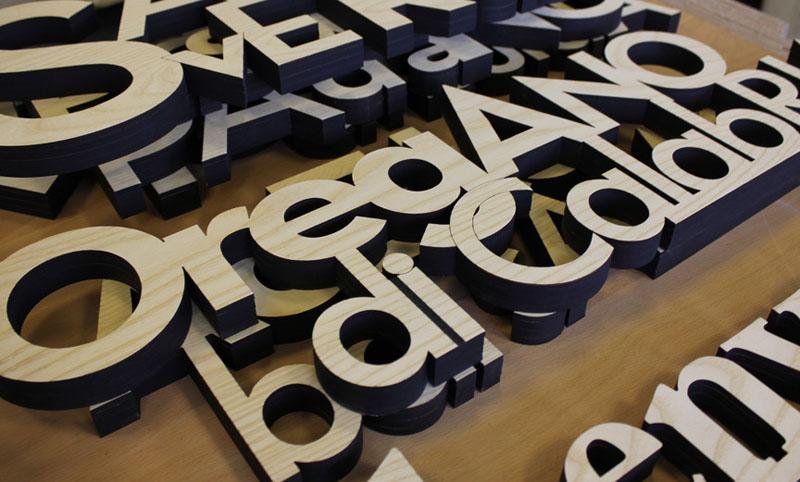

280W laser machine cutting 20mm plywood

280W laser machine cutting 20mm plywood.jpg
