Co2 laser cutter for wood and stainless steel and carbon steel

Dekcel Co2 laser cutter with 150w RECI (Z6) Laser tube suitable for cutting wood,stainless steel and carbon steel ,It is belongs the cnc laser machine for metal and nonmetal cutting .

Quantity:
  • DEK-1390J
  • DEKCEL
  • 052
1300x900mm 150W co2 laser cutter for wood and stainless steel and carbon steel features
1.Adopts new high-efficiency laser tube ,the laser beam is more stable and the life of the laser tube is more than 8000hours.
2.The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision,
3.Advanced DSP control system with professional motion control chip in it, has the function of consecutively high-speed curve cutting and shortest path selection .
4.the machine is equipped with USB offline control system,which makes the operation more convenient and faster.
5.Imported linear guide rail and step motor with reduce speed driver system to  assure cutting incision more smooth. ( Taiwan HIWIN rail or PMI square rail )

This 1300x900mm co2 laser cutter for wood and steel introuduction
With 150w RECI (Z6) Laser tube co2 laser cutter for wood and stainless steel and carbon steel is belongs the cnc laser machine for metal and nonmetal cutting .
Its meaning is: the co2 laser cutter can cut metal,like stainless steel and carbon steel,aslo can cut on the nonemtal: like acylic/paper/wood board /fabic ..

It aslo can engraving . so don't think it not engraving . most of my customer, ask me : Can it engraving ? ..... My answer is: Yes!!!.

I think you are interested in how many thickness co2 laser cutter can cut on each materials. Now let me answer you:
1. If 150W laser tube, can cut max 1.5mm stainless steel,2mm carbon steel. If you want to cut more , like 3mm metal , so please choose 260w yongli laser tube .
2. Acrylic it can cut: 25mm.(150w ),
3. Wood board it can cut max 20mm. You know our 90W RECI brand (Z2) Laser tube can cut : 5-8mm hard wood, like MDF..., so more big power, it can cut more thickness materilas.

Technical parameters of co2 laser cutter for wood and steel

Product name

co2 laser cutter for metal and nonmetal

Working area

1300mmx900mm

Laser Types

Sealed CO2 Laser Tube

Laser power

150W Reci laser tube (optional: 260W)

Engraving speed

100-600mm/s

Cutting speed

0-300mm/s

Location precision

≤0.01mm

Resetting positioning accuracy

0.01mm

Power supply

AC110- 220V/50-60HZ

Controlling software

RDCAM

Operating temperature

0 - 45°

Operating humidity

5-95%

Minimum shaping character

English 1 x 1mm

360°slope engrave

Yes

Driving system

Leadshine Stepper motor (optional: Panosanic servo motor)

Cooling mode

Water-cooling and protection system

Auxiliary Devices

Exhauster and the Exhaust Pipe

Graphic format supported

BMP, CIF, JPEG, TGA, TIFF, PLT,

AI, DXF, DWG,etc

Optional

Automatic feeding system,Red light

pointer

Option

Red dot pointer position, working

table,rotary,auto-focusing


The detail parts of co2 laser cutter for wood and steel

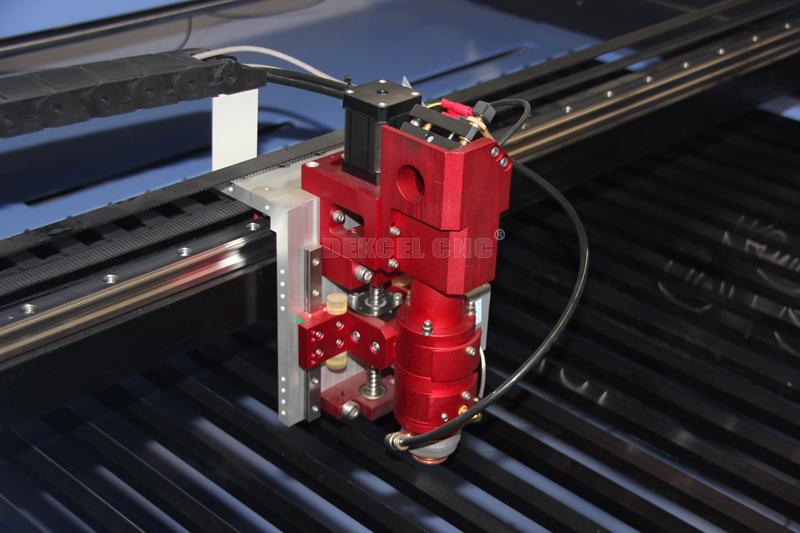

co2 laser cutter following head

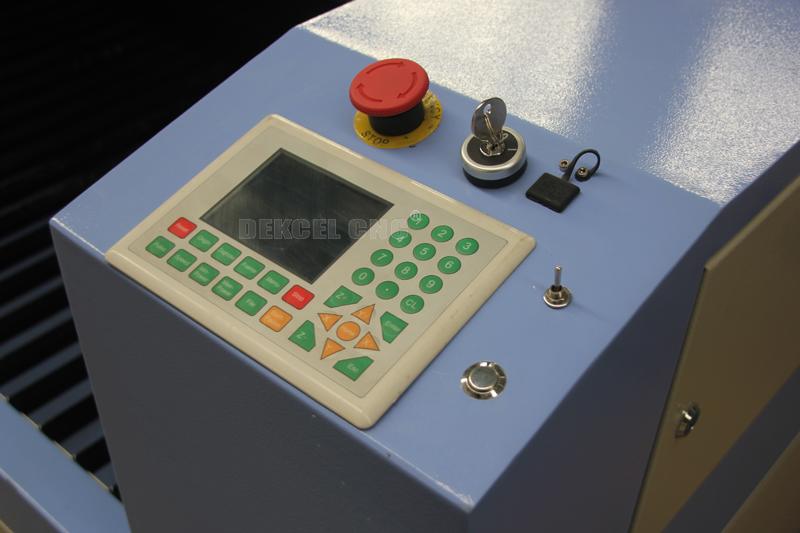

co2 laser cutter for wood control system

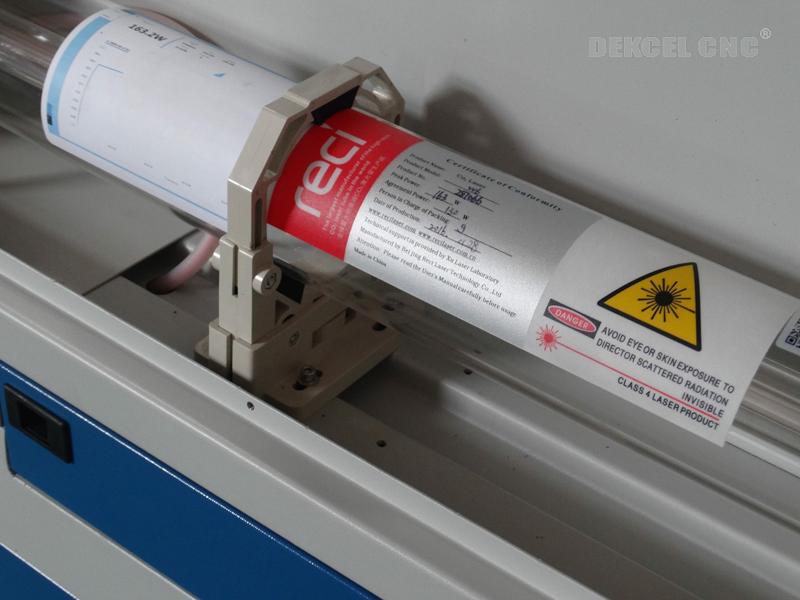

co2 laser cutter for stainless steel laser tube

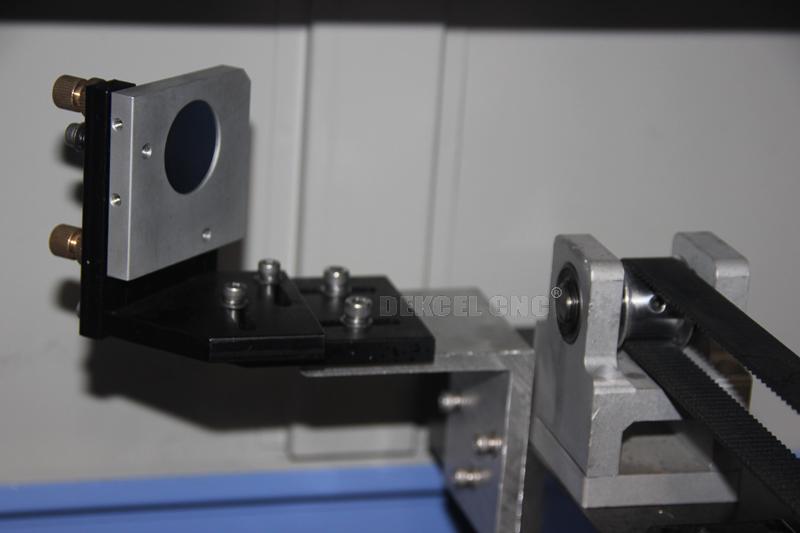

co2 laser cutter for carbon steel mirror and lens

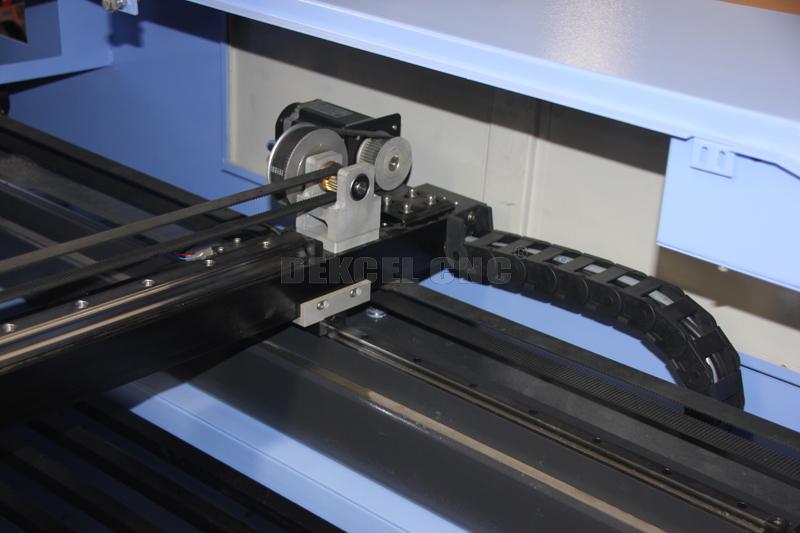

co2 laser cutter for wood and steel belt

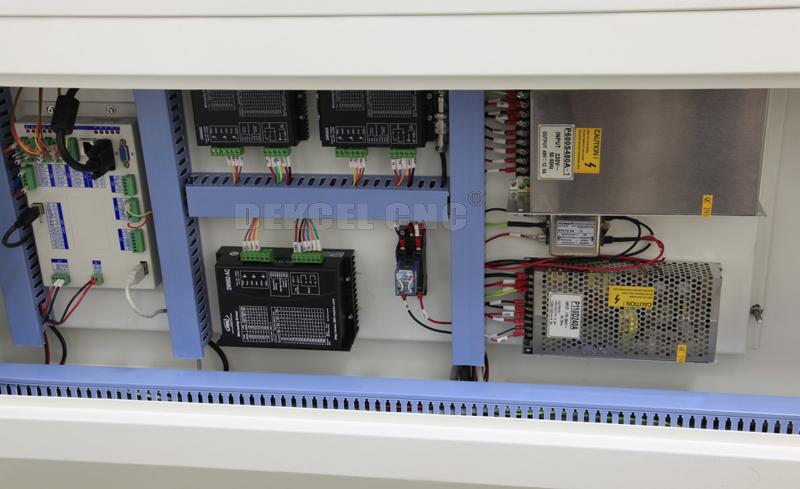

co2 laser cutter for wood and steel control box

Applicable materials of co2 laser cutter
Non-metal materials such as double colour board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Metal material such as stainless steel,carbon steel.

Applicable industry of co2 laser cutter
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc

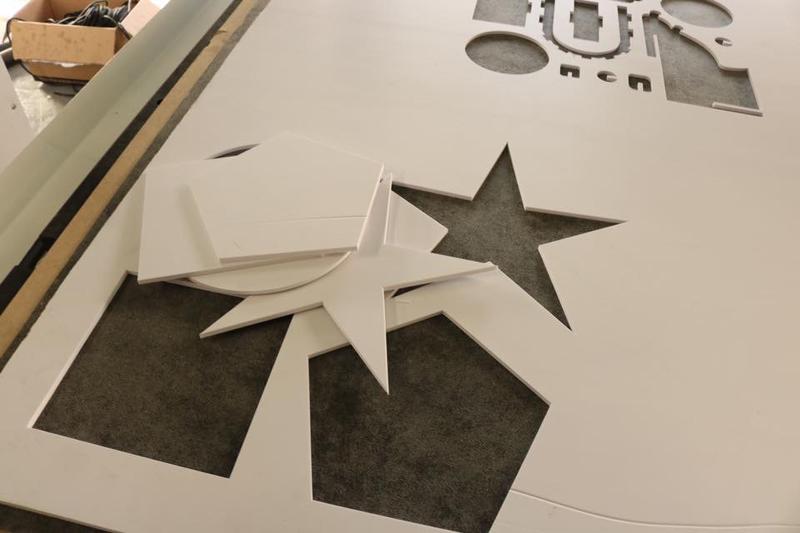

co2 laser cutter PVC sheet

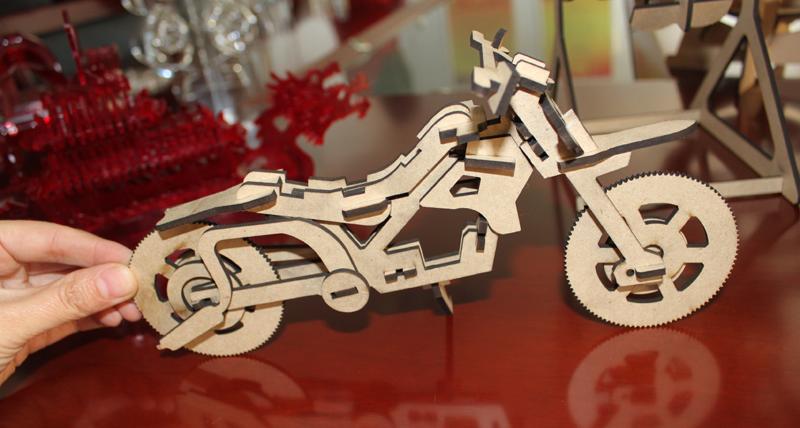

co2 laser cutter for wood

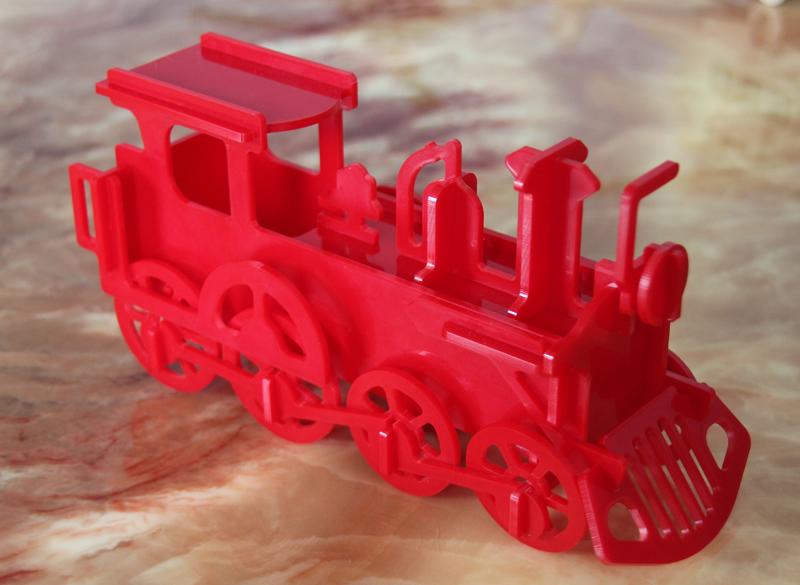

co2 laser cutter acrylic

co2 laser cutter for stainless steel

co2 laser cutter for advertising industry
