Intelligent Digital Fiberglass Fabric Oscillation Knife Cutting CNC Machine

Name: Intelligent Digital Fiberglass Fabric Oscillation Knife Cutting CNC Machine
Brand: DEKCEL CNC
Rating: 5.0 (63 reviews)

DEKCELCNC digital oscillation fiberglass cutting machine is a perfect combination of technique and technology. With this machine, you can conduct rapid nesting and efficient cutting operation, while saving time, manpower and material.

Availability:

Quantity:


Inquire

Model: DEK-1625
Brand: DEKCEL CNC
Code: 139

Product Description

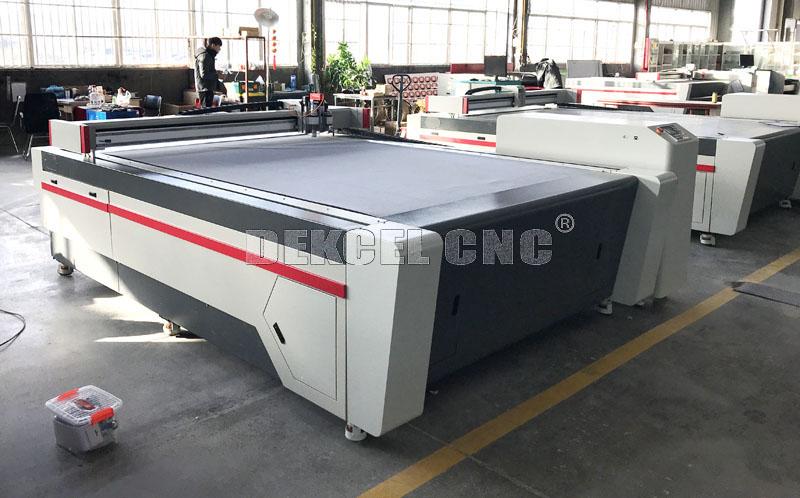

Intelligent Digital Fiberglass Fabric Oscillation Knife Cutting Machine
Dekcel fiberglass fabric cutting machine.jpg

How to choose the right fiberglass oscillation knife blade cutting machine ?

There are many fiberglass cutting machines in the market at present,many users don't know how to choose it when they buy it,here are some tips for buying a few fiberglass oscillation cutting machine for your reference:

* Cutting precision

The precision of fiberglass oscillation knife cutting machine that every mechanical manufacturer can provide now is about ±0.2mm,there should be a complete procedures for test fiberglass cutting accuracy before delivery.Through testing, we can fully grasp the flatness of the cutting platform and the synchronization control level of the control system

* Cutting speed

After meet the demand of fiberglass cutting precision then we can talk about with the cutting speed,DEKCEL cnc fiberglass knife cutting machine adopt Japan Yaskawa servo motor and driver, provide optimum cutting performance and fast, accurate results.

* Automatic layout optimization

Our fiberglass fabric cutting machine operation simple, easy to understand and not complicated,the graphics library should be more flexible and AutoCAD graphics also can be used in typography.

* Easy maintenance

The machine is equipped with I/0 signals and sensors,if the some device of the fiberglass cutting cnc machine meet problem,you see the I/0 signal state on the LED screen,it is more convenience and easy to find fault and replace the parts.

* Saving consumption

Our fiberglass oscillation cutting machine with fast cutting speed anf high cutting precision,save time,save labor and save cost.machine cutting with knife blade,no burn no smoke is good to the environment protection .

* More safe for operation

Equipped with infrared security devices , can effectively protect the safety of the operator

Technical Parameter of Intelligent Oscillation Cutting Machine

Parameter/Model	DEK-1325	DEK-1625	DEK-2030
Multi-functional Cutting Head	Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.
Tools configuration	Various cutting tools, creasing wheels, pen, cross positioning laser
Safety	High sensitivity infrared induction (optional)
Moving Speed	Max. 1200mm/s
Cutting Speed	Max. 800mm/s(please set the speed according to the material)
Material Applicable	Corrugated paper,non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
Cutting Depth	Max 50mm (depends on the material)
Material Fixing Method	Strong power vacuum absorption and intelligence Partition
Resetting Positioning Accuracy	Max 0.01mm
Mechanical Precision	Max 0.02mm
Drive System	Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail
Control System	DEKCEL digital oscillation control systerm
Display	English LCD touch screen
Data Transmission	Ethernet
Command	HP-GL compatible format
Buffering Capacity	Standard--4GB
Rated Power	11KW	12KW	14KW
Max Working Size	1300*2500	2500*1600	3050*2050
Rated voltage	380V
Body dimension	224121521235mm	339127231235mm	389131731235mm
Option : - machine size can be customized according your request - auto feeding system - multi function cutting head - auto nesting cutting software - CCD camera visual cutting system - Projector cutting system

Details of Fiberglass Oscillation Cutting Machine

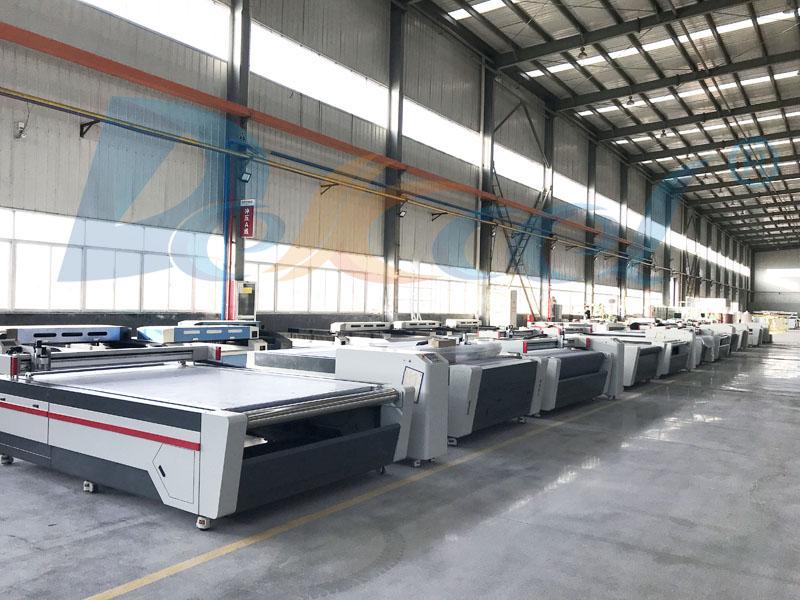

DEKCEL CNC oscillation fiberglass cutting machine manufacture factory

DEKCEL CNC oscillation fiberglass cutting machine manufacture factory.jpg

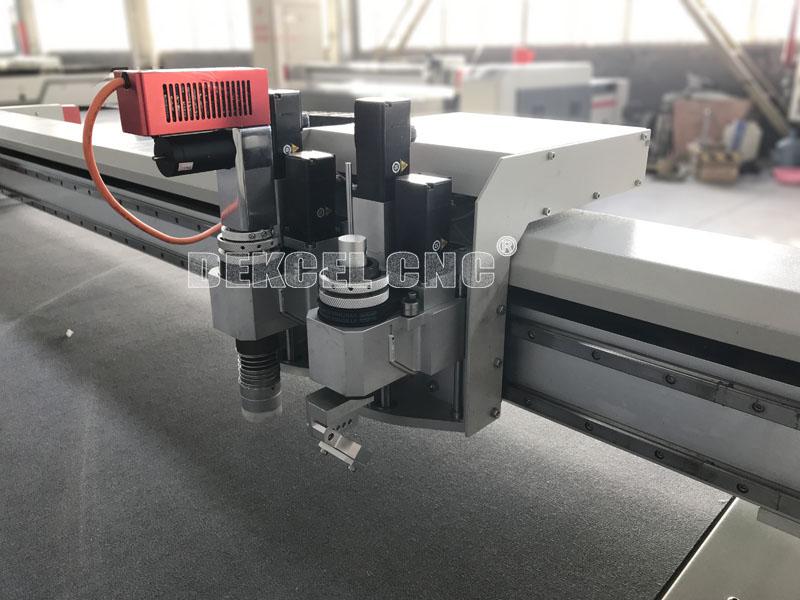

multi function replaceable oscillation knife cutting head

multi function replaceable oscillation knife cutting head.jpg

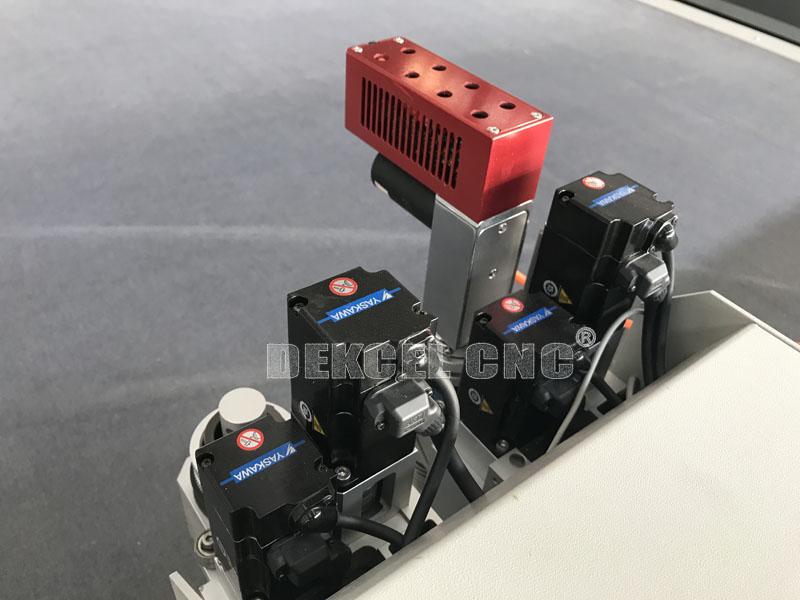

Japan YASKAWA servo motor for oscillation knife cutting head

Japan YASKAWA servo motor for oscillation knife cutting machine.jpg

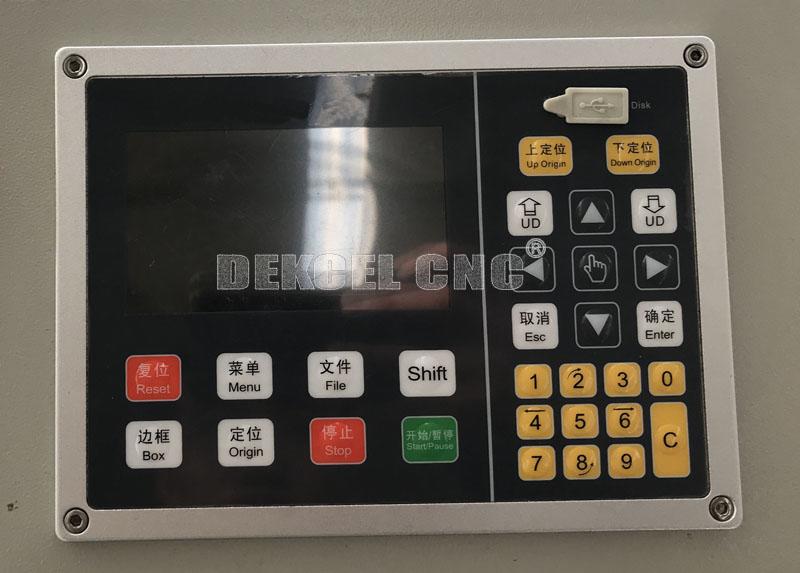

intelligent digital oscillation knife cutting machine control panel

intelligent digital oscillation knife cutting machine control panel.jpg

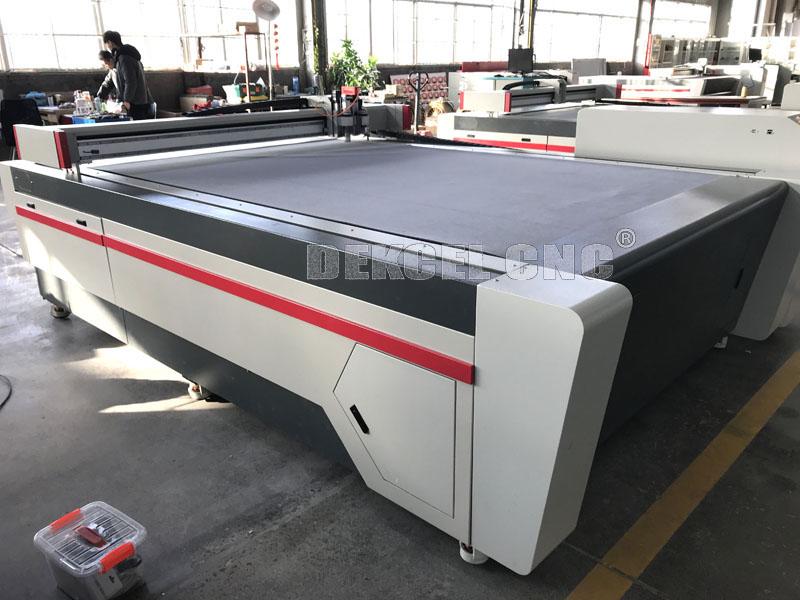

fiberglass oscillation knife blade cutting machine body frame

fiberglass oscillation knife blade cutting machine body frame.jpg

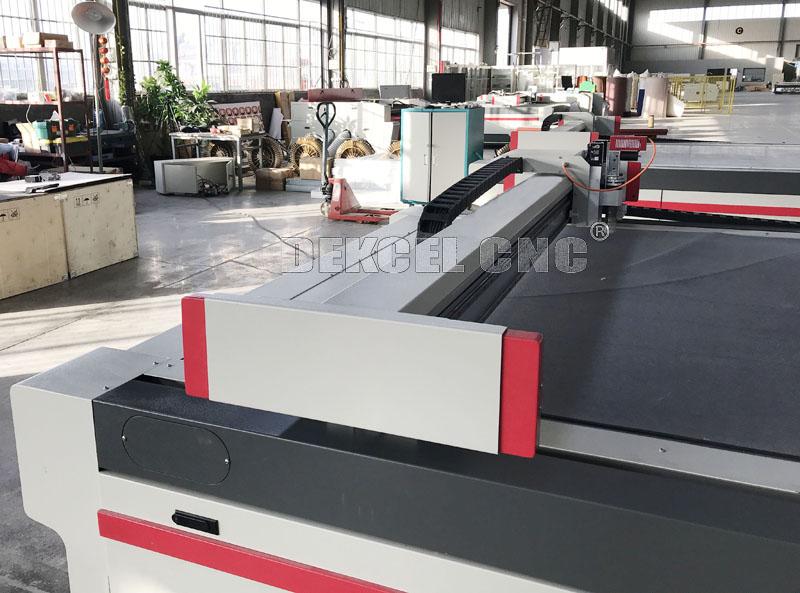

Humanized anti-collision protection device

Humanized anti-collision protection device.jpg

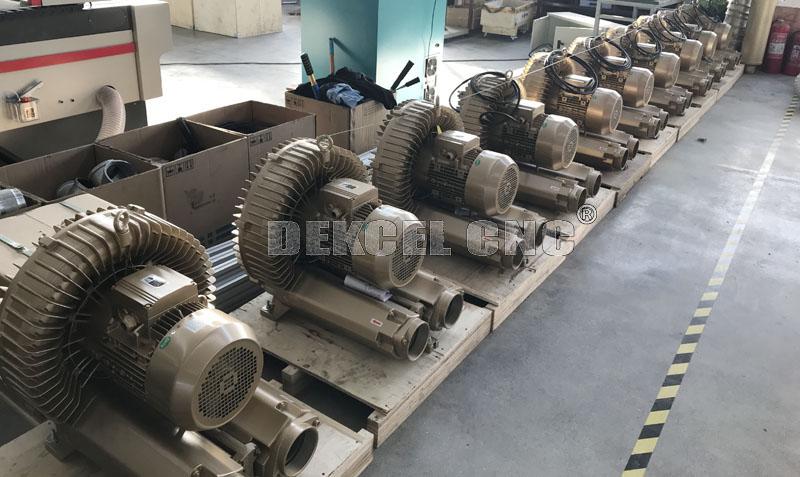

vacuum pump for oscillation knife cutting machine table

vacuum pump for oscillation knife cutting machine table.jpg

Application of Digital Fiberglass Oscillation Knife Cutting Machine

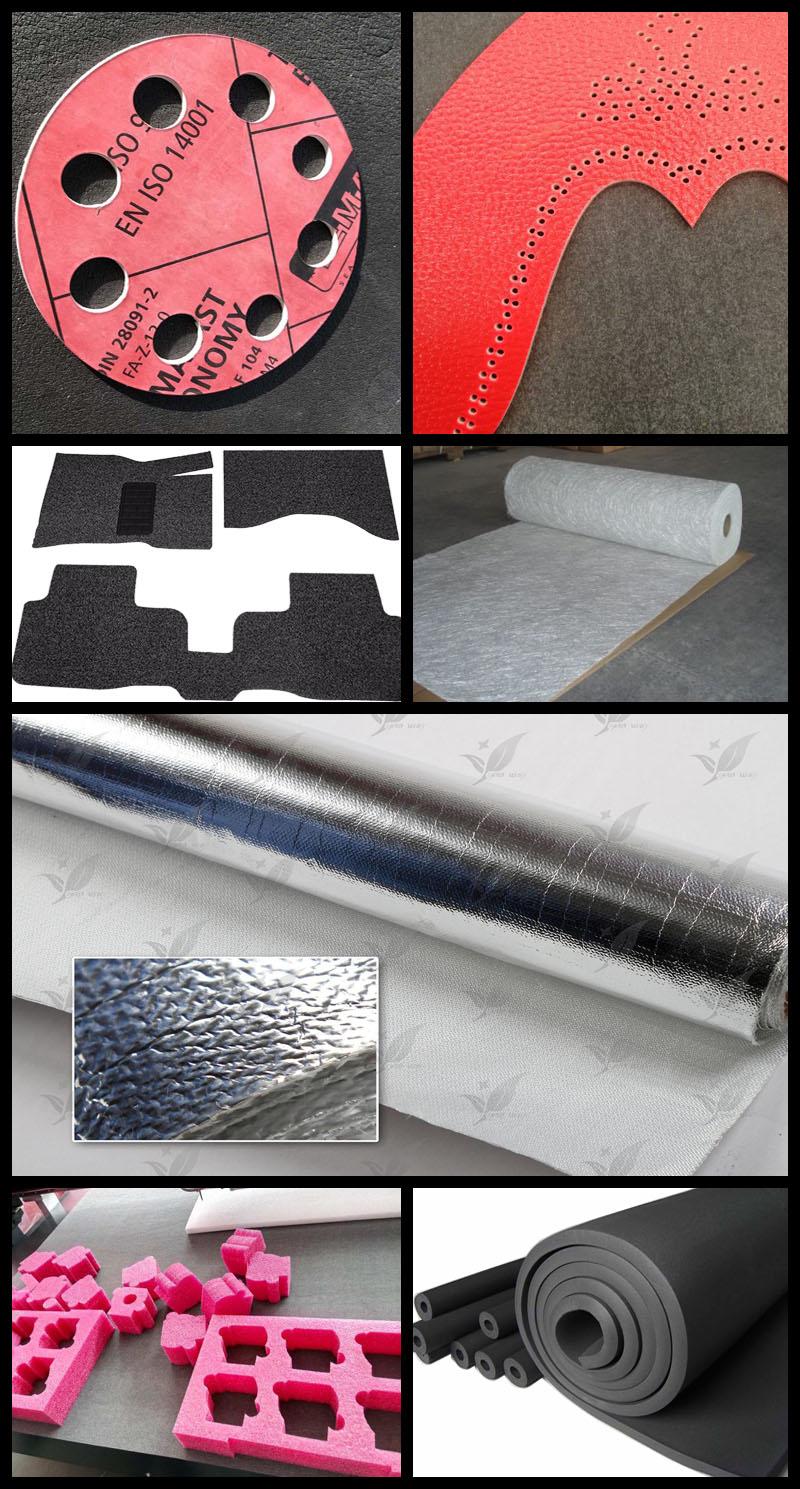

Dekcel cnc digital fiberglass cutting machine work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose. Below are the samples that cutted by this machine :

· Phototype box, small mass production box (carton box, cardboard box, color box)

· Cut contour in any shape for POS, POP

· Cut rubber gasket, paper gasket

· Cut floor mats

· Cut vinyl sticker

What material can we cut?

· Corrugated board, Plastic, corrugated board

· Grey cardboard, ivory cardboard,paper

· KT board, PVC foam board, EVA board, Foam board, Magnetic material

· Vinyl Sticker, Reflecting material

· Rubber, gasket,

· fabric,cloth,textile,garment,fiberglass,leather

digital intelligent oscillation cutting machine samples.jpg
