CCD Visual Camera Contour Oscillation Knife Cutting Machine
CCD Contour Cutting Video Show
Dekcel CCD Visual Contour Cutting Machine with large format visual recognition contour cutting,this function is for patterned fabric,cloth,foam,leather precisely cut,such as for digital printing board, various graphics printed on garment fabric,garment,cloth ect .

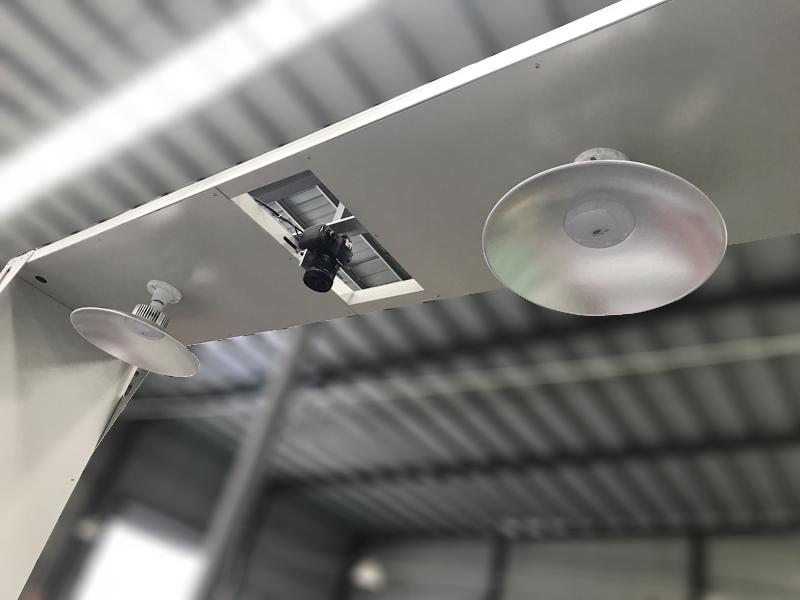

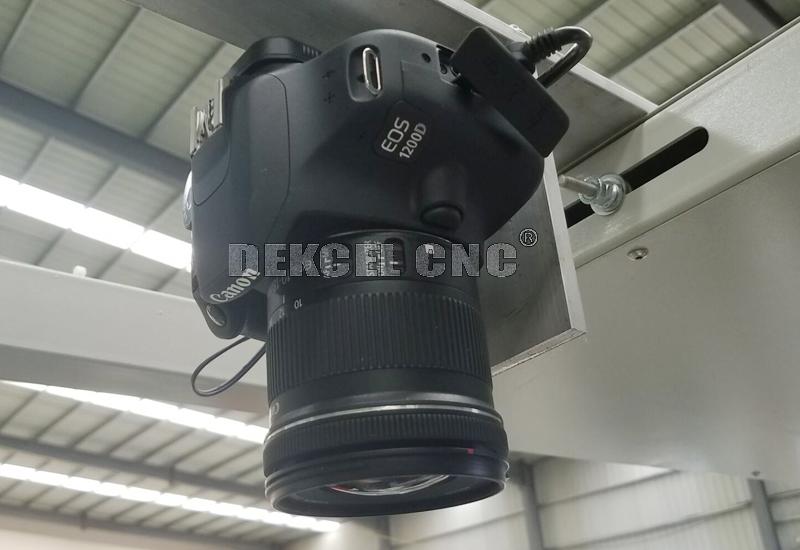

First,the visual camera take a picture for the whole cutting material,loaded to the oscillation cutter control software, then in the subsequent of positioning and scanning, material information extracted by the high-speed industrial camera ,the software recognize outer contour of graphics, then automatically create the cutting path and finish cutting.
Use DEKCEL CCD visual cutting machine,without the need for human intervention, it can achieve continuous recognition and cutting for the entire roll printed fabrics by large format visual recognition system, the software automatically recognize the contour of pattern on the garment, and then automatically cut the graphics by the contour, thus ensuring the accurate cutting of the fabric.
Product Feature of Foam Visual Cutting Machine

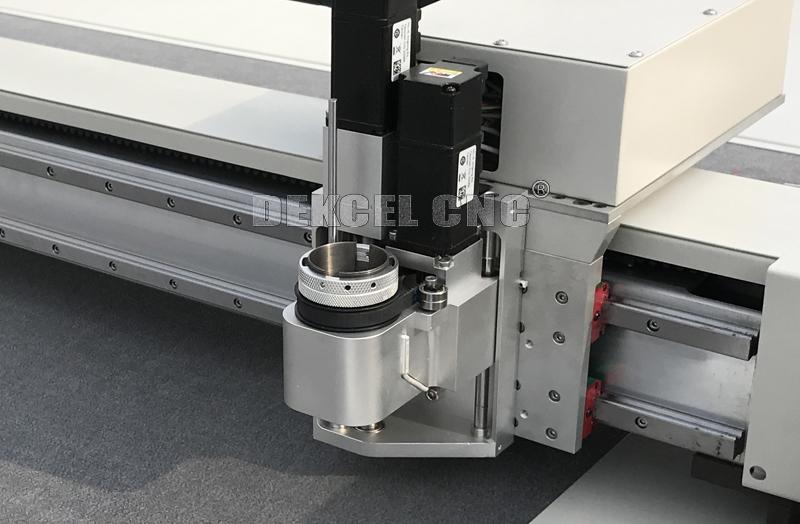

1. By imitation of the human eye vision recognition positioning system, accurately contour cutting . 2. Replaceable multifunction cutting head,you can easily change the cutting head according to the material. - Oscillation knife cutting tool
- Round Blade cutting Tool
- V-cut tool
3. High precision oscillation knife cutting and fast cutting speed.
4. Advanced DSP control technology with cutting curve continuously.

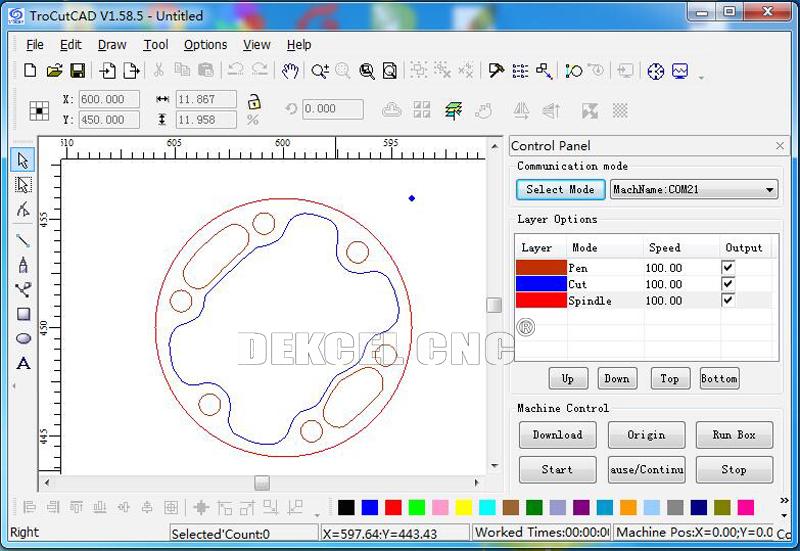

5. Software support AI, DXF, PLT vector file and independent layer editing .
6.Vacuum absorption working table,make sure the material fix well.
CCD Visual Oscillation Contour Cutting Machine Paramenter
Model | DEK-1540 |
Working area | 1500*4000mm |
Machine Size | 4100*2300*2200mm |
Rated power | 11KW |
Working table |
flat plate table(Optional:Auto feeding type table)
|
Multifunctional head | oscillation cutting, vibration half cutting,round blade cutting,punch hole,pen and cursor location function, |
Tool configuration | Multiple cutting knives |
Safety device | Using infrared sensors, responsive, safe and reliable |
Translational velocity | 800-1200mm/s |
Cutting speed | 200-800mm/s(according to different cutting materials) |
Cutting thickness | ≤22mm(according to different cutting materials) |
Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather,PVC, soft glass, Silicon, rubber ,foam,paper
gray board,corrugated board ect |
Repeated accuracy | ≤0.1mm |
Capacity | 2GB |
Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) |
Instruction system | HP-GL compatible format |
Voltage | AC380V±10%,50-60Hz |
Other configuration | Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table,
Auto feeding system, Taiwan Hiwin rail, 7.5kw vacuum pump |
Visual Oscillation Cutting Applicable Industries
- Sportswear, sports garment, swimwear, printed sublimation textile & apparel
- Strips & plaids clothing, suits, shirts, dresses
- Fabric with Repetitive Visual Motifs
- Arabesquitic luxury bags, suitcase, sofa upholstery
- Banners, flags, vinyl, polyester
- EVA,foam,leather,corrugated board,package,blanket,garment ect.
CCD Camera Foam Cutting Samples CCD Visual Camera Contour Oscillation Knife Cutting Machine
CCD Contour Cutting Video Show
Dekcel CCD Visual Contour Cutting Machine with large format visual recognition contour cutting,this function is for patterned fabric,cloth,foam,leather precisely cut,such as for digital printing board, various graphics printed on garment fabric,garment,cloth ect .
First,the visual camera take a picture for the whole cutting material,loaded to the oscillation cutter control software, then in the subsequent of positioning and scanning, material information extracted by the high-speed industrial camera ,the software recognize outer contour of graphics, then automatically create the cutting path and finish cutting.
Use DEKCEL CCD visual cutting machine,without the need for human intervention, it can achieve continuous recognition and cutting for the entire roll printed fabrics by large format visual recognition system, the software automatically recognize the contour of pattern on the garment, and then automatically cut the graphics by the contour, thus ensuring the accurate cutting of the fabric.
Product Feature of Foam Visual Cutting Machine
1. By imitation of the human eye vision recognition positioning system, accurately contour cutting . 2. Replaceable multifunction cutting head,you can easily change the cutting head according to the material. - Oscillation knife cutting tool
- Round Blade cutting Tool
- V-cut tool
3. High precision oscillation knife cutting and fast cutting speed.
4. Advanced DSP control technology with cutting curve continuously.
5. Software support AI, DXF, PLT vector file and independent layer editing .
6.Vacuum absorption working table,make sure the material fix well.
CCD Visual Oscillation Contour Cutting Machine Paramenter
Model | DEK-1540 |
Working area | 1500*4000mm |
Machine Size | 4100*2300*2200mm |
Rated power | 11KW |
Working table |
flat plate table(Optional:Auto feeding type table)
|
Multifunctional head | oscillation cutting, vibration half cutting,round blade cutting,punch hole,pen and cursor location function, |
Tool configuration | Multiple cutting knives |
Safety device | Using infrared sensors, responsive, safe and reliable |
Translational velocity | 800-1200mm/s |
Cutting speed | 200-800mm/s(according to different cutting materials) |
Cutting thickness | ≤22mm(according to different cutting materials) |
Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather,PVC, soft glass, Silicon, rubber ,foam,paper
gray board,corrugated board ect |
Repeated accuracy | ≤0.1mm |
Capacity | 2GB |
Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) |
Instruction system | HP-GL compatible format |
Voltage | AC380V±10%,50-60Hz |
Other configuration | Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table,
Auto feeding system, Taiwan Hiwin rail, 7.5kw vacuum pump |
Visual Oscillation Cutting Applicable Industries
- Sportswear, sports garment, swimwear, printed sublimation textile & apparel
- Strips & plaids clothing, suits, shirts, dresses
- Fabric with Repetitive Visual Motifs
- Arabesquitic luxury bags, suitcase, sofa upholstery
- Banners, flags, vinyl, polyester
- EVA,foam,leather,corrugated board,package,blanket,garment ect.
CCD Camera Foam Cutting Samples
