DEK-6060S
DEKCEL
014
Features of metal engraving machine
1. Adopt constant power 2.2kw water cooling spindle------- high speed, low noise and long life
2. Taiwan HIWIN square linear guide------- Top brand in china.
3. Popular NC studio control and DSP control for optiona --------It is very easy for every buyer and beginner.
4. Cast iron structure--------never deformation
5. Mist water cooling sprayer and flume will cool the cutter--------which is necessary when you cut or engrave on Aluminum,copper or other soft metal.
6,Table moving,very high working precision
Metal engraving machine technical parameter
| Items | Basic configuration |
| Certificate | CE |
| XY-axis working area | 600*600mm |
| Material | Whole casting iron |
| Moving way | Working table moving |
| Working table | Aircraft aluminum with T slot |
| Guide way | XYZ-axis linear square guide rail |
| Driving mode | XYZ-axis ball screw |
| Z-axis working area | 120mm |
| Max traveling speed | 8000mm/min |
| Engraving speed | 6000mm/min |
| Mechanical precision | 0.05mm |
| Driving method | simple servo motor |
| Water cooling system | Stainless steel water slot |
| Spindle | 2.2KW water cooling spindle |
| Spindle speed | 0-24000rpm |
| Collet type | ER11 |
| Tools diameter | 3.175mm, 4mm, 6mm |
| Control system | Nc Studio control system |
| Design software when delivery | Artcam |
| Compatible design software | Artcam, Type3, Ucancam, JDPaint, MasterCAM,etc |
| Command | G code ,U00, mmg nc,etc |
| Running ambient temperature | 0-45 degree |
| Relative humidity | 30%-75% |
| Voltage | AC 220V,50/60Hz, single phase or AC 380V,50/60HZ |
| Auto tool calibration | For Z-axis |

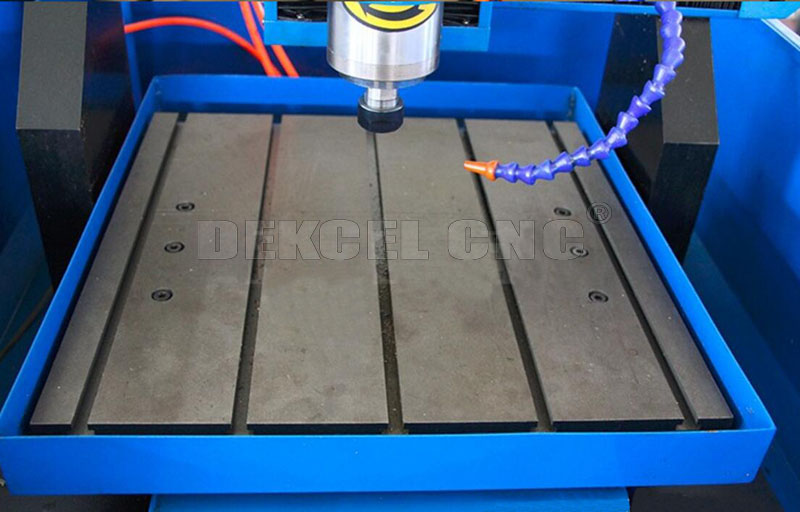

Table moving

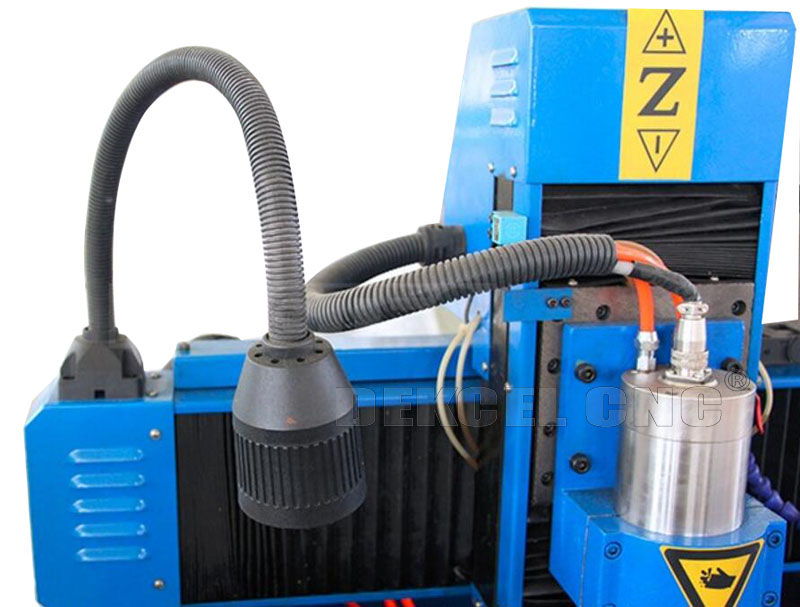

Working Led light

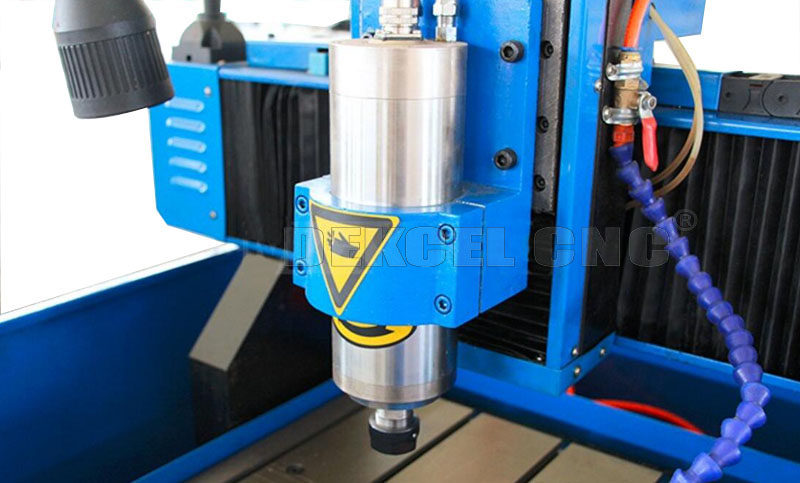

Professional metal engraving spindle

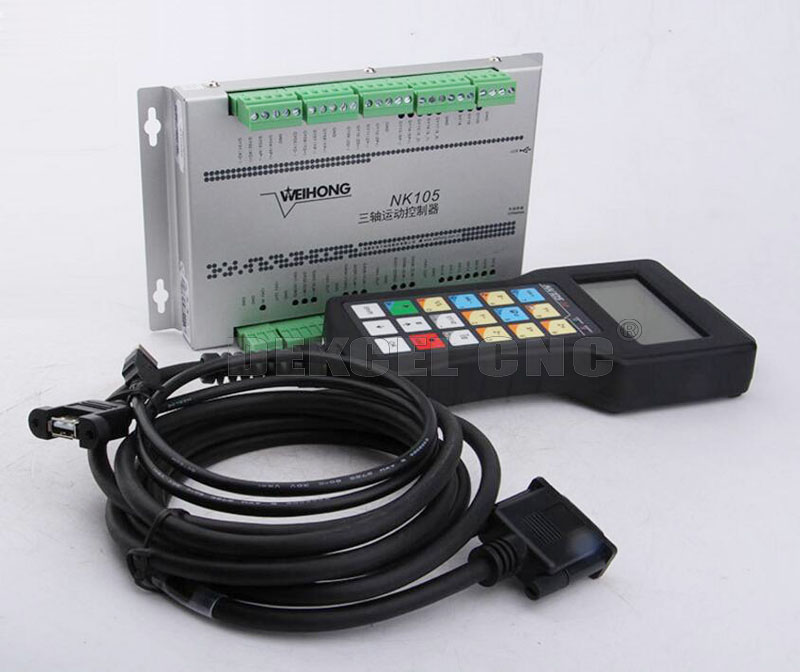

NK-105 DSP control system
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2.Any problem will be replied to you within 24 hours!
3.By video, solution manual in English, Email, Skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
