Feature of copper metal engraving machine for sale
1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
4.Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
5.Available for continuous work for a long time.
Technical Parameter of copper metal engraving machine
Traveling size | X Working Area | 400mm |
Y Working Area | 400mm |
Z Working Area | 200mm |
Accuracy | Working Accuracy | ±0.01mm |
Repositioning Resolution | ±0.01 mm |
Table | Surface | PVC |
Transmission | X/Y Axis | Taiwan HIWIN square guide |
Z Axis | Ball screw |
Structure | Lathe Structure | Integral cast iron |
Speed | Rapid Travel Rate | 15000mm/min |
Working Speed | 8000mm/min |
Spindle | Spindle Power | 2.2KW/3kw |
Spindle Speed | 0-24000rpm |
Inverter | 3.7KW |
Working | Drive motor | Stepper motor /JAPAN YASKAWA Servo motor |
Command Language | G code(optional:HPGL) |
Others | Working Voltage | AC220/50HZ |
Operating System | Mach3 |
| Compatible Software | Type3(optional:Artcam,Ucan) |
Weight | Gross weight | 1000kg |
Net weight | 800kg |
package | 1. Protective film package and fumigation-free wooden case. 2. OEM and package can according to customer requirements. |

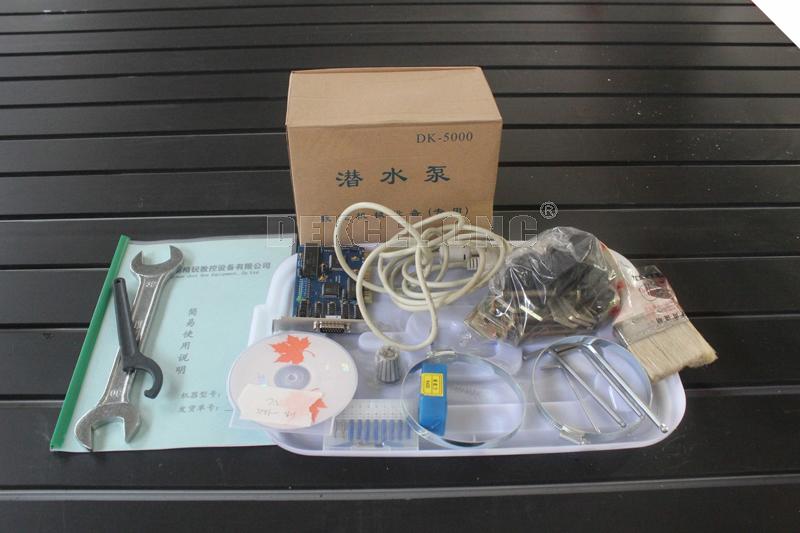

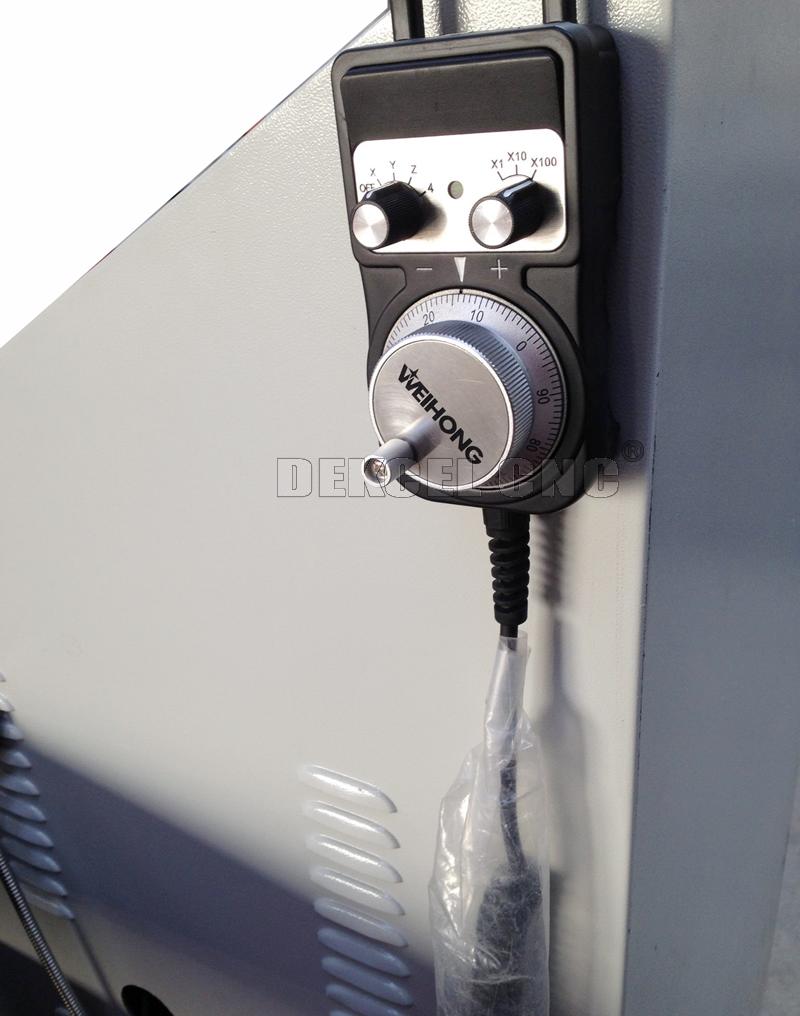

Copper metal engraving machine parts




Feature of copper metal engraving machine for sale
1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
4.Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
5.Available for continuous work for a long time.
Technical Parameter of copper metal engraving machine
Traveling size | X Working Area | 400mm |
Y Working Area | 400mm |
Z Working Area | 200mm |
Accuracy | Working Accuracy | ±0.01mm |
Repositioning Resolution | ±0.01 mm |
Table | Surface | PVC |
Transmission | X/Y Axis | Taiwan HIWIN square guide |
Z Axis | Ball screw |
Structure | Lathe Structure | Integral cast iron |
Speed | Rapid Travel Rate | 15000mm/min |
Working Speed | 8000mm/min |
Spindle | Spindle Power | 2.2KW/3kw |
Spindle Speed | 0-24000rpm |
Inverter | 3.7KW |
Working | Drive motor | Stepper motor /JAPAN YASKAWA Servo motor |
Command Language | G code(optional:HPGL) |
Others | Working Voltage | AC220/50HZ |
Operating System | Mach3 |
| Compatible Software | Type3(optional:Artcam,Ucan) |
Weight | Gross weight | 1000kg |
Net weight | 800kg |
package | 1. Protective film package and fumigation-free wooden case. 2. OEM and package can according to customer requirements. |
Copper metal engraving machine parts




Applications
1.Copper metal engraving machine is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. Metal engtaving machine can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size.
Applications
1.Copper metal engraving machine is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. Metal engtaving machine can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size.
