Dekcel CNC ® 0609 metal 3D mould engraving and milling cnc router machine
You are here: Home » Cnc router » Metal engraving machine » Dekcel CNC ® 0609 metal 3D mould engraving and milling cnc router machine
Share to:

Dekcel CNC ® 0609 metal 3D mould engraving and milling cnc router machine

Dekcel professional cnc metal mould milling machine use cast iron body and equipped with 3.2kw constant water cooled spindle, leadshine step motor,stainless steel T-slot table and high precisoin TBI ball screw transmission with Hiwin rail,suitable for engraving,milling and drilling all sorts of materials such as steel,copper,aluminum and plastics for mould industry.

Quantity:
  • DEK-0609M
  • DEKCEL CNC
  • 104

0609 metal mould engraving and milling cnc router machine
0609 metal mould milling cnc router machine

Features 0609 metal mould milling cnc router machine

1. Machine Body

Strong welded tubular steel frame and gantry moving mode, suitably strengthened the rigidity that keeps stable and longtime work. Square welded steel tube frame, with the advantage of high density and strength, which will enable the machine work in lifespan and keep the parallelism between router and gantry.

2. Transimission

X,Y axis of mold milling cnc machine is equipped with ball screw transmission to keep stable processing . Provide Positive Drive without slip, with high speed, high torque & high power. Taiwan Hiwin square linear guide way with four-point contact design, enable to bear various direction loading,which can ensure better load handling, together with steady movement to provide better mechanical precision.

3. 3.2kw constant  Spindle

China changsheng constant 3.2kw water-cooling spindle, Long service life, stable operation. water cooling spindle made in china can be optional.

4. Inverter

Fuling inverter, Taiwan Delta inverter optional , adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic torque boost& slip compensation.low noise, highly ensure the spindle working ability.

5. Driver

Our standard is Leadshine,Taiwan Delta/Japanese Panasonic/Yaskawa AC servo driving system for you to choose.

6.Control System

DSP /NcStudio/Mach3 control system
7. High compatibility
applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.

Technical specification of metal mold milling cnc router:

Model DEK-0609M
Working Area 600×900×200mm
Spindle China changsheng constant 3.2kw water-cooling spindle
Working Mode Stepper motor  (servo motor for your optional )
Control System DSP off-line control panel with USB interface(128MB) or PCIMC control system
Drive Mechanism Gear-wheel on x,y axis
Table Surface Vacuum table o& T-slot extrusions
Frame wholly steel structure
Motion Positioning Accuracy ± 0.03/300mm
Repositioning Accuracy ± 0.05mm
Max Motion Speed 80,000mm/min
Max Engraving Speed 50,000mm/min
Rotating Speed of Spindle 2,4000rpm
Z-axis setting Auto Z origin tool high sensor
Dictate Formate G code, *.u00, *.mmg, *.plt
Operating Voltage

3phase 380v

Software Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size 3350×1950×1990mm
Lubrication System Oil lubrication system
Net weight/ Gross Weight 1227kg/ 1240kg
Noise Level Racing LAeep dB(A)72±1
Engraving LAeep dB(A)80±2
Engraving Peak LAeep dB(C)95
Optional Parts Dust Collecting System
Vacuum Table with Air Pump (For XJ-1224,1325)
Mist Sprayer and flume
Rotary device with Dia80mm/100mm/200mm
DSP System w/Portable Control Pad (128MB)

Detail show of 0609 mold engraving cnc router machine

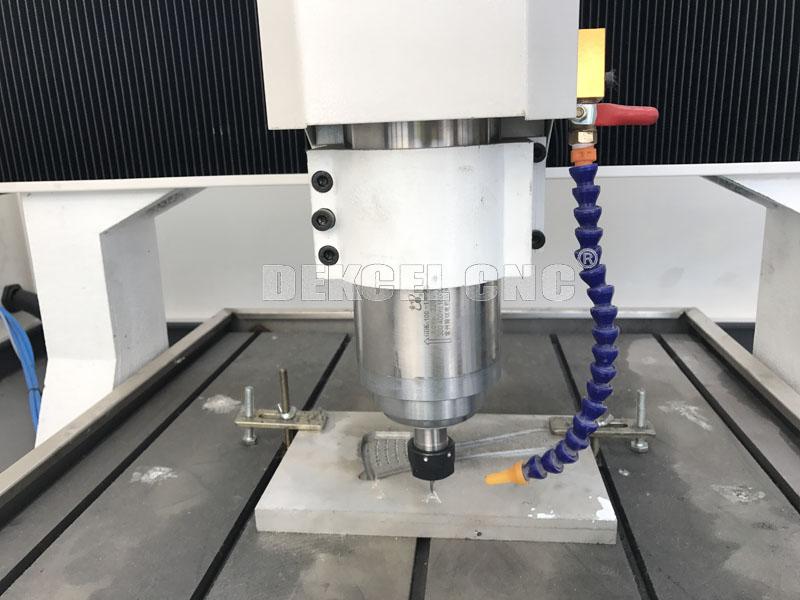

1.3.2kw constant water cooling spindle good effect for milling and engraving
3.2kw constant water cooling spindle for milling router
2.stainless steel water tank for metal mold engraving router
metal mould engraving router stainless steel working table

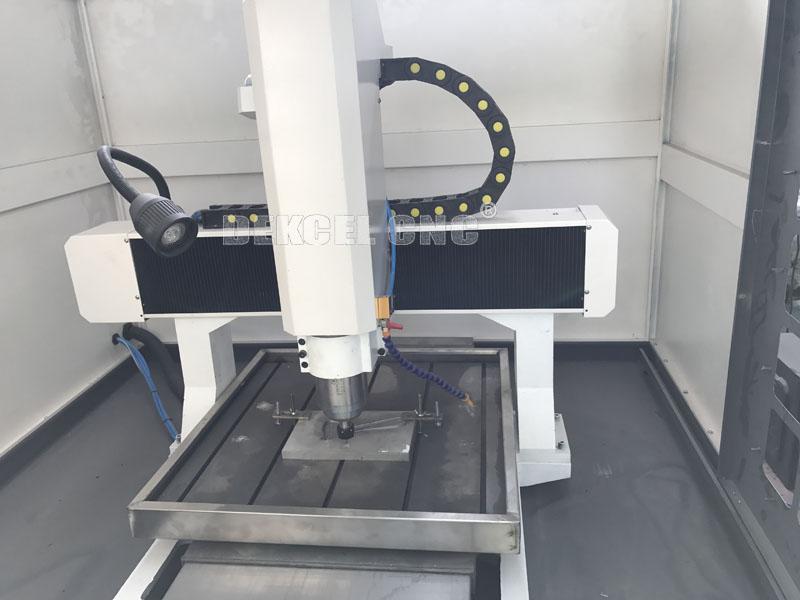

3. metal mold milling router cast iron body

metal mold milling router cast iron body.jpg

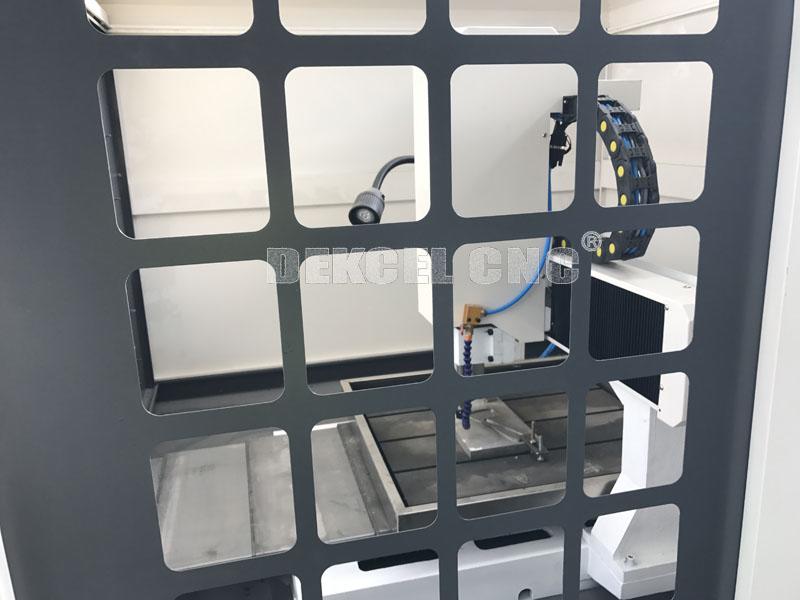

4.0609 mold engraving cnc router machine frame

0609 metal mold engraving cnc router machine frame.jpg



Application of  3D cnc mold engraving router machine

1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.

2.Our machine can widely apply to automotive,injection mould,ironware mould and engrave mould industries.

3.Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,

graphics and words of three-dimensional and outside surface's sleeking of large size.

3d aluminium mold milling router

This machine is suitable to make molds and other things, such as metal molds, drop mould, clock parts, red copper electrodes, shoe molds, arts and crafts, jade products,Dental crown milling Jewelry and other molding etc. It’s easy for this machine to produce 2D or 3D relieves on various materials. It’s very suitable for batch processing of clocks, glasses, and fine molds.

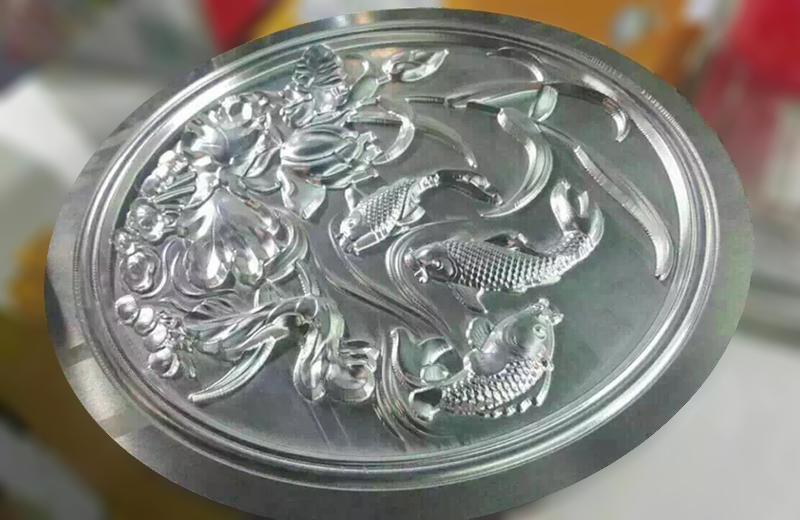

aluminium metal mold milling.JPG

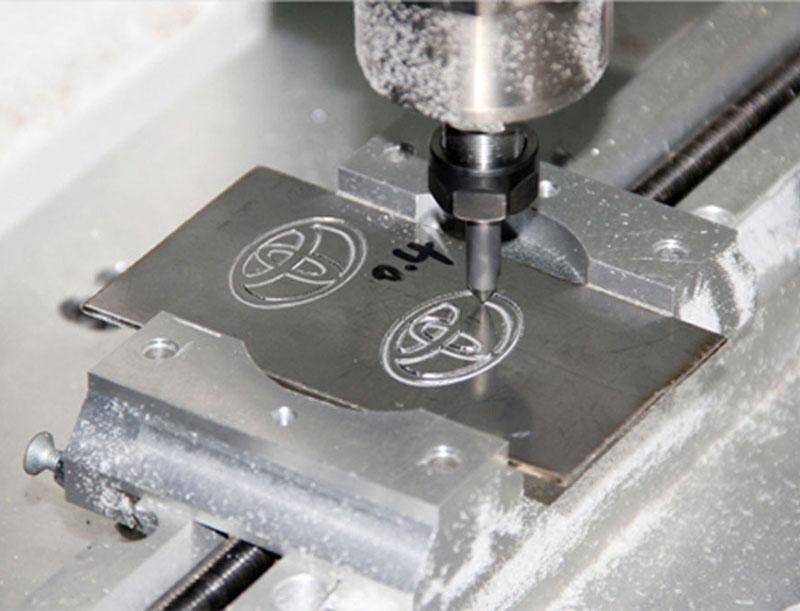

cnc mold router engraving aluminium.jpg

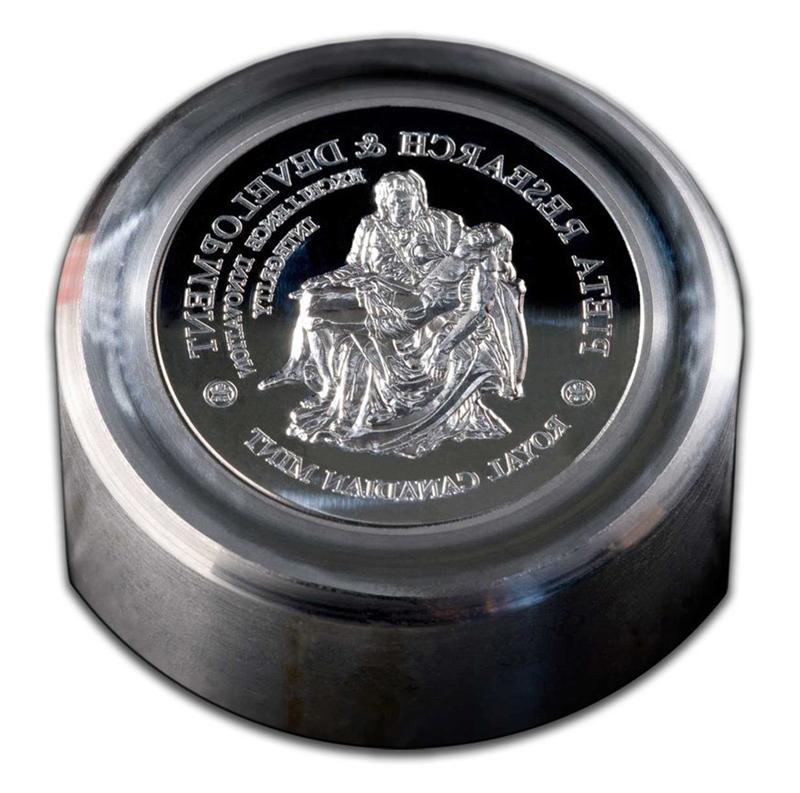

metal steel milling router machine.jpg
