6060 DSP 3D aluminium mould milling cnc router machine

Dekcel DSP 6060 aluminum milling router suitable for all sorts of materials such as steel,copper,aluminum and plastics.It is widely used in processing metal (aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass as well as many other nonmetal materials, and can do perfect 2D/3D carving or cutting.

Quantity:
  • DEK-6060M
  • DEKCEL CNC
  • 131

6060 DSP 3D aluminium mould milling cnc router machine

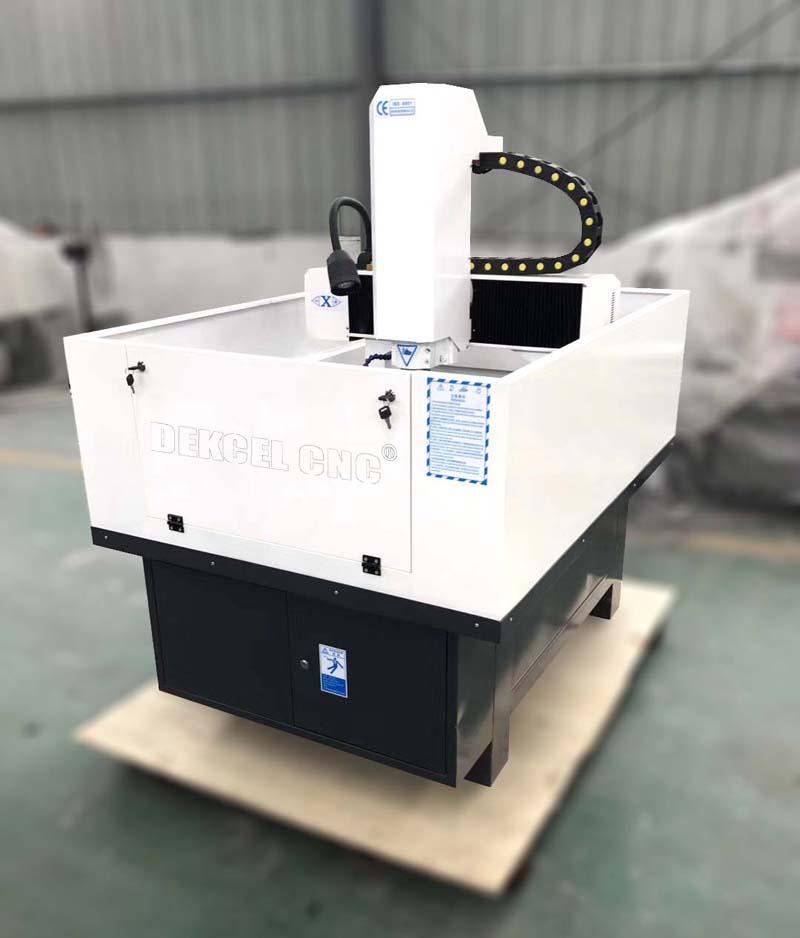

DSP mold milling cnc router machine.jpg

DSP mold milling router machine features:
1.The overall structure of the machine bed adopts the whole cast structure,good rigidity,stable operation,the whole machine vibration.
2.Three axis all use Germany ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
3.Adopt movement table to keep stable.
4.The domestic well-known brand of water-cooled spindle,small noise,big cutting force,which ensures the long time mass processing.And the use of clean water circulating cooling..
5. Mold CNC Router adopts high-end configuration, cast iron structure, Germany ball screw, and use table movement to keep machine stable. And it include semi-enclosed type and totally-enclosed type,you can choose the one you need .
6. Set-off memory,a power outage continued carving,processing time prediction function to ensure processing in case of accident or the next day.
7. Genuine DSP control:the DSP system,a breakpoint,a power outage continued carving,back to the origin with automatic correction function,machining accuracy in all-weather work effectively guarantee:eliminating the interference of computer virus,has the features of high reliablity,high efficiency,and easy to learn,the client can quickly grasp the use method of equipment.

8.Strong compatibility,suitable for all kinds of CNC software:type3,Artcam,Castmate,Pore,Wetai,all kinds of CAD/CAM software.Can easily make a relief carving,and 3D art words etc.

Parameter of aluminium mold milling router:

Model                                                                     DEK-6060 CNC Router
X,Y,Z Working Area 600*600*200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table Surface T-slot Aluminum +PVC
Frame cast by iron
X, Y Structure HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption (Without Spindle)  1.0Kw
Max. Rapid Travel Rate 16000mm/min
Max. Working Speed 10000mm/min
Spindle Power 3.0 kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors Stepper Motor
Working Voltage AC220/380V, 50/60Hz
Command Language G Code
Operating System Ncstudio or Mach3 PC Software
Computer Interface USB
Flash Memory 128M(U Disk)
X,Y Resolution <0.01mm
Software Compatibility Type3/Ucancame V9 Software, (Option: Artcam Software)
Running Environment  Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%
Inverter Fuling
Electrical components Schneider
Limit switch OMRON
Driver Leadshine M860
Warranty One year, expect consumable parts
Option 400mm*400mm | servo motor & driver | enclosed type | ATC spindle
Details show of 3D mold milling router
  6060 metal mold milling router manufacture.jpg

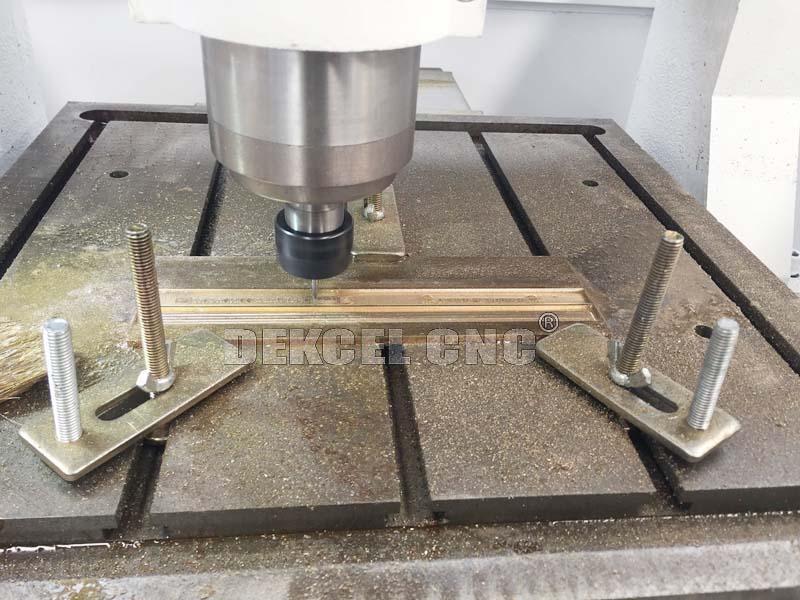

 aluminium milling spindle.jpg

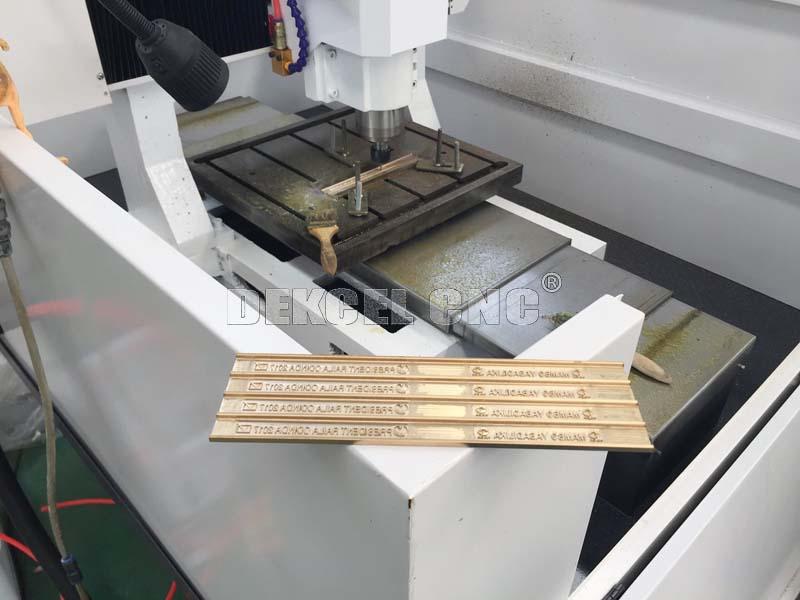

3d aluminium mold milling machine table.jpg

Applications of 3d mold milling cnc router:

This machine is suitable to make molds and other things, such as metal molds, drop mould, clock parts, red copper electrodes, shoe molds, arts and crafts, jade products,Dental crown milling Jewelry and other molding etc. It’s easy for this machine to produce 2D or 3D relieves on various materials. It's very suitable for batch processing of clocks, glasses, and fine molds.

aluminium mold engraving sample.jpg

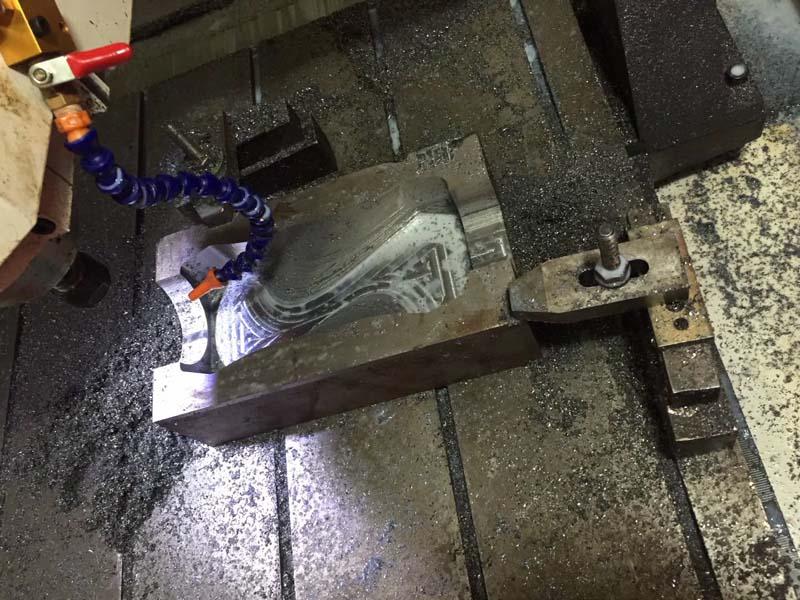

metal mold milling cnc router sample.jpg
