4040 Mini DSP Mini Metal Mold Engraving Milling CNC Router
Machine Features of Metal Mold Milling Router
1. whole body is 2 parts ,ensure the high strength of machine . bracket is stainless steel pipe. Whole lathe bed and gantry are whole casting aluminum (whole casting iron is optional)
2. XYZ axis adopt linear square guide rail (Taiwan HIWIN or PMI, diameter 20mm)smooth operation, high precision, long life
3. Adopt Ncstudio control, support win7/xp/2000. control system is Richauto A11S, 512MB. DSP and Mach3 control system is optional.
4. stainless steel water slot cooling system help cool tools when working, avoide breaking tool, sticking material.
5. Adopt 2.2KW water cooling spindle, big power suitable for engraving and cutting.ER20, support tool diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm.
6. The machine is good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, applicable materials are acrylic, double color boards, PCB, copper, aluminum, etc
Technical Paramters of Mini DSP Milling CNC Router
| Model | DEK-4040M |
| Machine body | Cast iron |
| Working area(XYZ axis) | 400*400*200mm |
| Working table | T-slot |
| X Y Z rail | PMI/HIWIN linear square guide rail |
| X Y Z transmission | High precision ball screw |
| Spindle | 1.5kw water cooling spindle (big power spindle optional ) |
| Spindle speed | 24000rpm |
| Inverter | 2.2KW inverter |
| Motor | Stepper motor |
| Driver | Stepper driver |
| Transformer | Yes |
| Lubrication | Yes |
| Max. speed | 8m/min |
| Max. working speed | 4m/min |
| Voltage | AC 220V/AC 380V 50HZ |
| Collets | ER20 3.175-12.7mm |
| Repeat reposition accuracy | 0.01mm |
| Cover | X Y Z cover |
| Command | G code |
| Software | Artcam/ Ucancam |
| Control system | Nc Studio |

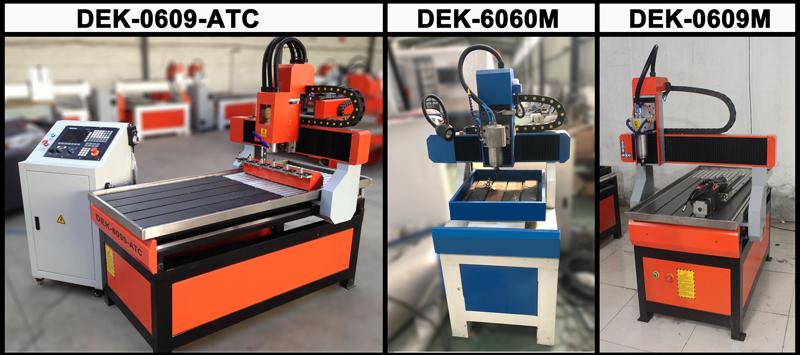

| Optional | DEK-6060,DEK-0609,DEK-1212 |
| Servo motor and driver |
| moving worktable |
| DSP / Mach3 / Nc studio |
Details of 4040 Mini Engraving Router
Applications of DSP Milling and Engraving Router
1. Furniture Industry
Be used to engrave wooden doors,cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. Decoration Industry
Be used to engrave various decorative patterns on the surface of decorative paintings,screens.
3. Musical Instrument Industry
Suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
4. Mold Industry
They can make wood molds, evaporated pattern casting molds, food molds, and other molds.
