Quantity: | |
---|---|
DEK-6060M
DEKCEL
015
Features of metal molding engraving machine
1.Whole cast-itron structure,steady structure,high rigidity ,precision 0.01mm.

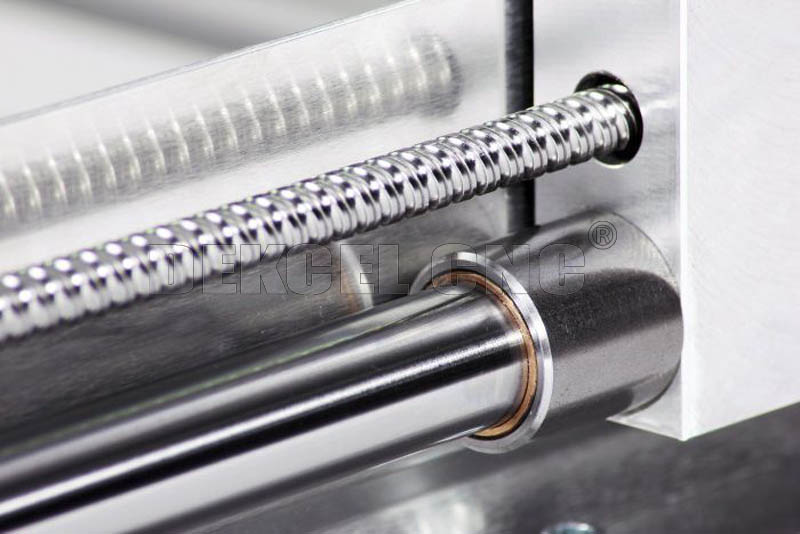

2.Three axis all use Germany ball screw and Taiwan linear orbits,also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.

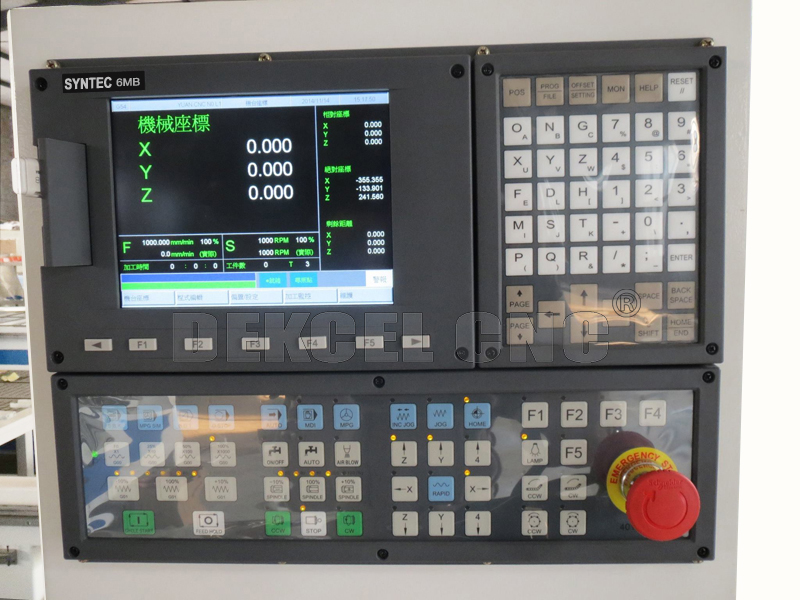

3.Imported Taiwan SYNETC system ,this system has break point memory mode and special saving mode of different points ,so that can make sure continuous working after electonic drop or other postpone situation . The function can guarantee the processing precision of long time operation.

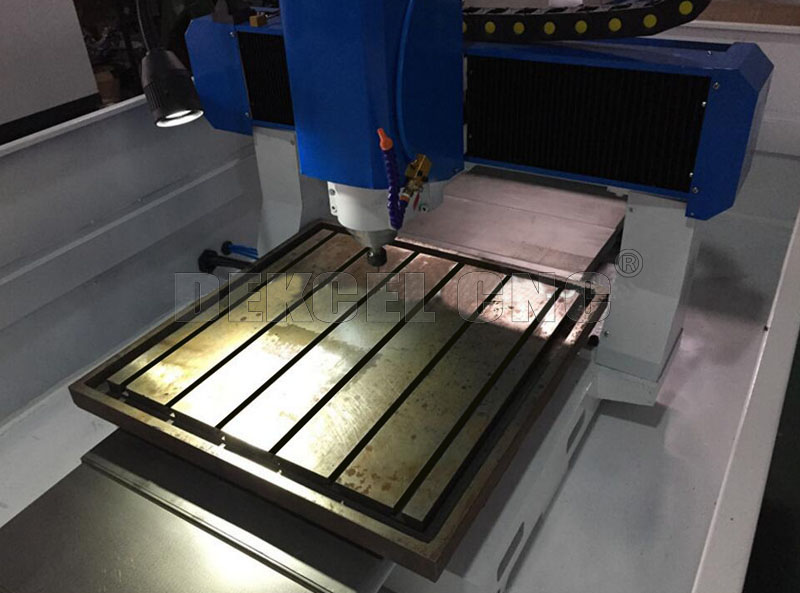

4.Adopt table movement to keep stable.
5.Adopt high-speed water cooling variable frequency motor ,big torque,strong cutting ,high-frequency ,long-lifetime,can be a long time continuous working.
Molding engraving machine technical parameter
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x600x200mm |
2 | Table Size | 730X700mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03mm |
4 | X,Y,Z repositioning Accuracy | ±0.02mm |
6 | Table Surface | T-slot Extrusions |
7 | Frame | Cast Steel |
8 | X, Z Structure | Ball Screw |
9 | Y Structure | NO.25 TW Rail Linear Bearings and Ball Screw |
10 | Max. Power Consumption (Without spindle) | 6.0Kw |
11 | Max. Rapid Travel Rate | 45000mm/min |
12 | Max. Working Speed | 4000mm/min |
13 | Spindle Power Motor | 5.5KW water cooling spindle |
14 | Spindle Speed | 0-24000RPM |
15 | Drive Motors | Four sets 750w Panasonic Servo motor |
16 | Working Voltage | AC220V/AC380/50HZ/60HZ |
17 | Command Language | Command HPGL,G code,u00*,mmg,plt |
18 | Operating System | Syntec control system |
19 | Interface | USB |
20 | Flash Memory | 128M( U Disk) |
21 | Collet | ER16 |
22 | X,Y Resolution | <0.01mm |
24 | Software Compatibility | Type3 software, Jingdiao software and CopperCAM software(Option: Artcam software) |
25 | Running Environment | Temperature: 0°C~45°C Relative humidity: 30%~75% |
26 | Packing Size | 910X980X600mm |
27 | Net Weight | 1500KG |
28 | Gross Weight | 1800KGS |

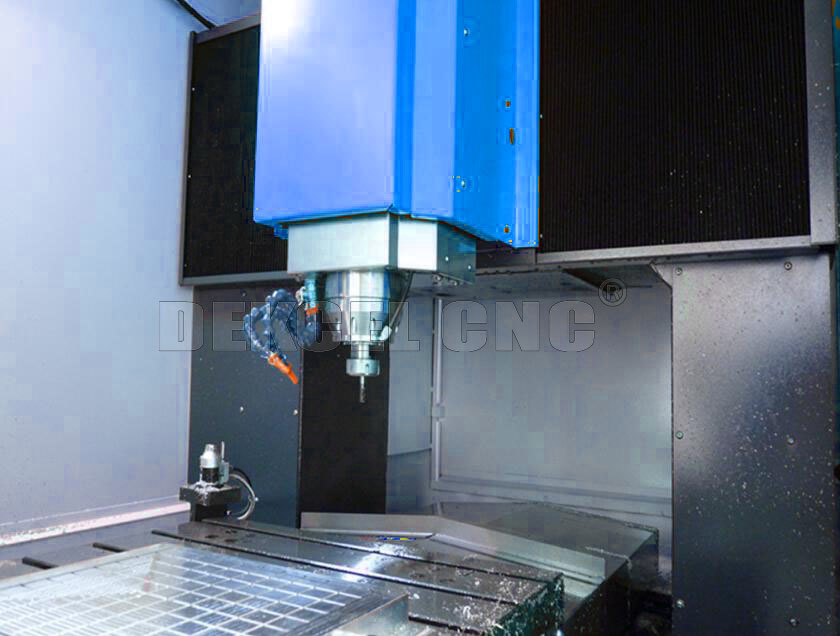

5.5KW metal water cooling spindle
Guarantee & After Sales Service
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training to guarrantee you can operate machine correctly.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
8.The processing demo video and E-catalogue will be mailed as your request.
Features of metal molding engraving machine
1.Whole cast-itron structure,steady structure,high rigidity ,precision 0.01mm.
2.Three axis all use Germany ball screw and Taiwan linear orbits,also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
3.Imported Taiwan SYNETC system ,this system has break point memory mode and special saving mode of different points ,so that can make sure continuous working after electonic drop or other postpone situation . The function can guarantee the processing precision of long time operation.
4.Adopt table movement to keep stable.
5.Adopt high-speed water cooling variable frequency motor ,big torque,strong cutting ,high-frequency ,long-lifetime,can be a long time continuous working.
Molding engraving machine technical parameter
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x600x200mm |
2 | Table Size | 730X700mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03mm |
4 | X,Y,Z repositioning Accuracy | ±0.02mm |
6 | Table Surface | T-slot Extrusions |
7 | Frame | Cast Steel |
8 | X, Z Structure | Ball Screw |
9 | Y Structure | NO.25 TW Rail Linear Bearings and Ball Screw |
10 | Max. Power Consumption (Without spindle) | 6.0Kw |
11 | Max. Rapid Travel Rate | 45000mm/min |
12 | Max. Working Speed | 4000mm/min |
13 | Spindle Power Motor | 5.5KW water cooling spindle |
14 | Spindle Speed | 0-24000RPM |
15 | Drive Motors | Four sets 750w Panasonic Servo motor |
16 | Working Voltage | AC220V/AC380/50HZ/60HZ |
17 | Command Language | Command HPGL,G code,u00*,mmg,plt |
18 | Operating System | Syntec control system |
19 | Interface | USB |
20 | Flash Memory | 128M( U Disk) |
21 | Collet | ER16 |
22 | X,Y Resolution | <0.01mm |
24 | Software Compatibility | Type3 software, Jingdiao software and CopperCAM software(Option: Artcam software) |
25 | Running Environment | Temperature: 0°C~45°C Relative humidity: 30%~75% |
26 | Packing Size | 910X980X600mm |
27 | Net Weight | 1500KG |
28 | Gross Weight | 1800KGS |
5.5KW metal water cooling spindle
Guarantee & After Sales Service
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training to guarrantee you can operate machine correctly.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
8.The processing demo video and E-catalogue will be mailed as your request.
Application of molding engraving machine
1. Used to large scale metal mould, plastic mould, auto tyres, hardware, trade marks, gifts, high frenquency mould, die-casting mould and other relevent materials processing.
2. It can also be used for ceramic engraving to make ceramic products.
Applicable industries
Organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum - plastic plate, steel, iron, copper, aluminum, plastic and other materials for surface engraving and cutting
Application of molding engraving machine
1. Used to large scale metal mould, plastic mould, auto tyres, hardware, trade marks, gifts, high frenquency mould, die-casting mould and other relevent materials processing.
2. It can also be used for ceramic engraving to make ceramic products.
Applicable industries
Organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum - plastic plate, steel, iron, copper, aluminum, plastic and other materials for surface engraving and cutting
