wood cnc router machine used in advertising industry

DEKCEL offers advertising wood cnc router 1212 with NK105 DSP control system, stepper motors, water-cooling spindle and vacuum table for hold material automatically.

Quantity:
  • DEK-1212G
  • DEKCEL
  • 035
Features of advertising wood cnc router

1. Precision mould casting, high rigidity and small accumulated error.
2. Large power spindle cuts easily and quickly.
3. High speed (curve and straight line shares same speed, and curve line is more smooth. ), high efficiency. Running speed is reaches to 15 m/min.
4. Two motor-driver with distinctive double rack transmission, making it work steadily for a long time.
5. Continue to engrave after point-break and bits/knife-breaking. Hold more than 9 points.
6. Professional engraving software. Such as CorelDraw, Type3, Art cam, Cast mate, Proe, Art cut and other CAD/CAM software

Parameter of advertising wood cnc router

Working area:

1200x1200x150mm

Spindle type:

Water cooled spindle

Spindle power

1.5kw

Spindle rotating speed

0-24000rpm

Power (except spindle power)

3.2KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC220±10, 50 HZ

Worktable:

T-slot table /Vacuum table

Locating precision:

<0.01mm

Min shaping character:

Character:3x3mm,letter:2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision

±0.03mm

System resolution

±0.001mm

Control configuration:

Mach3/DSP/ NC studio control system

Data transfer interface:

USB/PC

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

Water cooling by water pump (optional: chiller)

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….

Cutting thickness:

0-40mm also (depends on different material)

Z tool sensor:

yes

Whole machine dimension:

1750x1050x1150mm

Net weight:

380KG

Gross weight

450KG

packing

Plywood case (veneer wood case for export)

Optional parts

1. Water cooled type spindle (China brand or Italian brand air cooling HSD brand)

2. Bigger or smaller power spindles (6kw or 3kw)

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. servo motors (China brand or Japan brand)

6. Auto tool change system

(this system need other systems accordingly, like LNC control system, servo motors etc)

7. Weihong DSP Control system ,NK105 Model or Mach 3

8. other customerized features.


The detail parts of advertising wood cnc router

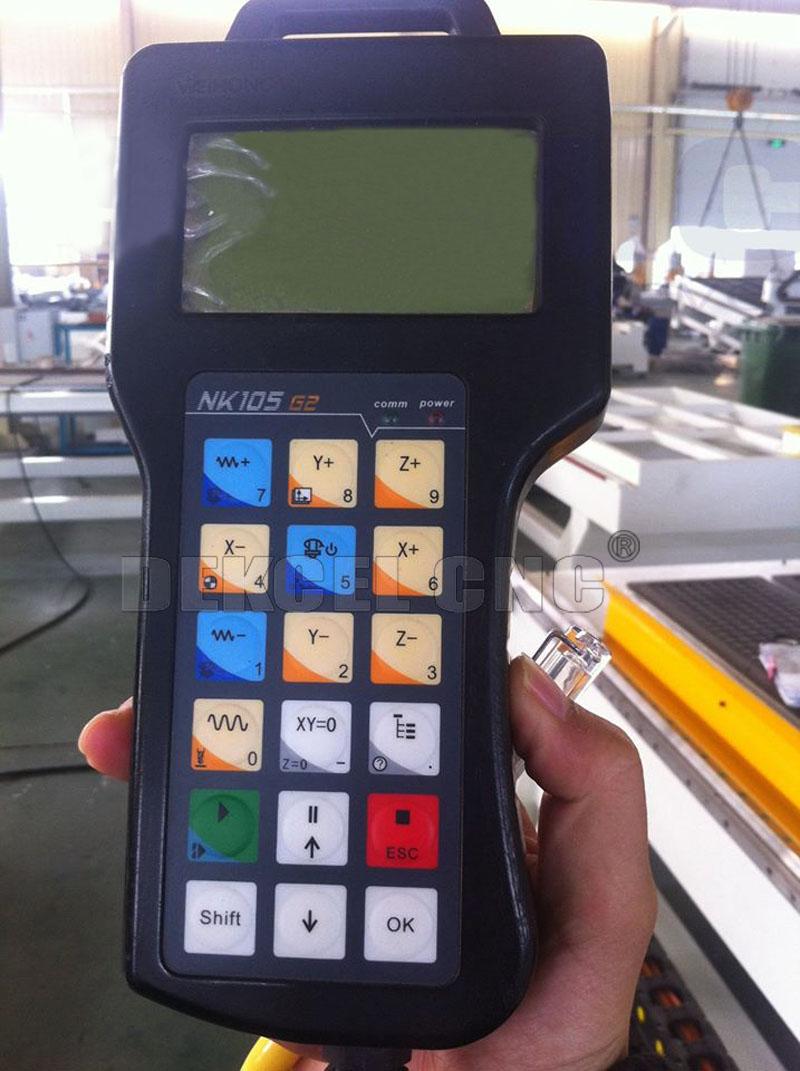

NK105 advertising wood cnc router control system

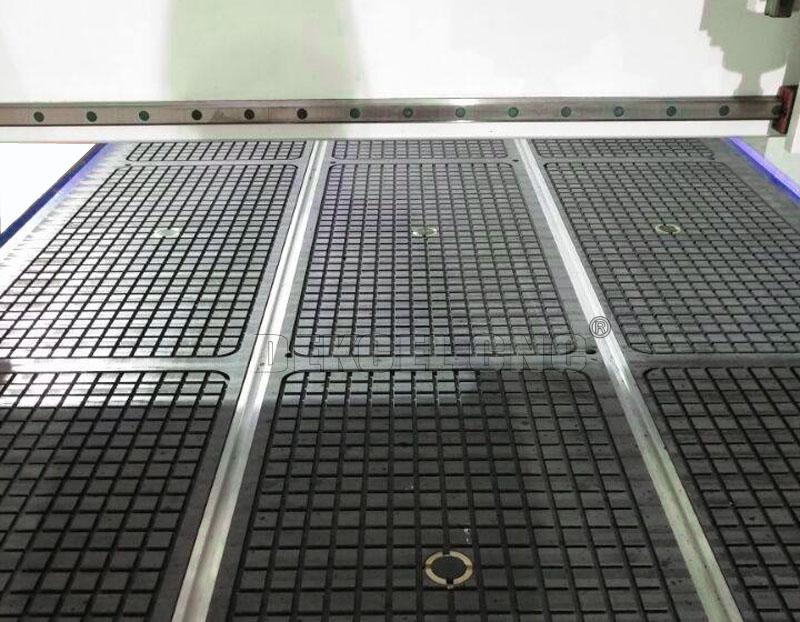

advertising wood cnc router vaccum working table

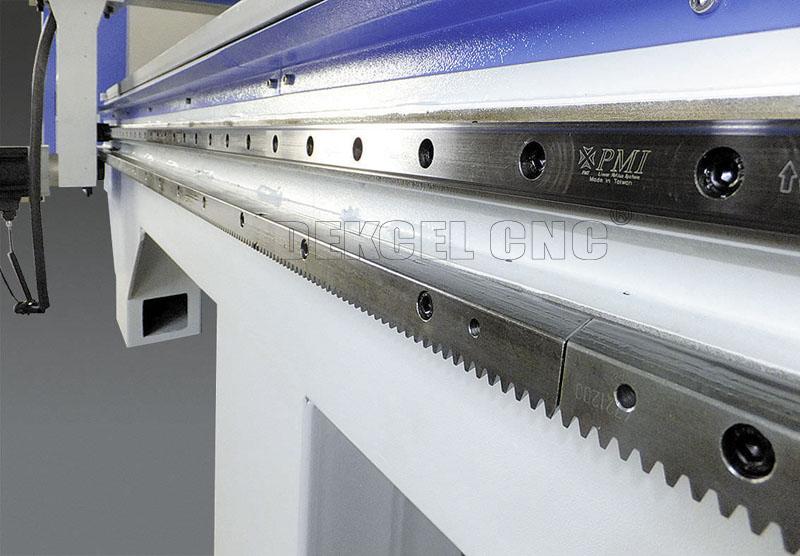

PMI lead rail of advertising wood cnc router

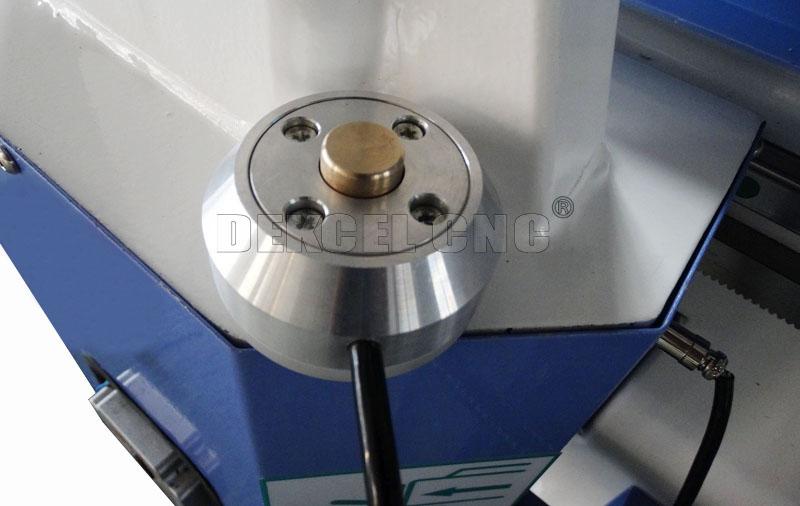

tool sensor of advertising wood cnc router

mist cooling system of advertising cnc router

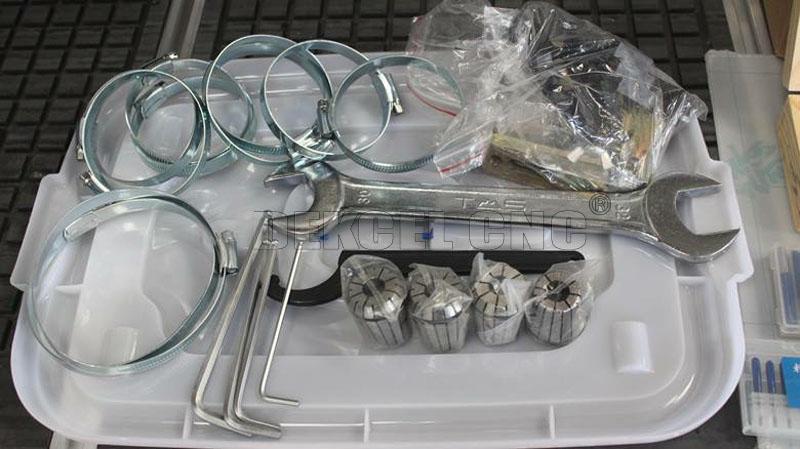

advertising cnc router accessories

Applicable of  advertising wood cnc router
a,Woodworking industry: wood,door,furniture,cup board,table.
b,Advertising industry:logo,double color board,acrylic cutting.
c,Die industry:sculpture of copper,aluminium,iron and other metal molds.
arts and crafts advertising wood cnc router

advertising wood cnc router cutting foam

advertising wood cnc router samples
