Small wood craft cnc router machine for sale

Dekcel small wood cnc router machine suitable for working on small wood furniture decoration, wood crafts processing, electronic product, instrument industry, etc.

Quantity:
  • DEK-0609M
  • DEKCEL
  • 050
Feature of small wood craft cnc router machine
1.NC studio control system, convenient and easy to operate.
2.32M memory,can save more 30 process document.
3.Compatibility software: support CAD/CAM such as type3, artcam,castmate.
4.Breakpoint memory, support breakpoint carving and can process next day after power off.
5.USB interface,support plug and play under windows98/2000/nt/xp.
6.DSP control is optional.
7,Rotary system for carving round material optional.
8. Water cooling spindel or air cooling spindel,it"s up to you.

Technical parameter of small wood craft cnc router machine

No



     DEK-0609M



Parameter

1

X,Y,Z working size

600*900*200mm

2

Table size

720mm x1140mm

3

Positioning accuracy

±0.01mm/300mm

4

Repositioning accuracy

±0.01mm

5

Table surface

T-slot  Extrusions

6

Frame

Cast iron

7

X, Z Structure

 TBI ball screw imported from Taiwan

8

Y Structure

HIWIN Rail Linear Bearings and Ball Screw imported from Taiwan

9

Max. power Consumption

0.8KW

10

Max. Rapid Travel Rate

10000mm/min

11

Max. Working Speed

6000mm/min

12

Spindle Power Motor

1.5KW/2.2KW air cooling spindle

13

Spindle Speed

0-24000RPM

14

Drive Motors

Stepper system

15

Working Voltage

AC220V/50/60Hz

16

Command

G code

17

Operating System

NC Studio (DSP controller for options)

18

Interface

USB

19

Flash Memory

128M(U Disk)

20

Collet

ER16

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3, Artcam, Ucancam V8 for options

23

Running Environment

Temperature: 0°C~45°C


Relative humidity: 30%~75%

24

Packing Size

1600*1300*1700

25

Guarantee

One year


Detail parts of small wood craft cnc router machine

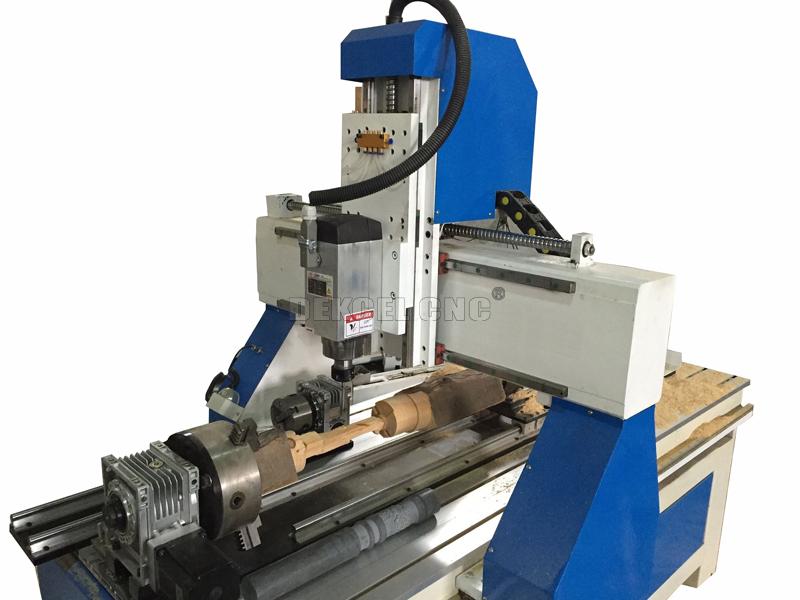

rotary system of small wood craft cnc router machine

Taiwan guide rails of small wood cnc router machine

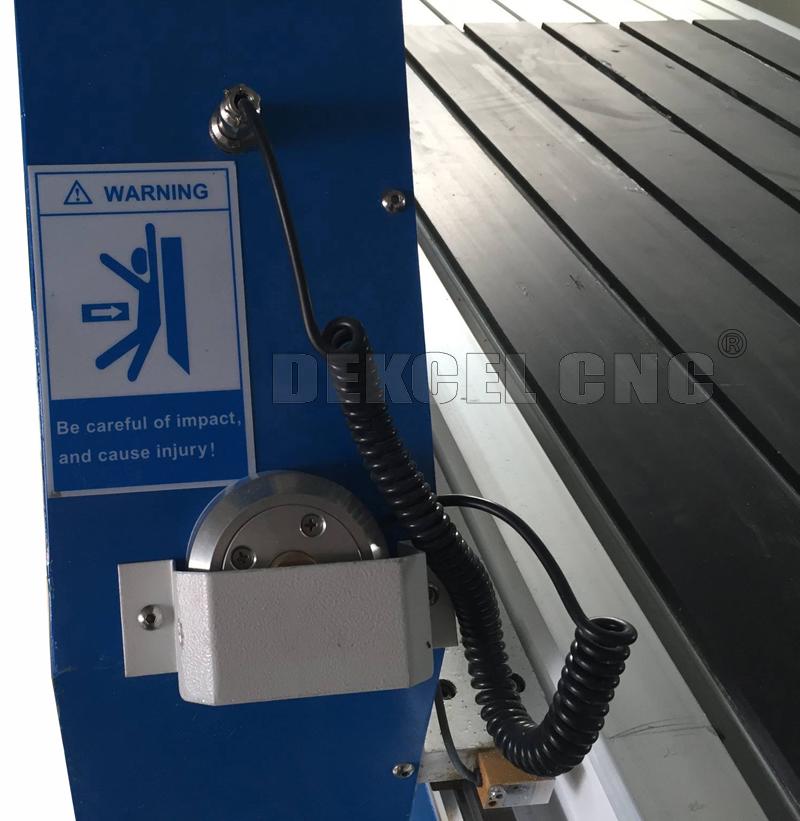

tool sensor of wood cnc router machine for sale

wood cnc router ball screw

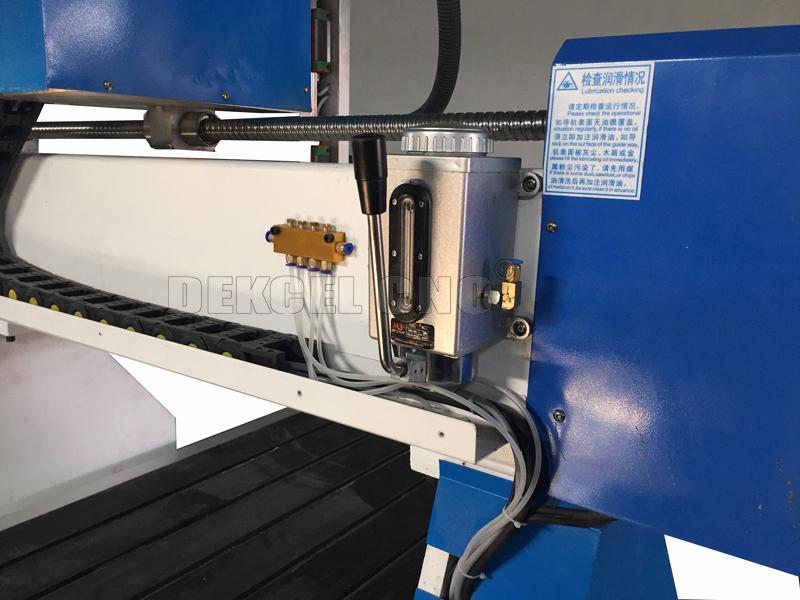

oil injection system of wood cnc router

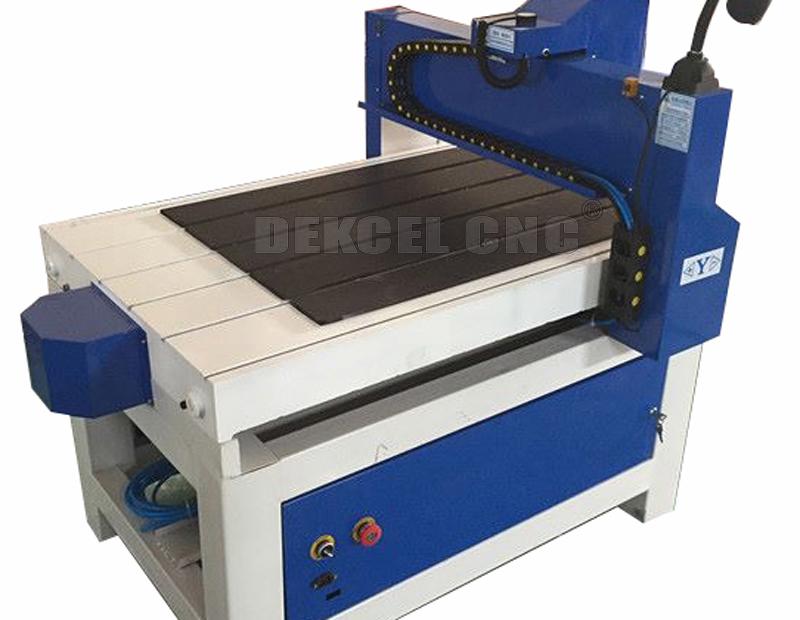

heavy body wood cnc router machine
Applications of small wood craft cnc router machine
Wood door and furniture decoration, wood crafts processing, electronic product, instrument industry, etc.
Wood, MDF, PVC, PCB, Acrylic, Circuit board, Aluminum, Copper etc.
Engrave on material surface, 3d engraving on violin panel, making guitar, erhu etc.

wood craft cnc router machine

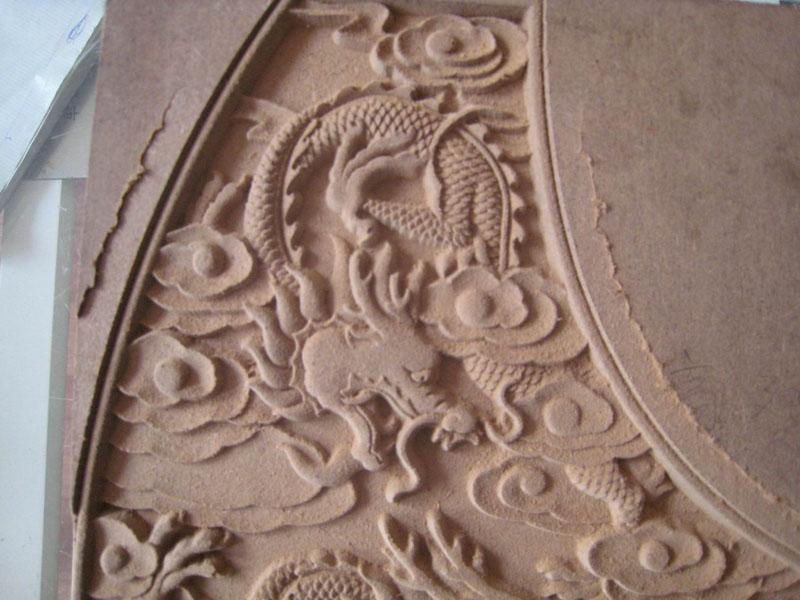

small cnc router samples

small cnc router machine samples

cnc router for wood craft samples

small cnc router machine engraving wood samples
