As a China professional manufacturer of advertising cnc router with rich experiences, we could supply you the machine with the best quality, affordable price and perfect after-sales service.
Brief Introduction

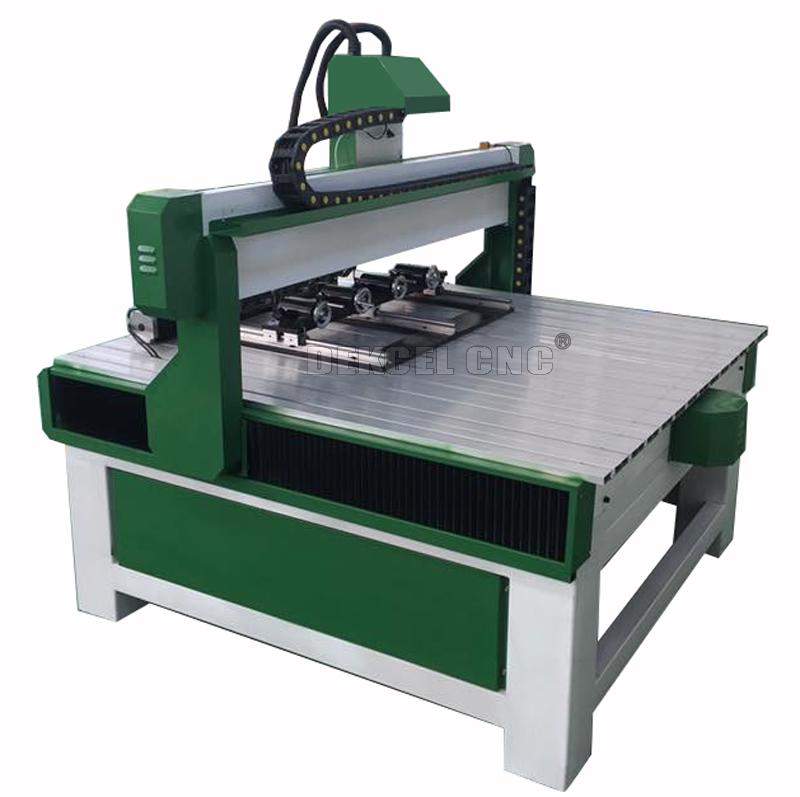

Advertising cnc router with 4 rotary systems and 4 spindles. It is qualified for mass-producing of woodcrafts, sofa or talbe legs and other woodworking column products, with four rotary systems and removable working table. It is fit for hard column wood carving, engraving, drilling, milling and cutting etc. Woodworking works, which could be widely used in many fields.

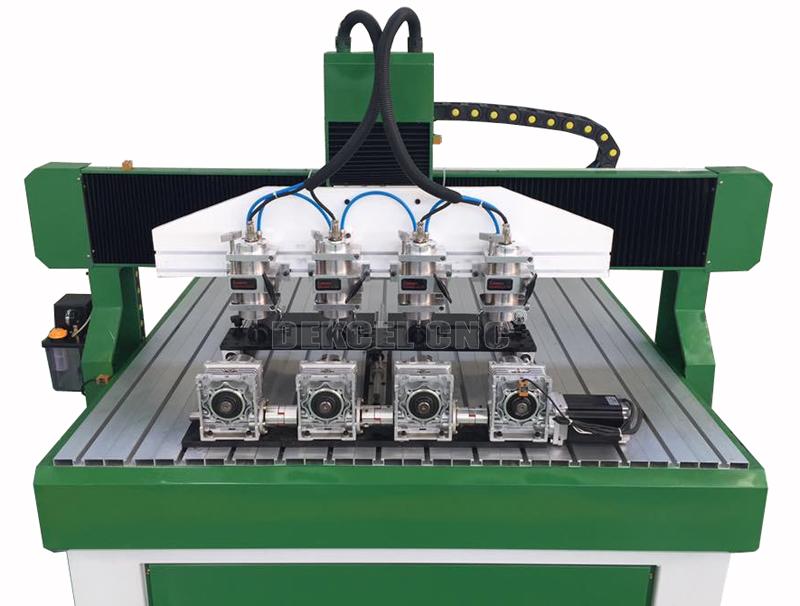

Features of advertising cnc router with 4 rotary 4 spindle 1.Four water cooling spindles can work together or independently raise the working efficiency of machine

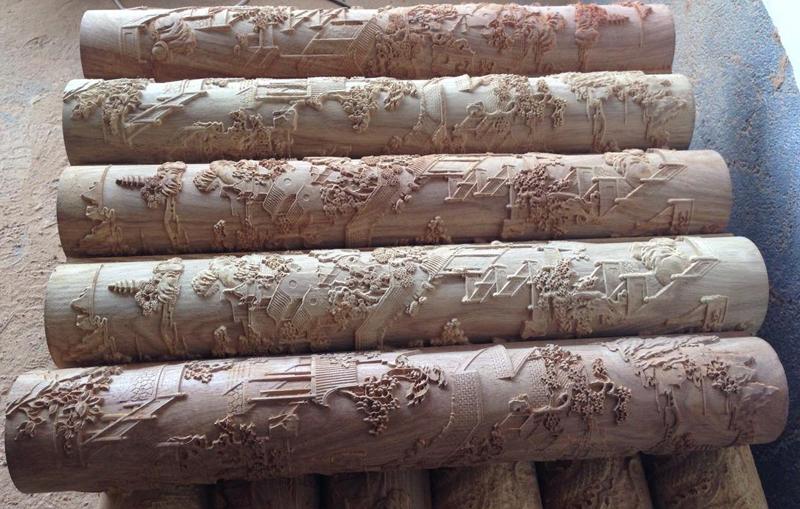

2.Four spindles with four rotaries are widely used in engraving round wood
3.With Scanner or designed photo, it can do any3D Engraving
4.The whole lathe is founded by welded steel in order to enhance the stability
5.High speed drivers and stepper motors enhance work efficiency
6.Equipped with aluminum T-slot surface is suitable for longtime use
Advertising cnc router with 4 rotary 4 spindle Specification | Model | DEK-1212G-4 Rotary CNC router |
| X,Y,Z Working Area | 1200*1200*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.02mm |
| Lathe Structure | Thick wall square tubes welding bed |
| X Structure | Taiwan PMI square guide rails |
| Y Structure | Taiwan PMI square guide rails |
| Z Structure | Taiwan PMI square guide rails |
| Max.Speed | 0-30000mm/min |
| Max.Working Speed | 0-25000mm/min |
| Spindle | 1.5KW or 2.2KW water cooling spindle (optional:air cooling spindle) |
| Spindle Speed | 0-24000RPM |
| Working Mode | Stepper motor |
| Working Voltage | 220V/3ph
50HZ/60Hz optional 380V 3 phase |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |

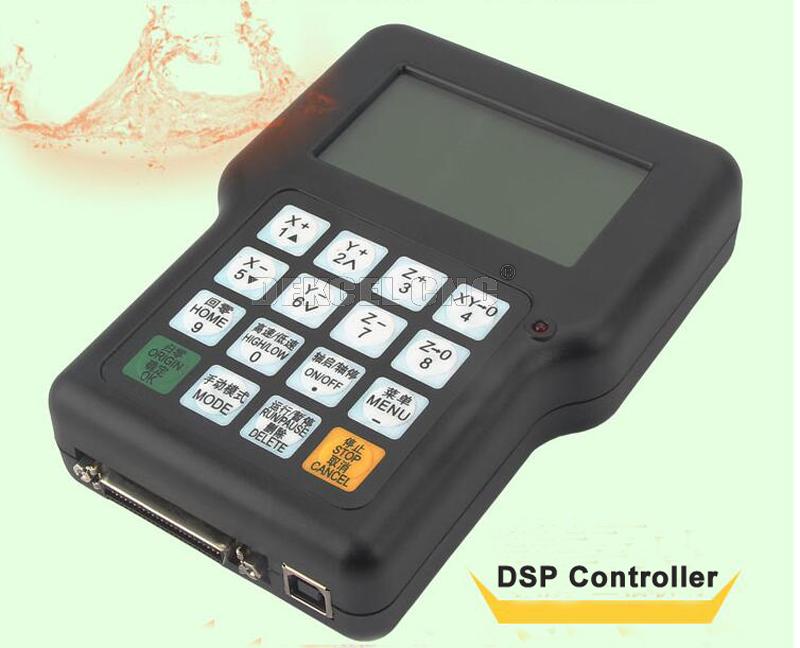

| Operating System | DSP control system/NC studio |
| Interface | USB |
| X,Y Working Delicacy | <0.01mm |
| Software | Type3 software or Wentai software |
| Running circumstance | Temperature: 0°C~45°CRelative humidity: 30%~75% |
| Waranty | One year |
| Delivery time | 2 weeks |
As a China professional manufacturer of advertising cnc router with rich experiences, we could supply you the machine with the best quality, affordable price and perfect after-sales service.
Brief Introduction
Advertising cnc router with 4 rotary systems and 4 spindles. It is qualified for mass-producing of woodcrafts, sofa or talbe legs and other woodworking column products, with four rotary systems and removable working table. It is fit for hard column wood carving, engraving, drilling, milling and cutting etc. Woodworking works, which could be widely used in many fields.
Features of advertising cnc router with 4 rotary 4 spindle 1.Four water cooling spindles can work together or independently raise the working efficiency of machine
2.Four spindles with four rotaries are widely used in engraving round wood
3.With Scanner or designed photo, it can do any3D Engraving
4.The whole lathe is founded by welded steel in order to enhance the stability
5.High speed drivers and stepper motors enhance work efficiency
6.Equipped with aluminum T-slot surface is suitable for longtime use
Advertising cnc router with 4 rotary 4 spindle Specification | Model | DEK-1212G-4 Rotary CNC router |
| X,Y,Z Working Area | 1200*1200*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.02mm |
| Lathe Structure | Thick wall square tubes welding bed |
| X Structure | Taiwan PMI square guide rails |
| Y Structure | Taiwan PMI square guide rails |
| Z Structure | Taiwan PMI square guide rails |
| Max.Speed | 0-30000mm/min |
| Max.Working Speed | 0-25000mm/min |
| Spindle | 1.5KW or 2.2KW water cooling spindle (optional:air cooling spindle) |
| Spindle Speed | 0-24000RPM |
| Working Mode | Stepper motor |
| Working Voltage | 220V/3ph
50HZ/60Hz optional 380V 3 phase |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |
| Operating System | DSP control system/NC studio |
| Interface | USB |
| X,Y Working Delicacy | <0.01mm |
| Software | Type3 software or Wentai software |
| Running circumstance | Temperature: 0°C~45°CRelative humidity: 30%~75% |
| Waranty | One year |
| Delivery time | 2 weeks |
Applicable Material
Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Cnc router Application Industry
Advertising Industry
Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox;
Artwork &Decoration Industry
Wood crafts, gift box, jewelry box and other exquisite art crafts
Music Industry
Applicable Material
Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Cnc router Application Industry
Advertising Industry
Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox;
Artwork &Decoration Industry
Wood crafts, gift box, jewelry box and other exquisite art crafts
Music Industry
