Cnc router engraving machine for wood 1325

Dekcel Cnc router engraving machine for wood suitable used for engraving and cutting MDF,acrylic,PVC,various labels and nameplate.

Quantity:
  • DEK-1325G
  • DEKCEL
  • 066

China 1325 cnc router wood carving machine

Low price cnc router wood engraving machine machine mainly for wood carving, acrylic,MDF,plywood ect.Our wood door engraving cnc routermachine is the most common cnc router with high quality in our company.It equiped with thick square tube welded bed, strict control of bed deformation rate. This china cnc router is specially for 3D acrylic engraving and wood carving, the spindle can design as your requirements.It is popular with low price without reducing quality,also our cnc router wood engraving quality is still the best.


Machine featrues of cnc router engraving machine for wood
1.High stability: lathe bed platform casting, supporting dense, bearing force average, reduce machine distortion.
2.High speed: Rack pinion drive with a high speed. The highest speed can reach 20m/min
3.High quality parts: using line square guide rail, rack pinion has a high speed, X rail adopt pop dustproof structure, ensure the machine has a long-term operation; spindle is water cooling.
4.Reasonable design: the unique guide installation, Y using double motor drive, speed, strength, cutting section smooth bright and clean
5.T-slot aluminum profile table.
6.Good compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment,and 3D arts.

Technical parameter

NOr

Description of cnc rouer wood engraving

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

X,Y,Z Traveling Positioning Accuracy

±0.05mm

3

X,Y,Z Repositioning Accuracy

±0.05mm

4

Table Surface

aluminum T-slot Table

5

Frame

Square pipe Welded Structure

6

X, Y axis transmission

Rack and Pinion gear

7

Z transmission

Ball Screw

8

Max. traveling speed

25000mm/min

9

Max. Working Speed

15000mm/min

10

Rail Configuration

20 square rail

11

Spindle Power

Water-cooling 3KW(opitioinal air-cooling spindle)

12

Spindle rotationg Speed

0-24000RPM

13

Drive Motors

Stepper System

14

Working Voltage

AC220V/50HZ (Option: AC380V/50Hz,3PH)

15

Operating System

Ncstudio system(Option: DSP)

16

Computer Interface

USB

17

Command Language

G code, u00, mmg, PLT, HPG

18

Software Compatibility

Type3 or Wentai (ArtCUT), or ArtCAM software

19

Packing and Size

Wooden case,L3200mmW2000mmH1900mm

20

N.W.

800KG


The detail parts of cnc router engraving machine for wood

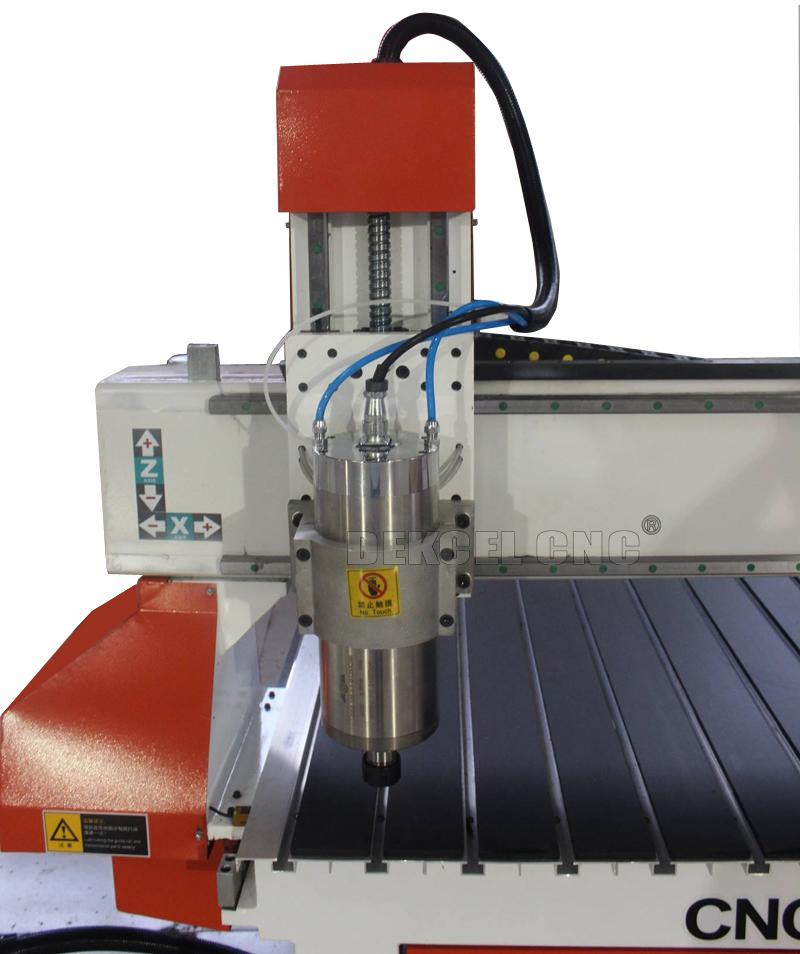

cnc router wood engraving machine spindle

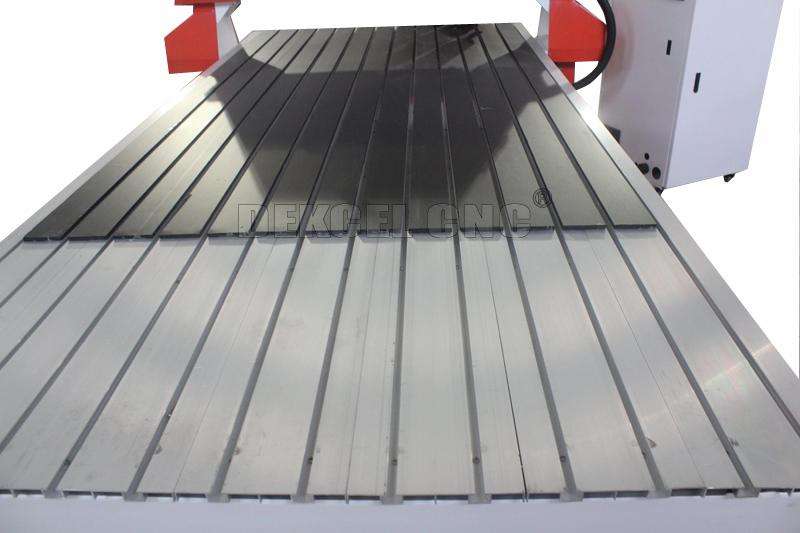

cnc router engraving machine table

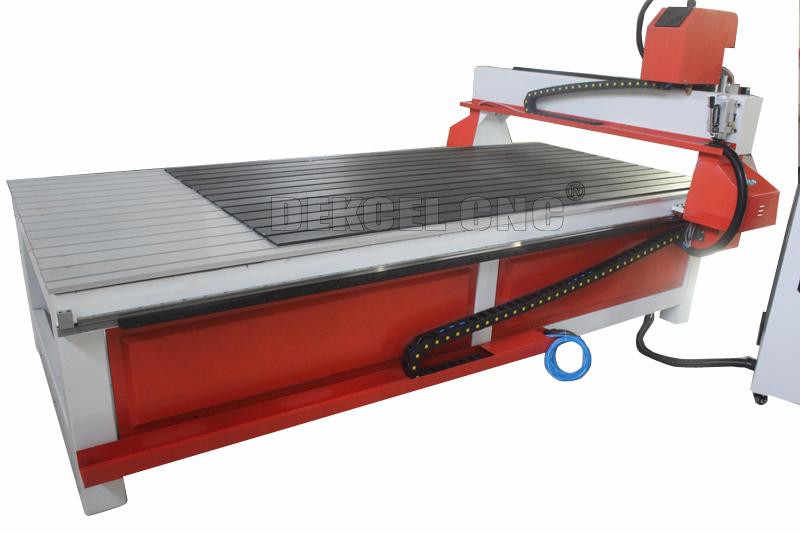

cnc router wood engraving machine table

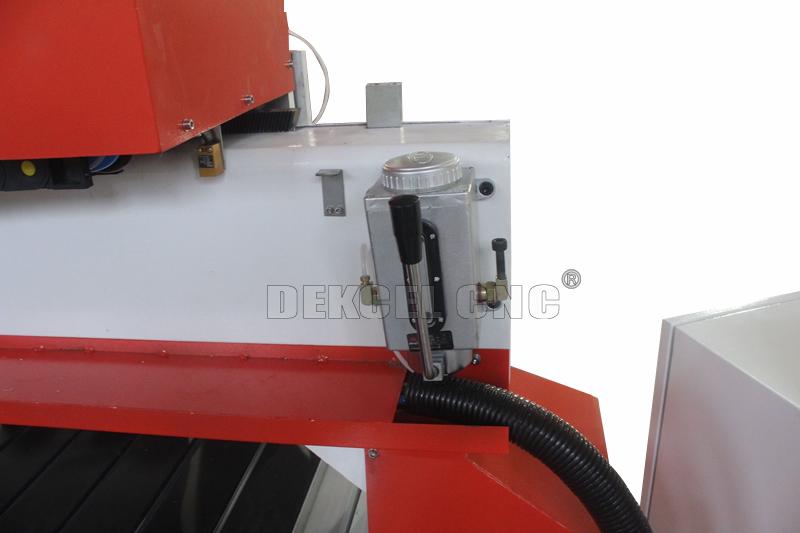

cnc router wood engraving machine injection system

Applicable filed of cnc router engraving machine for wood
Wood processing: Dekcel cnc router wood carving machine is processing of various furniture such as door, window, cabinet, craft, wood door, wood screen and so on.
Advertisement: engraving and cutting MDF,acrylic,PVC,various labels and nameplate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
cnc router engraving machine for wood

cnc router cutting wood

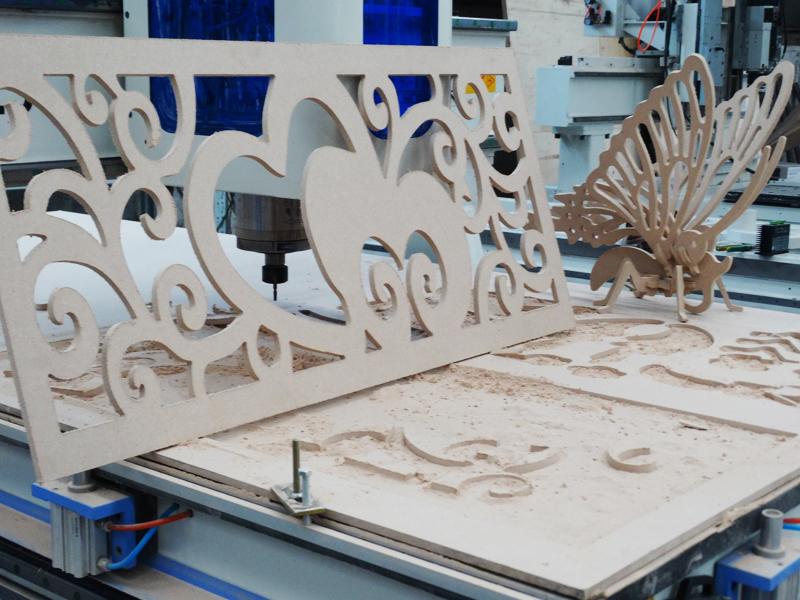

cnc router machine for cutting wood
