Small advertising cnc router
You are here: Home » Cnc Router » Advertising cnc router » Small advertising cnc router
Share to:

Small advertising cnc router

Dekcel small advertising cnc router adopt 1.5kw water-cooled spindle, great cooling effect, high speed, low noise and long life.It is very suitable for CNC hobby friends, small engraving shop and factories as well.

Quantity:
  • DEK-0609M
  • DEKCEL
  • 004



Features of advertising cnc router

1. Adopt 1.5kw water-cooled spindle, great cooling effect, high speed, low noise and long life.

2. It is very suitable for CNC hobby friends, small engraving shop and factories as well.

3. Popular nc studio control system is very easy for every buyer and beginner,with USB interface.

4. Taiwan Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable and precise.

5. Cast iron machine body,stable and strong in use.

6. We use YAKO driver,very powerful,ensuring the machine is stable and long lifetime.

7. We use Highly flexible towline; fire-resistant double-sheathed cable, Prevent electrostatic interference; also with cable carrier outside to protect the cable

8.Optional part: With Rotary can process cylinder materials.



Advertising cnc router technical parameter

NO. Items   Parameters Option
1 Working Area X Y Z 600*900*120mm <=2000mm
3 Table Type   T-Slot Extrusion PVC
4 Accuracy Working Accuracy ±0.01/300mm
Repositioning accuracy ±0.01/300mm
5 Frame Structure   Cast steel
6 Drive of X,Y,Z   X.Y.Z with ball screw
7 Speed MAX Traveling Speed 6000mm/min
MAX Working Speed 4000mm/min
8 Spindle Spindle Power 1.5KW 0-24000r/min Italian HSD Spindle
10 Drive   Stepper
14 Working Voltage   AC220V/50Hz
15 Commend Code   G Code
16 Operating System   DSP NC Studio
17 Net Weight /Gross Weight   130Kg/200Kg
18 Packing size   1300*1000*850

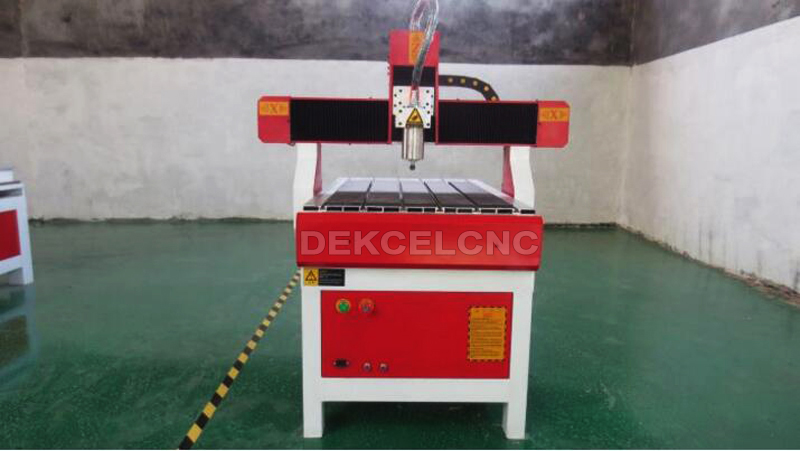

advertising cnc router

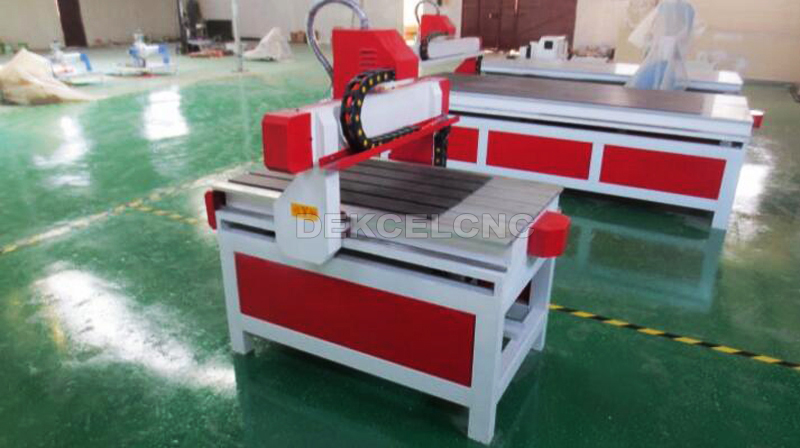

Mini cnc router

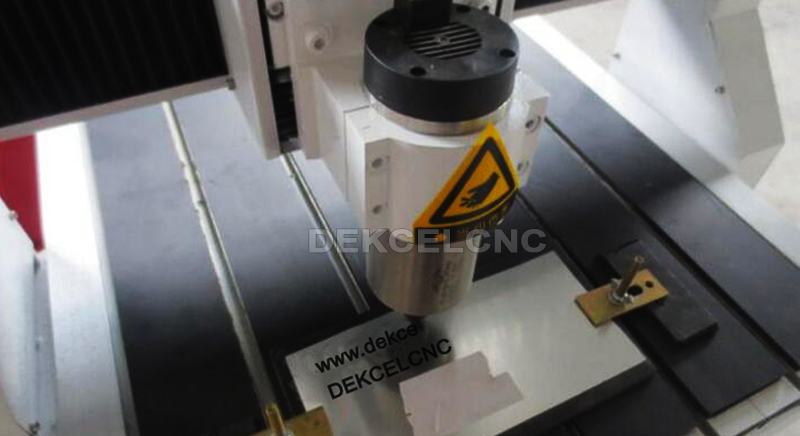

Hobby cnc router

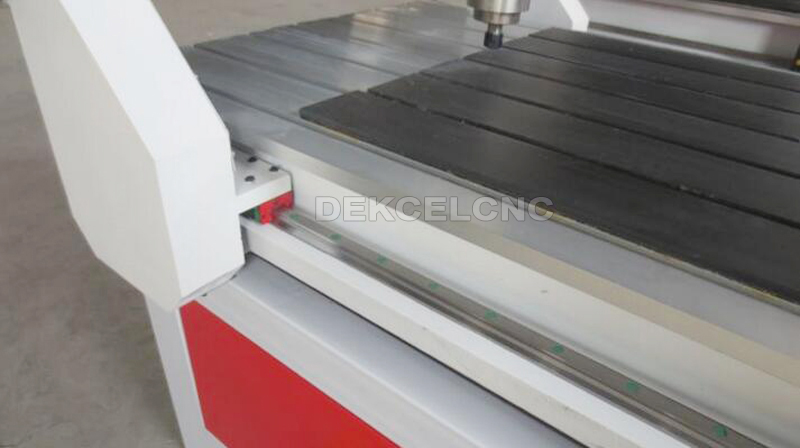

Desktop cnc router

Quality Control

1. Skilled and strict Quality Inspection Team is available during the material purchasing and

   production procedure.

2. All finished machine we shipped out are 100% strictly tested by our QC department and

   engineering department



Safaty Level

1, Soft limit switch (Shock absorption pad)

2, Japanese Omron limit switch

3, French Schneider electronics

4, French Schneider rotary safety switch on the control box

5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times





Application of advertising cnc router

1.Wooden door and furniture decoration industry:

Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs, board type furniture engraving, archaize annatto furniture engraving, solid wood art mural engraving and so on.



2.Wooden crafts processing:

Clock frame, picture frame, calligraphy plaque, electrical counter face, sports equipment, thin aluminum board cutting and engrving.



3.Electronic product industry:

Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting.



4.Instrument industry:

Engraving instruments 3D surface, appearance cutting, such as cello, violin panel and head, guitar, erhu 3D surface engraving and cutting.



5.EVA processing industry:

EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products,glass vessel.



6.Other industries:

The building model, the block, aviation block, propellers, car foam mold.

0609 advertising carving machine samples
