Double worktable 4 process furniture woodworking engraving drilling cnc router

Dekcel cnc furniture woodworking router with double working table Suitable for compound processing pattern milling, carving ,cutting and hole drilling,saving time and improving the efficiency .

Quantity:
  • DEK-1350
  • DEKCELCNC
  • 113

Double worktable 4 process furniture woodworking engraving drilling cnc router

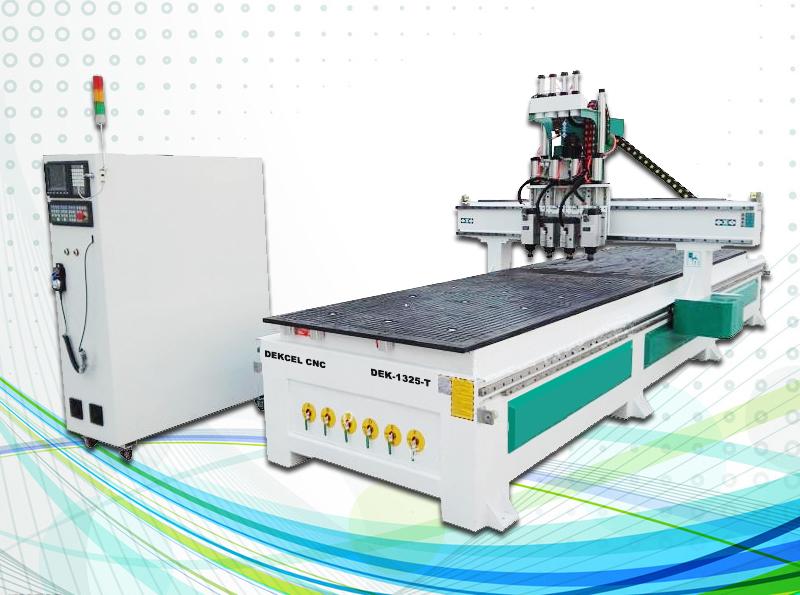

2 table 4 process furniture engraving and cutting router

3 Processing Wood Door Engraving CNC Router Working Video

Features of Double Workingtable of Wood Furniture Engraving Router

1.Dekcel wood furniture engraving and drilling router machine adopt Chinese Famous Brand air cooling spindle, good quality with high working speed and precision,  0-24000 rpm/s.

2. Our double working table of woodworking cnc router with vacuum absorption table - Working materials can be sucked very tightly by Two Layer Vacuum absorption table, can ensure working table stable stably.

3. Exhaust system can ensure the working table clean and smooth during the machine working period.

4.Furniture plate drilling router adopt good quality and big power of Japan servo motor ensure the constantly movement of the machine.

5.Dekcel furniture production router machine use Weihong/ Syntec control system,user-friendly control panel, easy operation and convenient scan.

6.Positioning system can ensure the working accuracy of the processing materials.

7.This China woodworking carving machine with heavy structure using generous walled tube T-type structure,tempering and vibration aging treatment etc

8.All the furniture woodworking cnc router can be customized according to your request

Parameters of 4 Process Furniture Engraving Router with Double Working Table

NO

Description

Parameter

1

X,Y,Z, Working Area

1300x5000x200mm

2

Table Size

1300x2500mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy:

±0.03mm/300mm

5

Frame

Heavy Steel Tube Structure

6

X, Y Structure

Rack and Pinion Drive,Hiwin Rail Linear Bearings

7

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

8

Max. Power Consumption

(Without Spindle)About  15Kw

9

Max. Rapid Travel Rate

X  40000mm/min; Y  40000mm/min; Z  6000mm/min

11

Spindle Power

Italy HSD Spindle / Chinese Air Cooling Spindle

12

Spindle Speed

0-24000RPM

13

Drive Motors

YASKAVA Servo motors

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

15

Command Language

G Code

16

Operating System

SYNTEC Control System / Weihong

17

Computer Interface

USB / Ethernet

18

Flash Memory

512M

19

Collet

ER32

20

X,Y Resolution

<0.03mm

21

Software Compatibility

Type3/UcancameV9 software (Option: Artcam software)

22

Running Environment Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%

Details Show of 4 Spindle Double Working Table Wood Engraving & Drilling Router


furniture wood plate cutting spindle

furniture mdf board cutting spindle

Double worktable for furniture engraving router
Double worktable for furniture engraving router

furniture plate cutting router with Taiwan Hiwin Rail
furniture plate cutting router Hiwin Rail

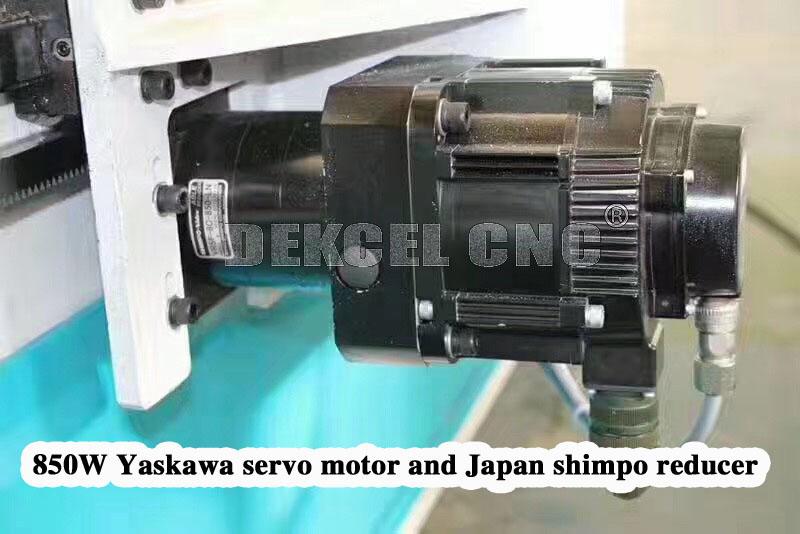

furniture cutting router Yaskawa servo motor
furniture cutting router Yaskawa servo motor
wood furniture cutting and drilling positioning system
wood furniture cutting positioning system

Applications of 4 Process Furniture Woodworking Router

1. Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc

3. Board processing:insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

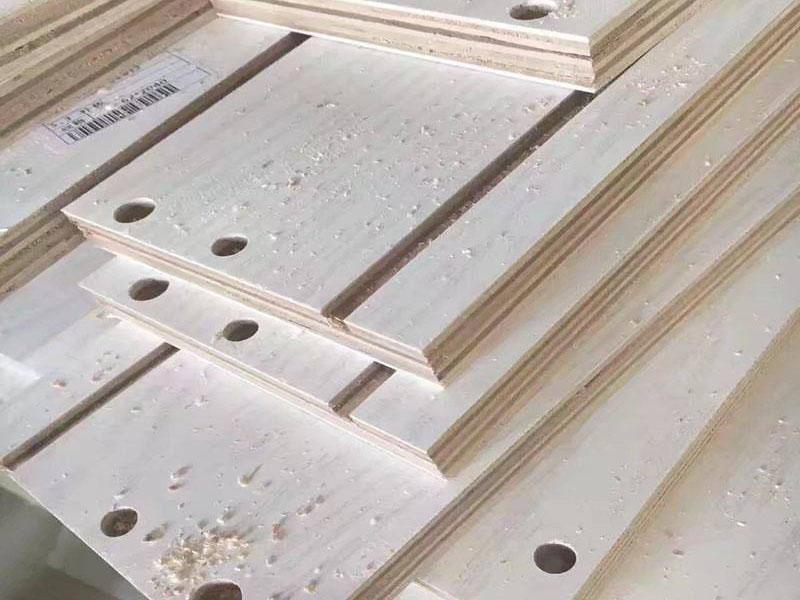

furniture plate cutting and drilling

furniture plate cutting and drilling
Dekcel cnc wood MDF plate cutting router
Dekcel cnc wood MDF plate cutting router

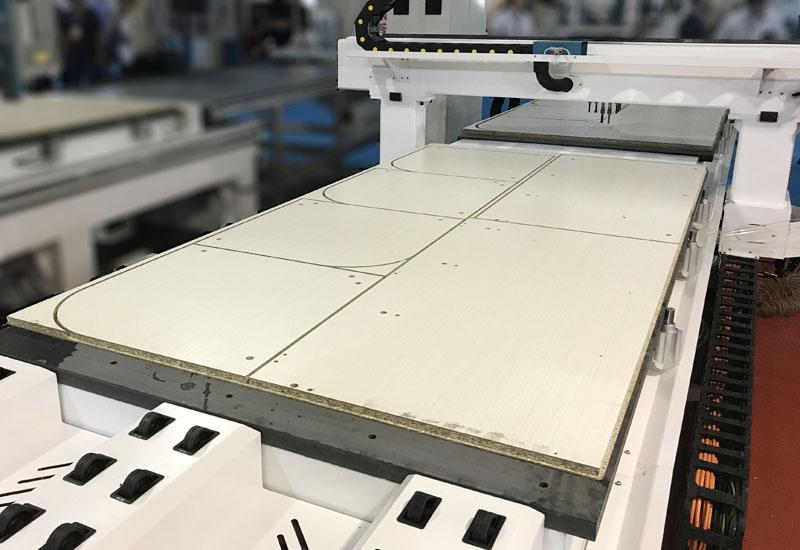

Dekcel cnc wood plate cutting & drilling
dekcel cnc wood plate cutting drilling
MDF board engraving router machine
MDF board engraving router machine
