Best Cabinet Door CNC Router Bits | Furniture Making Machine For Sale

With Dekcel ATC furniture production cnc router Saving time and labor,materials,replace traditional CAD drawer,
splitting men,cutting men,only need 8 minutes to input size&design&split.Automatic layout optimization,improve material utilization.ensure the quality of the order.
  • DEK-1325-ATC


  • 120

Best ATC Cabinet Door CNC Router Bits | Furniture Making Machine For Sale
dekcel customized-panel-furniture-solutions cnc router

Advantages of Customized Furniture ATC Engraving CNC Router :
1. Good effect of processsing:High precision,cutting material very smoothly,Automatic design,automatic classification,without human intervention.
2. Improve work efficiency:Auto feeding materials,automatic layout optimization,improve material utilization.
3. Save working time:Automatic feeding,save the time of labor,no human intervention,minimizing error rate to minimum,ensure the quality of the order.

Furniture Cabinet Door Making Machine  Video Show

ATC Customized Furniture Production Engraving Router Function
1. Automatical Labeling
Our ATC wood furniture cutting router can show a barcode/order No./ board size etc.information on each board.The label information also can be customized according to your requirement.
2. Automatical Feeding
The furniture production line router will suck the wood board to the worktable automatically.
3. Automatical CNC Processing
The cutting,milling, drilling, engraving work all can be done by this machine.
4. Automatical discharge
After the MDF wood plate processing finish,the boards are discharged automatically.
5. Furniture Production Line Router's Assistant Device

Edge Banding Machine and Side Hole Drilling Machine

Configuration of Customized Wood Furniture Making CNC Router

1. Italy 9.0kw HSD Air cooling engraving spindle.
2. Taiwan SYNTEC ATC cnc router control system.
3. Japan YASKAWA servo motor and driver, more stable and stronger.
4. Japan Shimpo reducer.
5. Auto Tool Changer with 12 knives. it is suitable for multi pattern processing,fast tool changing speed,simple maintenance.
6. Taiwan HIWIN linear guide.
7. XY axis is German herison rack gear transmission ,Zaxis transmission is Taiwan TBI.
8. Auto position cylinder.
9. Tool sensor.
10 Energy-saving vacuum table function and dust collector can protect the environment.

11. Software has good compatibility and compatibles with various CAD/CAM design software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.

Parameters of ATC Wood Cabinet Door Mking CNC Router

Description  Parameter
Travelling size 2500x1260x200mm
Working size 2440x1240x50mm
Table size 2440x1250mm
Table Surface Vacuum absorption Table
Load & unload speed 15m/min
X, Y Structure Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Spindle power 9.0kw Italy HSD ATC air cooling spindle
Spindle speed  0-24000rpm/min
Travelling speed 45m/min
Working speed 30m/min
Motor Reducer Japan Shimpo
Drive Motors Japan YASKAWA
Working Voltage AC380V/50/60Hz,3PH
Control System Taiwan SYNTEC control system
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment  Temperature 0 - 45 Centigrade

Customized Furniture ATC Making Router's Details Show

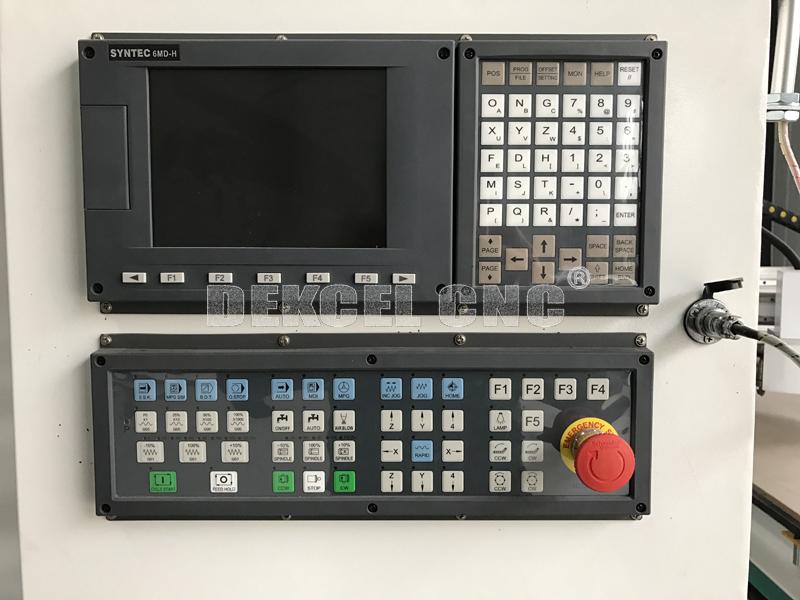

Syntec controller system with more functions for customized furniture cutting,hole drilling,engraving ect.

Taiwan Syntec control system

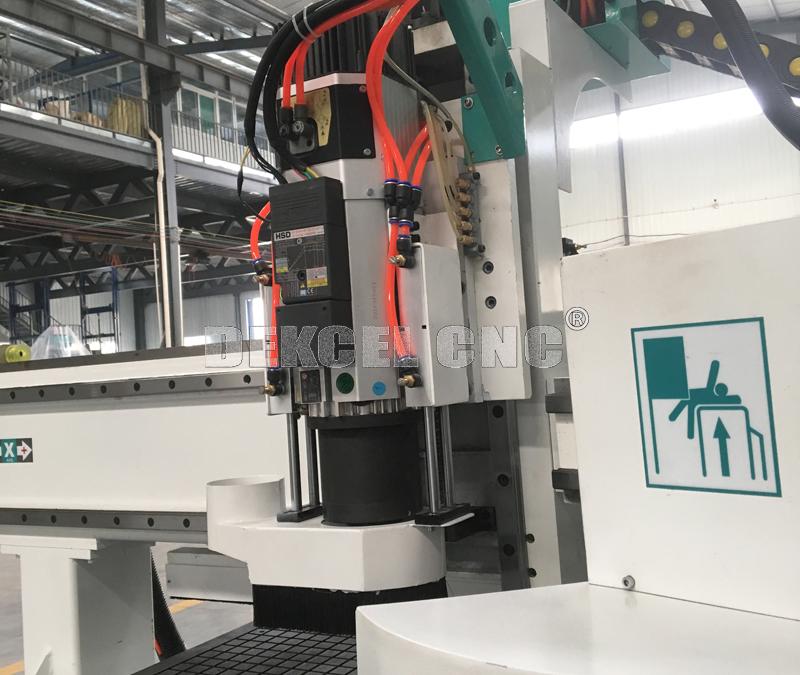

9.0KW Italy HSD spindle and boring head with High quality and  long life, good after sale service

HSD 9.0KW spindle of ATC furniture CNC Router

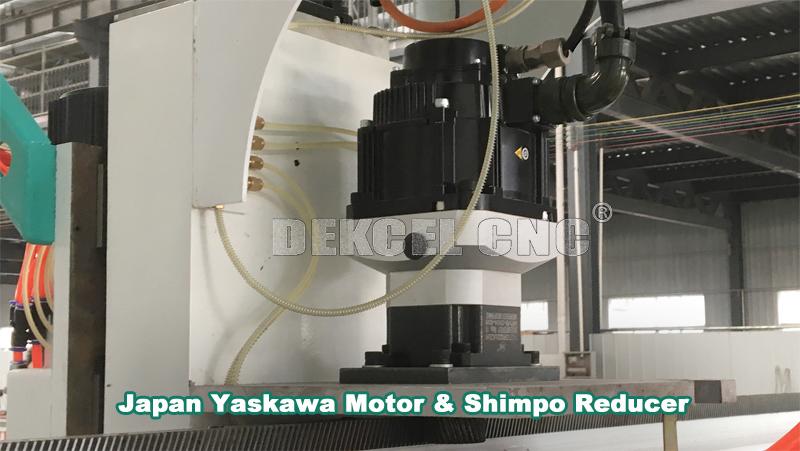

Japan YASKAWA servo motor with high quality and strong power & Japan Shimpo reducer.

Japan Yaskawa servo motor and SHIMPO reducer

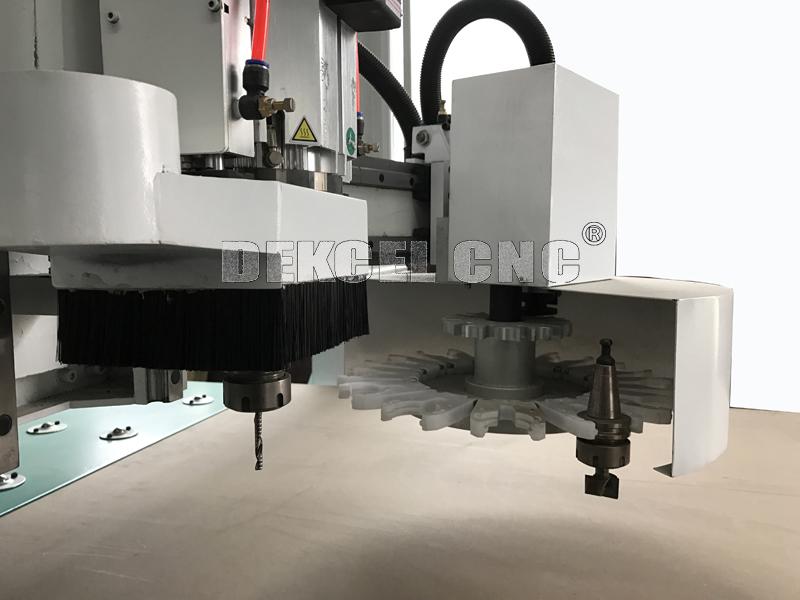

ATC tool magzine with 12 positions

12 pieces tool magzine for ATC cnc router

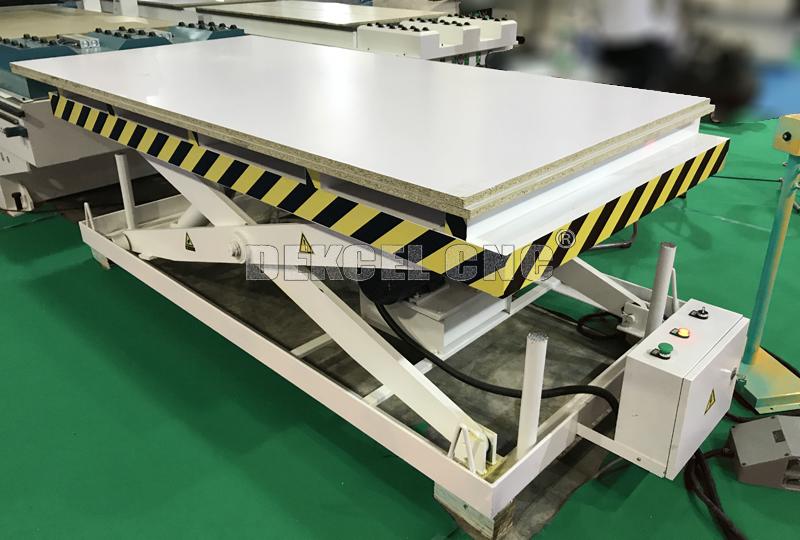

Auto loading table with auto up and down function,make sure the right height for the suction system

auto feeding system

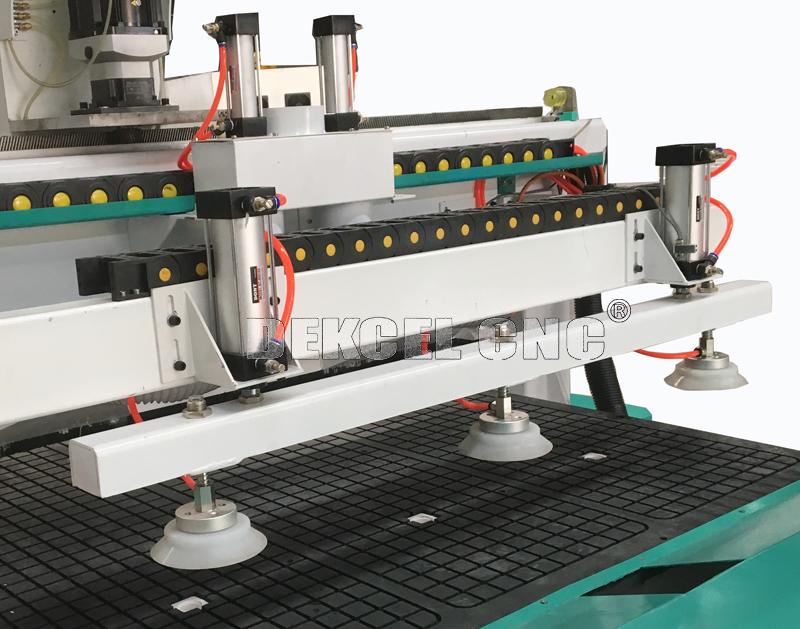

Furniture production line's wood palte auto suction system and pushing system.

After the ATC CNC router finish cutting,drilling,engraving work,machine will back too the loading table position.

first machine's pushing system down meanwhile the suction system catch one wood plate.

Furniture plate auto suction and pushing system

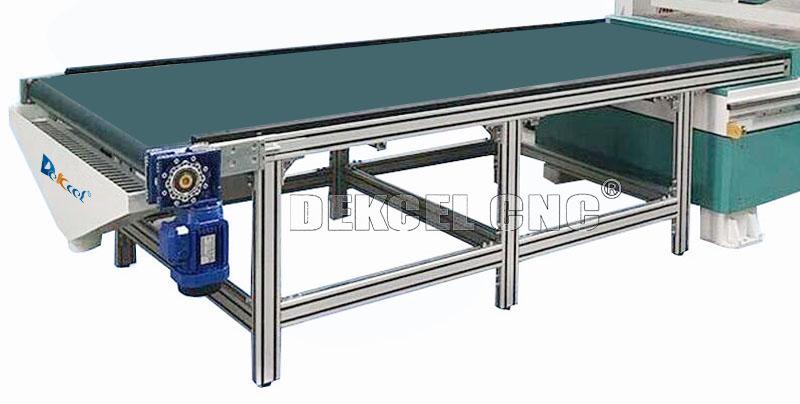

Auto unloading system

auto unloading system

Applicable Materials & Industry of ATC Wood CNC Router  :

1. Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.

2. The wood products: voice box, game cabinets, computer tables, sewing machines table,  instruments.
3. Plate processing: insulation part, plastic chemical components. PCB, inner body of car, bowing  tracks, stairs, anti-bate board, epoxy resin, ABS, PP,PE and other carbon mixed compounds.

4.Decorate industry: Acrylic, PVC, MDF, artificial, stone, organic glass, plastic and soft metals  such as copper, aluminum plate engraving and milling process.

wood furniture ATC cutting router machine software

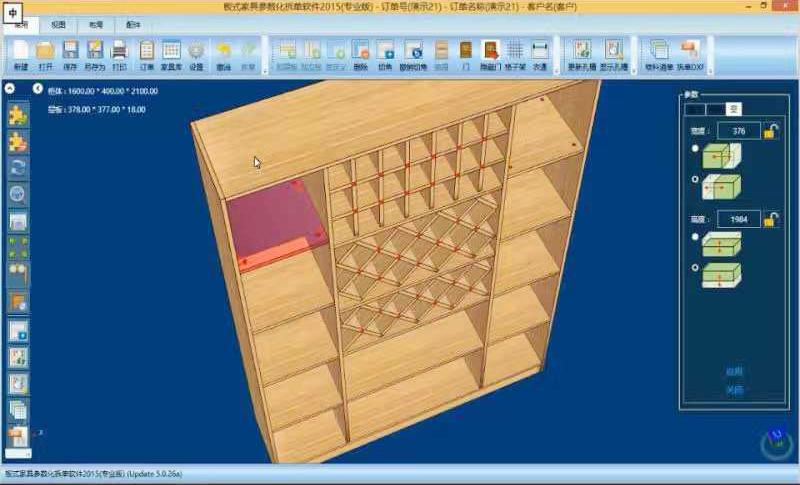

wood furniture ATC engraving router machine software

customized MDF wood furniture production line router
